Manufacturer: BERKER
Number of keys: 1
Color: Gray
Shape: Square
Price:
19,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

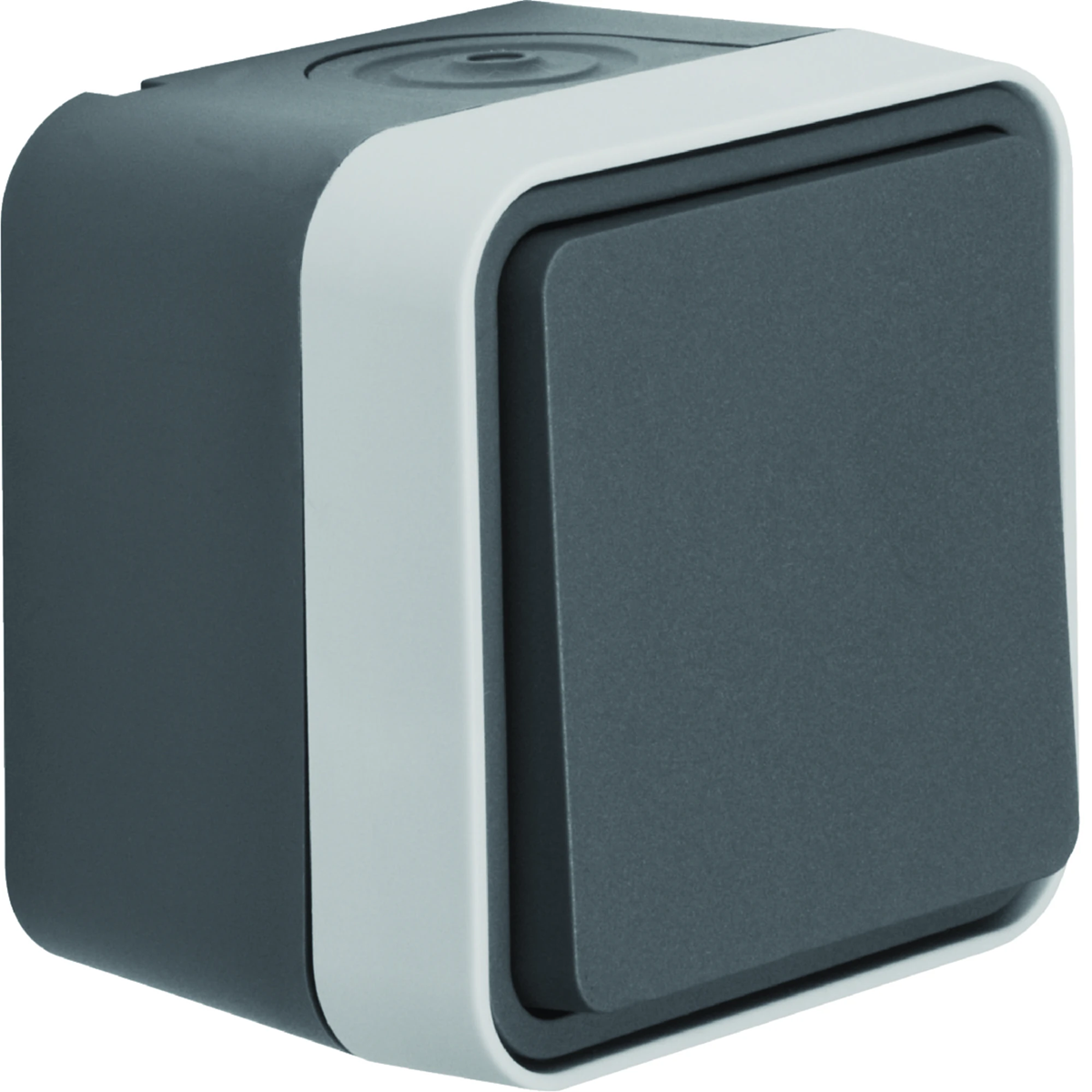

1-pole push-button switch from the W.1 series, from the manufacturer Berker. Product part number is 50453525.



FEATURES

  • Complete.
  • Surface mounted .
  • For screw connection.
  • With Wago 2-pole terminal block for wiring.
  • With 2 clips for Wago 2-pole terminal block on the bottom housing.
  • With plug-in terminals.
  • With entry for 2 wires and entry of cable or pipe.
  • With full-surface seal on the rear side of the housing for insertion cable from the back and fitting to the plaster.
  • Quick release pins made of ZAMAK.
  • Mechanisms achieve IP55 protection only when mounted with a surface-mounted housing or mounting frame flush-mounted.
  • Stainless stainless steel latching cover springs, ZnAl alloy latch pins.



SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation accessories, which is distinguished by its innovative design. NO switch characterizes the features of this unique series.< /p>

Technical data

  • Number of keys
    1
  • Shape
    Square
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP55
  • Version
    Confident
  • Accurate color
    dark grey
  • Terminal type
    Threadless
  • For the frame system
    NO
  • Seal
    Yes
  • Color
    Gray
  • Material
    Plastic
  • Rated current [A]
    10
  • Family
    W.1
  • Type
    Surface-mounted
  • Surface finish
    matte
  • Backlight
    NO
  • Variant
    Ordinary
  • Exact material
    Material Metal
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element with complete housing
  • Method of operation
    Rocker
  • Number of modules (module system)
    0
  • Nominal voltage
    250 V
  • With lighting
    No
  • Feedback-signal contact
    No
  • Type of fastening
    Screw mounting
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    7011
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP55
  • Device height
    77 mm
  • Model
    Single push button
  • Number of rockers
    1
  • Number of poles
    1
  • Rated current
    10 A
  • With signal lamp
    No
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    Grey
  • Transparent
    No
  • Imprint
    None
  • Device width
    77 mm
  • Device depth
    65 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 30 pcs. 960 pcs.
Weight (kg) 0,120 1,294 4,308 162,856
Width (m) 0,077 0,160 0,300 0,800
Length (m) 0,065 0,085 0,225 1,050
Depth (m) 0,077 0,325 0,400 1,200
