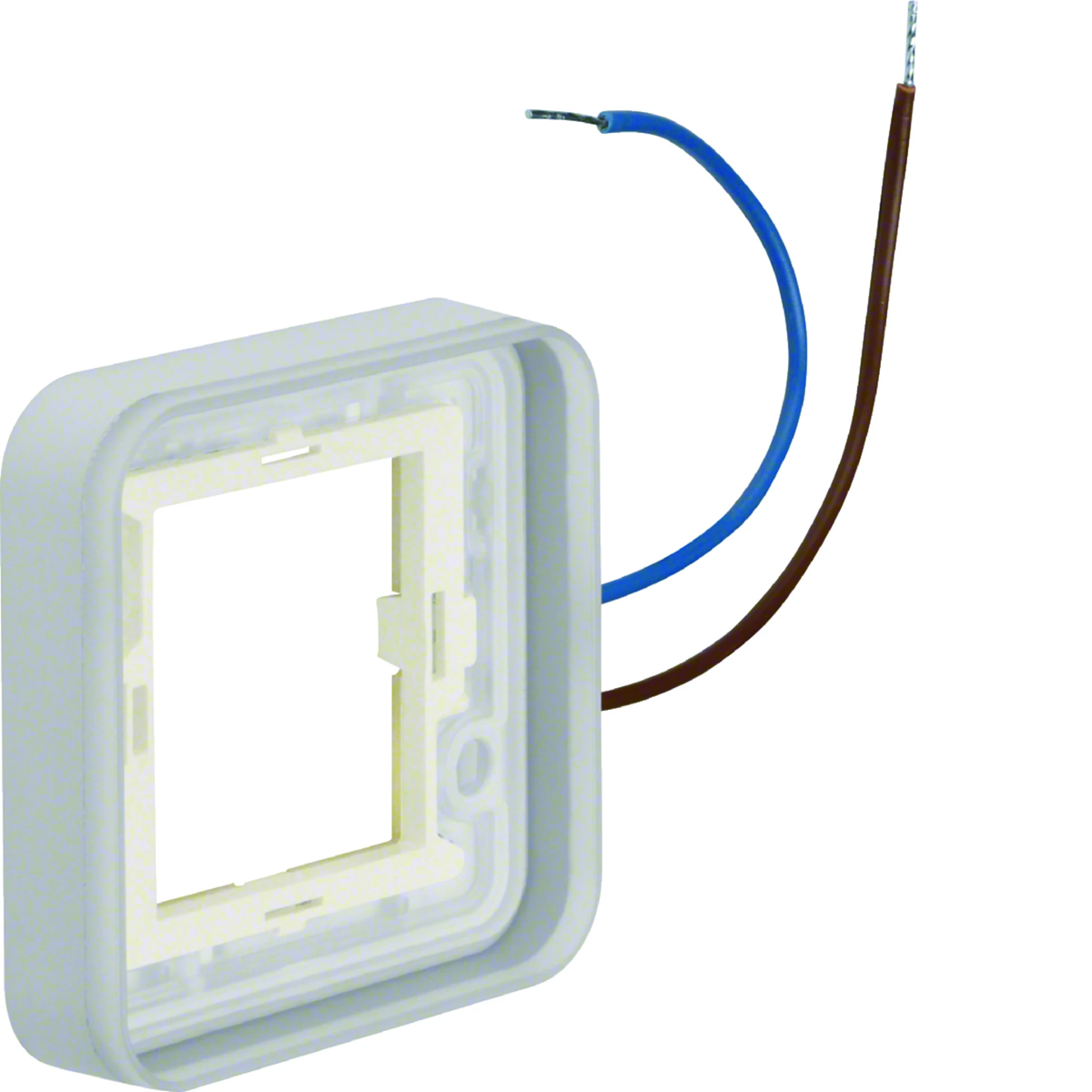

W.1 1-gang frame with white backlight 230V 0.3 mA for junction boxes IP55 13383512

local index:
MAR388BERK
Catalog No:
13383512
EAN code:
4011334404491
Manufacturer: BERKER
Depth [mm]: 23
Number of modules: 1
Color: Gray
Price:
54,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single frame with white backlight, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance.

    < li> for wall-mounted boxes
  • IP55
  • Version: 230V - 0.3 mA

Technical data

  • Depth [mm]
    23
  • Color
    Gray
  • Material
    Plastic
  • Type
    Standard
  • Level of security
    IP20
  • Height [mm]
    83
  • Operating temperature range [°C]
    from -40 to 30
  • Accurate color
    light gray
  • storage temperature [°C]
    from -50 to 50
  • For modular equipment
    Not applicable
  • PKWIU
    27.12.40.0
  • Number of modules
    1
  • Shape
    Square
  • Rated current [A]
    0.0025
  • Family
    W.1
  • Width [mm]
    83
  • Surface protection
    Natural
  • Surface finish
    matte
  • AC operating voltage [V]
    230
  • Mounting direction
    Universal
  • The shape of the matching accessory
    Square, Rectangular

Other technical data

  • Number of units
    1
  • Number of units horizontal
    1
  • Number of modules horizontal (module system)
    0
  • Liczba łączników
    1
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    Yes
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    7035
  • With hinged lid
    No
  • Impact strength
    IK05
  • Width
    83 mm
  • Depth
    23 mm
  • Built-in height
    71 mm
  • Mounting direction
    Vertical
  • Number of units vertical
    1
  • Number of modules vertical (module system)
    0
  • With mounting grid
    No
  • Suitable for wall duct
    Yes
  • Label space/information surface
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Grey
  • Transparent
    No
  • Degree of protection (IP)
    IP20
  • Type of fastening
    Clamping/screw mounting
  • Height
    83 mm
  • Built-in width
    71 mm
  • Diameter bore hole (opening)
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 93 pcs. 3720 pcs.
Weight (kg) 0,040 0,056 5,648 250,920
Width (m) 0,082 0,080 0,300 0,800
Length (m) 0,035 0,040 0,338 1,840
Depth (m) 0,082 0,100 0,400 1,200
