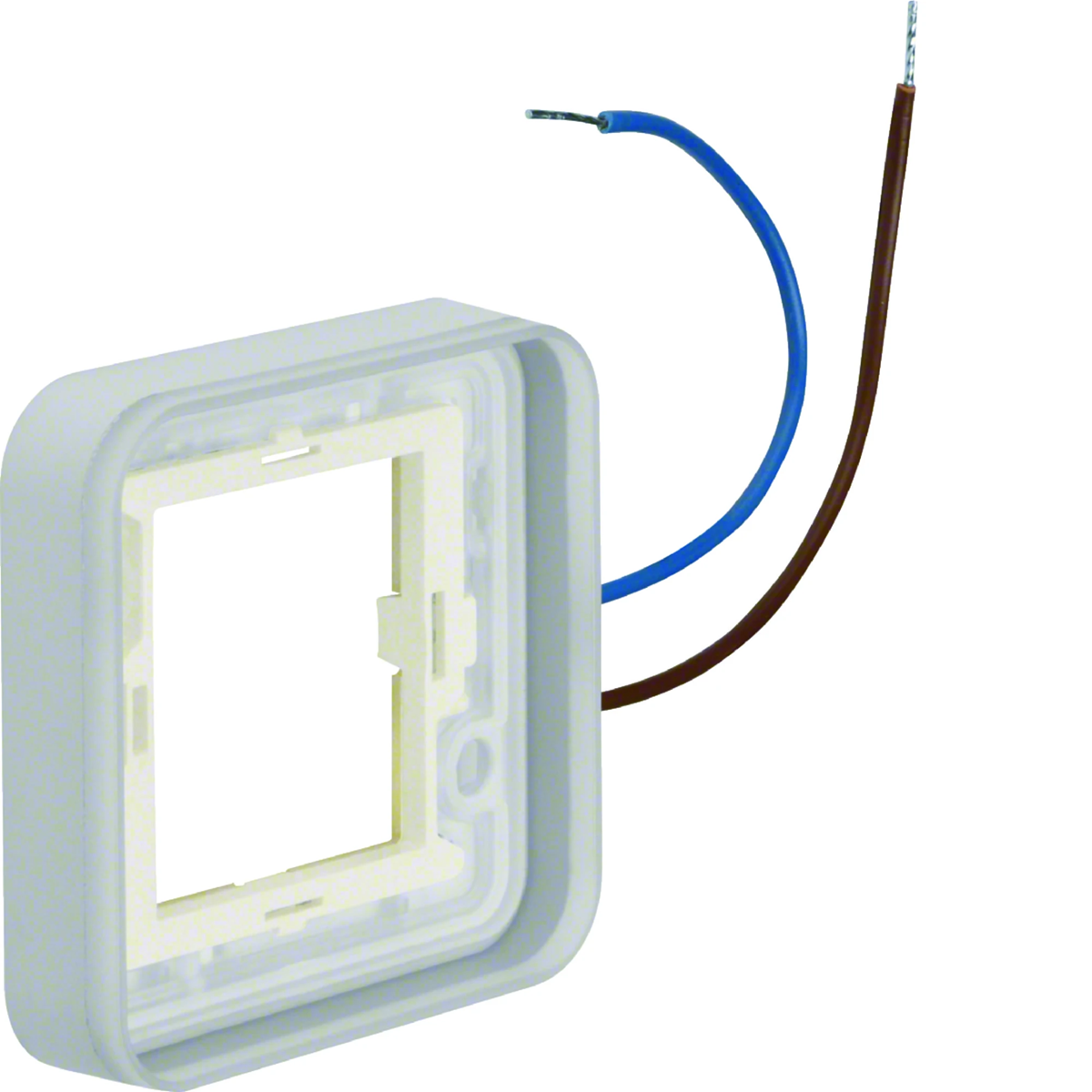

W.1 1-gang frame with white backlight 12-24V 0.6 mA for junction boxes IP55 13383502
local index:
MAR386BERK
Catalog No:
13383502
EAN code:
4011334404477
Price:
54,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Single frame with white backlight, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance.
- < li> for surface mounted boxes
- IP55
- Version: 12 ... 24 V - 0.6 mA
Technical data
-
Depth [mm]23
-
ColorGray
-
MaterialPlastic
-
TypeStandard
-
Level of securityIP20
-
Height [mm]83
-
Operating temperature range [°C]from -40 to 30
-
Accurate colorlight gray
-
storage temperature [°C]from -50 to 50
-
For modular equipmentNot applicable
-
PKWIU27.12.40.0
-
Number of modules1
-
ShapeSquare
-
Rated current [A]0.0052
-
FamilyW.1
-
Width [mm]83
-
Surface protectionNatural
-
Surface finishmatte
-
DC operating voltage [V]12 - 24
-
Mounting directionUniversal
-
The shape of the matching accessorySquare, Rectangular
Other technical data
-
Number of units1
-
Number of units horizontal1
-
Number of modules horizontal (module system)0
-
Liczba łączników1
-
Suitable for subfloor installation duct boxNo
-
Suitable for built-in installationYes
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)7035
-
With hinged lidNo
-
Impact strengthIK05
-
Width83 mm
-
Depth23 mm
-
Built-in height71 mm
-
Mounting directionVertical
-
Number of units vertical1
-
Number of modules vertical (module system)0
-
With mounting gridNo
-
Suitable for wall ductYes
-
Label space/information surfaceNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourGrey
-
TransparentNo
-
Degree of protection (IP)IP20
-
Type of fasteningScrew mounting
-
Height83 mm
-
Built-in width71 mm
-
Diameter bore hole (opening)0 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 93 pcs. | 3720 pcs. |
| Weight (kg) | 0,040 | 0,055 | 5,571 | 242,840 |
| Width (m) | 0,082 | 0,080 | 0,300 | 0,800 |
| Length (m) | 0,035 | 0,040 | 0,338 | 1,840 |
| Depth (m) | 0,082 | 0,105 | 0,400 | 1,200 |
