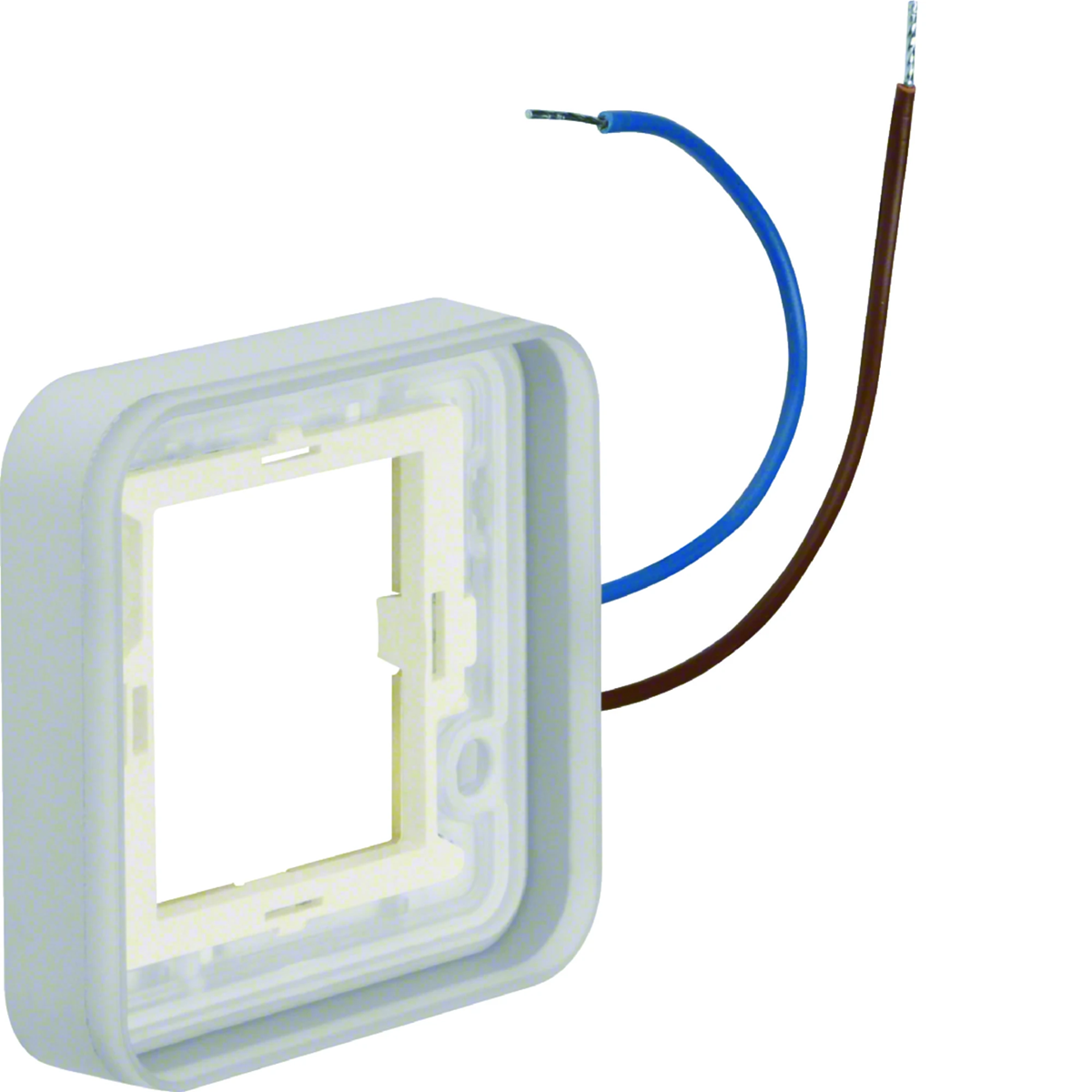

W.1 1-gang frame with blue backlight 230V 0.5 mA for junction boxes IP55 13383513
local index:
MAR389BERK
Catalog No:
13383513
EAN code:
4011334404507
Price:
54,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Single frame with blue backlight, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance.
- < li> for wall-mounted boxes
- IP55
- Version: 230V - 0.5 mA
Technical data
-
Depth [mm]23
-
ColorGray
-
MaterialPlastic
-
TypeStandard
-
Level of securityIP20
-
Height [mm]83
-
Operating temperature range [°C]from -40 to 30
-
Accurate colorlight gray
-
storage temperature [°C]from -50 to 50
-
For modular equipmentNot applicable
-
PKWIU27.12.40.0
-
Number of modules1
-
ShapeSquare
-
Rated current [A]0.0025
-
FamilyW.1
-
Width [mm]83
-
Surface protectionNatural
-
Surface finishmatte
-
AC operating voltage [V]230
-
Mounting directionUniversal
-
The shape of the matching accessorySquare, Rectangular
Other technical data
-
Number of units1
-
Liczba łączników1
-
Suitable for subfloor installation duct boxNo
-
Suitable for built-in installationYes
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)7035
-
Degree of protection (IP)IP20
-
Type of fasteningScrew mounting
-
Height83 mm
-
Built-in width71 mm
-
Diameter bore hole (opening)0 mm
-
Mounting directionVertical
-
With mounting gridNo
-
Suitable for wall ductYes
-
Label space/information surfaceNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourGrey
-
TransparentNo
-
Impact strengthIK05
-
Width83 mm
-
Depth23 mm
-
Built-in height71 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 93 pcs. | 3720 pcs. |
| Weight (kg) | 0,040 | 0,055 | 5,571 | 242,840 |
| Width (m) | 0,082 | 0,042 | 0,300 | 0,800 |
| Length (m) | 0,035 | 0,081 | 0,338 | 1,840 |
| Depth (m) | 0,082 | 0,100 | 0,400 | 1,200 |
