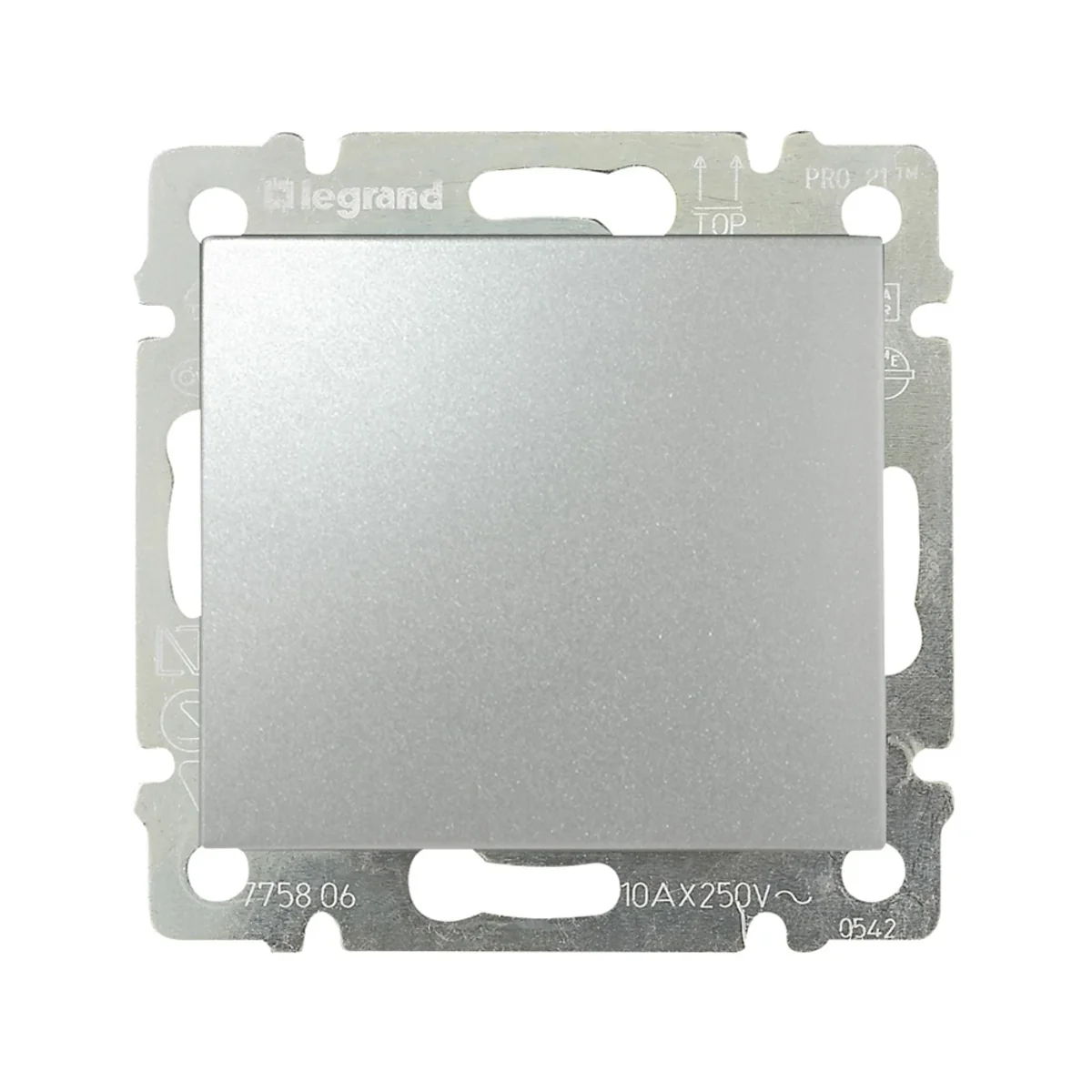

VALENA Aluminum one-way connector 770101
local index:
MMP021LEGR
Catalog No:
770101
EAN code:
3245067701010
Price:
6,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Single-pole switch from the Valena series, from the manufacturer Legrand. The product catalog number is 770101.
- Mechanism with a metal handle, assembly with claws or screws
- To be equipped with a frame
- Mechanism complete with key/tag
- Compatible with fluorescent lamps
Technical data
-
Number of keys1
-
ShapeSquare
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyVALENA
-
TypeFlush-mounted
-
BacklightNO
-
PKWIU27.33.11.0
-
ColorSilver
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeSingle
-
Level of securityIP20
-
Accurate colorAluminum
-
For the frame systemYes
Other technical data
-
Wiring systemOff switch 1-pole
-
Assembly arrangementBasic element with central cover plate
-
Number of rockers1
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)7040
-
IlluminationNo
-
Type of lightingOther
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typeOther
-
Device width71 mm
-
Device depth37 mm
-
Min. depth of built-in installation box30 mm
-
Method of operationRocker/button
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateYes
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
ColourAluminium
-
Label space/information surfaceNo
-
Function lightingOther
-
Suitable for degree of protection (IP)IP31
-
Rated current10 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height71 mm
-
Built-in depth21 mm
Bulk packaging
| A kind of package | Pudełko | Karton | Paleta |
| Quantity | 10 pcs. | 100 pcs. | 1000 pcs. |
| Weight (kg) | 0,767 | 7,970 | 79,700 |
| Volume (m3) | 0,000 | 0,000 | 0,001 |
| Width (m) | 0,175 | 0,386 | 1,200 |
| Length (m) | 0,055 | 0,300 | 0,549 |
| Depth (m) | 0,395 | 0,405 | 1,000 |
