Manufacturer: BERKER
Number of keys: 2
Shape: Square
Material: Plastic | Metal
Price:
172,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

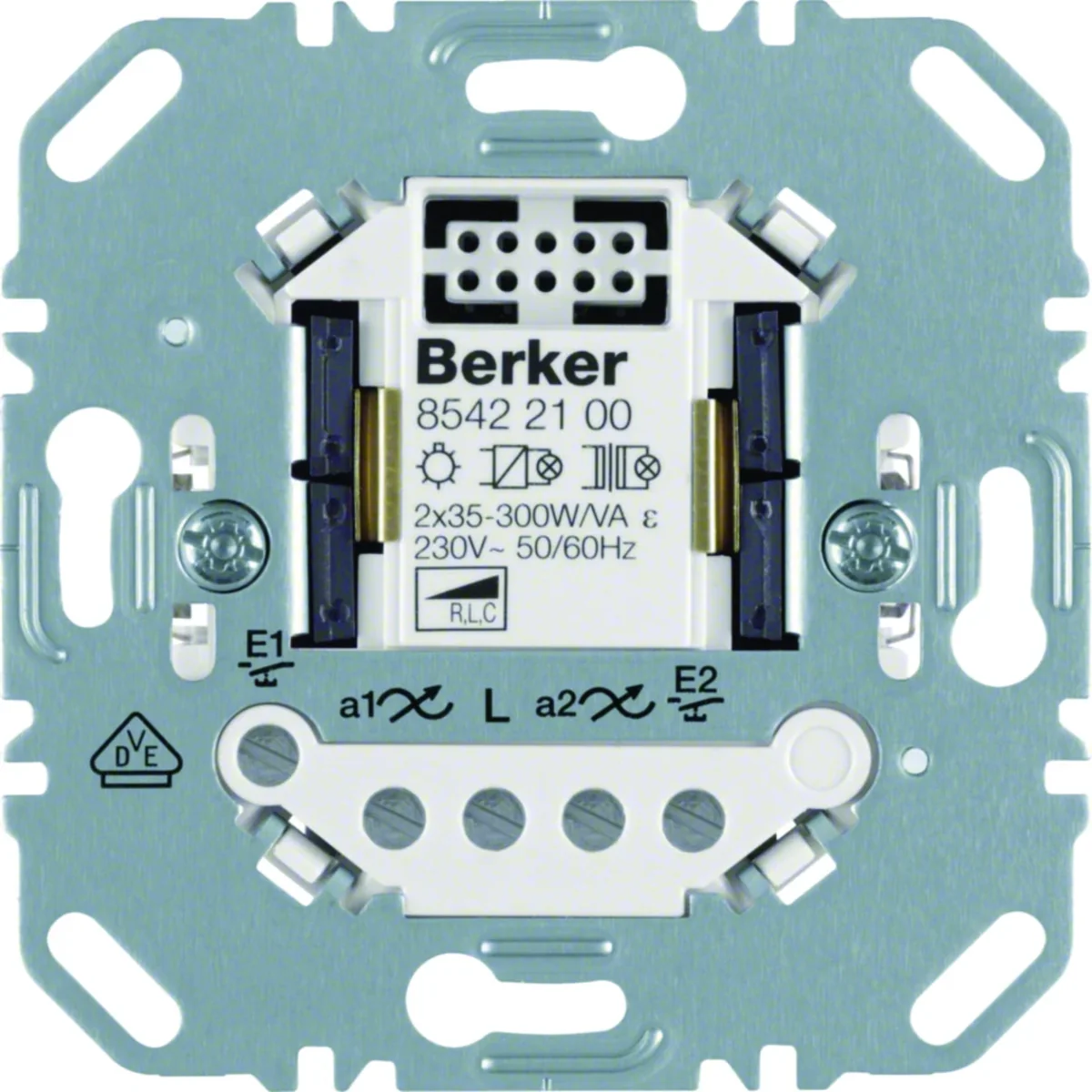

Universal 2-gang dimmer mechanism from the  one.platform series. The product catalog number is 85422100. p>

  • Short circuit and overload protection (fuse).
  • Power:
    • Conventional dimming transformers: 35…300VA per channel.
    • Power consumption – standby mode (channel 1/channel 2): < 0.3/0.7 W.
    • Electronic and Bi-Mode transformers: per channel 35…300 W.
    • Dimmable energy saving lamps: per channel 15…54 W.
    • 230V dimmable LED lamps: 12…40W per channel.
    • 230V halogen bulbs and fluorescent lamps:  35…300 W per channel.
  • With 2 extension inputs for pushbutton switches (make contacts) with one-level operation.
  • None conductive connection between the carrier ring and the expansion lugs.
  • Length of the load cable: max. 100 m
  • Expansion cable length: max. 50 m.
  • Optimization of the dimming function by precise setting of the type of load and special setting modes.
  • Automatic setting of the load-dependent switching mode (autoDetect method).
  • Regulation by clipping or cutting the chamfer depending on the type of load, "self-learning".

Technical data

  • Number of keys
    2
  • Material
    Plastic Metal
  • Rated voltage [V]
    230
  • Family
    ONE.PLATFORM
  • Version
    For halogen lighting For LED
  • Mounting depth [mm]
    32
  • Variant
    Button
  • PKWIU
    27.33.11.0
  • Shape
    Square
  • Fixing
    Expanding claws
  • Type
    dimmers
  • Type
    The linkage mechanism
  • Backlight
    NO
  • Terminal type
    Threaded
  • For the frame system
    Yes

Other technical data

  • Assembly arrangement
    Basic element
  • Serial dimmer
    Yes
  • Substation input
    Yes
  • Applicable with button
    Yes
  • Applicable with presence indicator
    No
  • Applicable with transmission button
    Yes
  • Mounting method
    Flush-mounted
  • Material
    Other
  • Halogen free
    Yes
  • Transparent
    No
  • Nominal voltage
    230 ... 230 V
  • Connection type
    Screwed terminal
  • Device height
    71 mm
  • Method of operation
    Push button
  • Type of load
    Universal
  • Light value memory
    No
  • Applicable with movement sensor
    No
  • Applicable with time switch/timer
    No
  • Applicable with infrared button
    No
  • Type of fastening
    Mounting with claw
  • Material quality
    Other
  • Surface protection
    Untreated
  • Suitable for degree of protection (IP)
    IP20
  • Frequency
    50 ... 60 Hz
  • Device width
    71 mm
  • Device depth
    33.2 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,078 0,110 4,440 167,080
Width (m) 0,071 0,085 0,300 0,800
Length (m) 0,033 0,075 0,225 1,050
Depth (m) 0,071 0,085 0,400 1,200
