Unipolar switch with backlight, 230V, white AQW1L/11

Name: Unipolar switch with backlight, 230V, white
Brand: KONTAKT-SIMON
SKU: MNP003KONT
Price: 5.30 PLN

local index:

MNP003KONT

Catalog No:

AQW1L/11

EAN code:

5902787574253

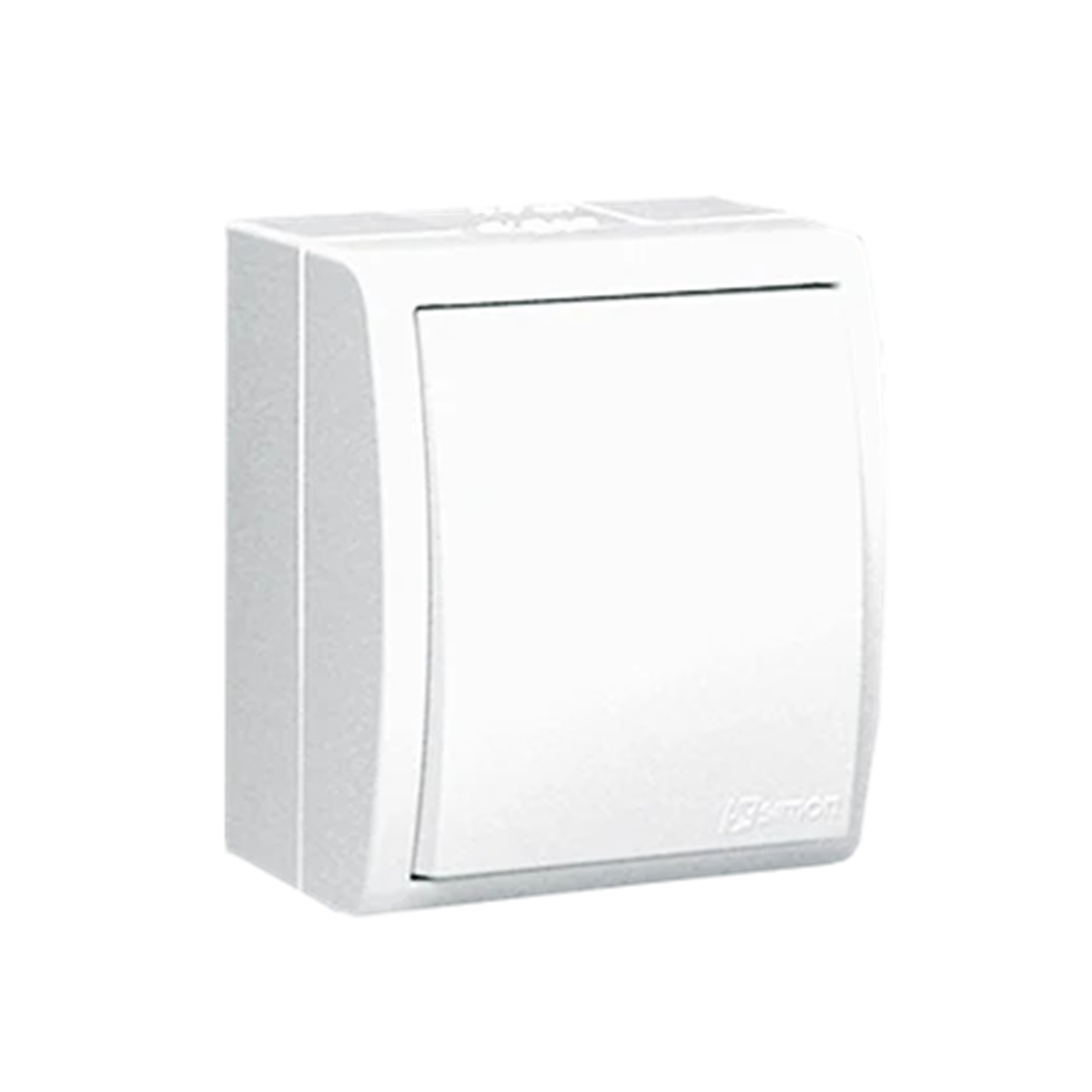

Unipolar switch with backlight, 230V, white

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 48

Number of keys: 1

See full description

Price:

5,30 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Single-pole hermetic switch with backlight, from the Simon Aquarius series. The product catalog number is AQW1L/11.

FEATURES

Backlight built-in, orientation.< /li>
Complete product.
Rocker switch.
Bistable switch.
Screw mounting (e.g. to a box).

SERIES DESCRIPTION

Simon Aquarius is a series of surface-mounted, splash-proof electrical installation equipment intended for use in adverse conditions. Hermetic unipolar switch characterize the features of this unique series.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Rectangular
Fixing

Screws
Rated voltage [V]

230
Type

Single
Level of security

IP54
Type

Surface-mounted
Surface protection

Natural
Backlight

Yes
For the frame system

NO
Backlight type

Smoldering lamp
PKWIU

27.33.11.0

Depth [mm]

48
Color

White
Material

Plastic
Installation

Surface-mounted
Rated current [A]

10
Family

SIMON AQUARIUS
Width [mm]

60
Height [mm]

70
Surface finish

Shiny
Terminal type

Threaded
Exact material

ABS
Backlight color

Orange

Other technical data

Wiring system

Off switch 1-pole
Assembly arrangement

Basic element with complete housing
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V
Connection type

Screwed terminal

Method of operation

Rocker/button
Mounting method

Surface mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP54
Switching current for fluorescent lamps

10 AX

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,083	0,083	0,914
Width (m)	0,070	0,110	0,190
Length (m)	0,060	0,053	0,230
Depth (m)	0,048	0,160	0,100
