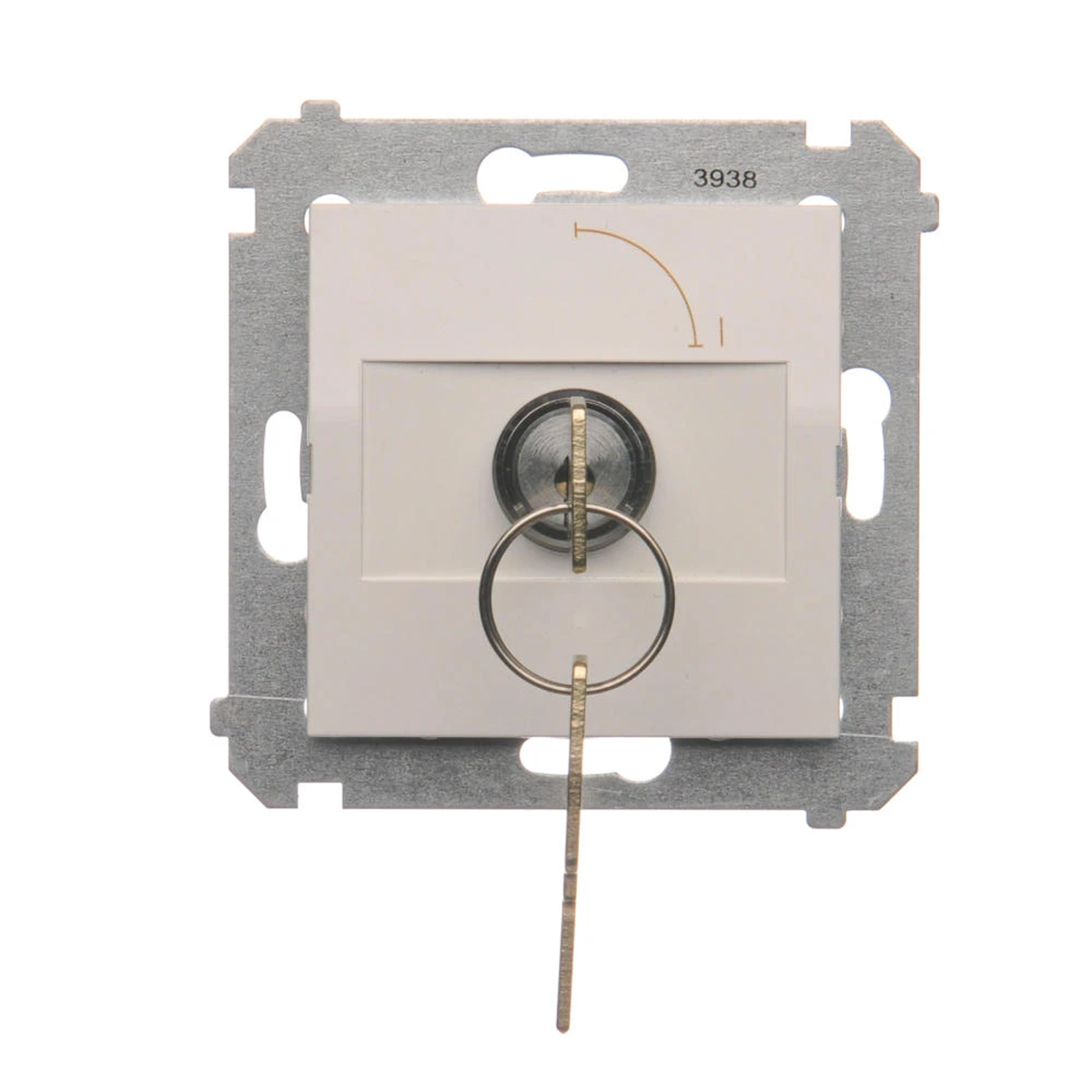

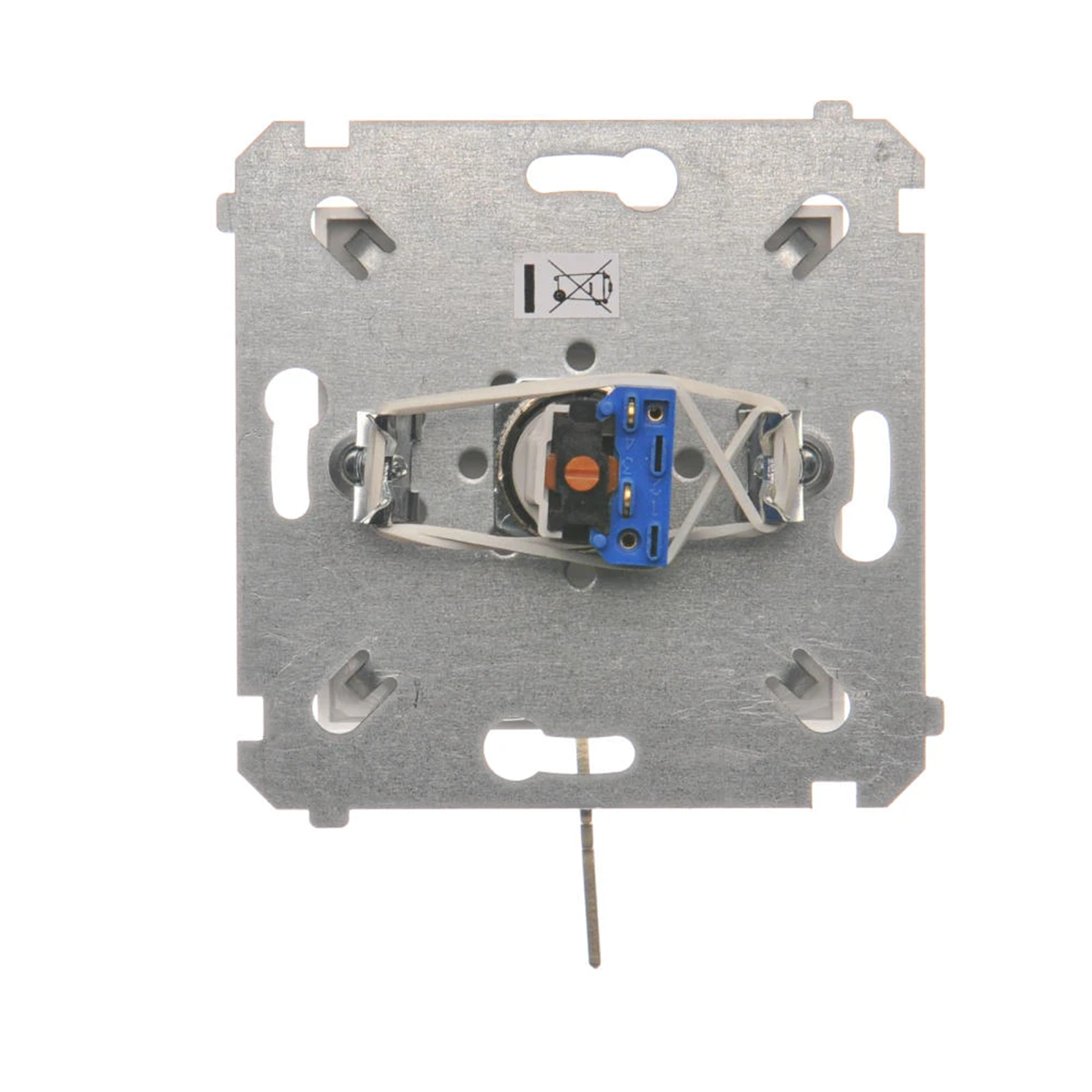

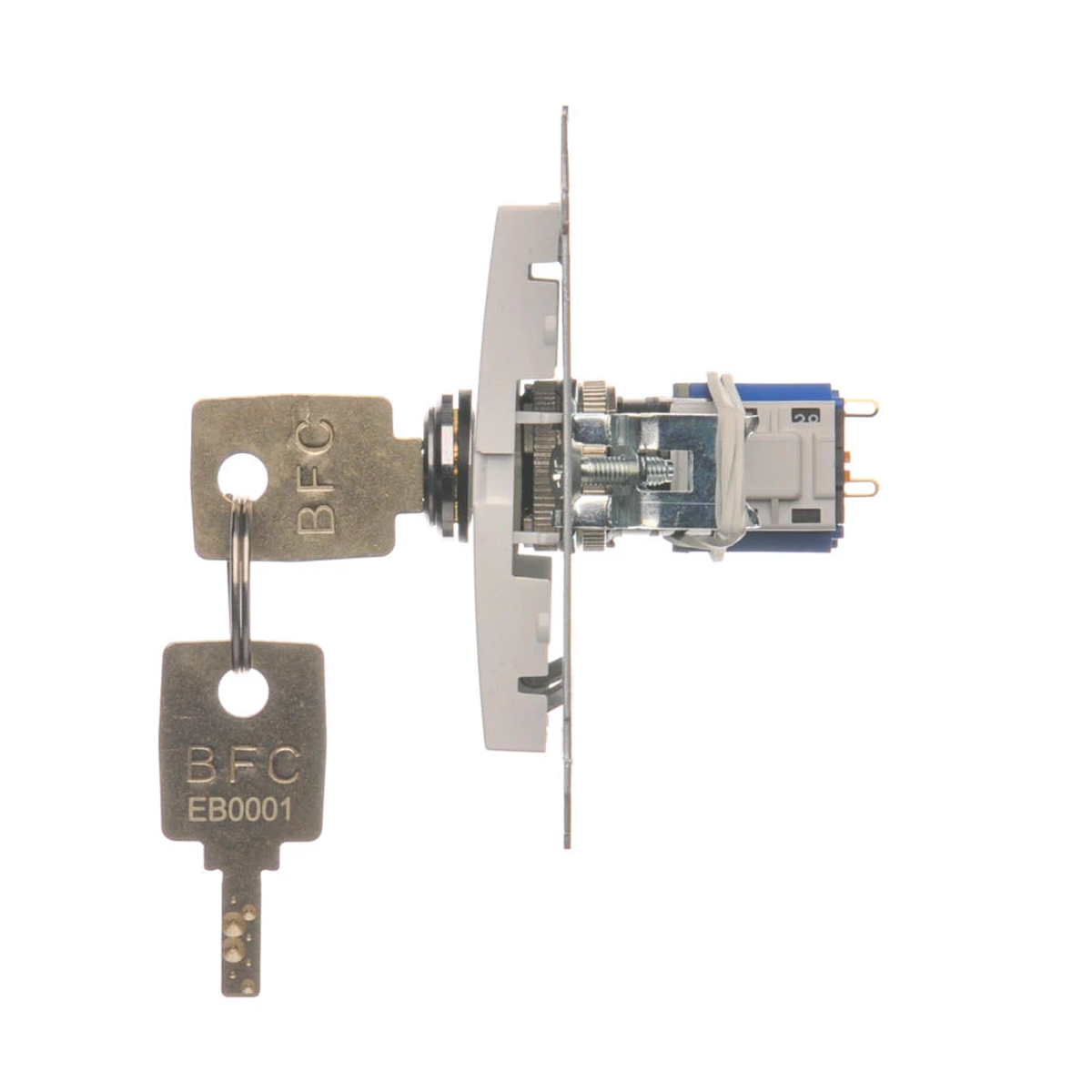

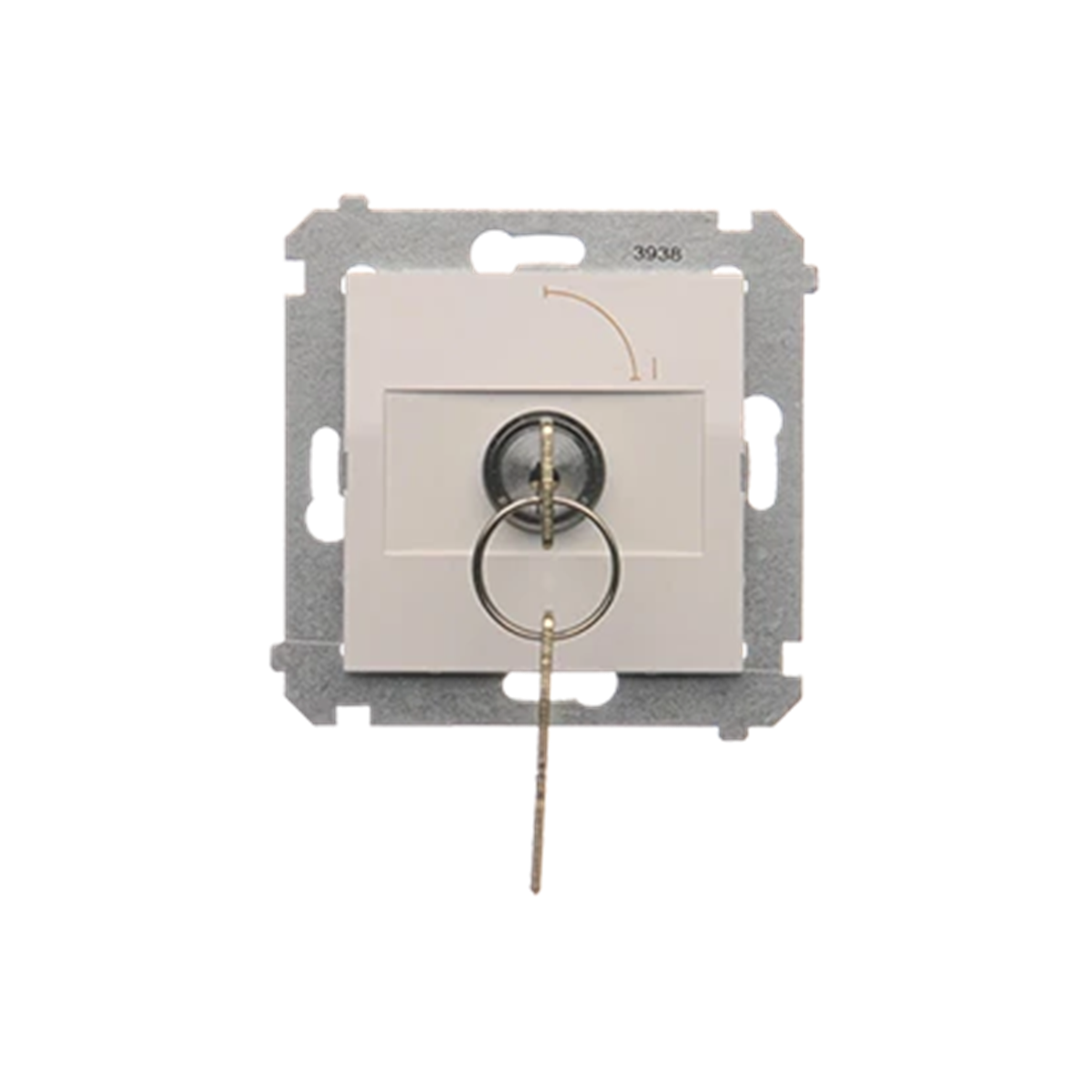

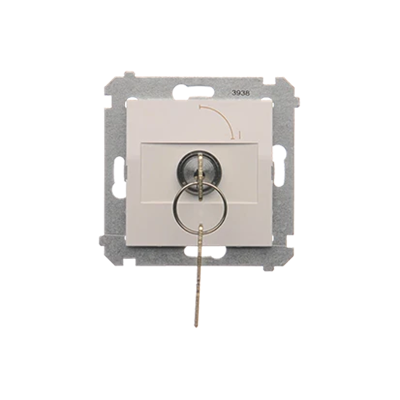

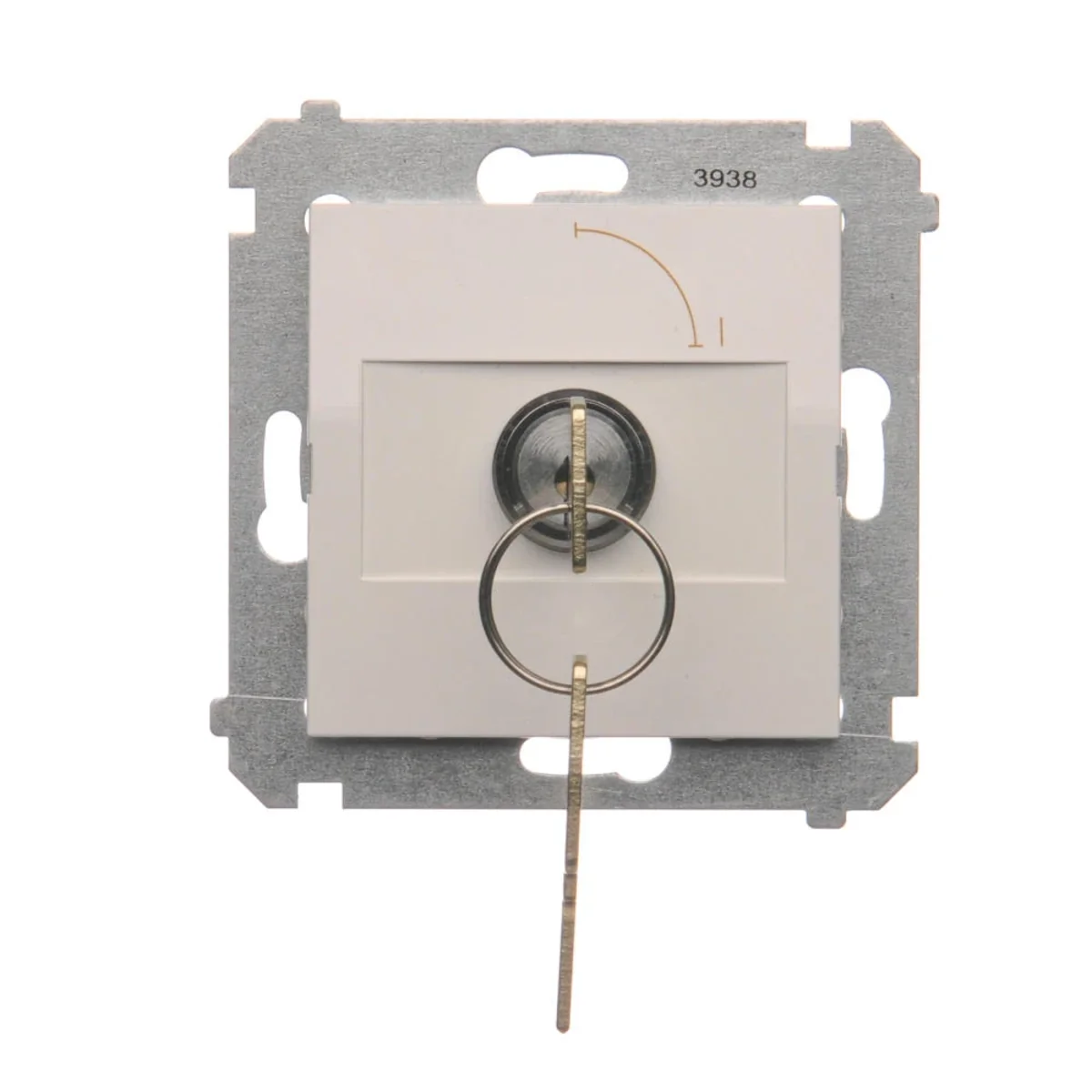

Unipolar key switch (module) 2-position 0-I N/O contact 5 A 230V white DW1K.01/11

Name: Unipolar key switch (module) 2-position 0-I N/O contact 5 A 230V white
Brand: KONTAKT-SIMON
SKU: MMP086KONT
Price: 83.14 PLN

local index:

MMP086KONT

Catalog No:

DW1K.01/11

EAN code:

5902787828646

Unipolar key switch (module) 2-position 0-I N/O contact 5 A 230V white

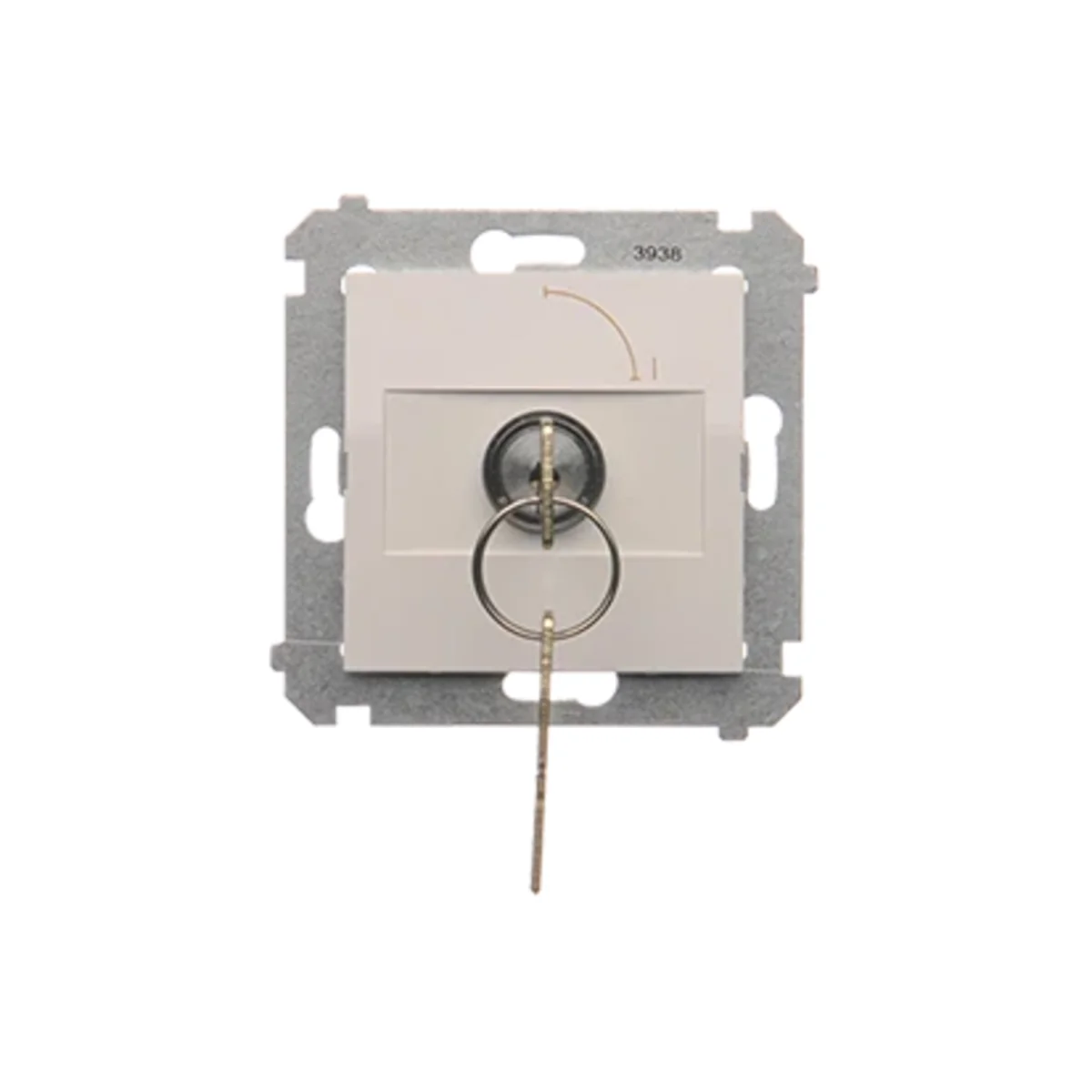

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 47

Number of keys: key

See full description

Price:

83,14 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Single-pole switch (bistable) from the Simon 54 series. Key-operated, 2-position “0-I”. The possibility of removing the key in the each position, 2 pieces of keysów included with the product.

SERIES DESCRIPTION

SIMON 54 is a modern a line of electrical installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by a noble form and rich colors.

Technical data

Halogen free

Yes
Number of keys

key
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Rated current [A]

5
Family

Simon 54
Width [mm]

75
Height [mm]

75
Surface finish

Shiny
Mounting depth [mm]

31
Exact material

PC
PKWIU

27.33.11.0

Depth [mm]

47
Color

White
Material

Plastic
Installation

Flush-mounted
items

0-I
Type

Single
Level of security

IP20
Type

Flush-mounted
Surface protection

Natural
Backlight

NO
For the frame system

Yes
Connection type

For soldering

Other technical data

Wiring system

Off switch 1-pole
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V

Method of operation

Key
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20

Manufacturer details

Manufacturer

KONTAKT - SIMON S.A.
Address

43-500 Czechowice-Dziedzice Bestwińska 21
Phone number

323246300
E-mail

info@kontakt-simon.com.pl
WWW

https://www.kontakt-simon.com.pl
Tax identification number

6520005366
GLN

5900009931105

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,087	0,087	0,976
Width (m)	0,075	0,085	0,190
Length (m)	0,075	0,055	0,290
Depth (m)	0,047	0,115	0,100
