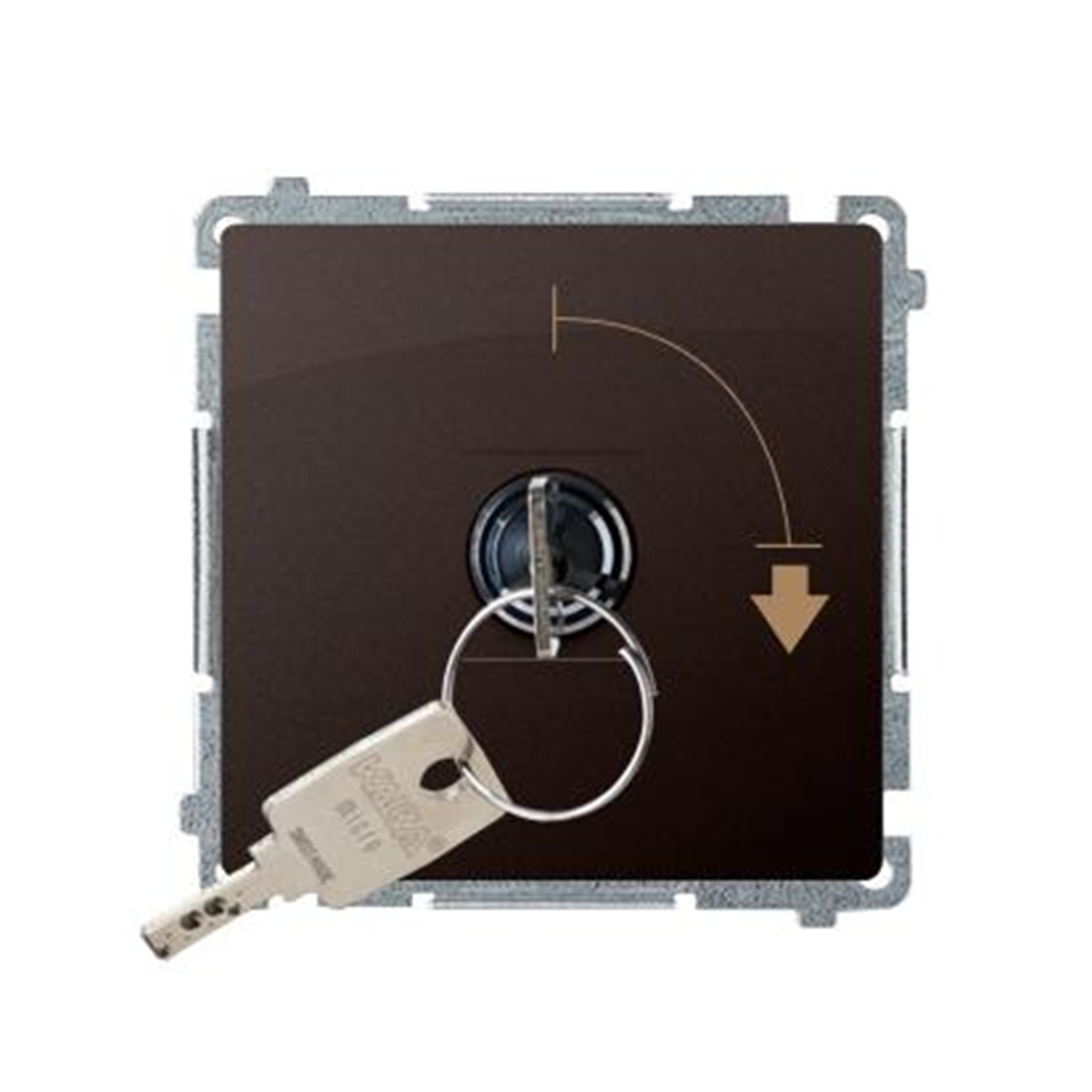

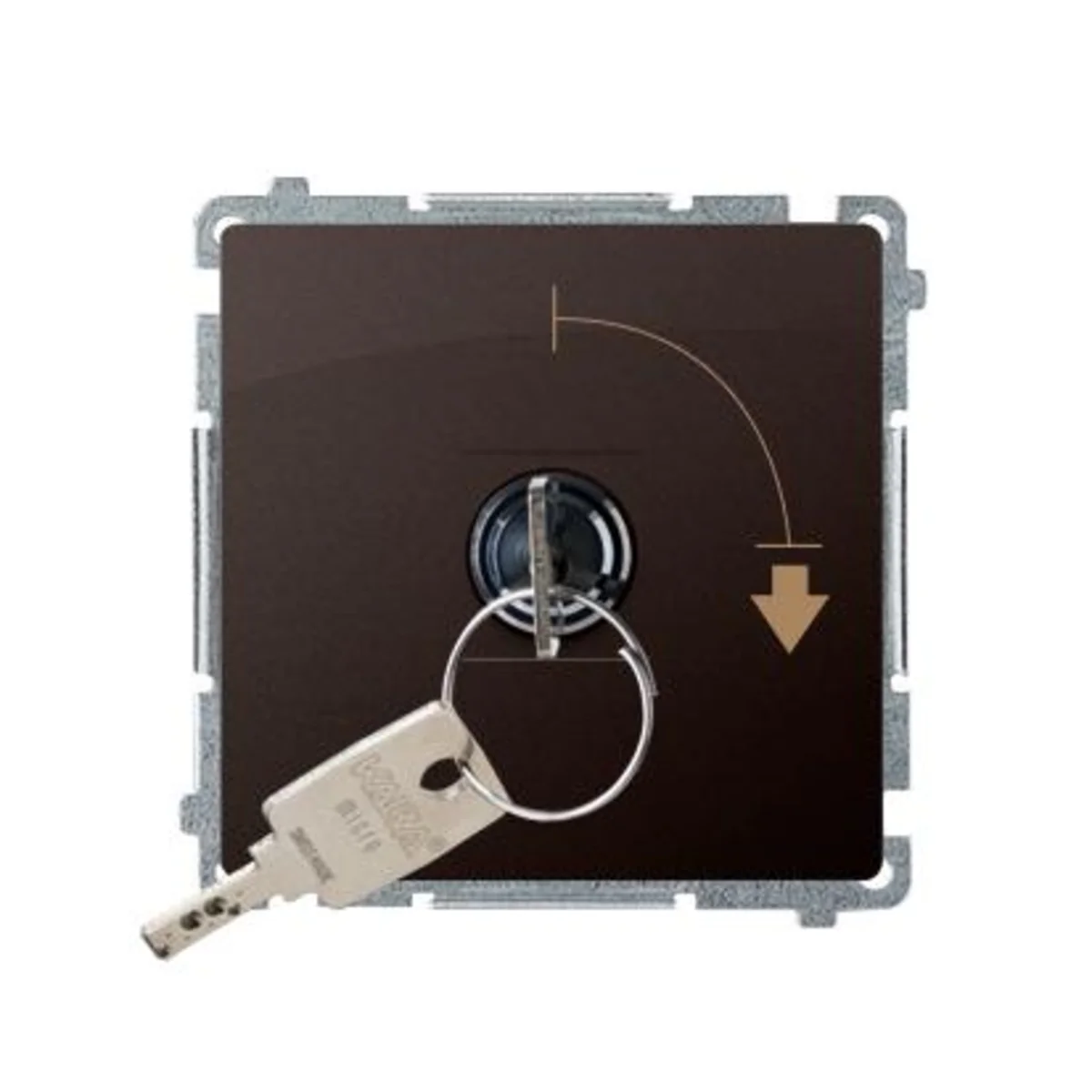

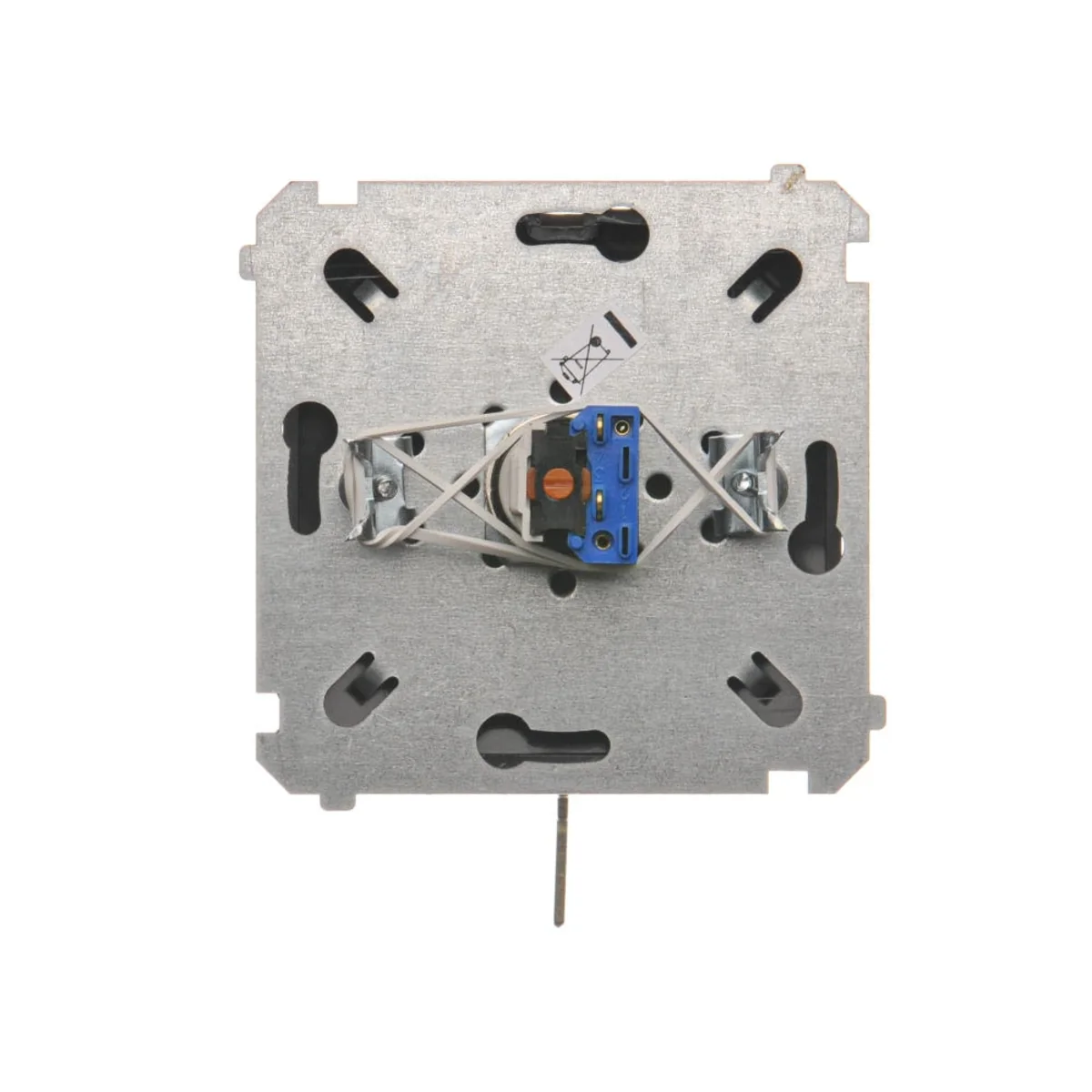

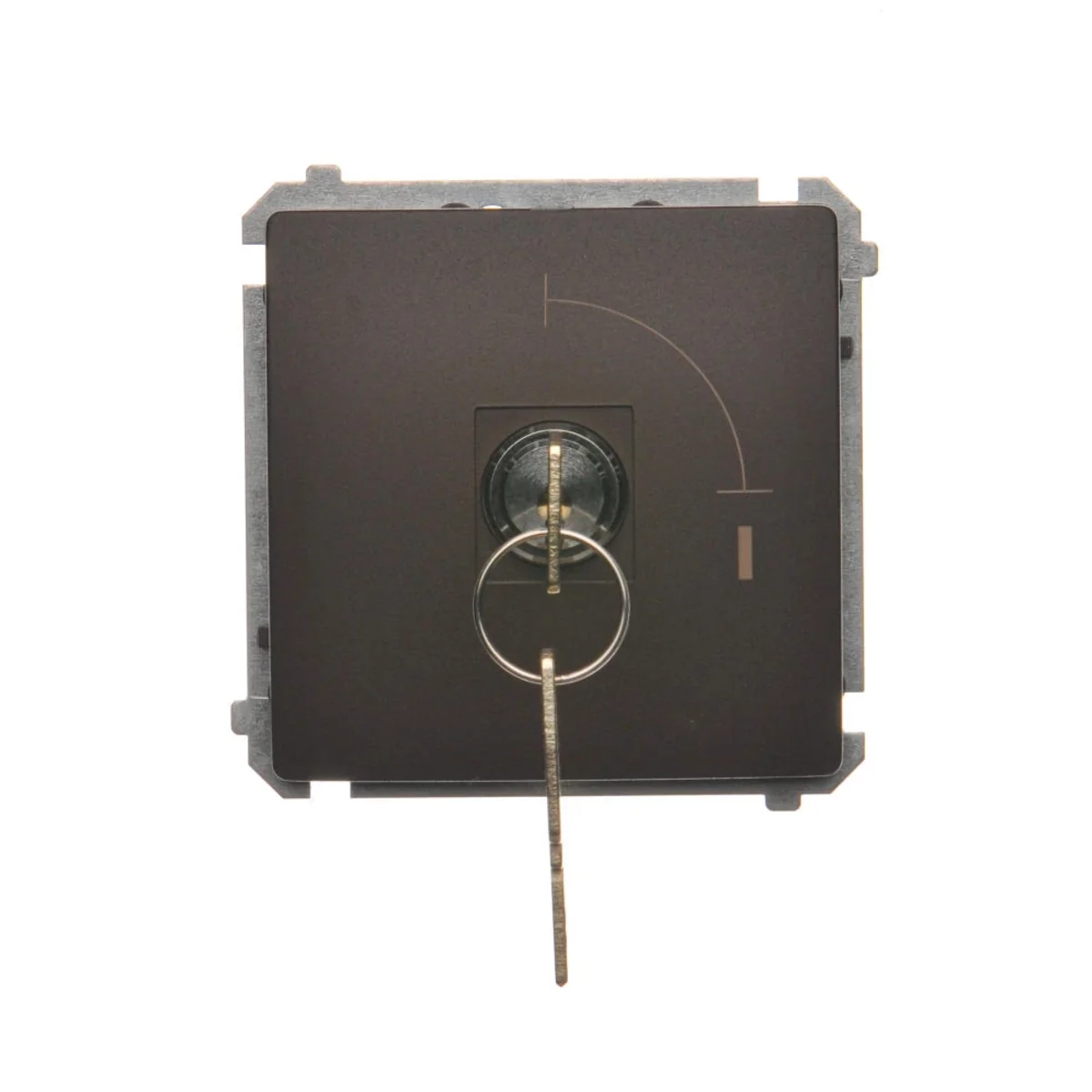

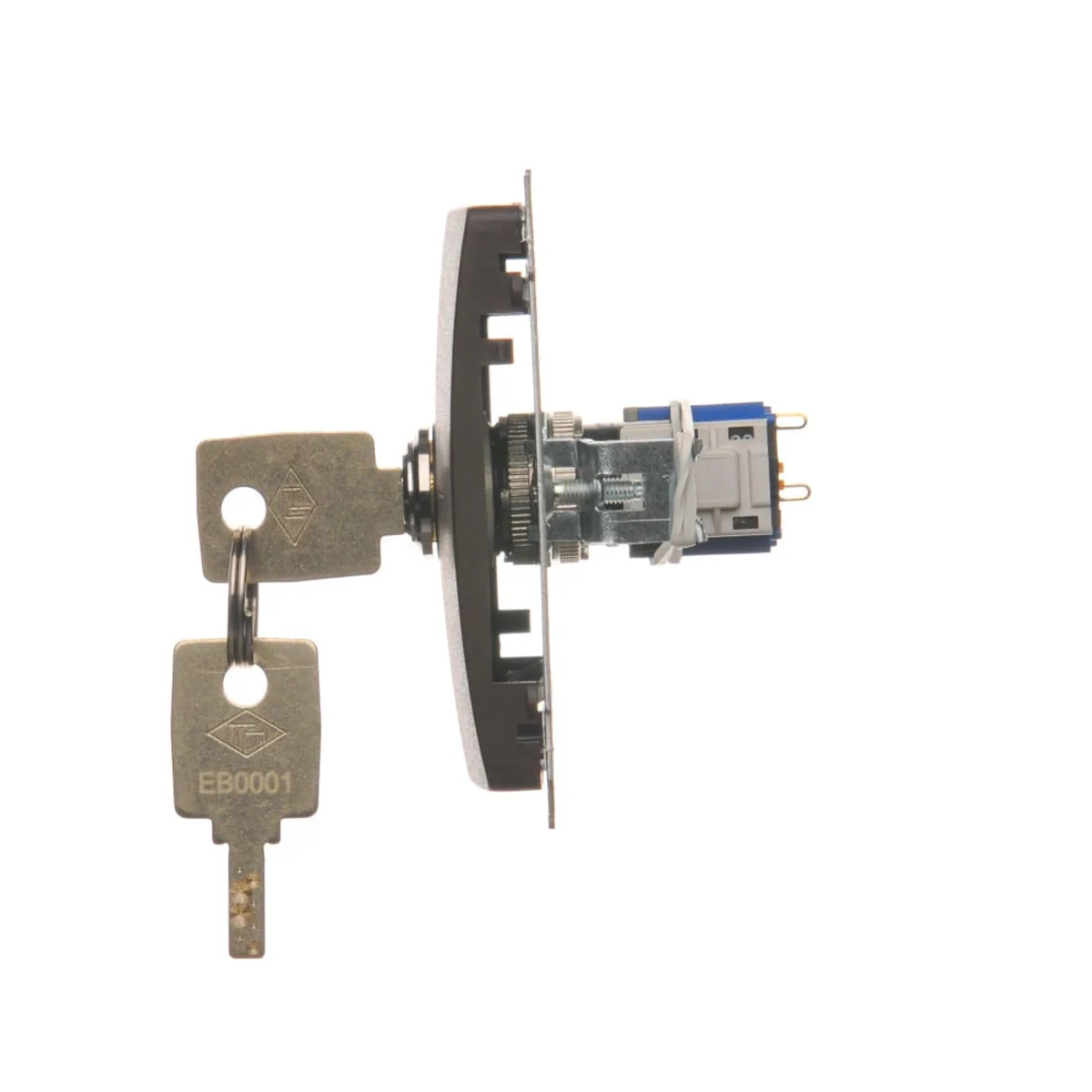

Unipolar key switch 2 positions 5A 230V chocolate matt metallized BMW1K.01/47

local index:
MMP047KONT
Catalog No:
BMW1K.01/47
EAN code:
5902787844325
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 47
Number of keys: key
Price:
73,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Out of stock
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Single-pole switch (bistable) from the Simon Basic series. Key-operated - 2-position “0-I”. The key can be removed in any position. The product comes with 2 keys.



SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic, which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Technical data

  • Halogen free
    Yes
  • Number of keys
    key
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Rated current [A]
    5
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Height [mm]
    75
  • Surface finish
    matte
  • Backlight
    NO
  • For the frame system
    Yes
  • Connection type
    For soldering
  • Depth [mm]
    47
  • Color
    Brown
  • Material
    Plastic
  • Installation
    Flush-mounted
  • items
    0-I
  • Type
    Single
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Accurate color
    Chocolate matt metallic
  • Mounting depth [mm]
    31
  • Exact material
    PC
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Off switch 1-pole
  • Assembly arrangement
    Basic element with central cover plate
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Suitable for degree of protection (IP)
    IP20
  • Method of operation
    Key
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Nominal voltage
    250 V
