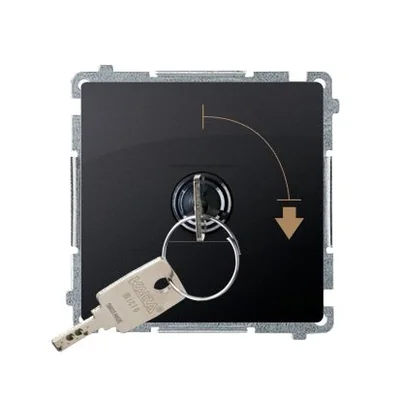

Unipolar 2-position key switch 5A 230V matt metallized graphite BMW1K.01/28

Index local:
MMP044KONT
Numéro de catalogue:
BMW1K.01/28
Code EAN:
5902787844301
Producteur: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 47
Number of keys: key
Prix:
371,64 zł
gross / pcs.
(y compris la TVA 23%)
En rupture de stock
Ajouter à la demande de devis
Imprimer

Description du produit

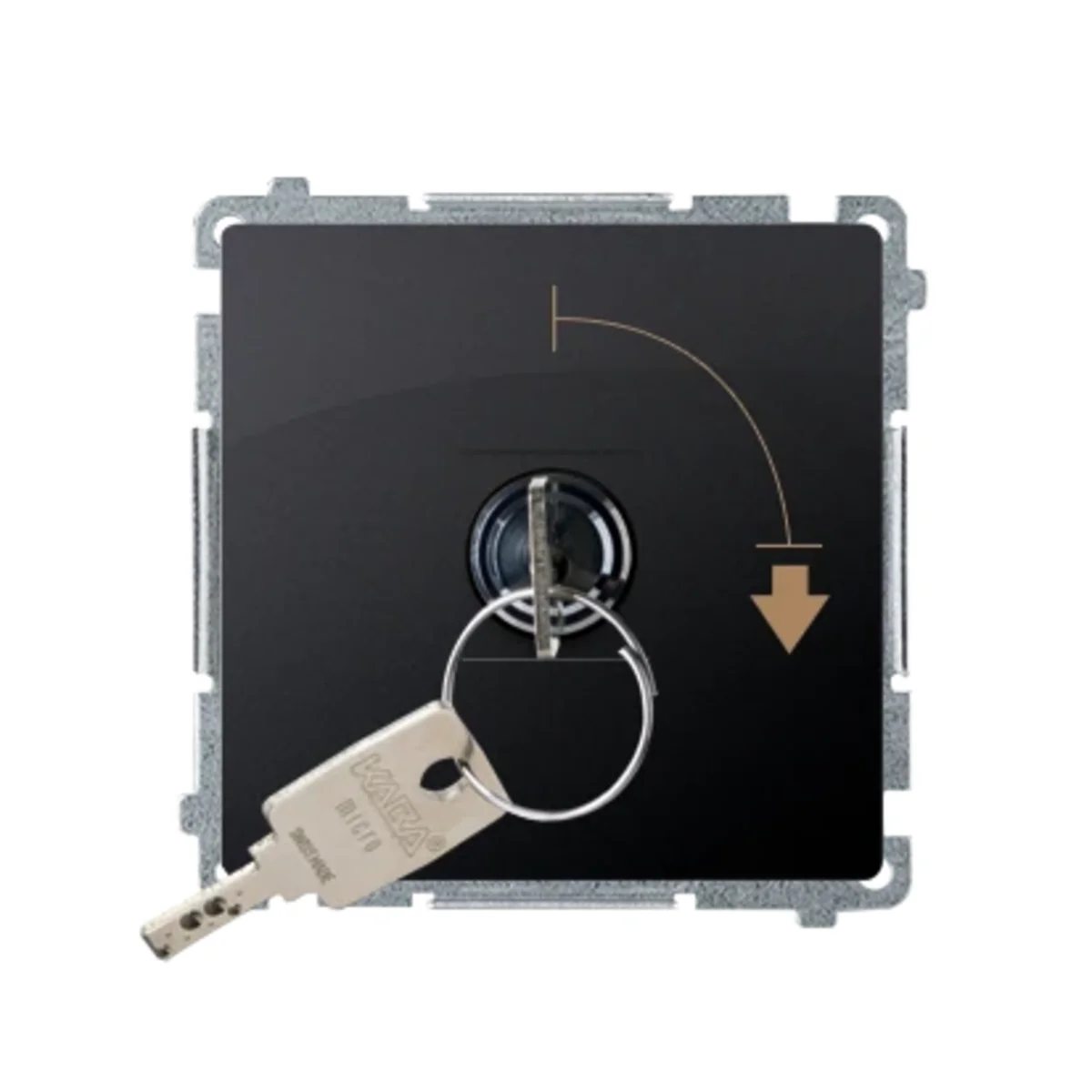

Single-pole switch (bistable) from the Simon Basic series. Key-operated - 2-position “0-I”. The key can be removed in any position. The product comes with 2 keys.



SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic, which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Données techniques

  • Halogen free
    Yes
  • Number of keys
    key
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Rated current [A]
    5
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Height [mm]
    75
  • Surface finish
    matte
  • Backlight
    NO
  • For the frame system
    Yes
  • Connection type
    For soldering
  • Depth [mm]
    47
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Flush-mounted
  • items
    0-I
  • Type
    Single
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Accurate color
    Metallic matt graphite
  • Mounting depth [mm]
    31
  • Exact material
    PC
  • PKWIU
    27.33.11.0

Autres données techniques

  • Wiring system
    Off switch 1-pole
  • Assembly arrangement
    Basic element with central cover plate
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Suitable for degree of protection (IP)
    IP20
  • Method of operation
    Key
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Nominal voltage
    250 V

Détails du fabricant

  • Producteur
    KONTAKT - SIMON S.A.
  • Adresse
    43-500 Czechowice-Dziedzice Bestwińska 21
  • Numéro identifiant TVA
    6520005366
