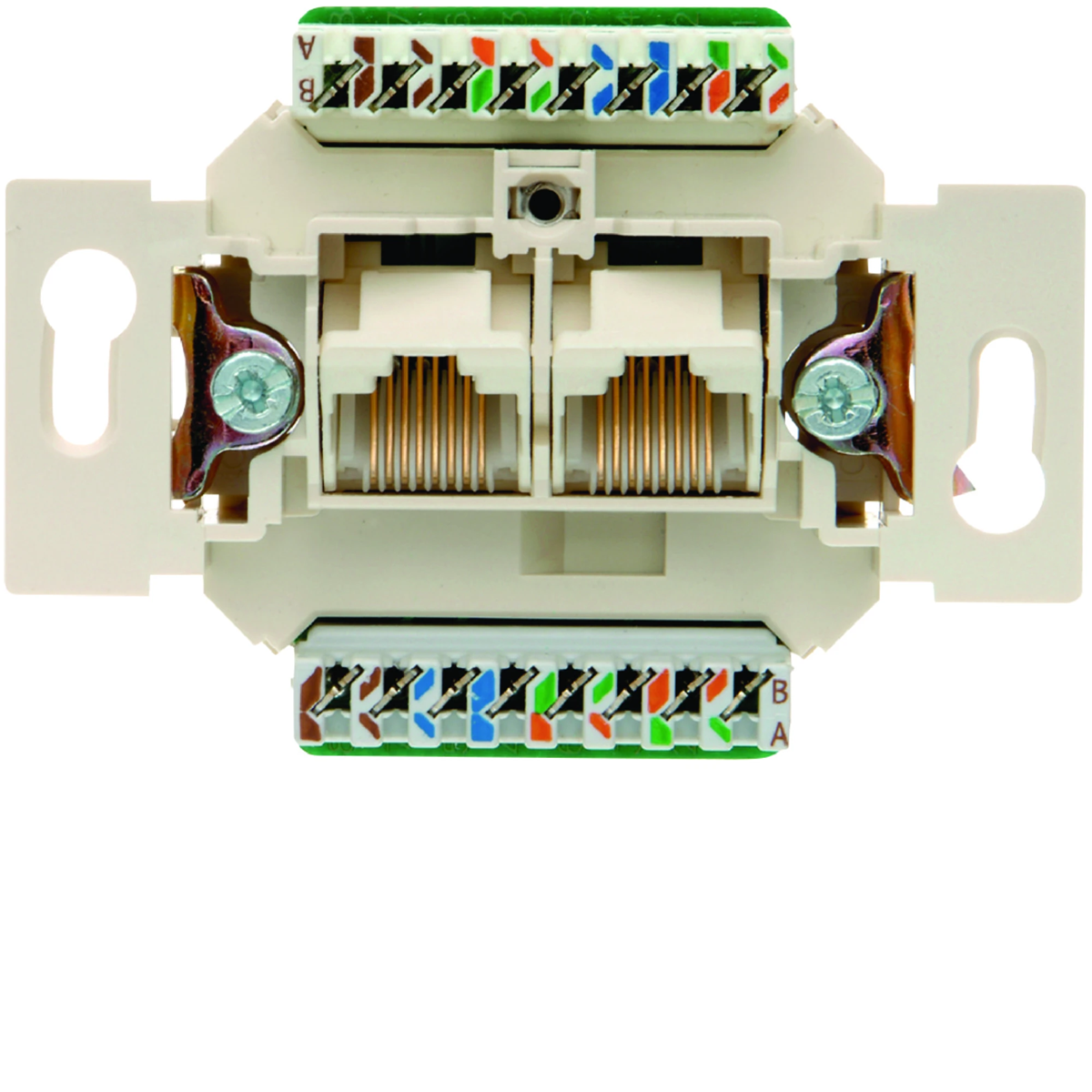

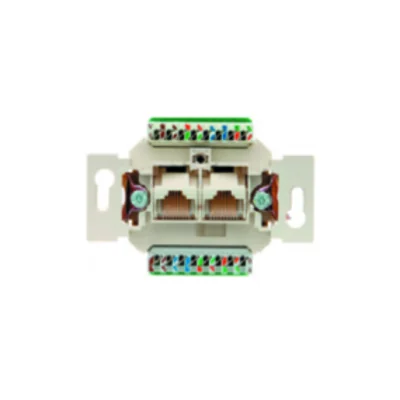

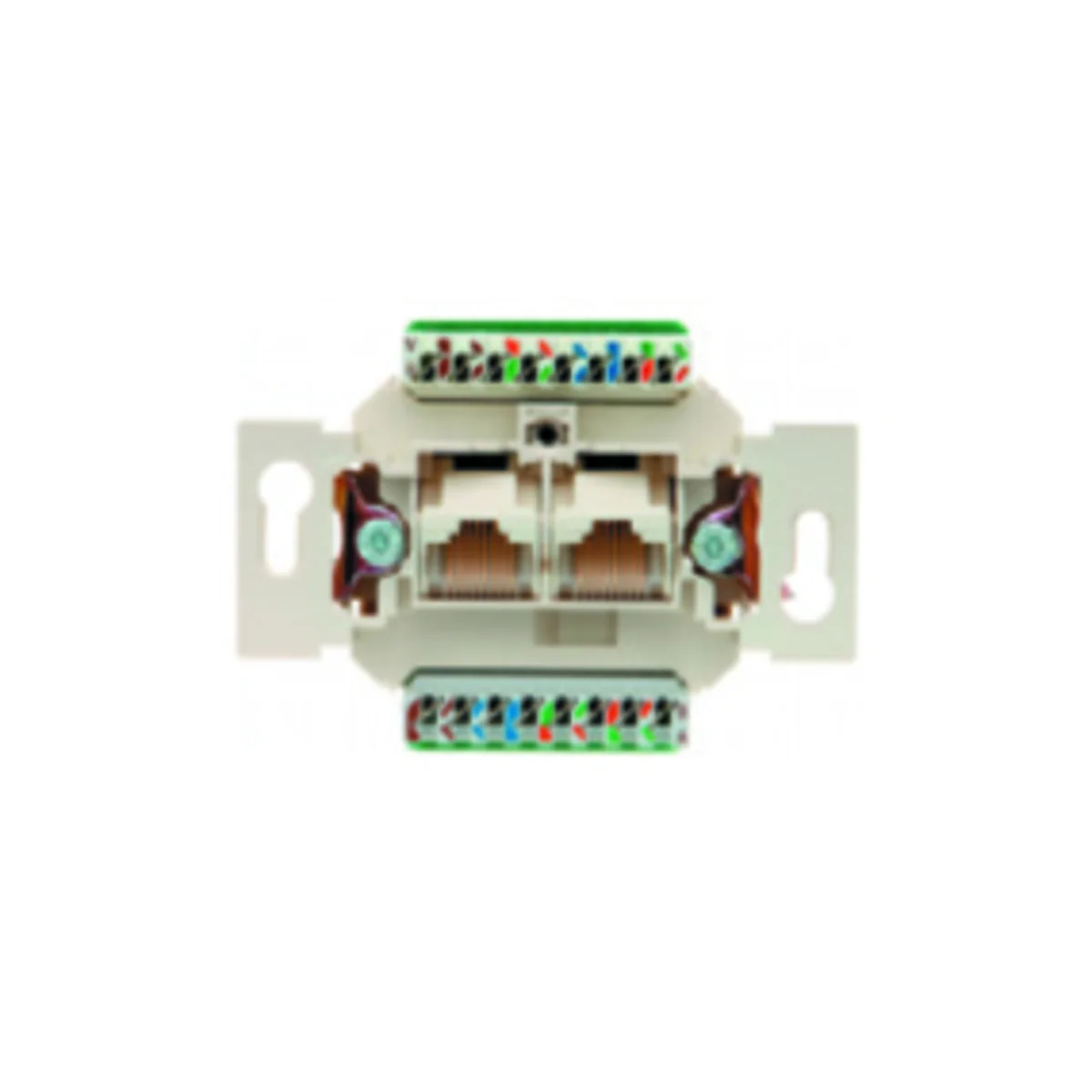

UAE 8/8-pole unshielded connection socket cat. 5e 534576
local index:
MJI010BERK
Catalog No:
534576
EAN code:
5907561812392
Price:
30,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Computer Internet Socket mechanism of the one.platform series, from the manufacturer Berker. The product catalog number is 534576.
FEATURES
- Double Socket Mechanism.
- Rated current In: 0.75 A.
- With 45° output angle.
- For RJ11, RJ12 and RJ45 plug, ISDN.
- Transition resistance: < 20 mΩ.
- Transmission frequency up to 100MHz.
- For order number 1409 .., 1410 .., 1469 .., 53 1409 . .
- Category 5e.
Technical data
-
Category5e
-
TypeInternet
-
Level of securityIP20
-
VersionUTP
-
VariantRJ45 (twisted pair)
-
Number of internet sockets2
-
DC rated voltage [V]72
-
FamilyONE.PLATFORM
-
TypeSocket mechanism
-
Mounting depth [mm]22
-
For the frame systemYes
-
PKWIU27.12.40.0
Other technical data
-
Type of fasteningScrewing
-
With buses/couplingsYes
-
Connection typeLSA
-
Compatible with third-party coversYes
-
With dust coverNo
-
Device width70.9 mm
-
Device depth40 mm
-
Type of connectorRJ45 8(8)
-
Category5E
-
With label spaceNo
-
Outlet directionInclined
-
Degree of protection (IP)IP20
-
Device height70.9 mm
Manufacturer details
-
ManufacturerBERKER POLSKA SP. Z O.O.
-
Address62-035 UL. ŚREDZKA 19
-
E-mail
-
Tax identification number7781027605
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 68 pcs. | 1632 pcs. |
| Weight (kg) | 0,148 | 0,174 | 15,500 | 372,000 |
| Width (m) | 0,071 | 0,081 | 0,810 | - |
| Length (m) | 0,040 | 0,040 | 0,400 | - |
| Depth (m) | 0,071 | 0,080 | 0,800 | - |
