UAE 8/8-pole cat.3 connection socket 534539

Name: UAE 8/8-pole cat.3 connection socket
Brand: BERKER
SKU: MJI009BERK
Price: 9.59 PLN
Availability: InStock

local index:

MJI009BERK

Catalog No:

534539

EAN code:

5907561812286

Click on the photo to enlarge

Manufacturer: BERKER

Category: 3

Shape: Round

Material: Plastic | Metal

See full description

Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Outlet

Price:

9,59 €

gross / pcs.

(including VAT 23%)

Last lowest price: 9,58 € gross

Base price: 25,22 € gross -62%

Accessible 25 pcs.

Quantity pcs.

(multiplicity:

)

It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

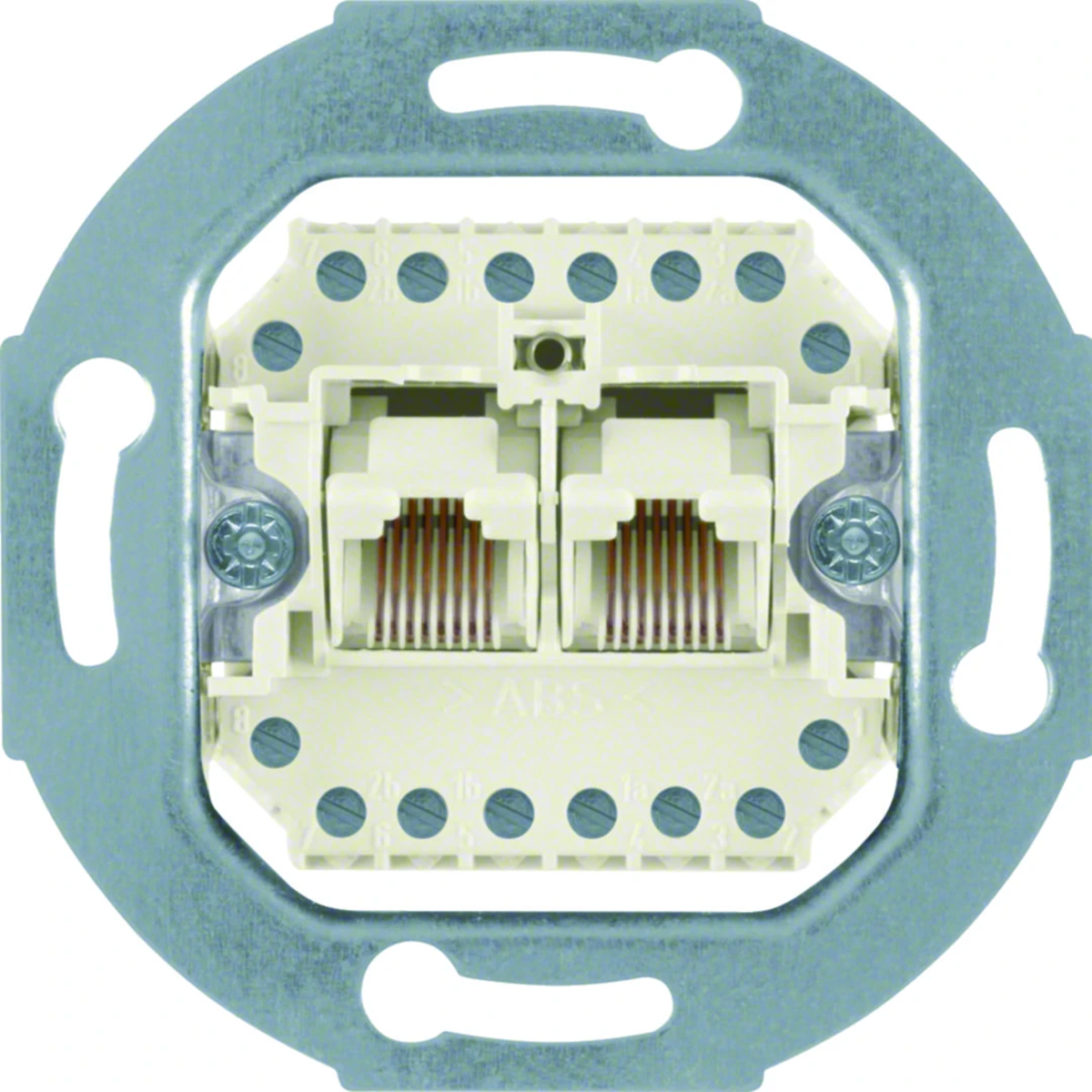

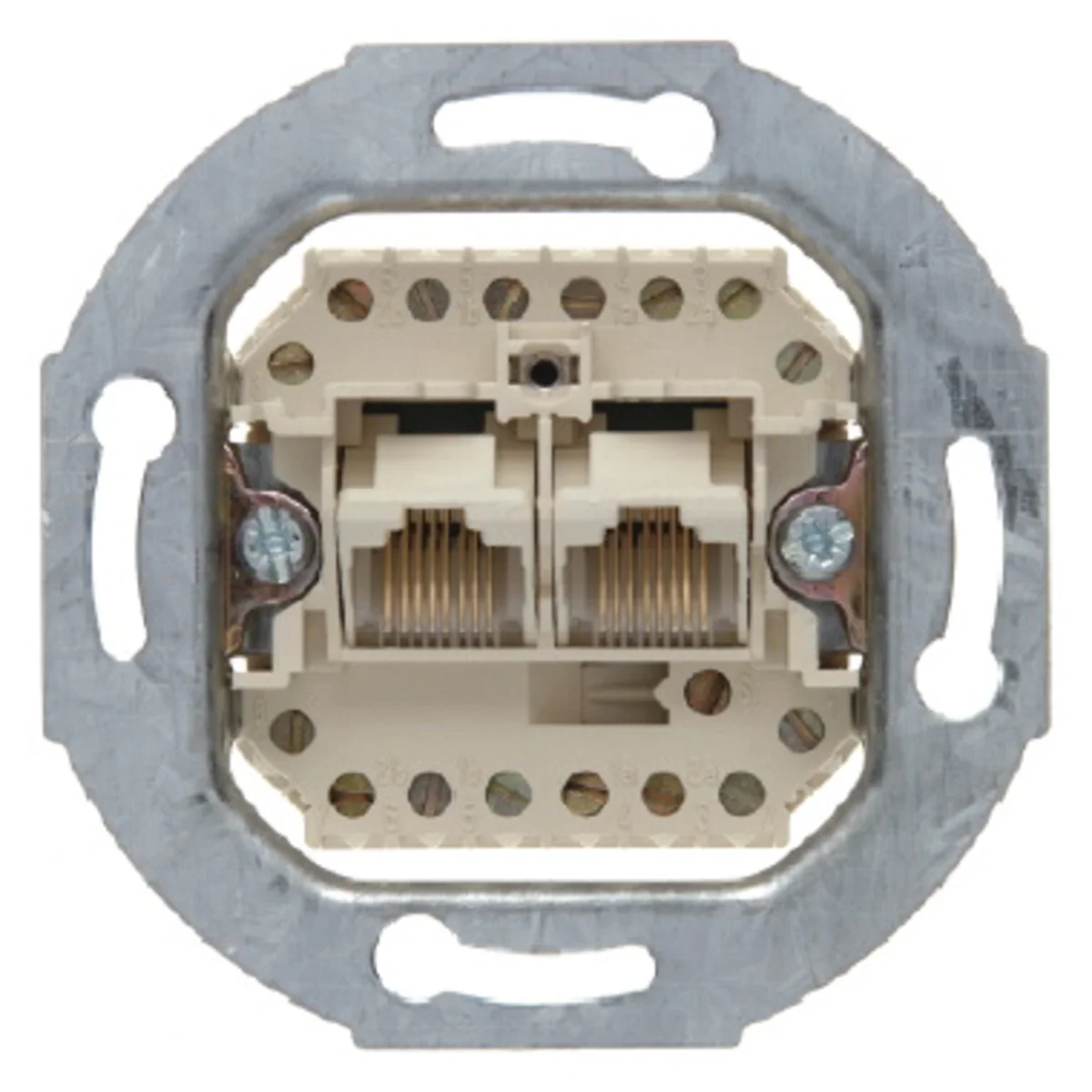

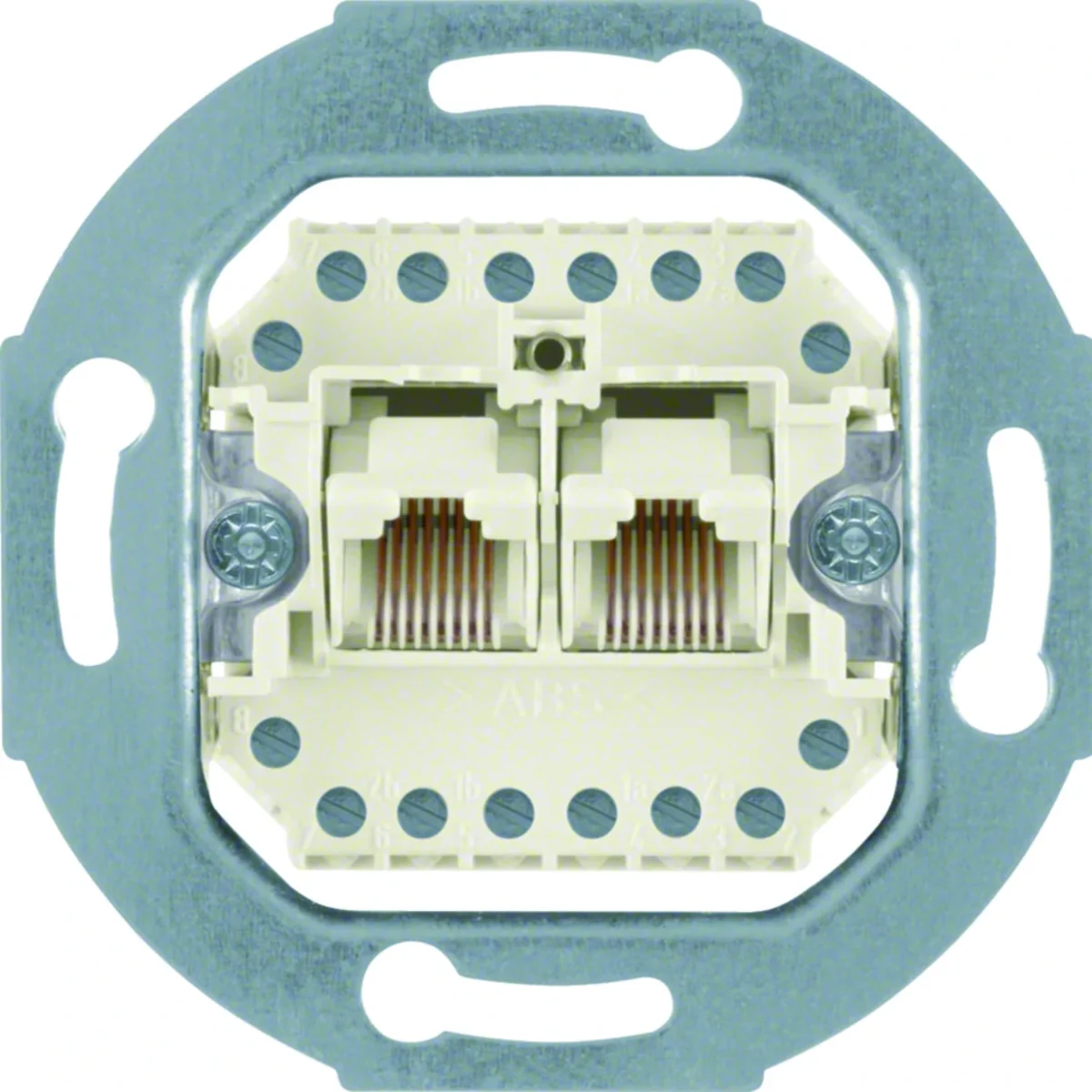

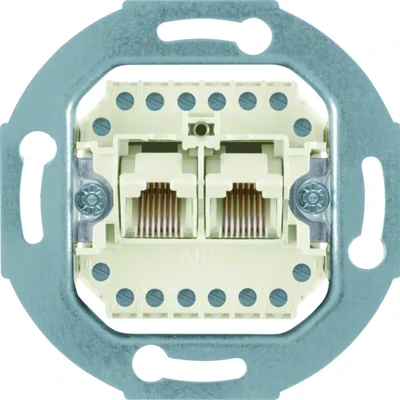

Connection socket mechanism from the one.platform series, from the manufacturer Berker. The product catalog number is 534539 .

FEATURES

Double Slot Mechanism.
Rated current In: 1 A.
With 45° output angle.
For RJ11, RJ12 and RJ45 plug, ISDN.
Transition Resistance: < 20 mΩ.
Transmission frequency up to 16 MHz.
For order no. 1407 .., 1410 .., 1469 .., 53 1409 ..
Category 3.

Technical data

Category

3
Material

Plastic Metal
Type

Internet
Level of security

IP20
Mounting depth [mm]

22
Variant

RJ45 (twisted pair)
Number of internet sockets

2

Shape

Round
DC rated voltage [V]

125
Family

ONE.PLATFORM
Type

Socket mechanism
Terminal type

Threaded
For the frame system

Yes
PKWIU

27.33.13.0

Other technical data

Surface mounting

No
Floor box/subfloor mounted

Yes
Assembly arrangement

Basic element
With buses/couplings

Yes
Category

3
RAL-number

1013
Shielded buses

No
With label space

No
Separate strain relief

No
With dust cover

No
Mechanical coding

No
Device height

70.9 mm

Duct installation

Yes
Type of fastening

Screwing
Type of connector

RJ45 8(8)
Suitable for number of connectors

2
Colour

White
Connection type

Screw
Separate earthing connection

No
Compatible with third-party covers

Yes
Outlet direction

Inclined
Degree of protection (IP)

IP20
Device width

70.9 mm
Device depth

40 mm

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	68 pcs.	1632 pcs.
Weight (kg)	0,052	0,074	6,000	14,400
Width (m)	0,071	0,081	-	-
Length (m)	0,040	0,040	-	-
Depth (m)	0,071	0,080	-	-
