UAE 8-pole shielded connection socket cat. 5e 534554

local index:
MJI004BERK
Catalog No:
534554
EAN code:
5907561812330
UAE 8-pole shielded connection socket cat. 5e
UAE 8-pole shielded connection socket cat. 5e
UAE 8-pole shielded connection socket cat. 5e
UAE 8-pole shielded connection socket cat. 5e

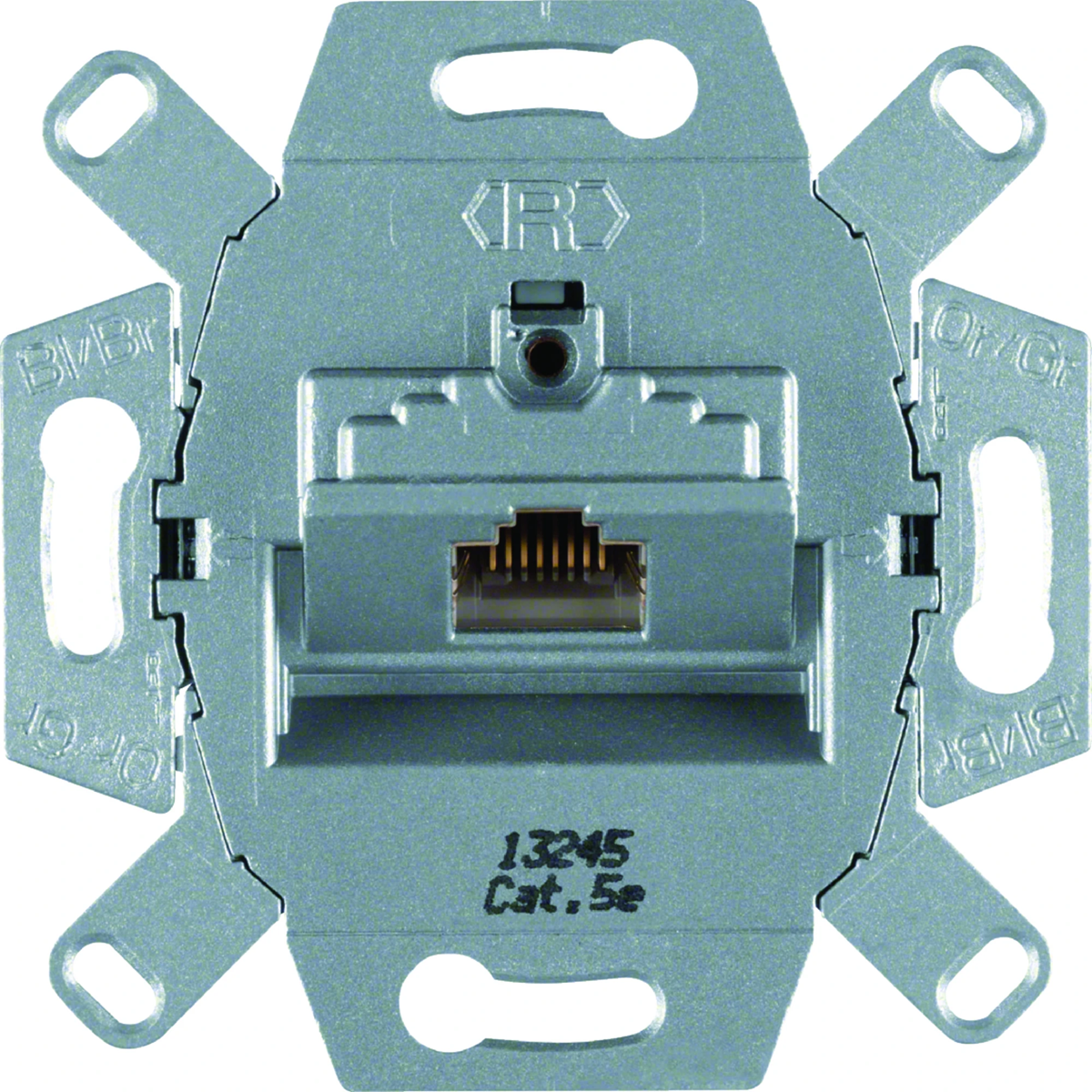

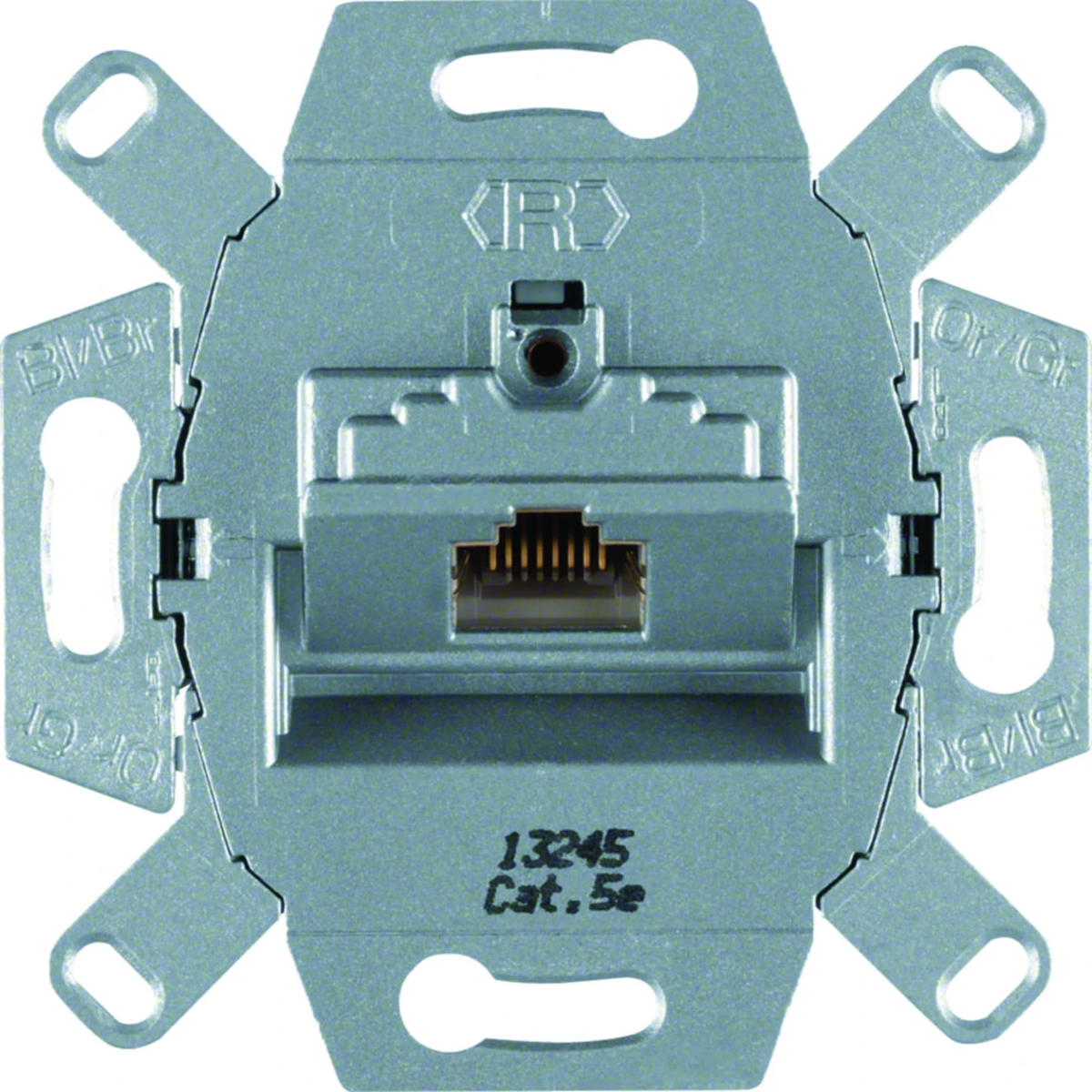

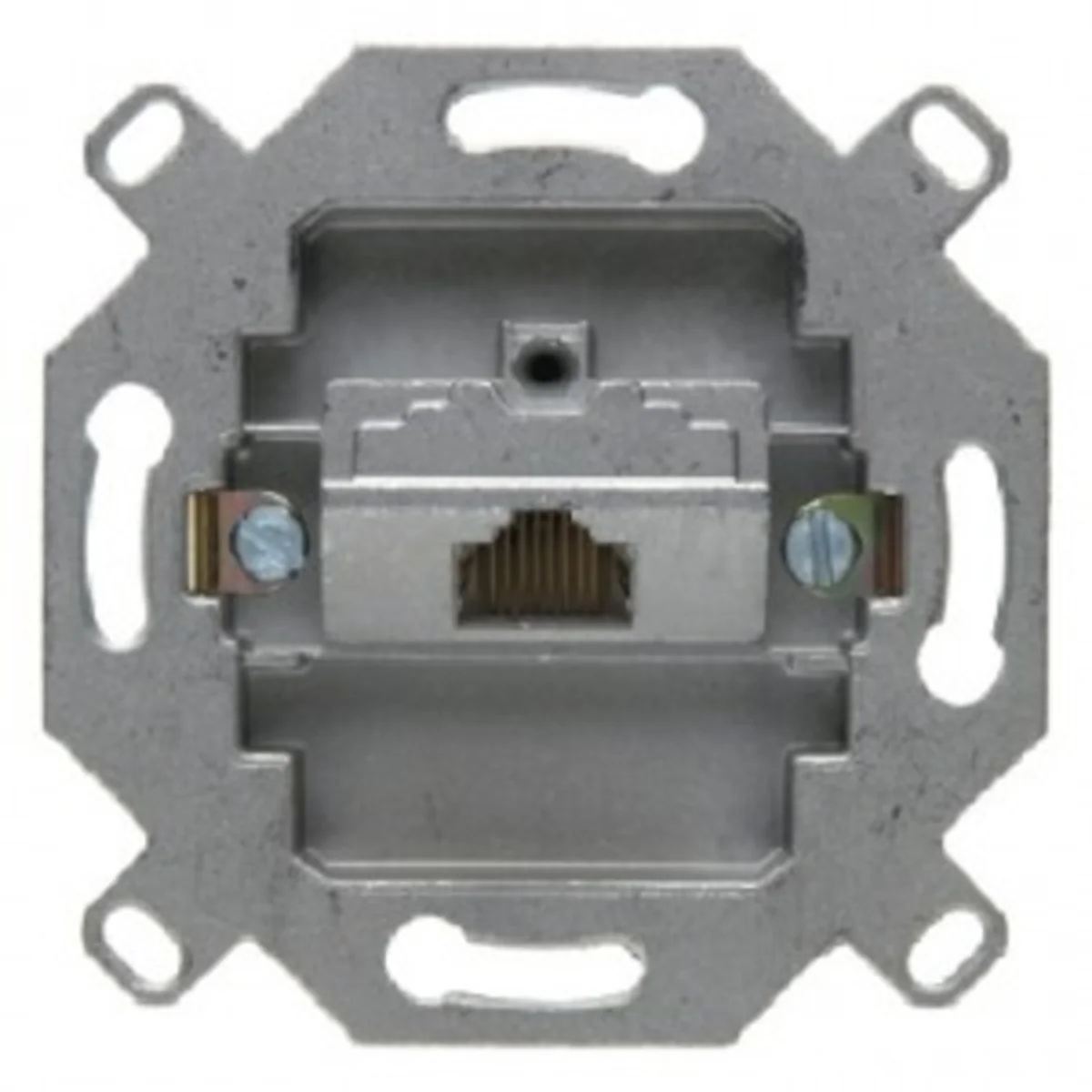

Click on the photo to enlarge

Manufacturer: BERKER
Category: 5e
Shape: Square
Material: Plastic | Metal
See full description
Price:
24,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Bulk packaging

Product description

Internet computer socket mechanism from the one.platform series, from the manufacturer Berker. The product catalog number is  534554.



FEATURES

  • RJ45.
  • Z angle of inclination of 45°.
  • For RJ11, RJ12 and RJ45 plugs.
  • Compatibility with PoE+.
  • Galvanized housing.
  • Without clamps.
  • With LSA+ clamps.
  • With 360° and cable clamp.
  • Flexible cable entry.
  • For order numbers 1407 .., 1408 .., 1468 .., 53 1407 ..< /strong>
  • Color-coded according to EIA/TIA 568A and 568B.
  • Category 5e according to DIN EN 50173-1:2011-09
  • Transmission frequency up to 100MHz.

Technical data

  • Category
    5e
  • Material
    Plastic Metal
  • Family
    ONE.PLATFORM
  • Type
    Socket mechanism
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    1
  • Shape
    Square
  • Type
    Internet
  • Level of security
    IP20
  • Version
    Shielded
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Surface mounting
    No
  • Floor box/subfloor mounted
    Yes
  • Type of connector
    RJ45 8(8)
  • Suitable for number of connectors
    1
  • Connection type
    LSA
  • Shielded housing
    Yes
  • With label space
    No
  • Separate strain relief
    No
  • With dust cover
    No
  • Mechanical coding
    No
  • Device width
    70.9 mm
  • Device depth
    40 mm
  • Duct installation
    Yes
  • Type of fastening
    Screwing
  • With buses/couplings
    Yes
  • Category
    5E
  • Shielded buses
    Yes
  • Separate earthing connection
    Yes
  • Compatible with third-party covers
    Yes
  • Outlet direction
    Inclined
  • Degree of protection (IP)
    IP20
  • Colour coding
    Yes
  • Device height
    70.9 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 68 pcs. 1632 pcs.
Weight (kg) 0,124 0,125 8,940 239,560
Width (m) 0,071 0,080 0,300 0,800
Length (m) 0,040 0,045 0,225 1,050
Depth (m) 0,071 0,080 0,400 1,200
