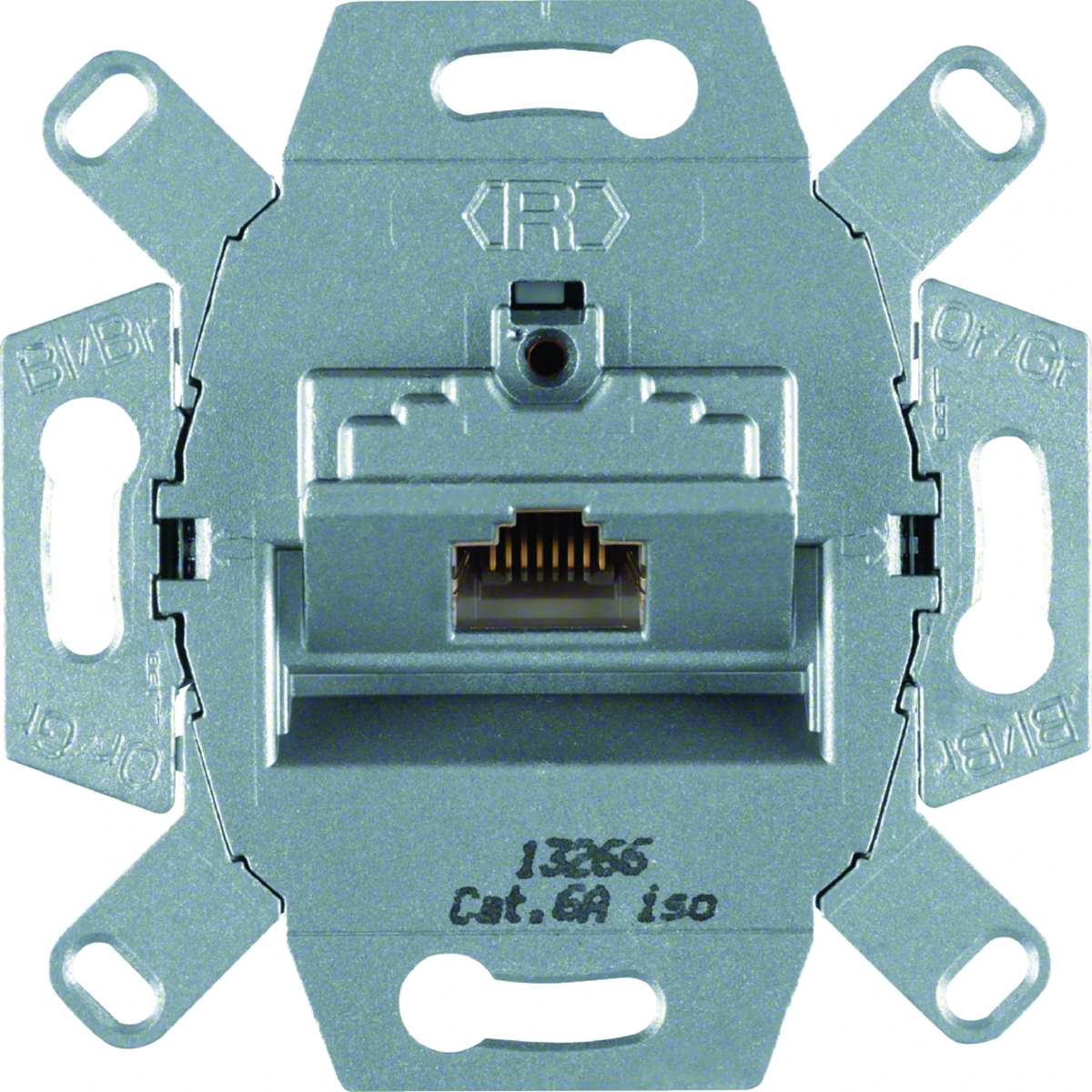

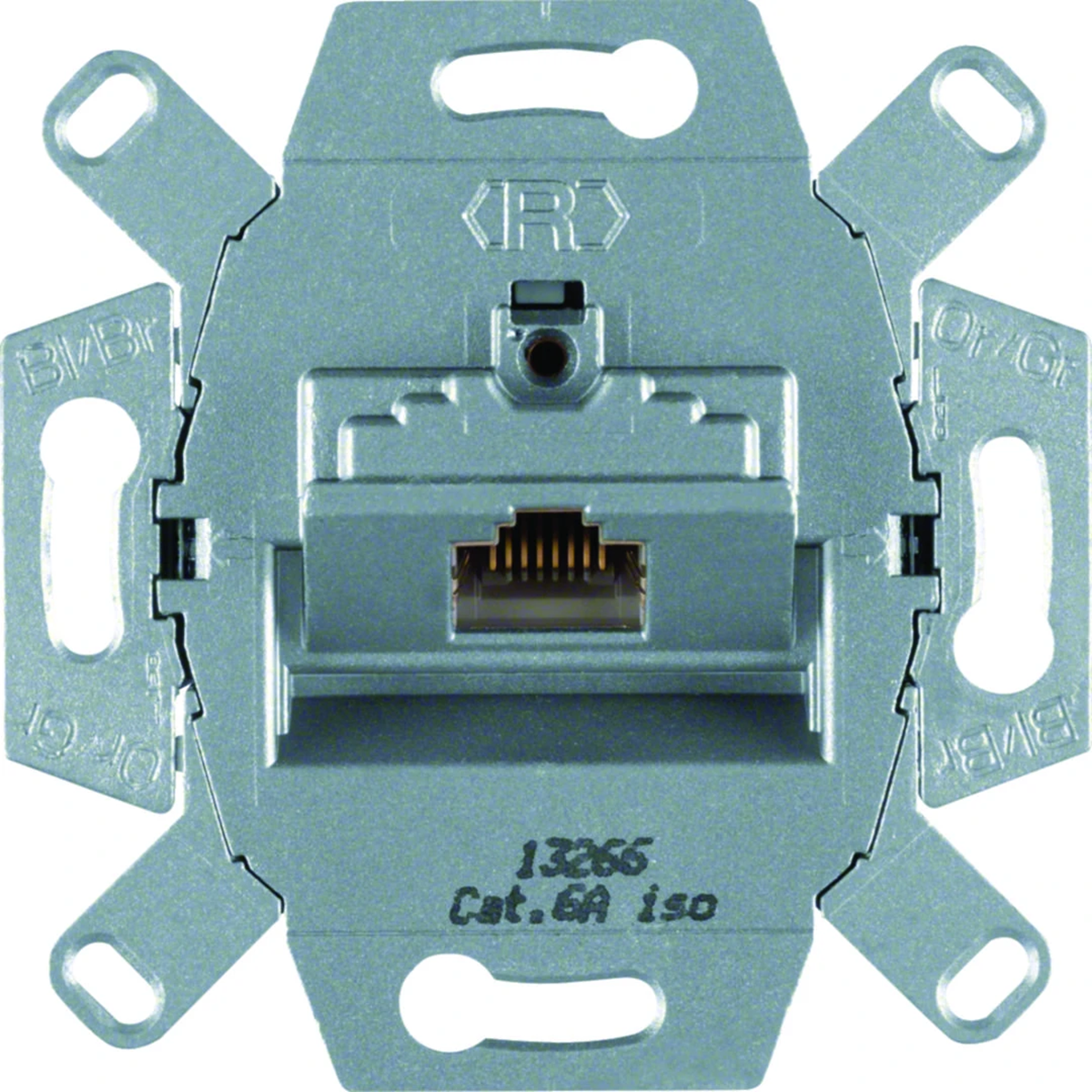

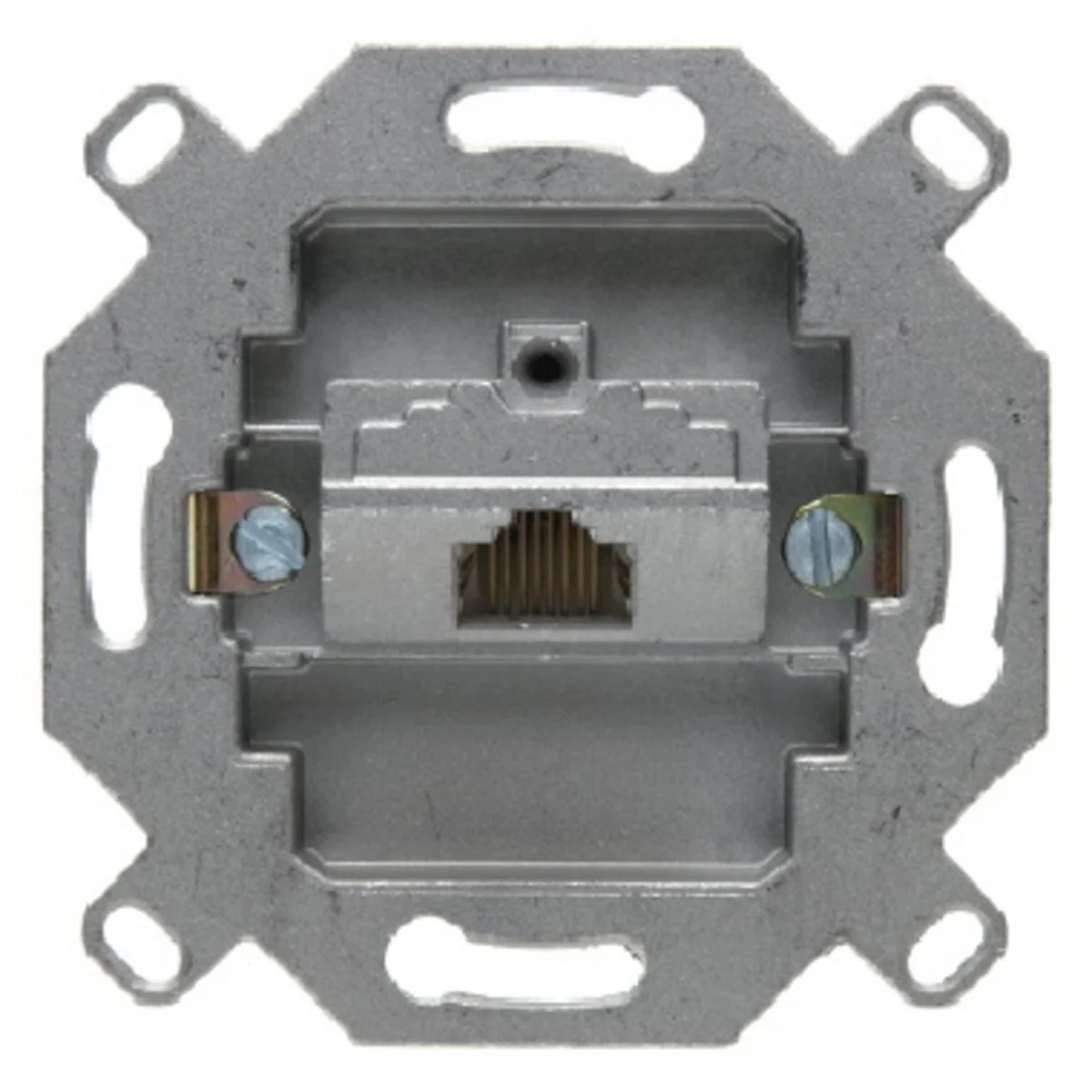

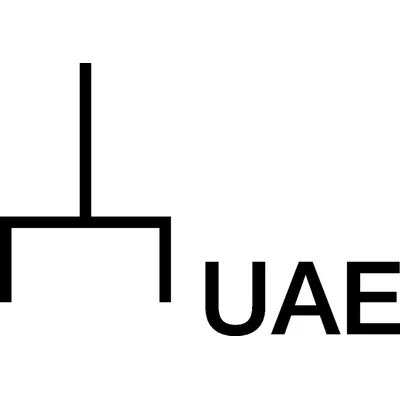

UAE 8-pole shielded connection socket 4586
local index:
MJI001BERK
Catalog No:
4586
EAN code:
4011334256380
Price:
28,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Internet computer socket mechanism from the one.platform series, from the manufacturer Berker. The product catalog number is 4586.
FEATURES
- RJ45.
- Current rated In: 0.5A.
- With an output angle of 45°.
- For RJ11, RJ12 and RJ45 plugs.
- Compatible with PoE+ .
- Shield contact resistance: 100 mΩ.
- Signal contact resistance: 20 mΩ.
- Galvanized housing.
- Without spreader claws, fixing screw through support plate.
- With LSA+ terminals.
- With 360° and cable clamp.
- Flexible cable entry.
- Transmission frequency up to 500 MHz.
- For order number: 1407 .. , 1408 .., 1468 .., 53 1407 ..
- Color coded according to EIA/TIA Standard 568A and 568B.
- Iso\Class EA 6A compliant with ISO/IEC 11801 A2.
Technical data
-
Category6a
-
MaterialPlastic Metal
-
TypeInternet
-
Level of securityIP20
-
VersionShielded
-
VariantRJ45 (twisted pair)
-
Number of internet sockets1
-
ShapeSquare
-
DC rated voltage [V]72
-
FamilyONE.PLATFORM
-
TypeSocket mechanism
-
Mounting depth [mm]31
-
For the frame systemYes
-
PKWIU27.33.13.0
Other technical data
-
Surface mountingNo
-
Floor box/subfloor mountedYes
-
Assembly arrangementBasic element
-
With buses/couplingsYes
-
Category6A (IEC)
-
Shielded busesYes
-
Separate earthing connectionYes
-
Compatible with third-party coversYes
-
Outlet directionInclined
-
Degree of protection (IP)IP20
-
Colour codingYes
-
Device height70.4 mm
-
Duct installationYes
-
Type of fasteningScrewing
-
Type of connectorRJ45 8(8)
-
Suitable for number of connectors1
-
Connection typeLSA
-
Shielded housingYes
-
With label spaceNo
-
Separate strain reliefYes
-
With dust coverNo
-
Mechanical codingNo
-
Device width70.4 mm
-
Device depth45 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 120 pcs. | 1440 pcs. |
| Weight (kg) | 0,130 | 1,420 | 17,480 | 234,760 |
| Width (m) | 0,070 | 0,090 | 0,300 | 0,800 |
| Length (m) | 0,045 | 0,105 | 0,225 | 1,050 |
| Depth (m) | 0,070 | 0,370 | 0,400 | 1,200 |
