UAE 8-pole cat. 3 connection socket 534538
local index:
MJI008BERK
Catalog No:
534538
EAN code:
5907561801136
Price:
15,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

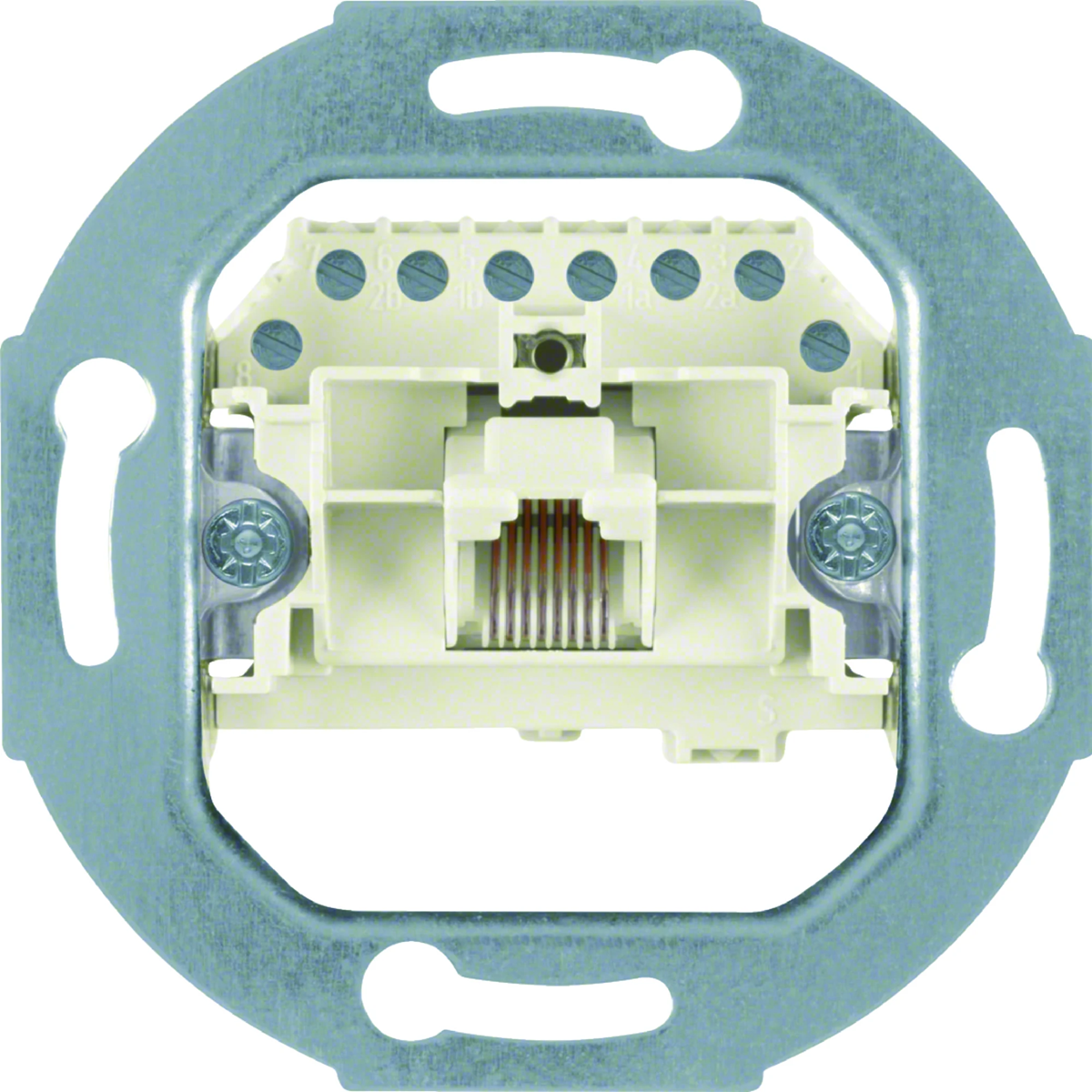

Internet computer socket mechanism from the one.platform series, from the manufacturer Berker. The product catalog number is 534538.
FEATURES
- Rated current In: 1 A.
- Z angle of the output 45°.
- For RJ11, RJ12 and RJ45 plug, ISDN.
- Transition resistance: < 20 mΩ.
- Transmission frequency up to 16 MHz.
- For order number 1407 .., 1408 .., 1468 .., 53 1407 ..
- Category 3.
Technical data
-
Category3
-
MaterialPlastic Metal
-
TypeInternet
-
Level of securityIP20
-
Mounting depth [mm]22
-
VariantRJ45 (twisted pair)
-
Number of internet sockets1
-
ShapeRound
-
DC rated voltage [V]125
-
FamilyONE.PLATFORM
-
TypeSocket mechanism
-
Terminal typeThreaded
-
For the frame systemYes
-
PKWIU27.33.13.0
Other technical data
-
Type of fasteningScrewing
-
Type of connectorRJ45 8(8)
-
Category3
-
Shielded busesNo
-
With label spaceNo
-
Outlet directionInclined
-
Degree of protection (IP)IP20
-
Device height70.9 mm
-
Assembly arrangementBasic element
-
With buses/couplingsYes
-
Connection typeScrew
-
Shielded housingNo
-
Compatible with third-party coversYes
-
With dust coverNo
-
Device width70.9 mm
-
Device depth40 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 68 pcs. | 1632 pcs. |
| Weight (kg) | 0,046 | 67,000 | 54,000 | 12,960 |
| Width (m) | 0,071 | 0,085 | 0,168 | - |
| Length (m) | 0,040 | 0,040 | 0,084 | - |
| Depth (m) | 0,071 | 0,080 | 0,225 | - |
