Two-pole switch with LED backlight (module) 10A, 250V, quick connectors, silver (metallic) DW2L.01/43

Name: Two-pole switch with LED backlight (module) 10A, 250V, quick connectors, silver (metallic)
Brand: KONTAKT-SIMON
SKU: MMD056KONT
Price: 12.41 PLN

local index:

MMD056KONT

Catalog No:

DW2L.01/43

EAN code:

5902787822873

Two-pole switch with LED backlight (module) 10A, 250V, quick connectors, silver (metallic)

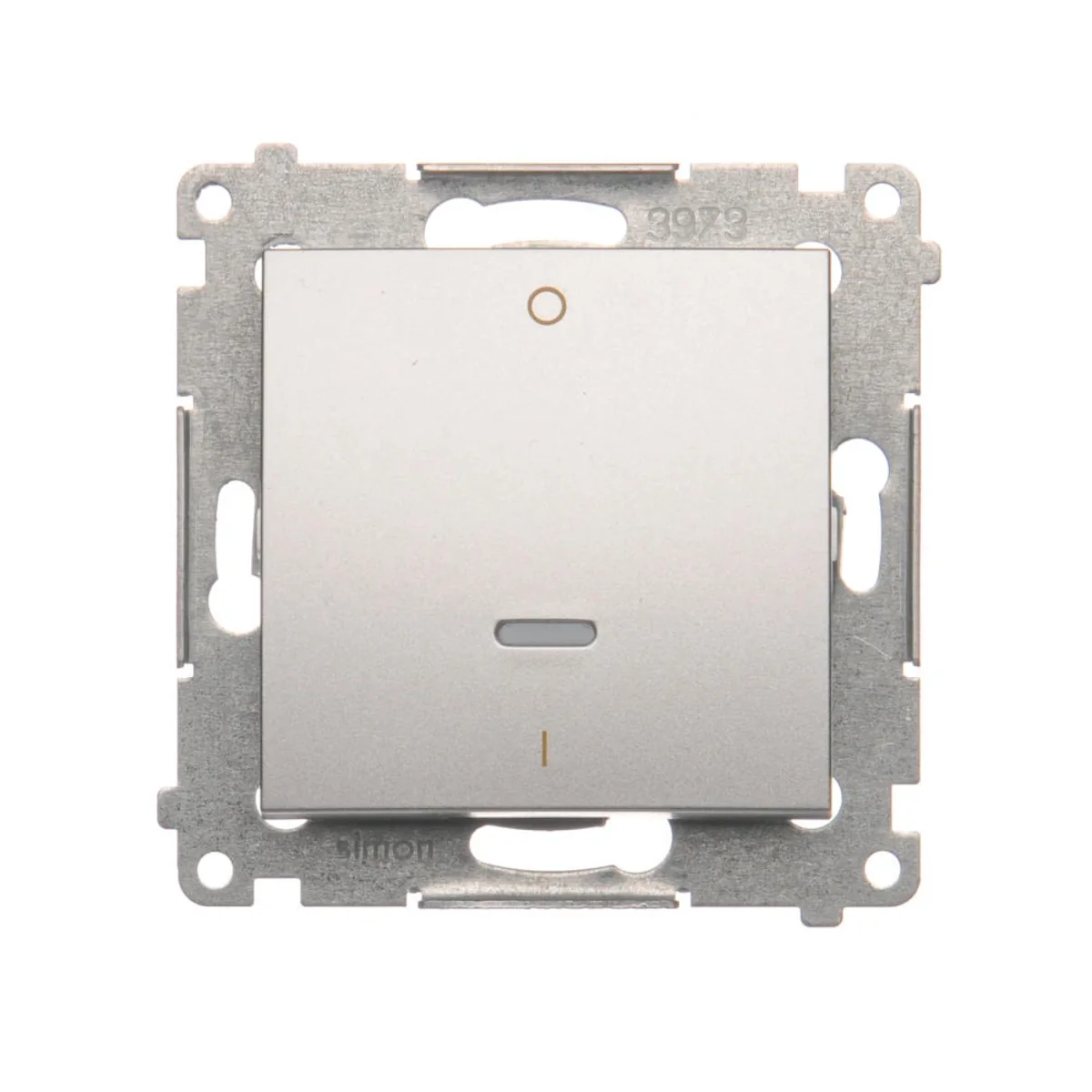

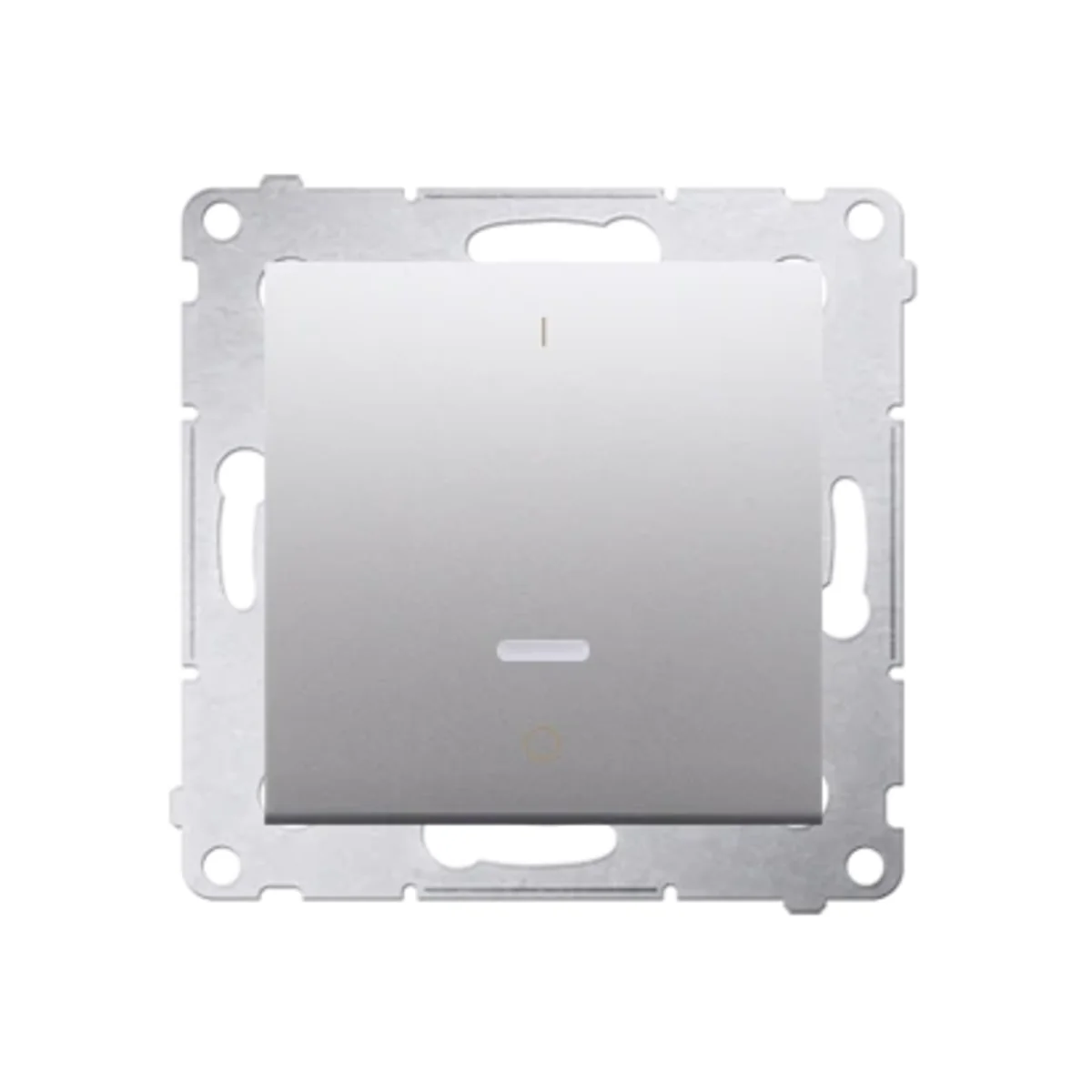

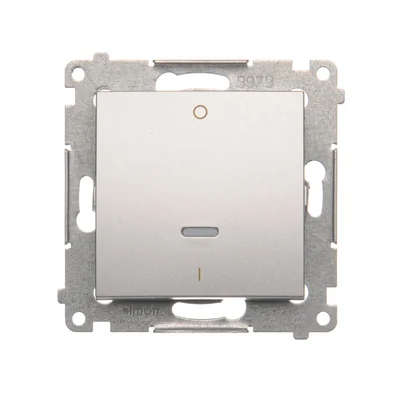

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

See full description

Price:

12,41 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Double-pole switch with illumination from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DW2L.01/43.

FEATURES

Module without frame.< /li>

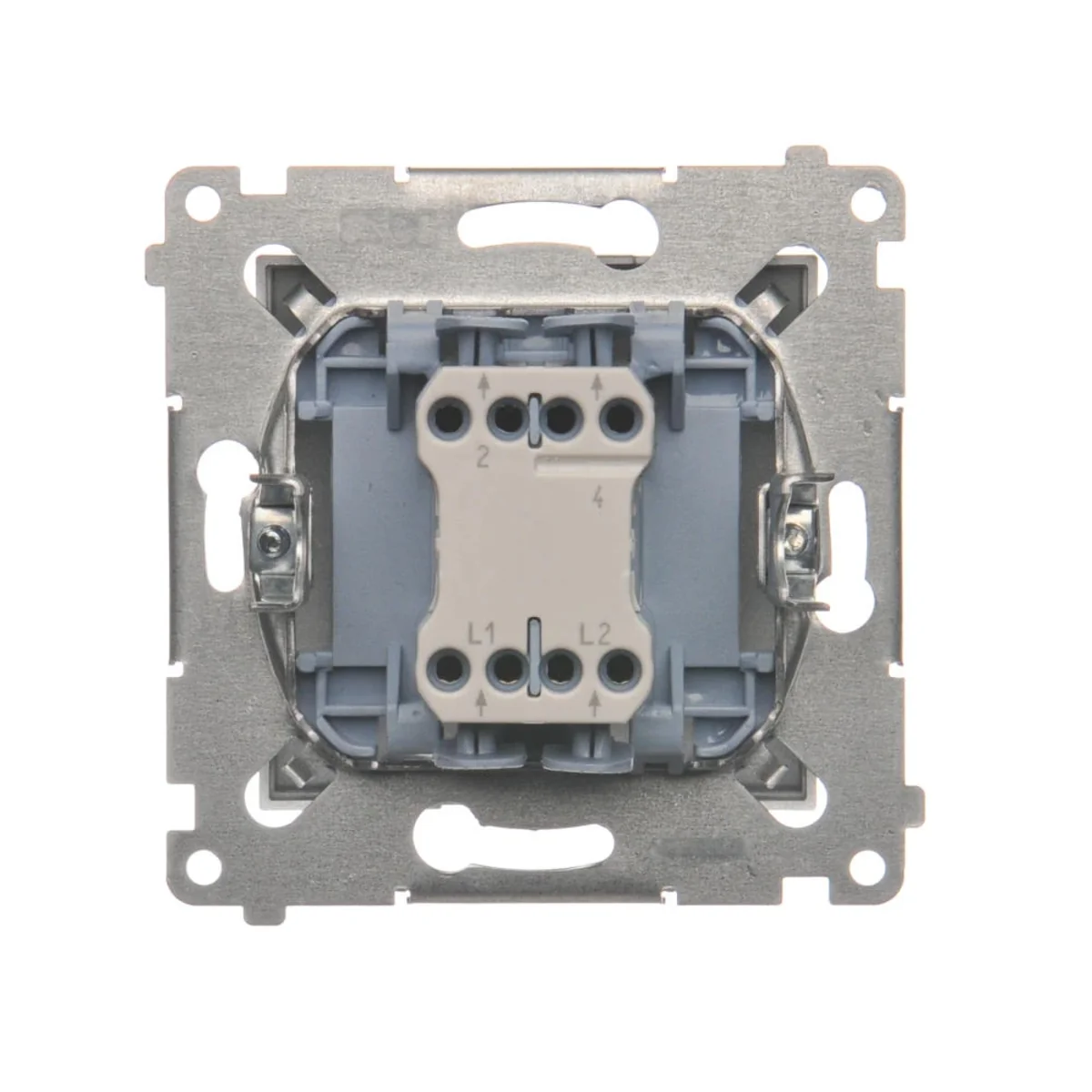

Quick connectors.
Built-in orientation backlight (replaceable LED).
Rocker switch.
Toggle switch.
To obtain the IP44 splash-proof class, use the frame gasket.

SERIES DESCRIPTION

Simon 54 to a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and a variety of colors.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Bipolar
Level of security

IP20
Width [mm]

75
Height [mm]

75
Surface finish

matte
Backlight

Yes
Terminal type

Threadless
Exact material

PC
Backlight color

Blue

Depth [mm]

41
Color

Silver
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Symbol

0-1
Type

Flush-mounted
Surface protection

varnishing
Accurate color

Silver metallic matt
Mounting depth [mm]

26
For the frame system

Yes
Backlight type

LED
PKWIU

27.33.11.0

Other technical data

Wiring system

2-pole switch
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Lacquered
Colour

Silver
Nominal voltage

250 V
Connection type

Push-in clamp

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Manufacturer details

Manufacturer

Kontakt-Simon S.A.
Address

43-500 Czechowice-Dziedzice Bestwińska 21 Polska
E-mail

info@kontakt-simon.com.pl

Bulk packaging

A kind of package	Paczka	Karton
Quantity	1 pcs.	10 pcs.
Weight (kg)	0,059	0,679
Width (m)	0,110	0,190
Length (m)	0,045	0,230
Depth (m)	0,160	0,100
