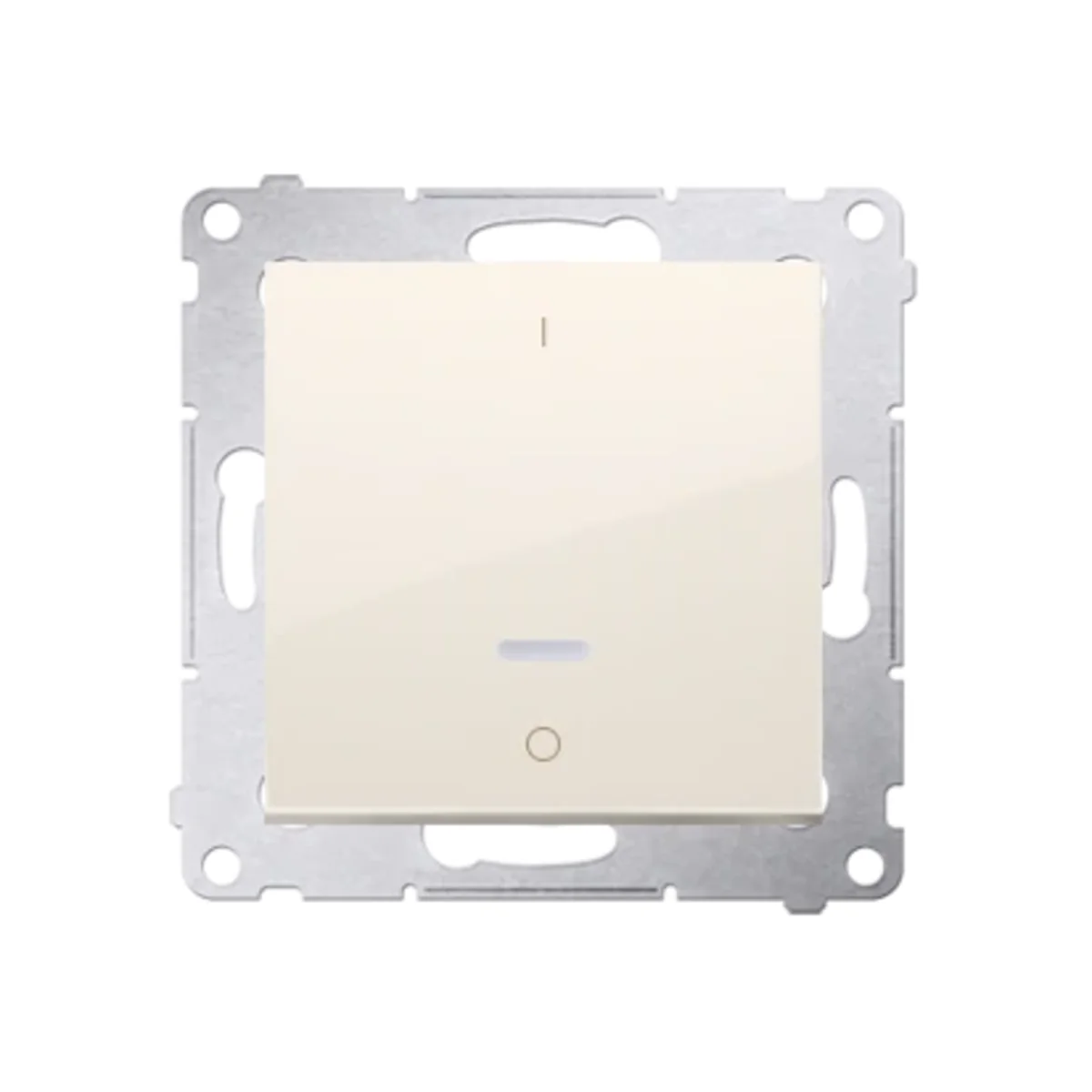

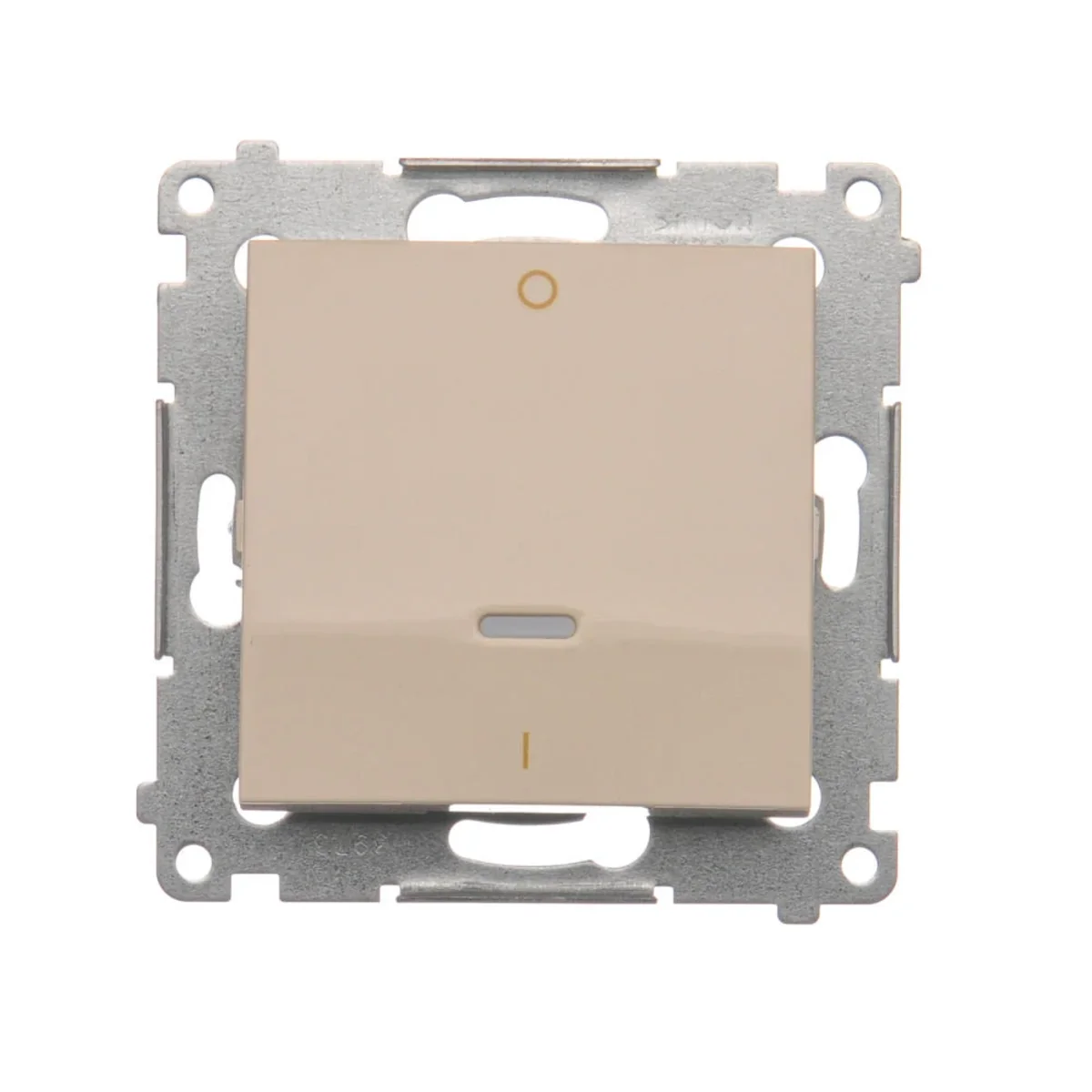

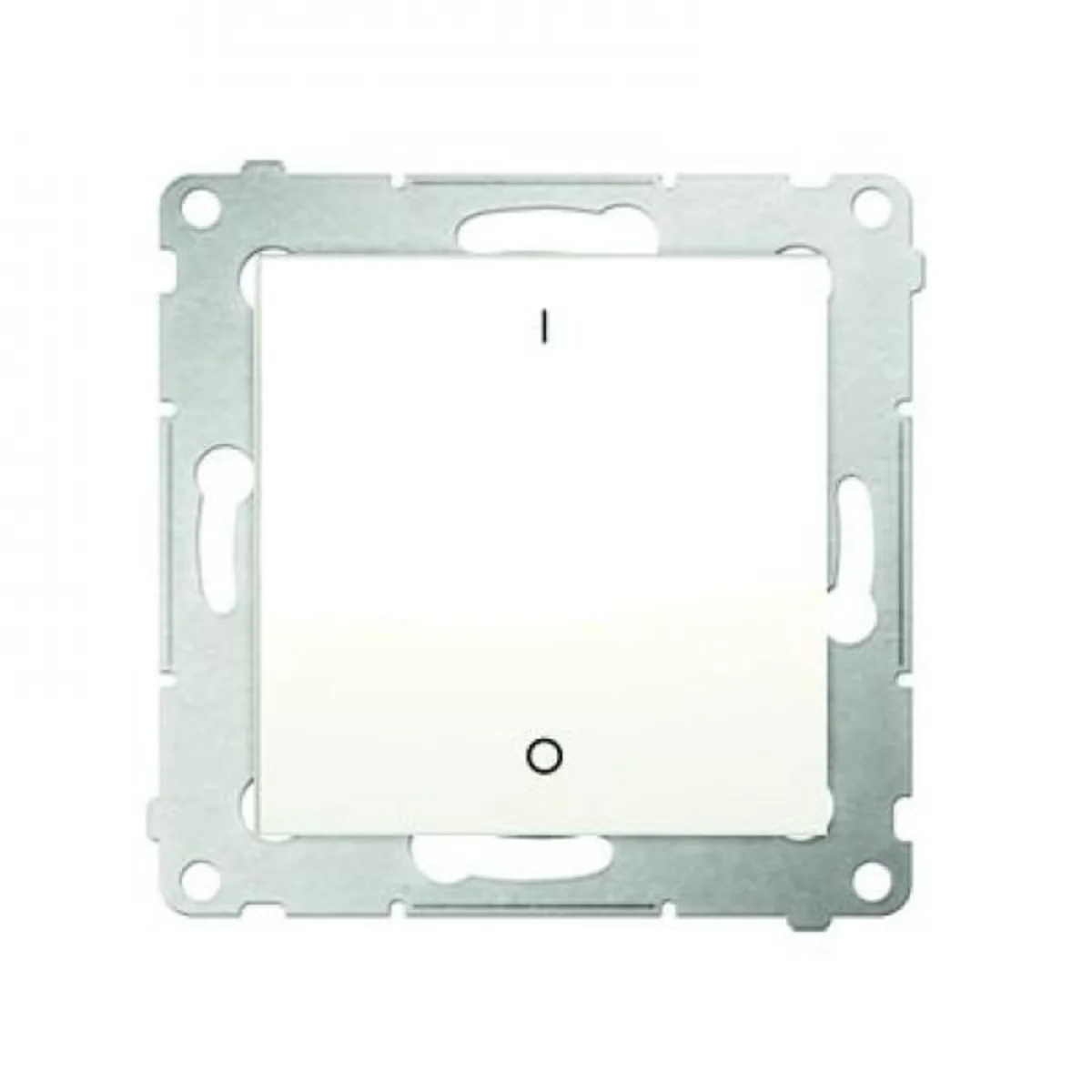

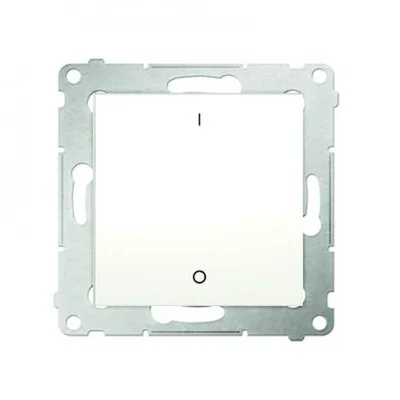

Two-pole switch with LED backlight (module) 10A, 250V, quick connectors, cream DW2L.01/41

Name: Two-pole switch with LED backlight (module) 10A, 250V, quick connectors, cream
Brand: KONTAKT-SIMON
SKU: MMD055KONT
Price: 10.44 PLN

Indice locale:

MMD055KONT

Numero di catalogo:

DW2L.01/41

Codice EAN:

5902787822866

Two-pole switch with LED backlight (module) 10A, 250V, quick connectors, cream

Clicca sulla foto per ingrandire

Produttore: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

Vedi la descrizione completa

Prezzo:

10,44 €

gross / pezzi

(inclusa IVA 23%)

Consegna in 3 ore

fino a 2 settimane (giorni lavorativi)

Raccolta in 1h

Quantità pezzi

(multiplo:

)

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

Double-pole switch with illumination from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DW2L.01/41.

FEATURES

Module without frame.< /li>

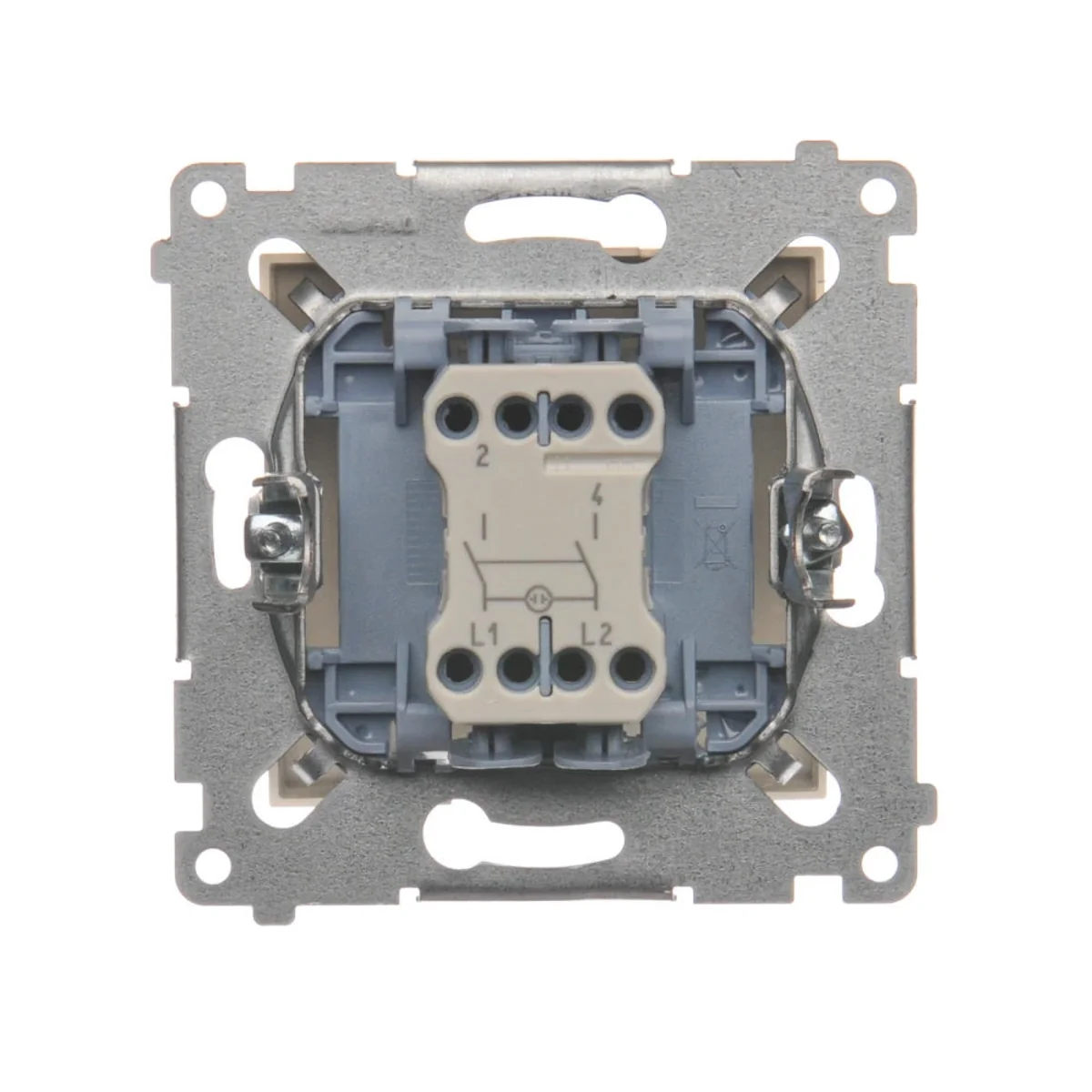

Quick connectors.
Built-in orientation backlight (replaceable LED).
Rocker switch.
Toggle switch.
To obtain IP44 splash-proof class, use a frame gasket.

SERIES DESCRIPTION

Simon 54 to a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and a variety of colors.

Dati tecnici

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Bipolar
Level of security

IP20
Width [mm]

75
Height [mm]

75
Surface finish

Shiny
Backlight

Yes
Terminal type

Threadless
Exact material

PC
Backlight color

Blue

Depth [mm]

41
Color

Beige
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Symbol

0-1
Type

Flush-mounted
Surface protection

Natural
Accurate color

Creamy
Mounting depth [mm]

26
For the frame system

Yes
Backlight type

LED
PKWIU

27.33.11.0

Altri dati tecnici

Wiring system

2-pole switch
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Untreated
Colour

Kremowy
Nominal voltage

250 V
Connection type

Push-in clamp

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Dettagli del produttore

Produttore

Kontakt-Simon S.A.
Indirizzo

43-500 Czechowice-Dziedzice Bestwińska 21 Polska
Email

info@kontakt-simon.com.pl

Imballaggio sfuso

Una specie di pacchetto	Paczka	Karton
Quantità	1 pezzi	10 pezzi
Peso (kg)	0,059	0,679
Larghezza (m)	0,110	0,190
Lunghezza (m)	0,045	0,230
Profondità (m)	0,160	0,100
