Two-pole switch with illumination (module), 10A, 250V, screw terminals, white BMW2L.01/11

Name: Two-pole switch with illumination (module), 10A, 250V, screw terminals, white
Brand: KONTAKT-SIMON
SKU: MMD033KONT
Price: 9.14 PLN

local index:

MMD033KONT

Catalog No:

BMW2L.01/11

EAN code:

5902787571931

Two-pole switch with illumination (module), 10A, 250V, screw terminals, white

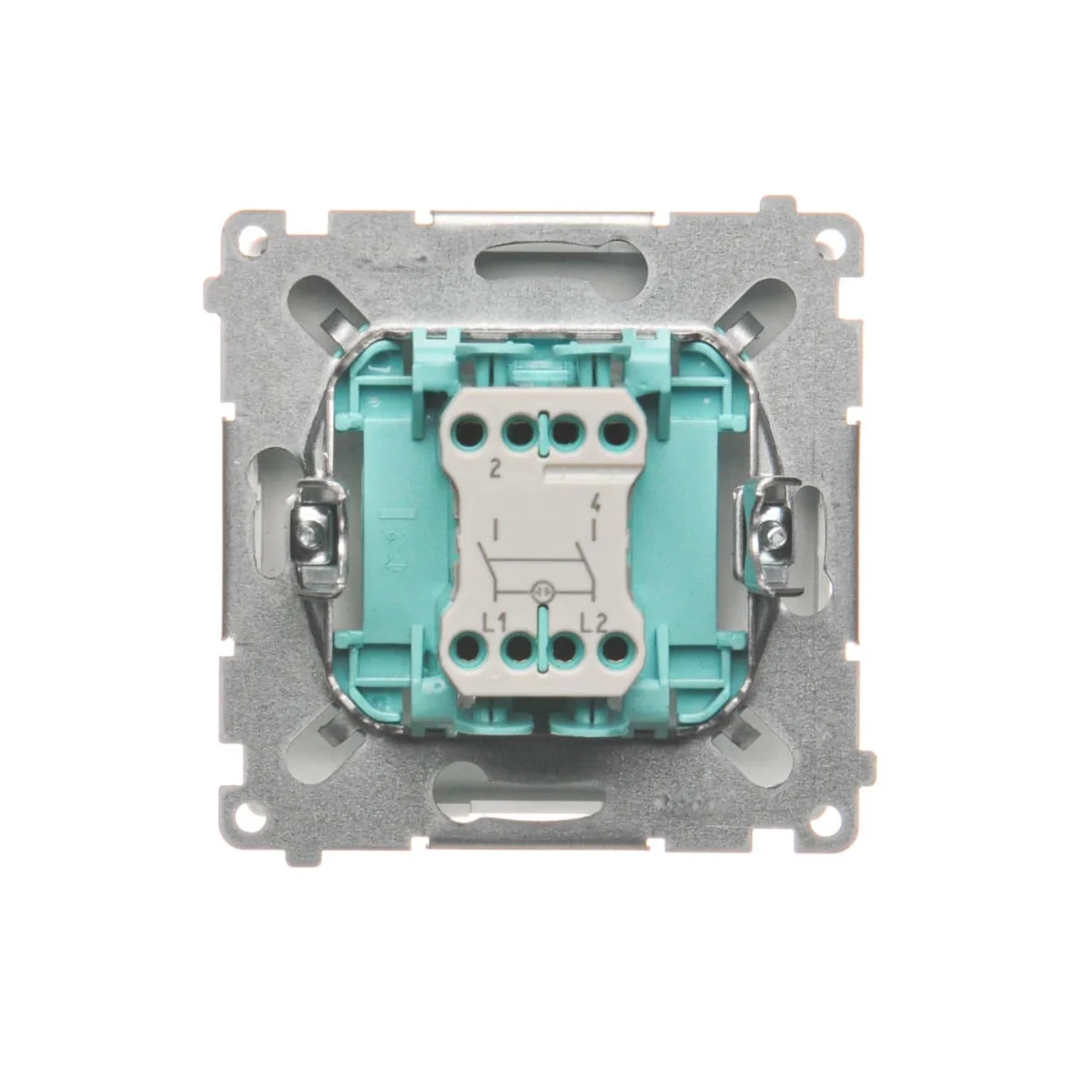

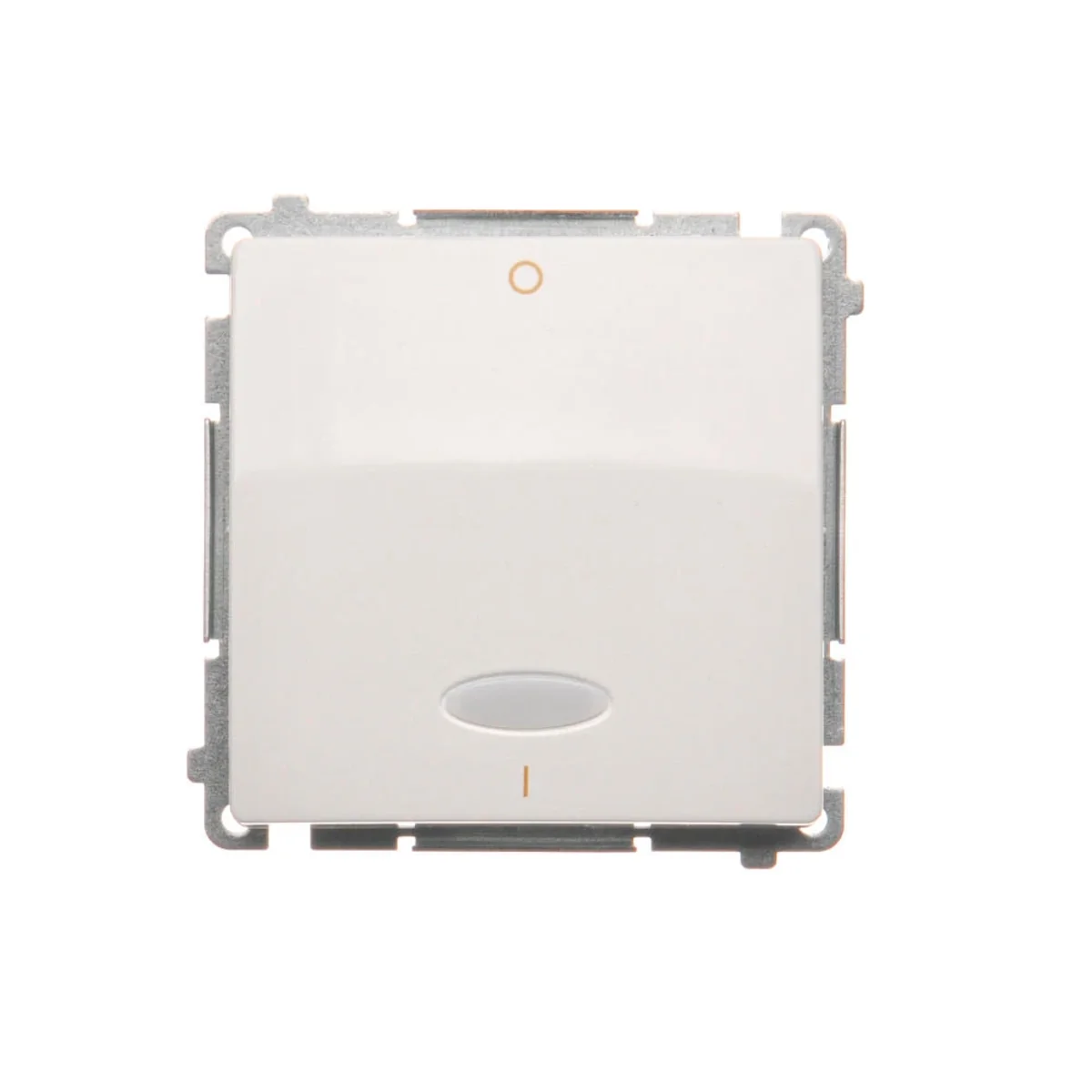

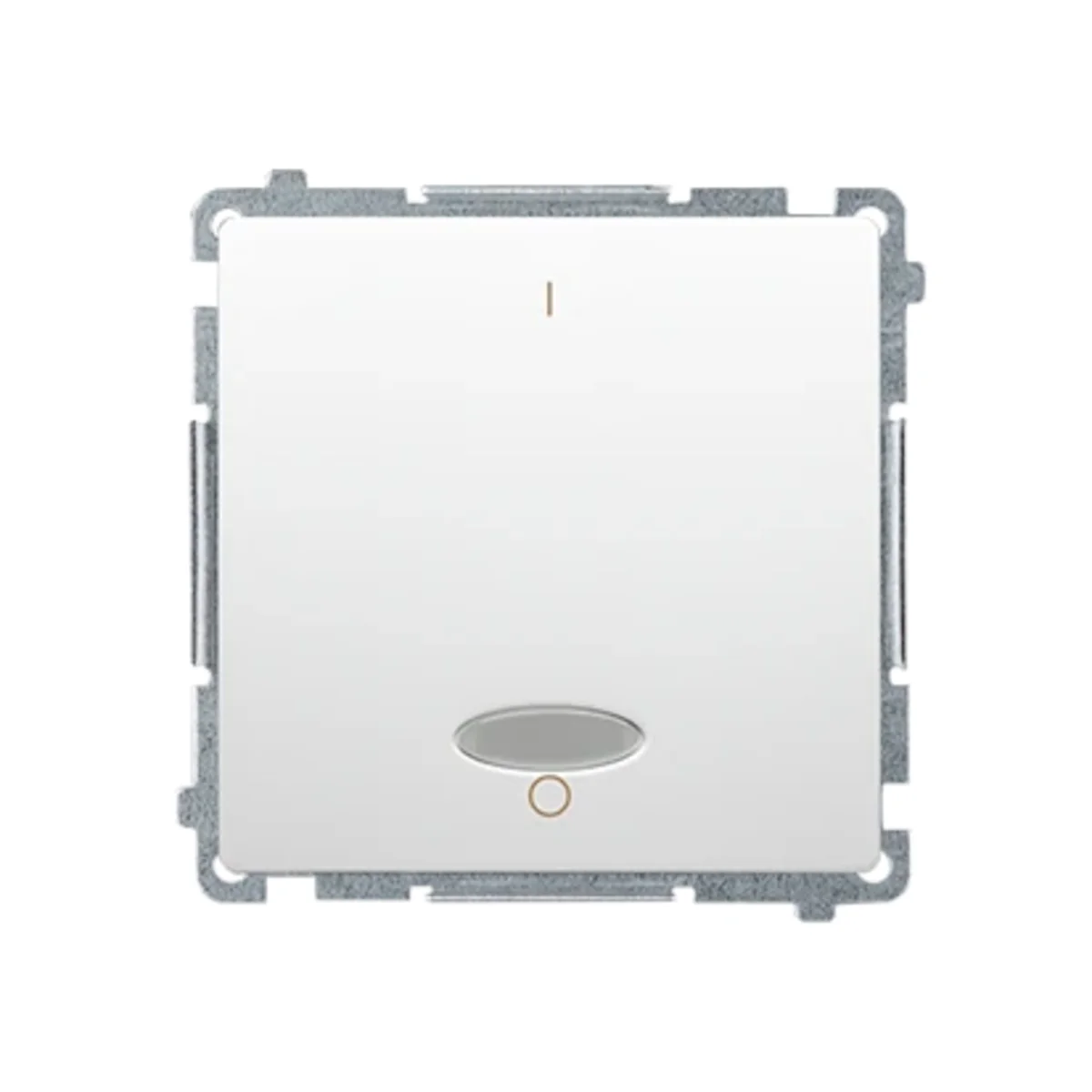

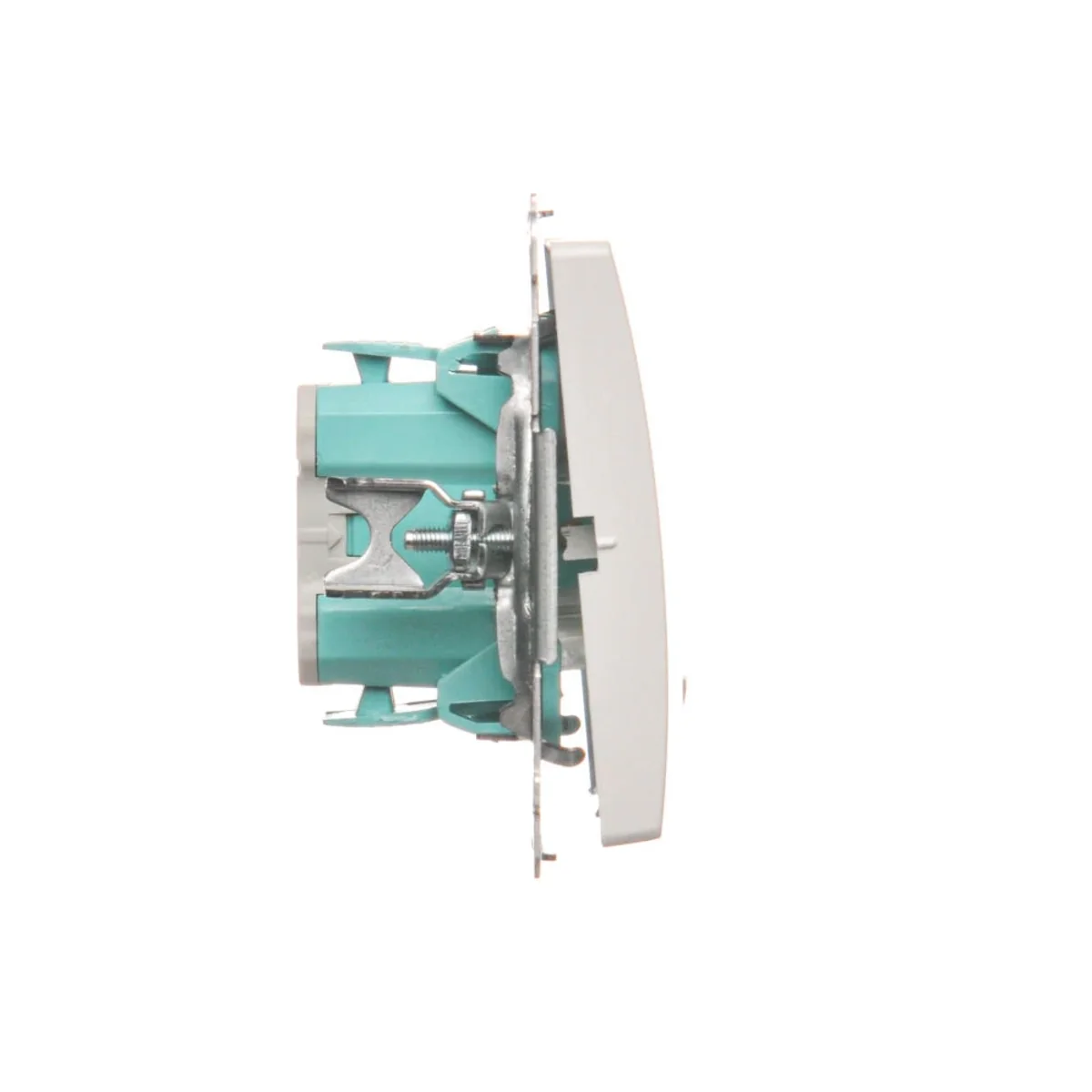

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

See full description

Price:

9,14 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Double-pole switch with illumination from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMW2L.01/11.

FEATURES

Module without frame.< /li>
Quick connectors.
Built-in, orienting backlight (LED not replaceable).
Rocker switch.
To obtain IP44 splash-proof class, use the IP44 NEOS frame : BMRC1B/..; BMRC2B/... or IP44 frame STANDARD: BMR1B/..; BMR2B/...; BMR3B/...

SERIES DESCRIPTION

Simon Basic is a series of electrical equipment which ra is based on a classic look and functionality. Double pole switch characterize features of this unique series.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Bipolar
Level of security

IP20
Width [mm]

75
Height [mm]

75
Surface finish

Shiny
Mounting depth [mm]

24
For the frame system

Yes
Backlight type

LED
PKWIU

27.33.11.0

Depth [mm]

41
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

SIMON BASIC
Symbol

0-1
Type

Flush-mounted
Surface protection

Natural
Backlight

Yes
Terminal type

Threadless
Exact material

PC
Backlight color

Blue

Other technical data

Wiring system

2-pole switch
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V
Connection type

Push-in clamp

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,082	0,082	0,907
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
