Two-pole switch with backlight (module) 230V, metallic satin BMW2L.01/29

Name: Two-pole switch with backlight (module) 230V, metallic satin
Brand: KONTAKT-SIMON
SKU: MMD037KONT
Price: 10.76 PLN

local index:

MMD037KONT

Catalog No:

BMW2L.01/29

EAN code:

5902787830878

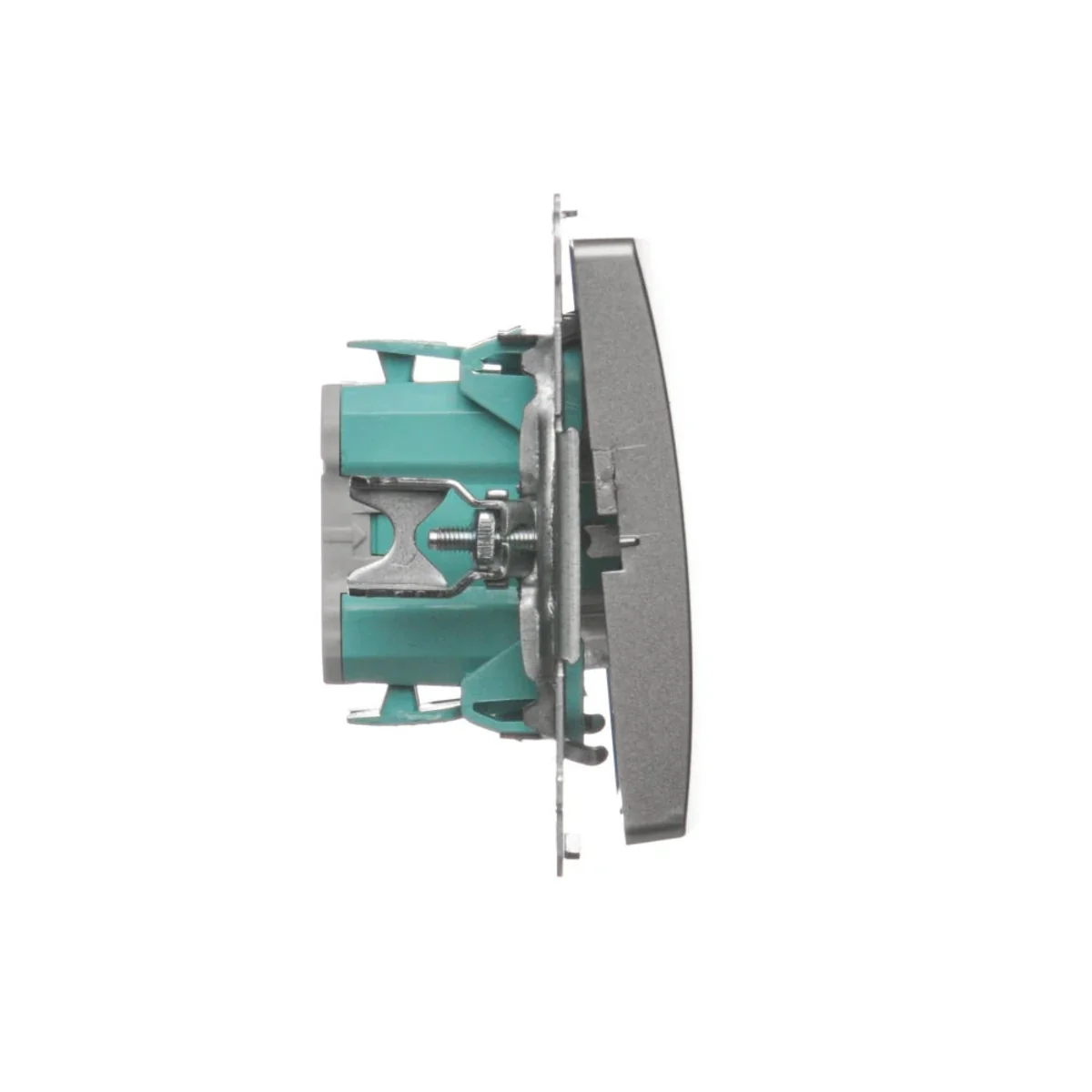

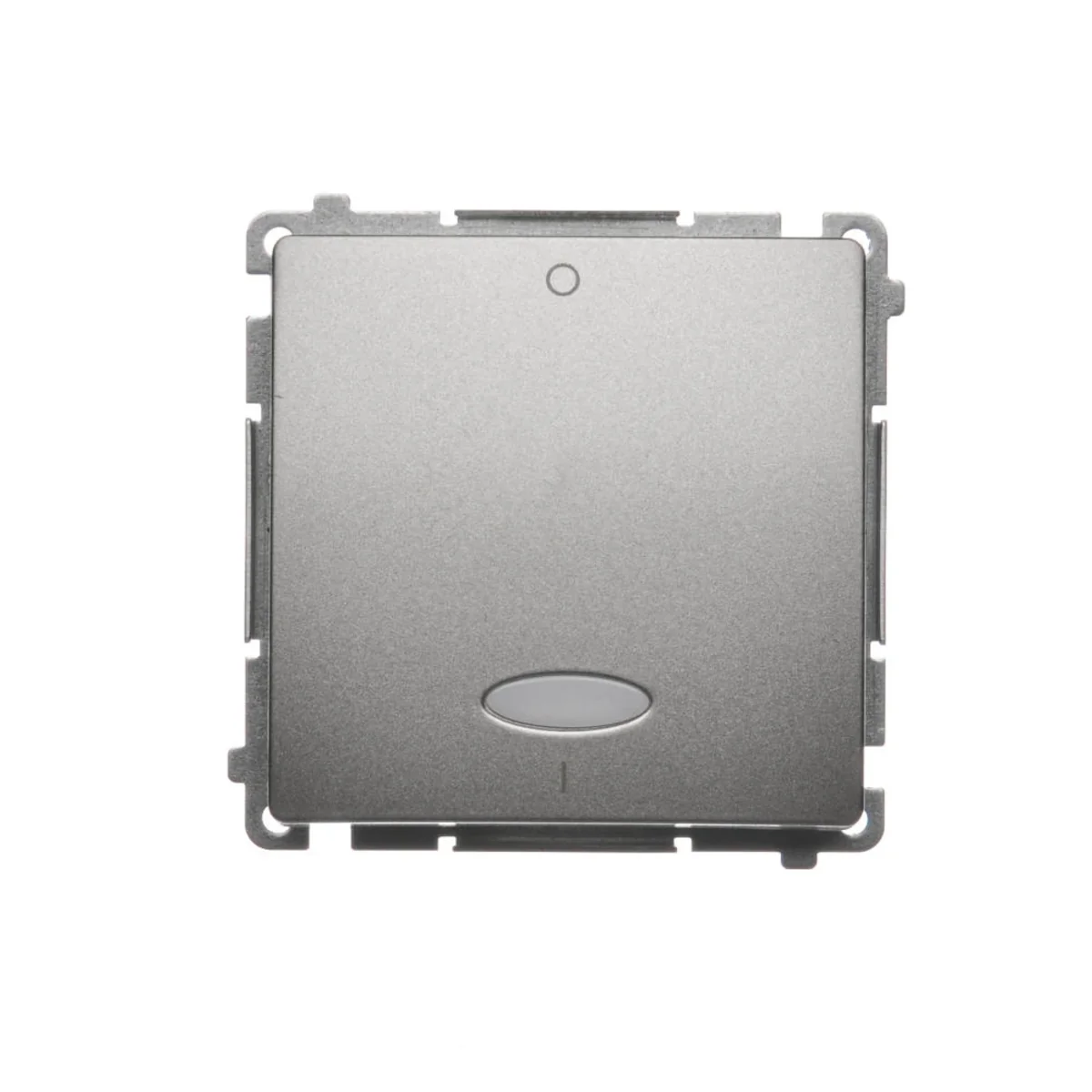

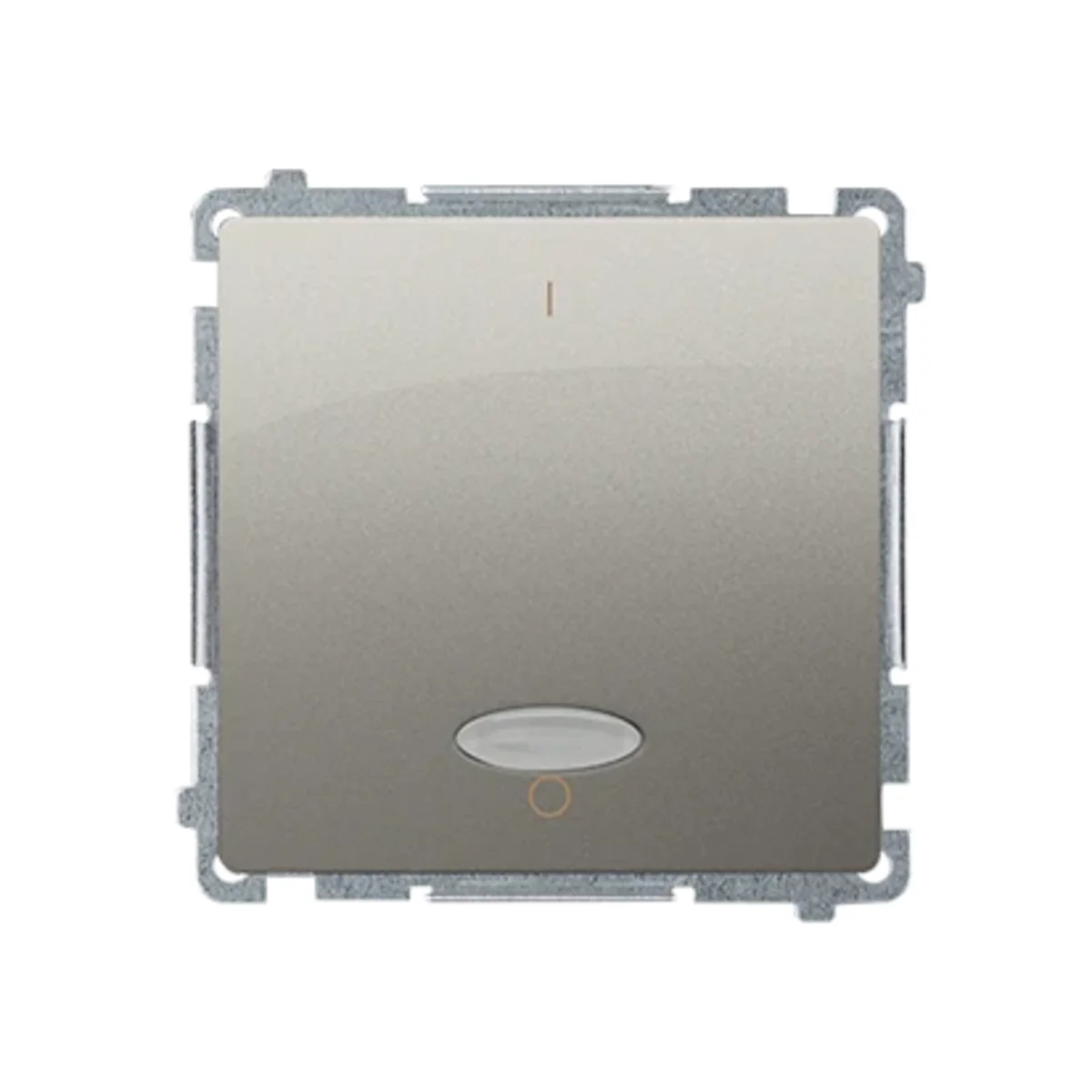

Two-pole switch with backlight (module) 230V, metallic satin

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

See full description

Price:

10,76 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to a week (working days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Double-pole switch with illumination from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMW2L.01/29.

FEATURES

Module without frame.< /li>

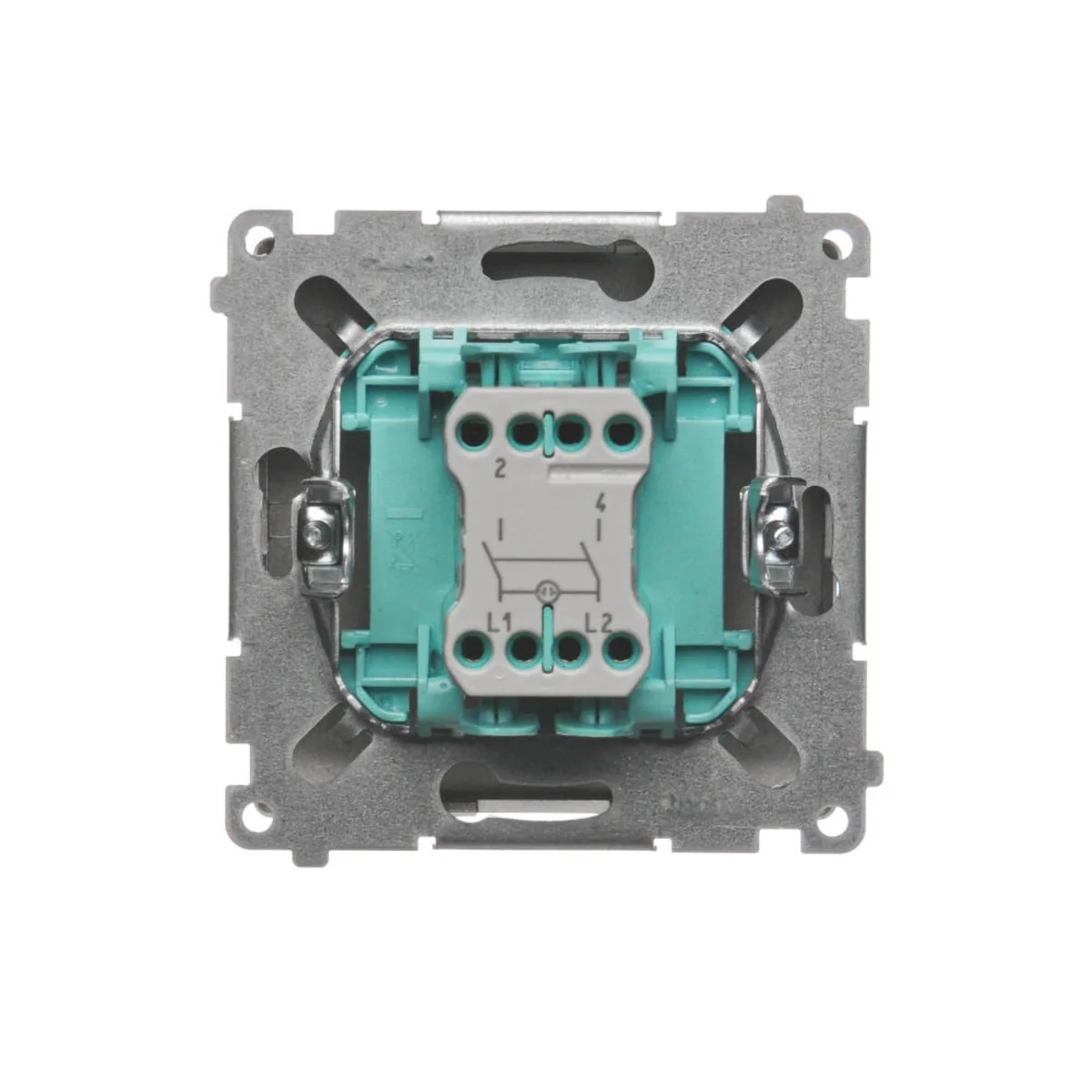

Quick connectors.
Built-in, orienting backlight (LED not replaceable).
Rocker switch.
To obtain IP44 splash-proof class, use the IP44 NEOS frame : BMRC1B/..; BMRC2B/... or IP44 frame STANDARD: BMR1B/..; BMR2B/...; BMR3B/...

SERIES DESCRIPTION

Simon Basic is a series of electrical equipment which ra is based on a classic look and functionality. Double pole switch characterize features of this unique series.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Bipolar
Level of security

IP20
Width [mm]

75
Height [mm]

75
Surface finish

matte
Backlight

Yes
Terminal type

Threadless
Exact material

PC
Backlight color

Blue

Depth [mm]

41
Color

Silver
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

SIMON BASIC
Symbol

0-1
Type

Flush-mounted
Surface protection

varnishing
Accurate color

Satin metallic
Mounting depth [mm]

24
For the frame system

Yes
Backlight type

LED
PKWIU

27.33.11.0

Other technical data

Wiring system

2-pole switch
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Lacquered
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Nominal voltage

250 V
Connection type

Push-in clamp

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,082	0,082	0,907
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
