Two-pole switch with backlight, 230V, white AW2L/11

Name: Two-pole switch with backlight, 230V, white
Brand: KONTAKT-SIMON
SKU: MMD013KONT
Price: 8.00 PLN

local index:

MMD013KONT

Catalog No:

AW2L/11

EAN code:

5902787569419

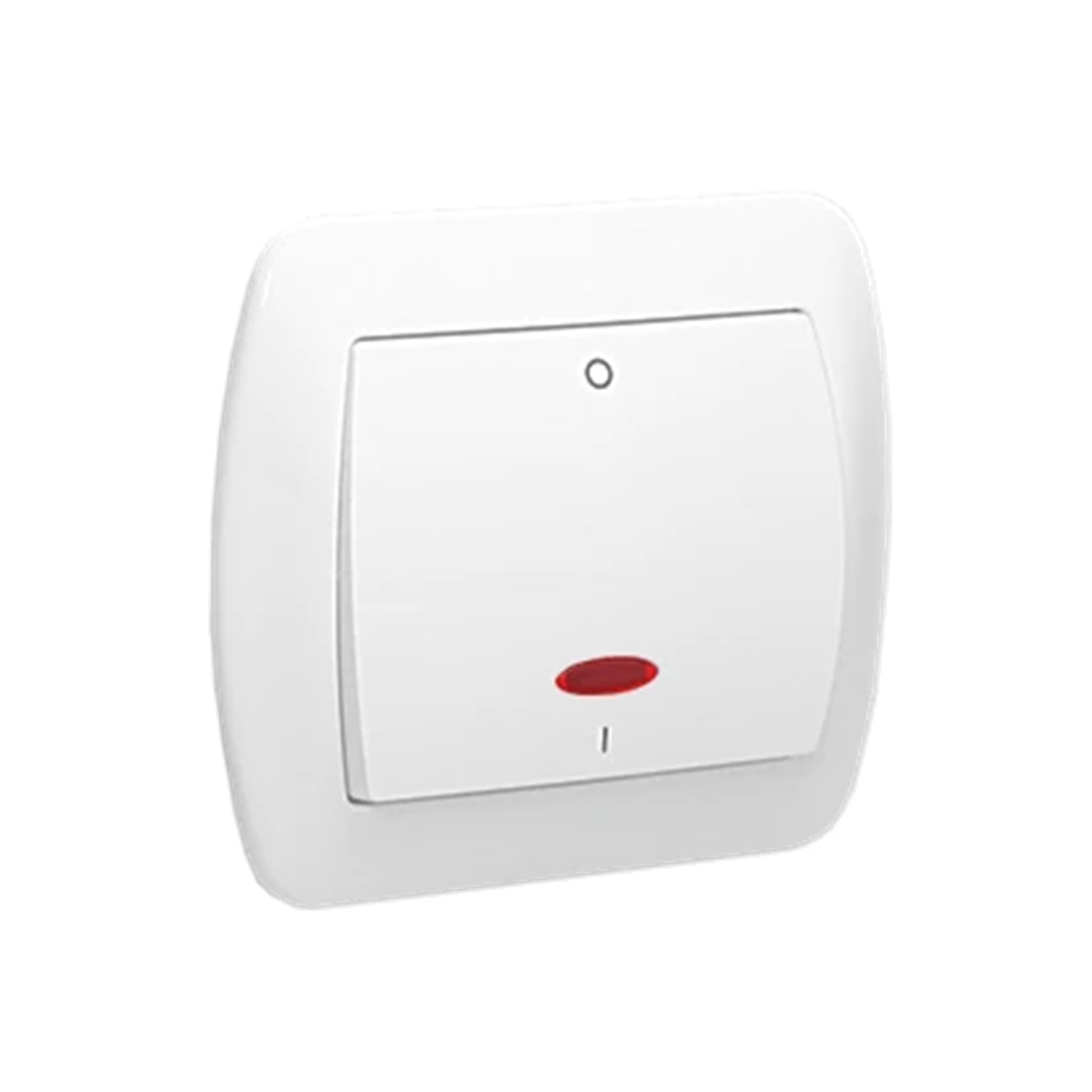

Two-pole switch with backlight, 230V, white

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 37.5

Number of keys: 1

See full description

Price:

8,00 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Double-pole switch with backlight, from the Simon Akord series, from the manufacturer Contact Simon. The product part number is AW2L/11.

FEATURES

Complete product.
Built-in orientation backlight.
Toggle switch.
Rocker switch.

SERIES DESCRIPTION

Simon Akord is a minimalist monoblock, i.e. non-frame series. The double-pole switch has all the features of this unique series.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Rectangular
Fixing

claws Screws
Rated voltage [V]

230
Type

Bipolar
Level of security

IP20
Width [mm]

90
Height [mm]

80.5
Surface finish

Shiny
Mounting depth [mm]

24.5
For the frame system

NO
Backlight type

Smoldering lamp
PKWIU

27.33.11.0

Depth [mm]

37.5
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

SIMON CHORD
Symbol

0-1
Type

Flush-mounted
Surface protection

Natural
Backlight

Yes
Terminal type

Threaded
Exact material

PC
Backlight color

Orange

Other technical data

Wiring system

2-pole switch
Assembly arrangement

Basic element with complete housing
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V
Connection type

Screwed terminal

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,065	0,065	0,740
Width (m)	0,080	0,110	0,190
Length (m)	0,090	0,043	0,230
Depth (m)	0,038	0,165	0,100
