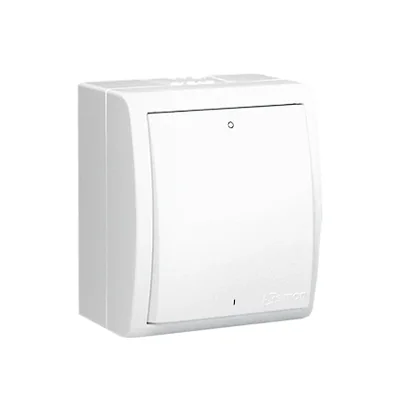

Two-pole switch with backlight, 230V, white AQW2L/11

Name: Two-pole switch with backlight, 230V, white
Brand: KONTAKT-SIMON
SKU: MND002KONT
Price: 7.59 PLN

local index:

MND002KONT

Catalog No:

AQW2L/11

EAN code:

5902787574291

Two-pole switch with backlight, 230V, white

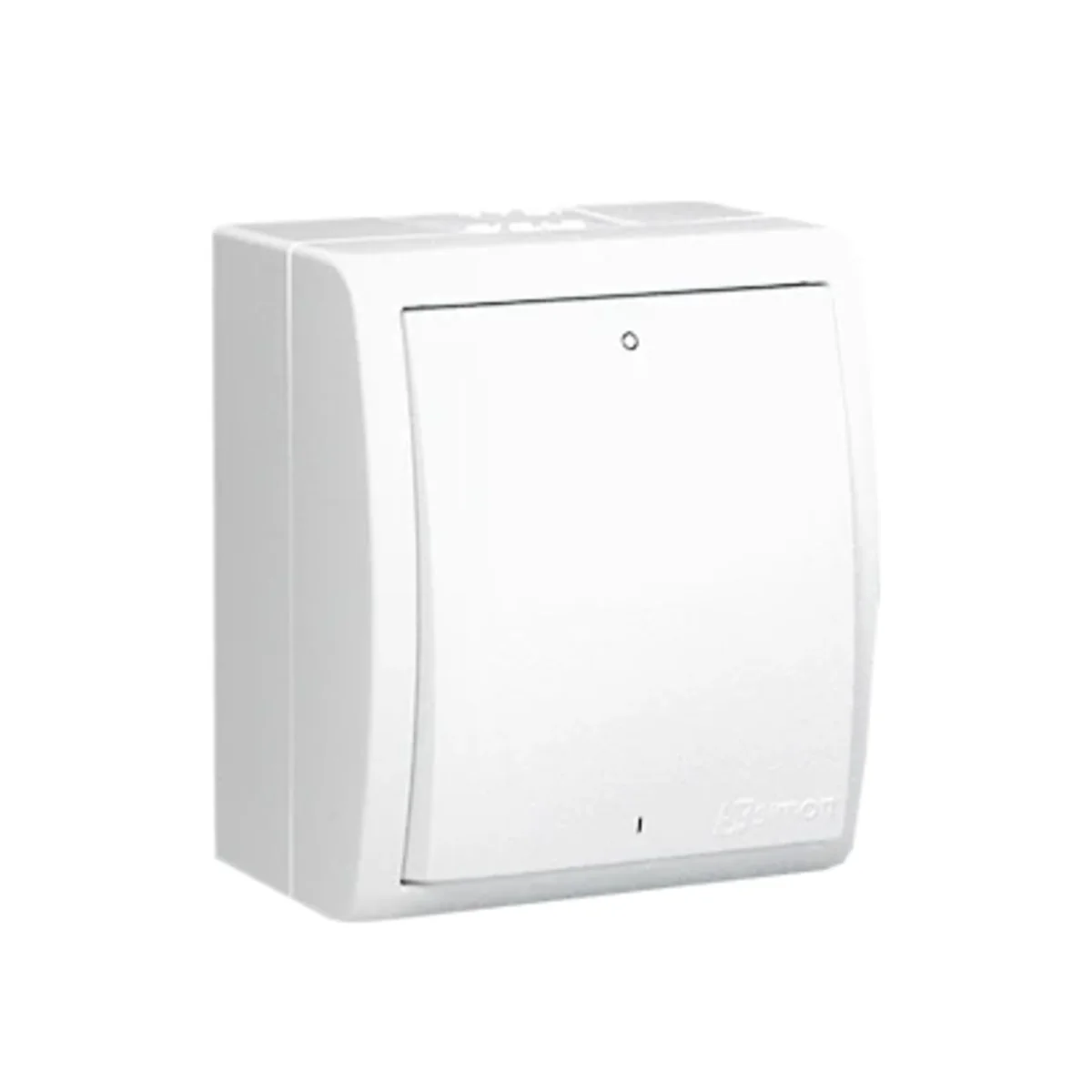

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 48

Number of keys: 1

See full description

Price:

7,59 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Double pole hermetic switch with backlight, from the Simon Aquarius series. The product catalog number is AQW2L/11.

FEATURES

Backlight built-in, orientation.< /li>
Complete product.
Rocker switch.
Bistable switch.
Screw mounting (e.g. to a box).

SERIES DESCRIPTION

Simon Aquarius is a series of surface-mounted, splash-proof electrical installation equipment intended for use in adverse conditions. Hermetic double-pole switch characterize the features of this unique series.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Rectangular
Fixing

Screws
Rated voltage [V]

230
Type

Bipolar
Level of security

IP54
Width [mm]

60
Height [mm]

70
Surface finish

Shiny
Terminal type

Threaded
Exact material

ABS
Backlight color

Orange

Depth [mm]

48
Color

White
Material

Plastic
Installation

Surface-mounted
Rated current [A]

10
Family

SIMON AQUARIUS
Symbol

0-1
Type

Surface-mounted
Surface protection

Natural
Backlight

Yes
For the frame system

NO
Backlight type

Smoldering lamp
PKWIU

27.33.11.0

Other technical data

Wiring system

2-pole switch
Assembly arrangement

Basic element with complete housing
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V
Connection type

Screwed terminal

Method of operation

Rocker/button
Mounting method

Surface mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP54
Switching current for fluorescent lamps

10 AX

Bulk packaging

A kind of package	Karton		Paczka
Quantity	10 pcs.	1 pcs.	1 pcs.
Weight (kg)	0,934	0,084	0,084
Width (m)	0,190	0,070	0,110
Length (m)	0,230	0,060	0,053
Depth (m)	0,100	0,048	0,160
