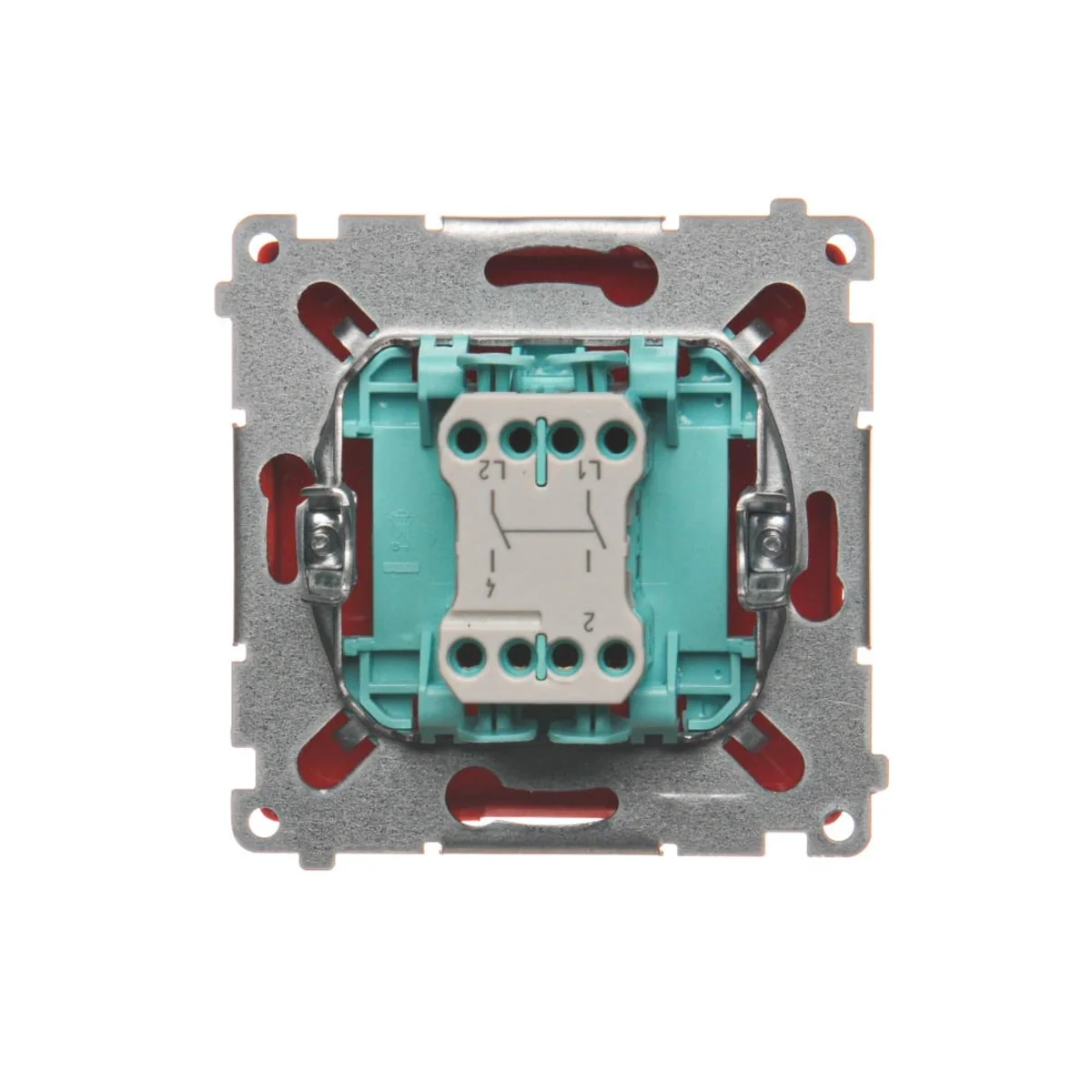

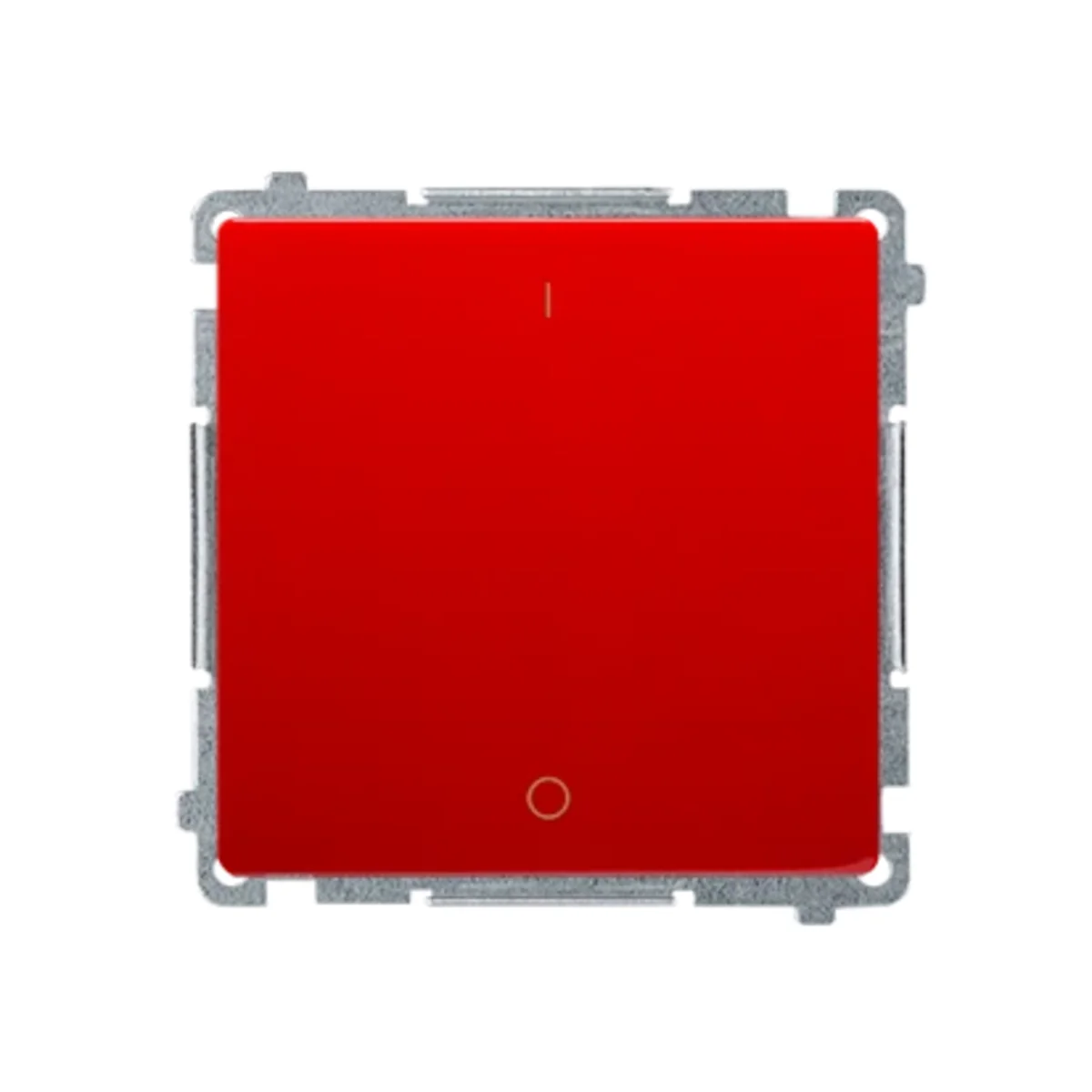

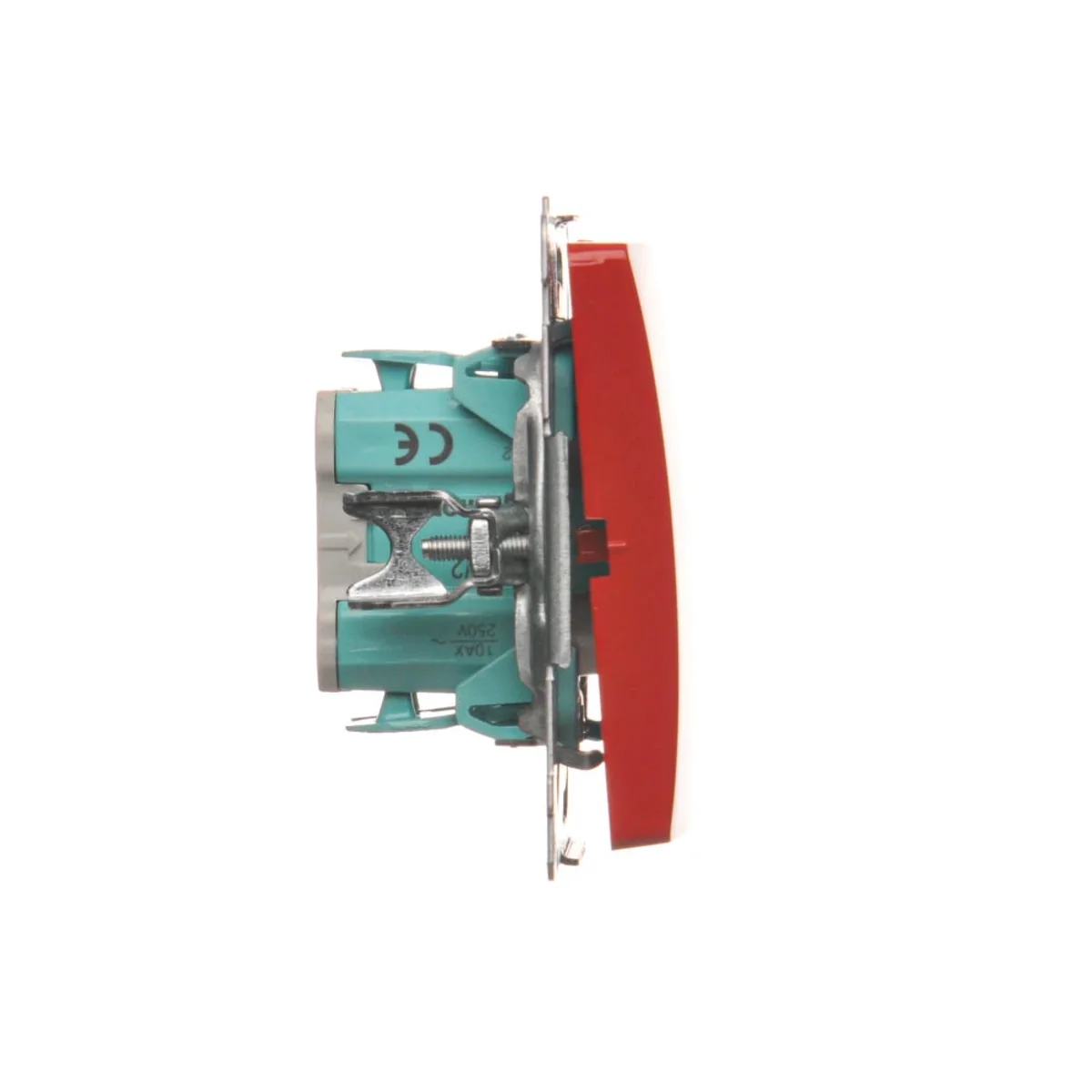

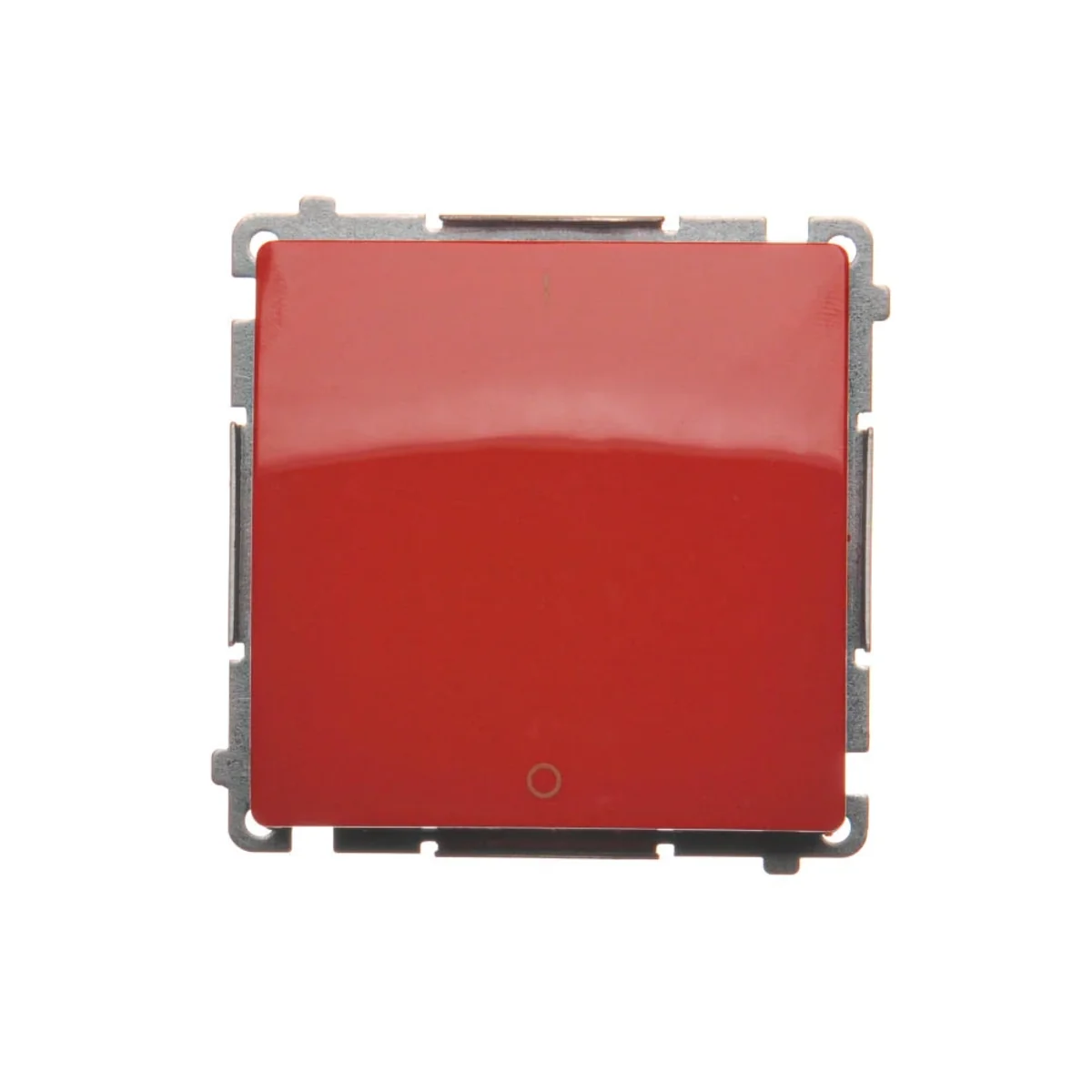

Two-pole switch (module) 230V, red BMW2.01/22

local index:
MMD020KONT
Catalog No:
BMW2.01/22
EAN code:
5902787545031
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 41
Number of keys: 1
Price:
8,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Double-pole switch from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMW2.01/22.



FEATURES

  • Module without frame.< /li>
  • Quick connectors.
  • Backlight optional, not included.
  • Rocker switch.
  • For IP44 splashproof use IP44 NEOS frame: BMRC1B/. .; BMRC2B/... or IP44 frame STANDARD: BMR1B/..; BMR2B/...; BMR3B/...



SERIES DESCRIPTION

Simon Basic is a series of electrical equipment which ra is based on a classic look and functionality. Double pole switch characterize features of this unique series.

Technical data

  • Halogen free
    Yes
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Bipolar
  • Level of security
    IP20
  • Width [mm]
    75
  • Height [mm]
    75
  • Surface finish
    Shiny
  • Mounting depth [mm]
    24
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Depth [mm]
    41
  • Color
    Red
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SIMON BASIC
  • Symbol
    0-1
  • Type
    Flush-mounted
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threadless
  • Exact material
    PC

Other technical data

  • Wiring system
    2-pole switch
  • Assembly arrangement
    Basic element with central cover plate
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    Red
  • Nominal voltage
    250 V
  • Connection type
    Push-in clamp
  • Method of operation
    Rocker/button
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Suitable for degree of protection (IP)
    IP20
  • Switching current for fluorescent lamps
    10 AX

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,079 0,079 0,878
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,045 0,230
Depth (m) 0,041 0,160 0,100
