el12 Electrical equipment Fasteners Concealed connectors Two-pole switch (module) 230V, metallic stainless steel
el12 Electrical equipment Fasteners Two-pole switches Two-pole switch (module) 230V, metallic stainless steel

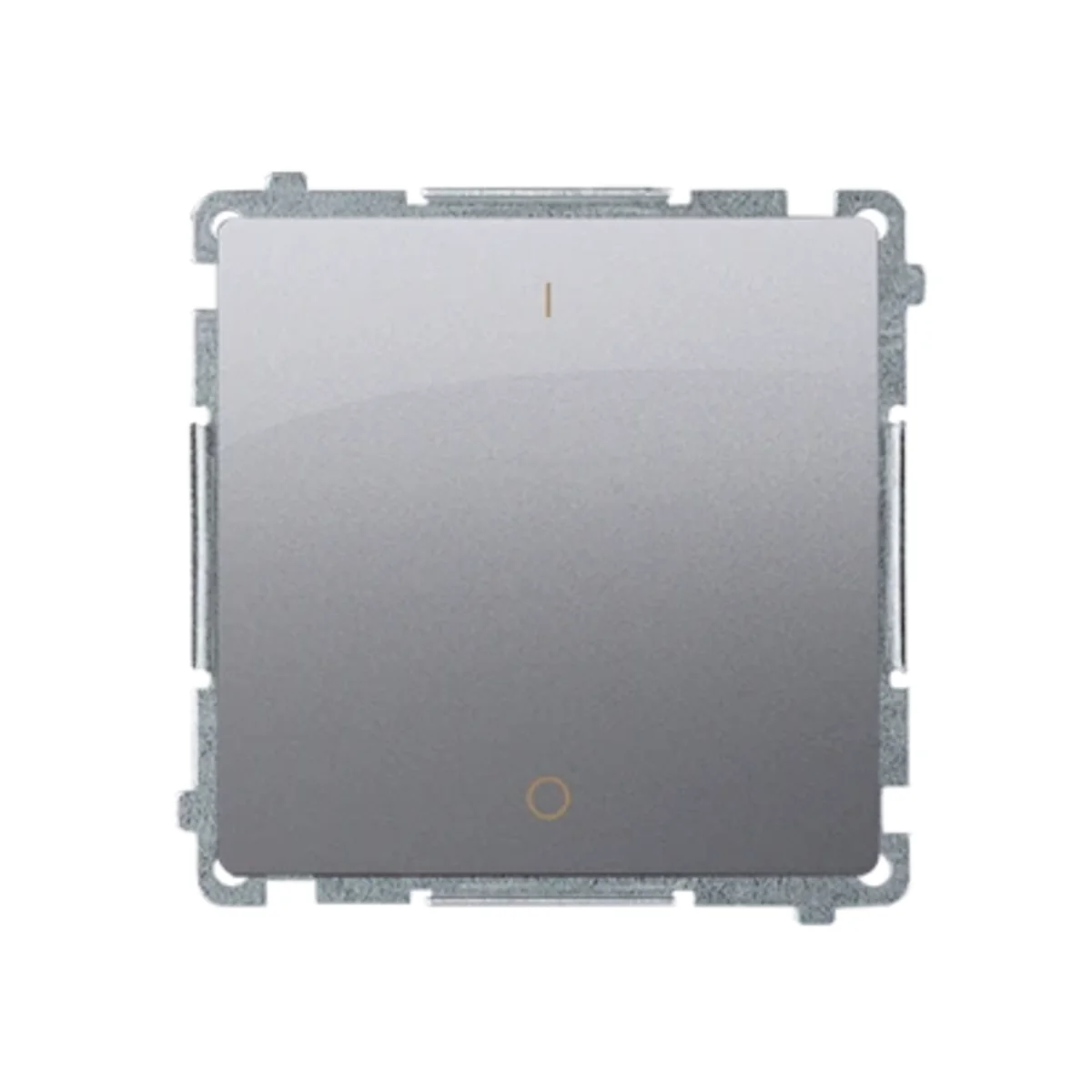

Two-pole switch (module) 230V, metallic stainless steel
Two-pole switch (module) 230V, metallic stainless steel
Two-pole switch (module) 230V, metallic stainless steel
Two-pole switch (module) 230V, metallic stainless steel
Two-pole switch (module) 230V, metallic stainless steel
Two-pole switch (module) 230V, metallic stainless steel

Click on the photo to enlarge

Two-pole switch (module) 230V, metallic stainless steel
Two-pole switch (module) 230V, metallic stainless steel
Two-pole switch (module) 230V, metallic stainless steel
Two-pole switch (module) 230V, metallic stainless steel
Two-pole switch (module) 230V, metallic stainless steel
Two-pole switch (module) 230V, metallic stainless steel
KONTAKT-SIMON

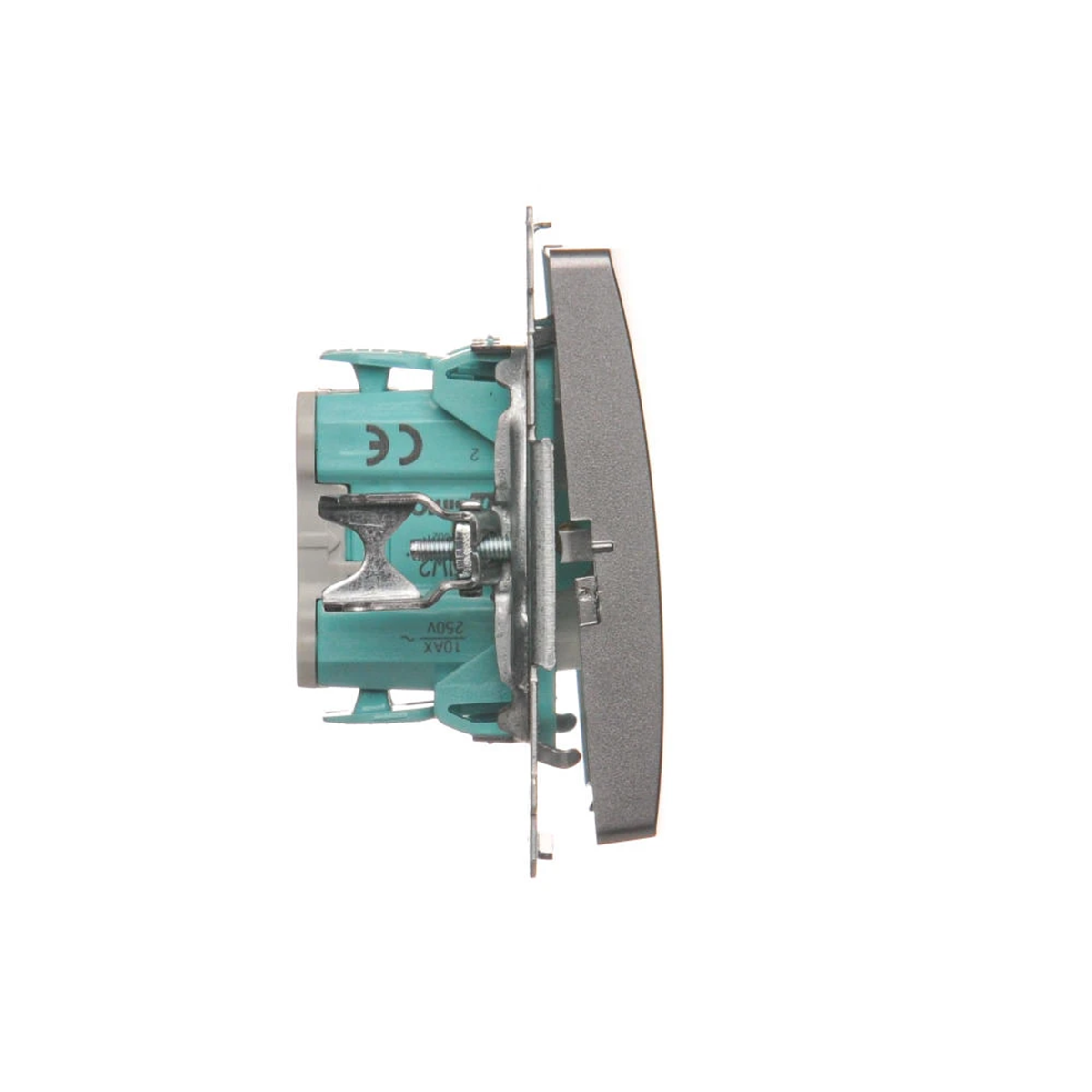

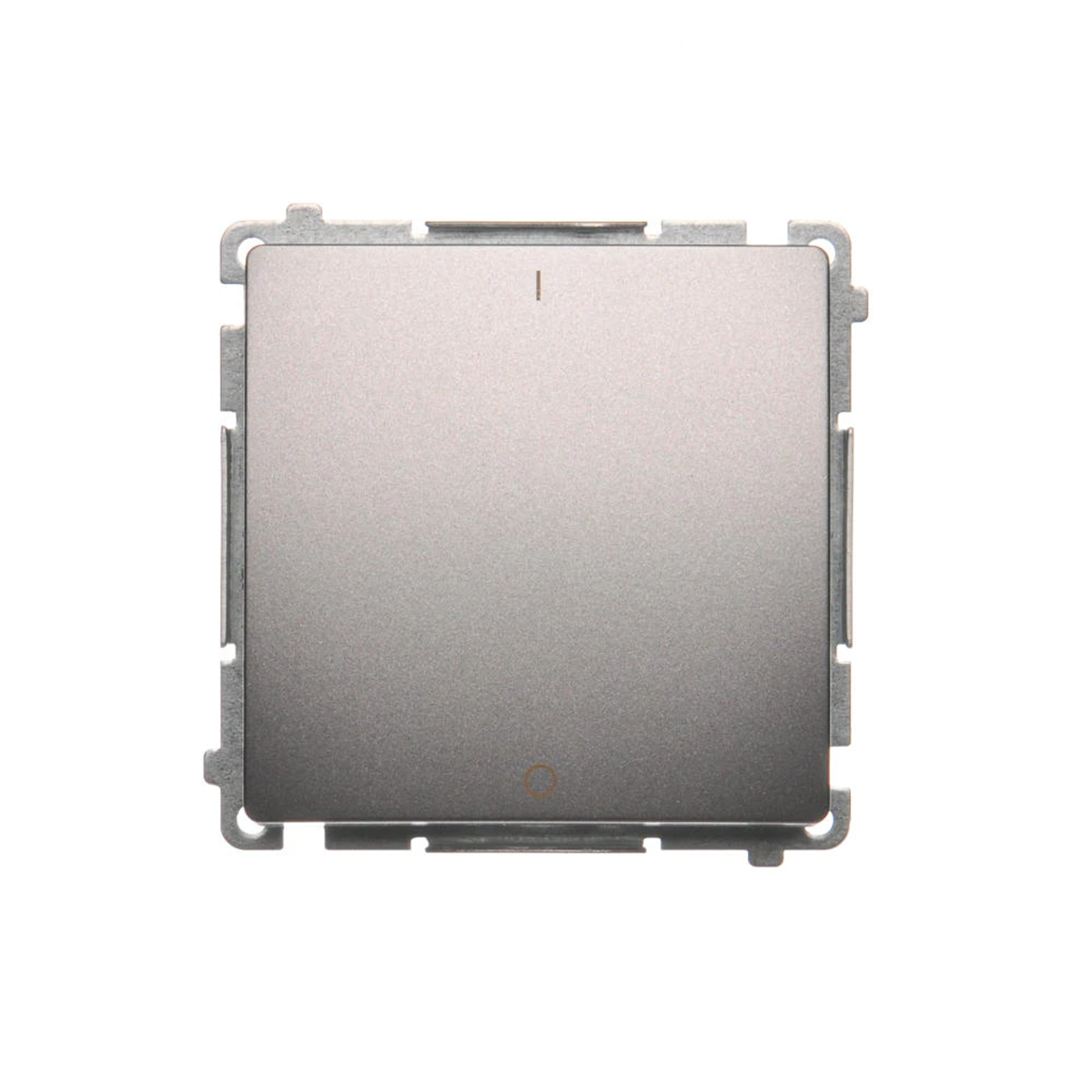

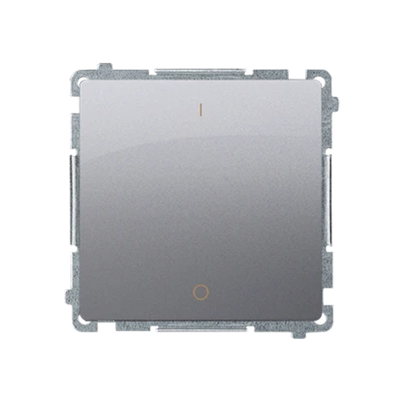

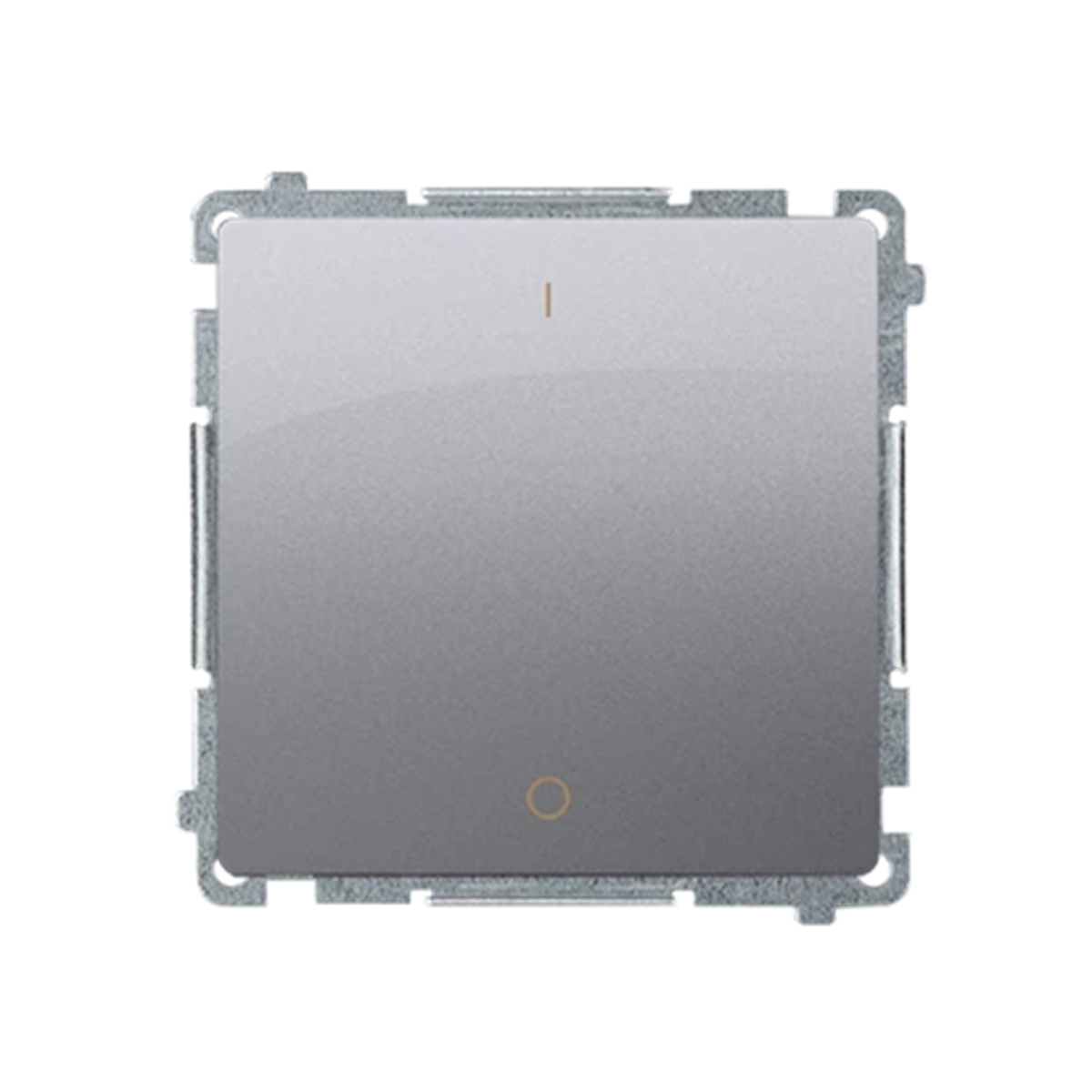

Two-pole switch (module) 230V, metallic stainless steel BMW2.01/21

local index:
MMD019KONT
Catalog No:
BMW2.01/21
EAN code:
5902787819736
Price:
8,13 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Double-pole switch from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMW2.01/21.



FEATURES

  • Module without frame.< /li>

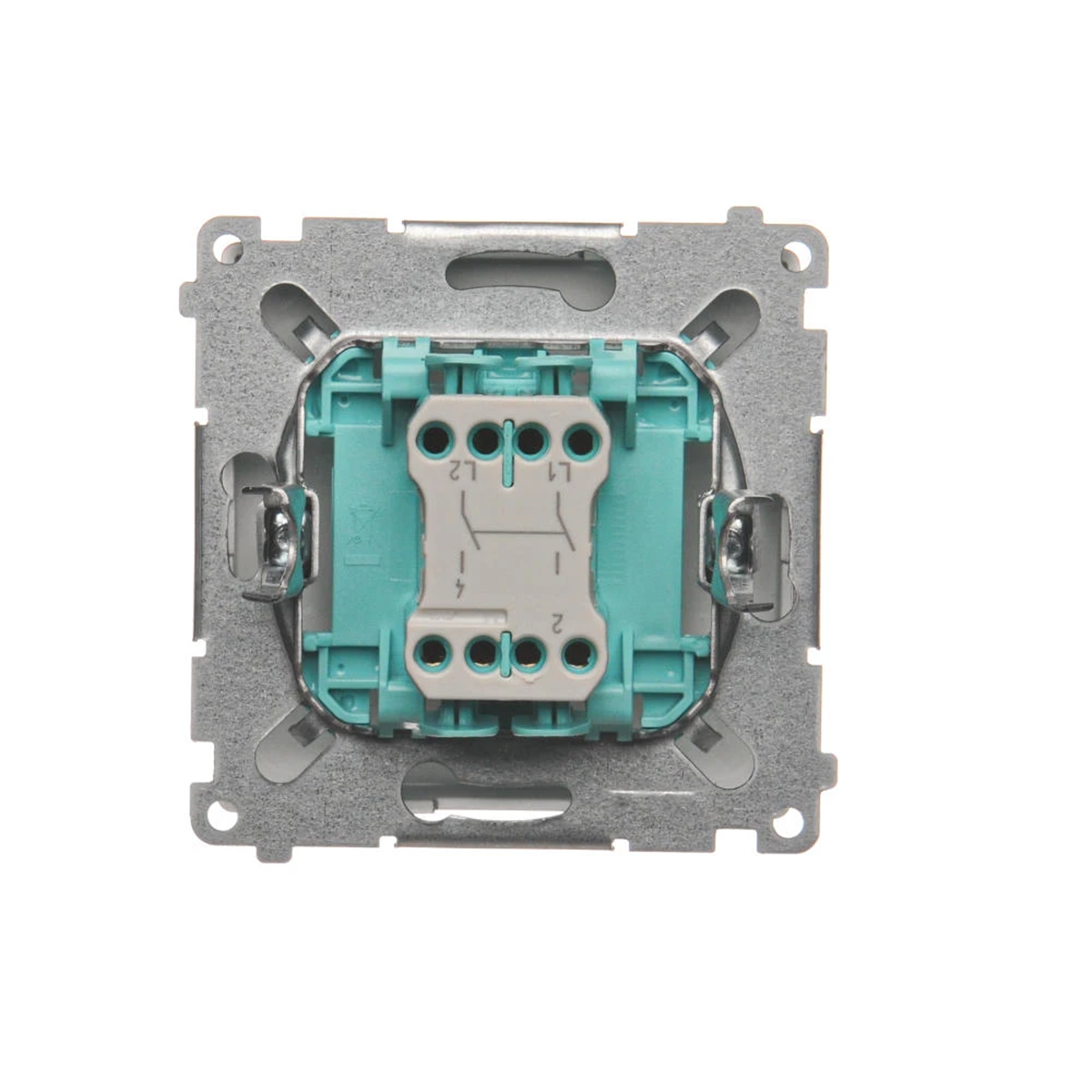

  • Quick connectors.
  • Backlight optional, not included.
  • Rocker switch.
  • For IP44 splashproof use IP44 NEOS frame: BMRC1B/. .; BMRC2B/... or IP44 frame STANDARD: BMR1B/..; BMR2B/...; BMR3B/...



SERIES DESCRIPTION

Simon Basic is a series of electrical equipment which ra is based on a classic look and functionality. Double pole switch characterize features of this unique series.

Print the product sheet Report an error

Technical data

  • Halogen free
    Yes
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Bipolar
  • Level of security
    IP20
  • Width [mm]
    75
  • Height [mm]
    75
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threadless
  • Exact material
    PC
  • Depth [mm]
    41
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SIMON BASIC
  • Symbol
    0-1
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Accurate color
    Metallized stainless steel
  • Mounting depth [mm]
    24
  • For the frame system
    Yes

Other technical data

  • Wiring system
    2-pole switch
  • Assembly arrangement
    Basic element with central cover plate
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Suitable for degree of protection (IP)
    IP20
  • Switching current for fluorescent lamps
    10 AX
  • Method of operation
    Rocker/button
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Nominal voltage
    250 V
  • Connection type
    Push-in clamp

Catalog cards, diagrams, certificates

K-S_236G_2020_PL_laczniki_BM NR.pdf
Broszura_Simon_Basic.pdf
Schemat podlaczenia lacznik dwubiegunowy.pdf
