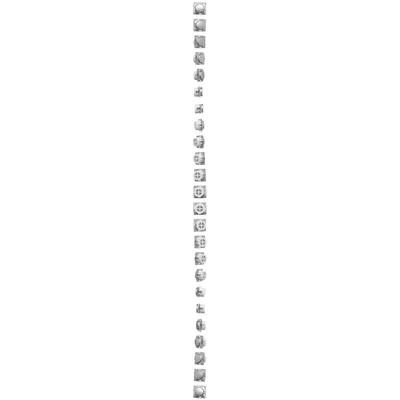

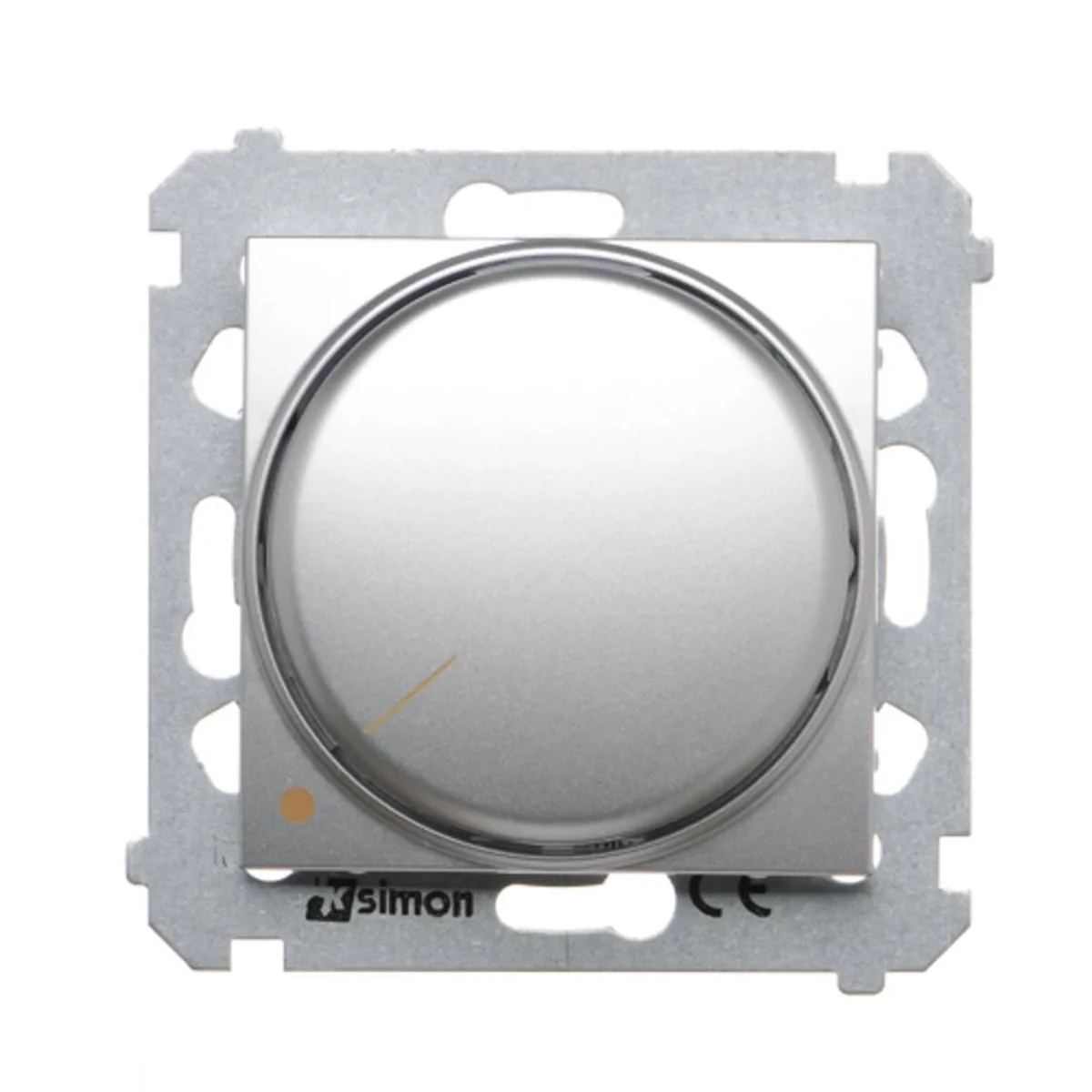

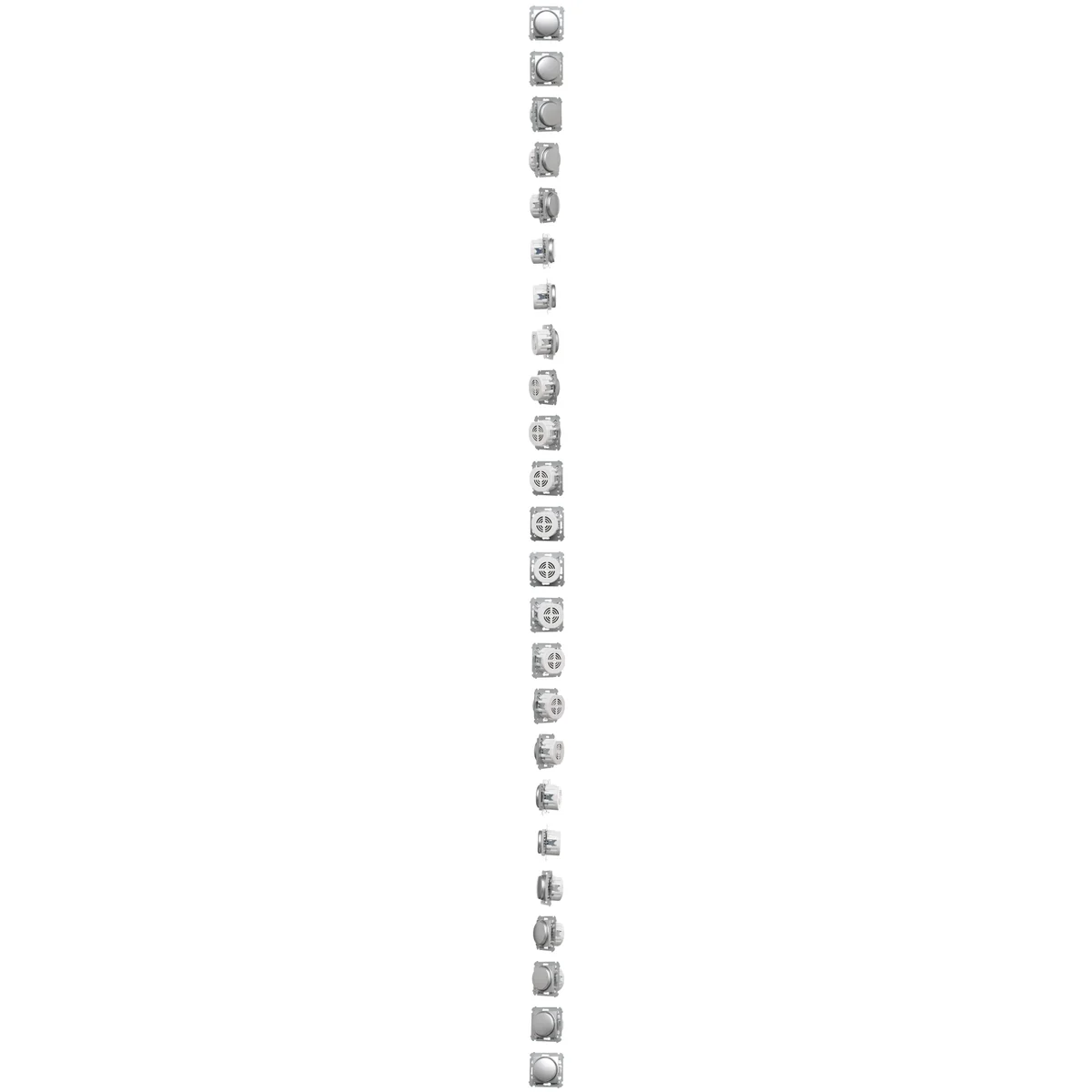

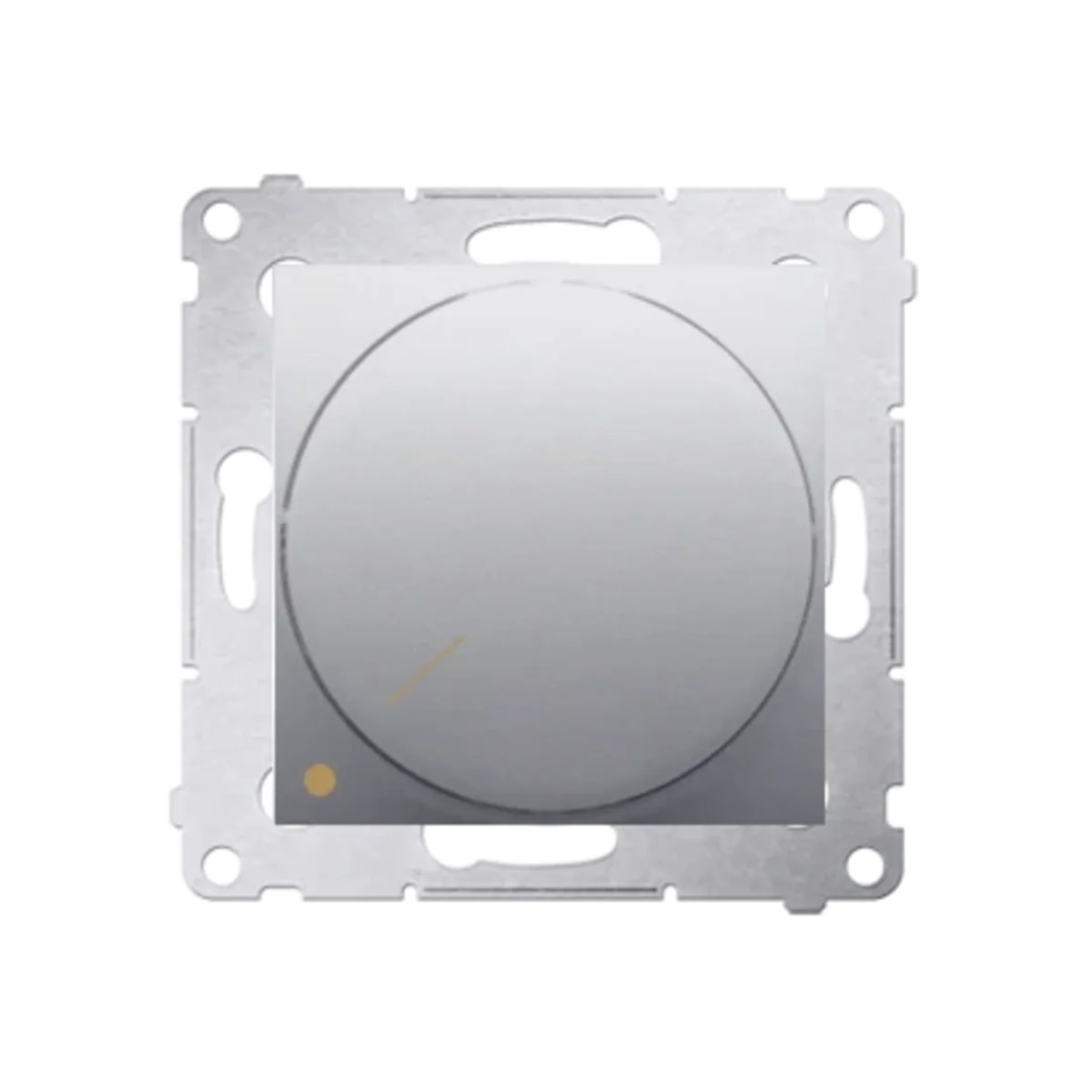

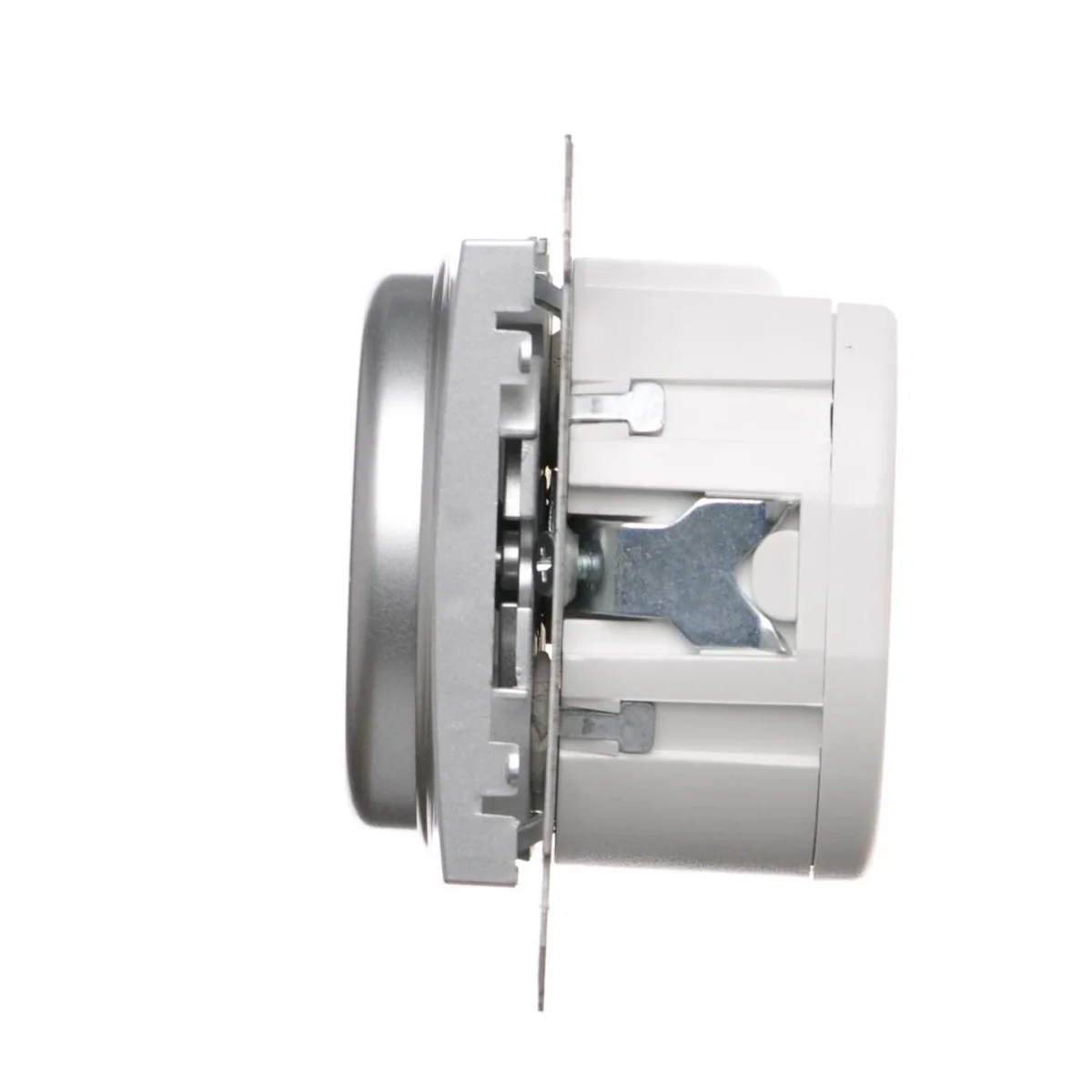

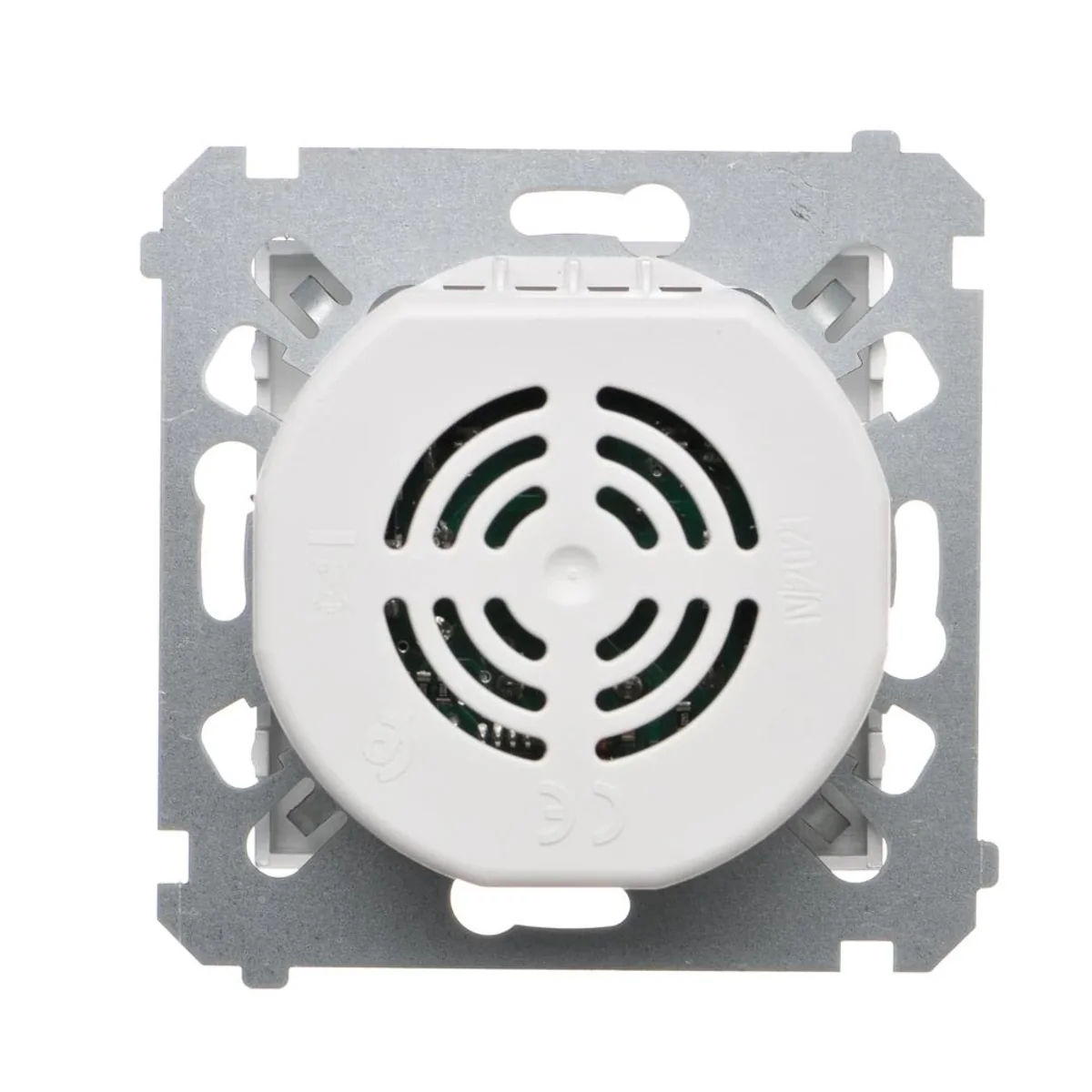

Name: Two-pole rotary dimmer for dimmable LEDs 230V (module) 5-215W, silver metallic
Brand: KONTAKT-SIMON
SKU: MMC044KONT
Price: 47.81 PLN

Dimmer from the Simon 54 series, from the manufacturer Contact Simon. The product part number is DS9L2.01/43.

FEATURES

Rotatable.
Bipolar.
4-wire installation required.
Screw terminals.
Type of load: universal.
For source Light source:
- Dimmable LED (DIM) 230V.
- 230V bulbs.
- 230V halogen bulbs.

SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories, distinguished by reliable and easy-to-assemble mechanisms as well as a variety of colors. Dimmer characterize the features of this unique series.

Halogen free

Yes
Number of keys

Knob
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Family

Simon 54
Width [mm]

75
Version

For incandescent lighting For halogen lighting For LED
Surface protection

varnishing
Accurate color

Silver metallic matt
Mounting depth [mm]

28
Terminal type

Threaded
For the frame system

Yes
PKWIU

27.33.11.0

Depth [mm]

46
Color

Silver
Material

Plastic
Installation

Flush-mounted
Type

dimmers
Level of security

IP20
Type

Flush-mounted
Height [mm]

75
Surface finish

matte
Backlight

NO
load power [W]

5-215
Variant

Rotary
Exact material

PC

Other technical data

Assembly arrangement

Basic element with central cover plate
Substation input

No
Applicable with button

No
Applicable with presence indicator

No
Applicable with transmission button

No
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Suitable for degree of protection (IP)

IP20

Serial dimmer

No
Light value memory

No
Applicable with movement sensor

No
Applicable with time switch/timer

No
Applicable with infrared button

No
Material

Plastic
Surface protection

Lacquered
Colour

Silver
Frequency

50 ... 50 Hz

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,115	0,115	1,300
Width (m)	0,075	0,100	0,190
Length (m)	0,075	0,060	0,320
Depth (m)	0,046	0,150	0,100
