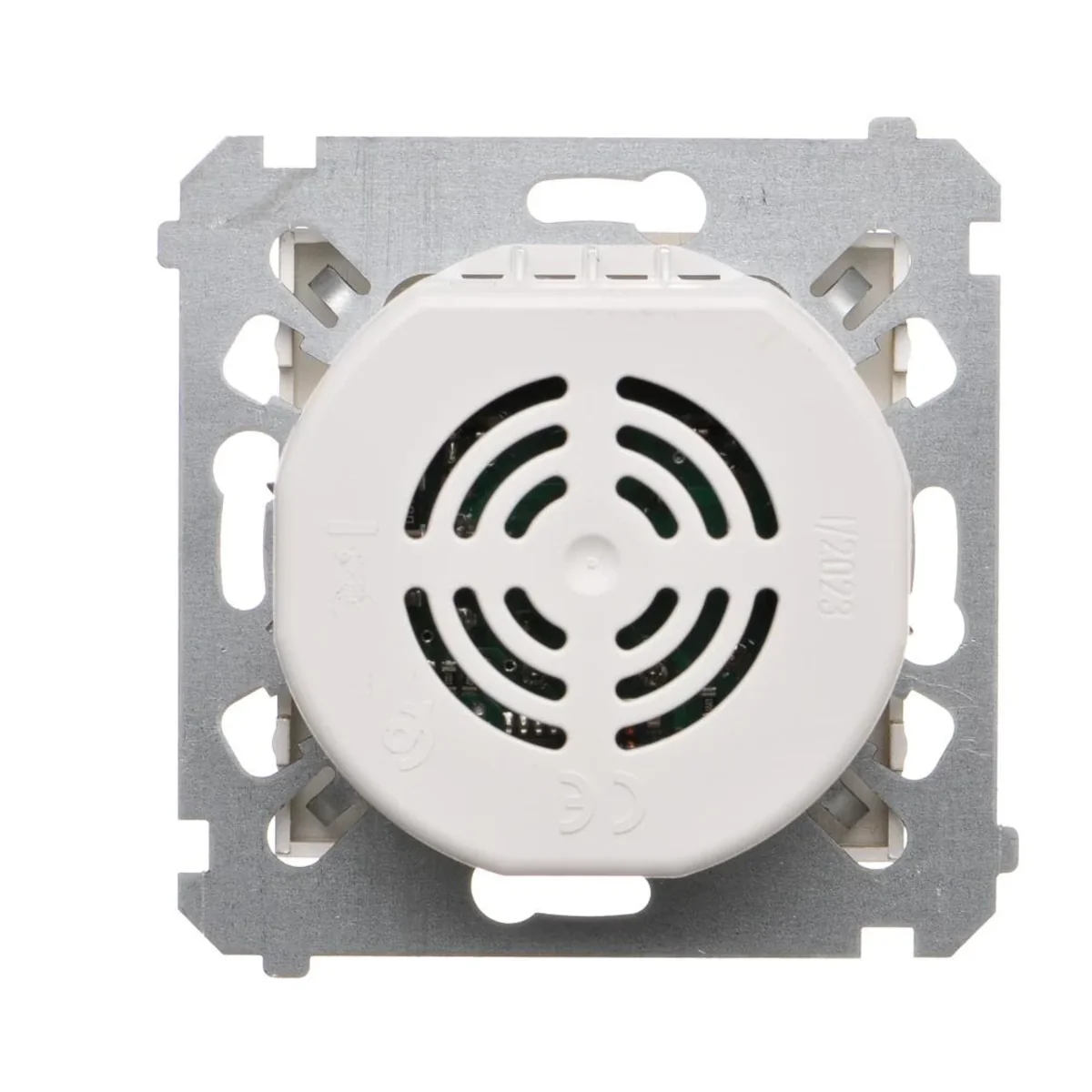

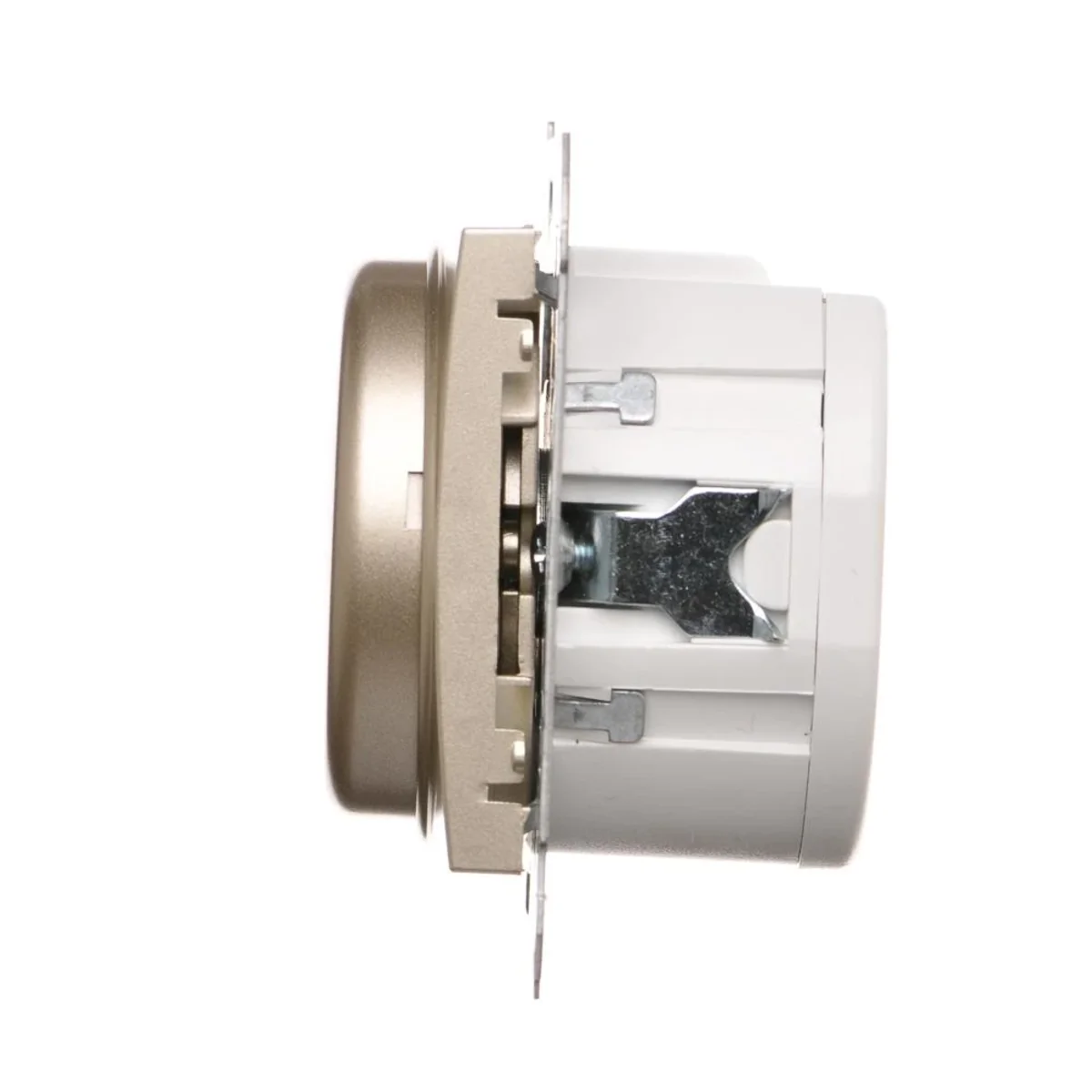

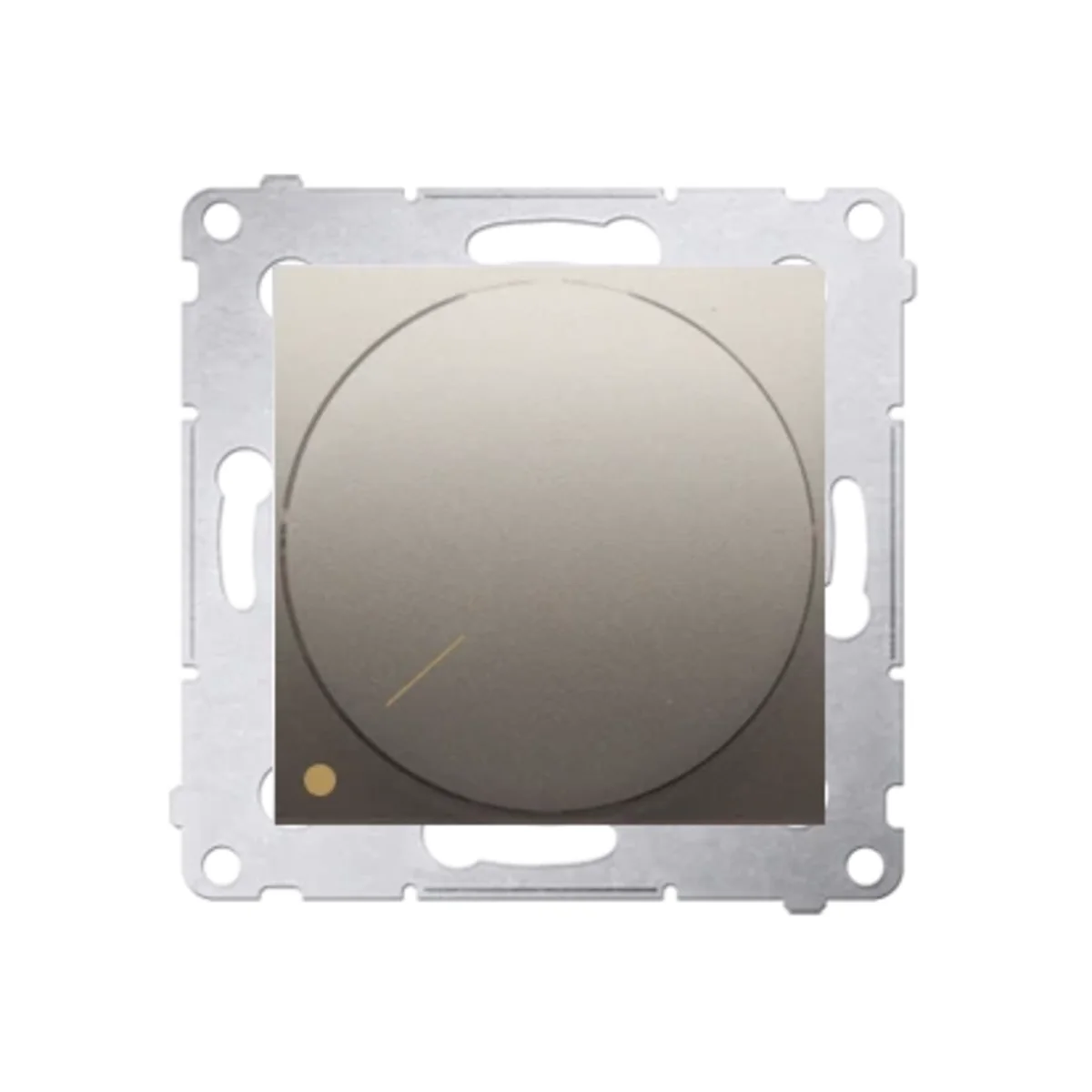

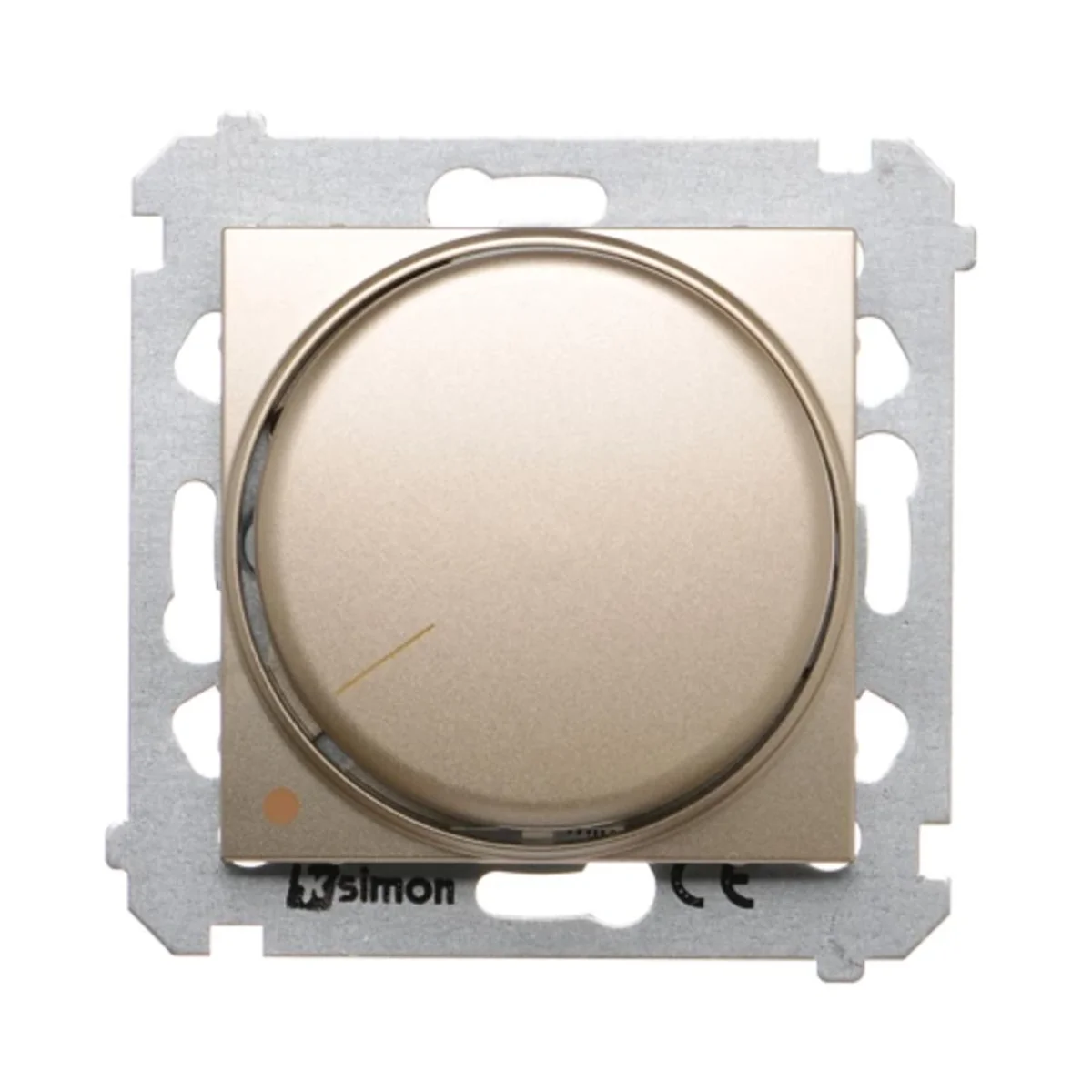

Name: Two-pole rotary dimmer for dimmable LEDs 230V (module) 5-215W, gold metallic
Brand: KONTAKT-SIMON
SKU: MMC045KONT
Price: 48.07 PLN

Dimmer from the Simon 54 series, from the manufacturer Contact Simon. Product part number is DS9L2.01/44.

FEATURES

Rotatable.
Bipolar.
4-wire installation required.
Screw terminals.
Type of load: universal.
For sources Light source:
- Dimmable LED (DIM) 230V.
- 230V bulbs.
- 230V halogen bulbs.

SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories, distinguished by reliable and easy-to-assemble mechanisms as well as a variety of colors. Dimmer characterize the features of this unique series.

Halogen free

Yes
Number of keys

Knob
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Family

Simon 54
Width [mm]

75
Version

For incandescent lighting For halogen lighting For LED
Surface protection

varnishing
Accurate color

Gold metallic matt
Mounting depth [mm]

28
Terminal type

Threaded
For the frame system

Yes
PKWIU

27.33.11.0

Depth [mm]

46
Color

Golden
Material

Plastic
Installation

Flush-mounted
Type

dimmers
Level of security

IP20
Type

Flush-mounted
Height [mm]

75
Surface finish

matte
Backlight

NO
load power [W]

5-215
Variant

Rotary
Exact material

PC

Other technical data

Assembly arrangement

Basic element with central cover plate
Substation input

No
Applicable with button

No
Applicable with presence indicator

No
Applicable with transmission button

No
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Frequency

50 ... 50 Hz

Serial dimmer

No
Light value memory

No
Applicable with movement sensor

No
Applicable with time switch/timer

No
Applicable with infrared button

No
Material

Plastic
Surface protection

Lacquered
Suitable for degree of protection (IP)

IP20

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,115	0,115	1,300
Width (m)	0,075	0,100	0,190
Length (m)	0,075	0,060	0,320
Depth (m)	0,046	0,150	0,100
