Two-module roller shutter control connector, aluminum color 079226

Indeks lokalny:

MOO005LEGR

Numer katalogowy:

079226

Kod EAN:

3245060792268

Two-module roller shutter control connector, aluminum color

Kliknij zdjęcie, aby powiększyć

Producent: LEGRAND

Depth [mm]: 35.5

Number of modules: 2

Color: Silver

Zobacz cały opis

Cena:

289,81 zł

gross / szt.

(w tym VAT 23%)

do 2 tygodni

Na zamówienie

Ilość szt.

(wielokrotność:

)

Dodaj do zapytania ofertowego

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

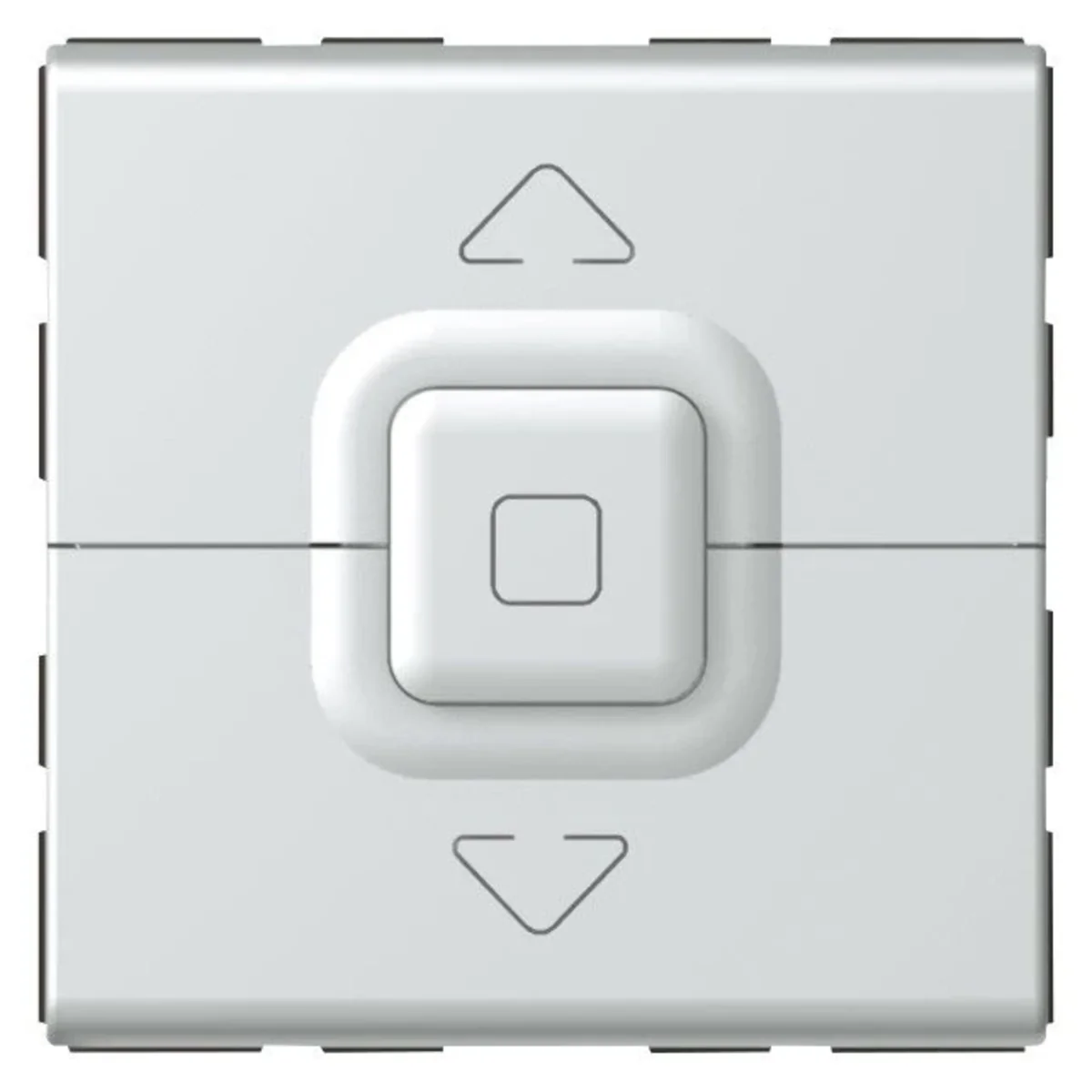

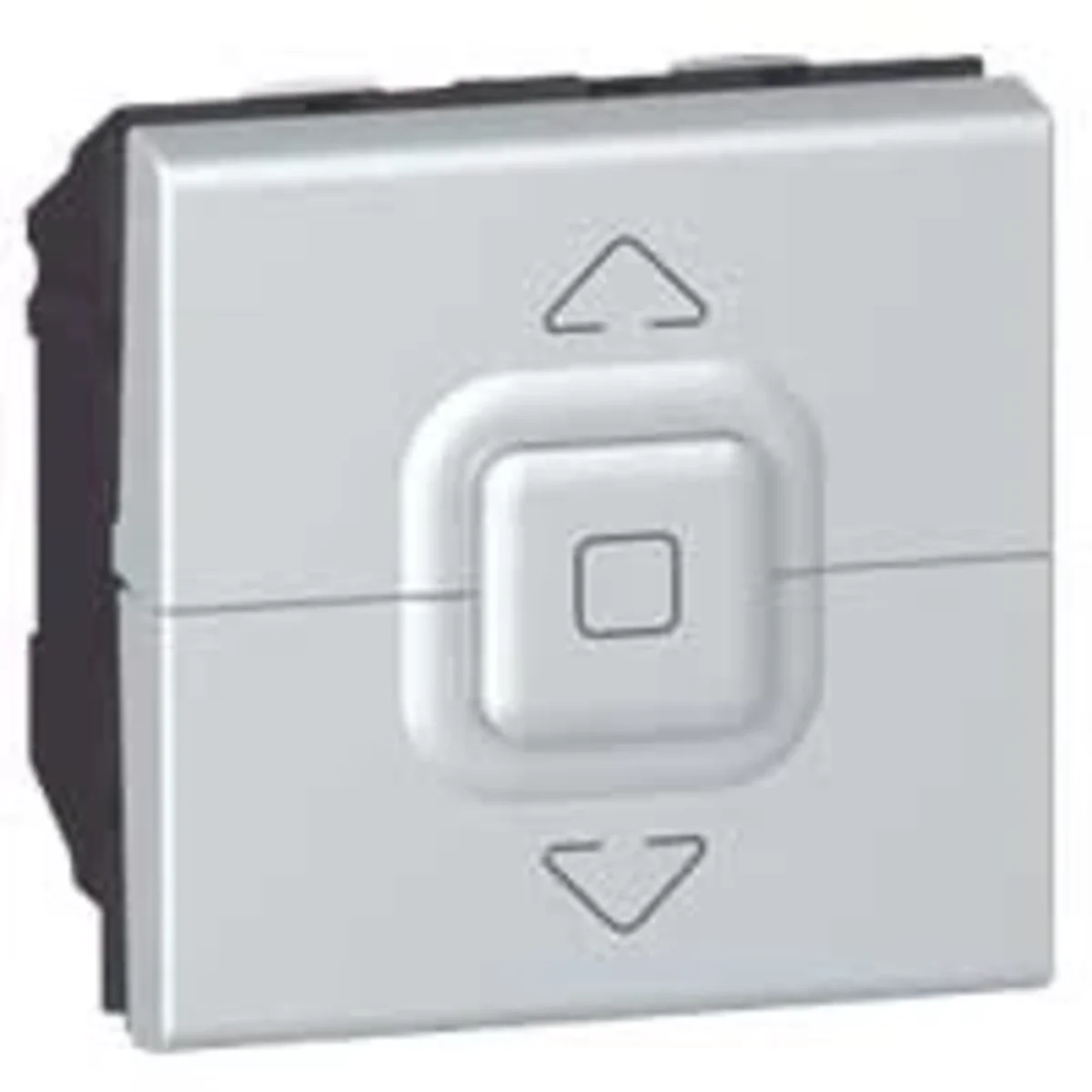

Switch for direct control of roller shutters Mosaic, from the manufacturer Legrand. The product catalog number is 079226.

FEATURES

Mechanism to be equipped with a universal holder and a frame.
Functions: top / stop / down.

SERIES DESCRIPTION

Mosaic is the perfect solution for users those who want to install electrical installation equipment according to their own preferences - on the desk, on the floor, in the wall or in cable trunkings. The shutter connector characterizes the features of this unique series.

Dane techniczne

Depth [mm]

35.5
Color

Silver
Material

Plastic
Rated current [A]

6
Family

MOSAIC
Type

45x45
Height [mm]

45
Backlight

NO
For the frame system

Yes
PKWIU

27.33.11.0

Number of modules

2
Shape

Square
Rated voltage [V]

230
Type

Shutter
Width [mm]

45
Version

Single
Accurate color

Aluminum
Variant

Three-position
Exact material

ABS PC

Pozostałe dane techniczne

Assembly arrangement

Modular device for domestic switching devices
Number of poles

1
Mechanical controllable

Yes
Mounting method

Module frame
Material quality

Thermoplastic
Surface protection

Untreated
Type of fastening

Other
Colour

Aluminium
Transparent

No
Suitable for degree of protection (IP)

IP41
Nominal voltage

250 V
Number of modules (module system)

2
Device height

45 mm
Built-in depth

24 mm
Compatible with Google Assistant

No
IFTTT support available

No

Model

1-pole switch
Method of operation

Other
Electronic controllable

No
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
Connection type

Push-in clamp
RAL-number (similar)

7040
Label space/information surface

Yes
Rated current

6 A
Number of buttons

3
Device width

45 mm
Device depth

36 mm
Compatible with Apple HomeKit

No
Compatible with Amazon Alexa

No

Dane producenta

Producent

Legrand Polska Sp. z o.o.
Adres

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
Email

info@legrand.com.pl

Opakowania zbiorcze

Rodzaj opakowania	Pudełko	Karton	Paleta
Ilość	1 szt.	20 szt.	400 szt.
Waga (kg)	0,056	1,420	28,400
Objętość (m3)	0,001	0,014	0,469
Szerokość (m)	0,097	0,298	1,200
Długość (m)	0,057	0,114	0,391
Głębokość (m)	0,099	0,398	1,000
