TV socket white 764550

local index:
MEA047LEGR
Catalog No:
764550
EAN code:
3414970683311
Manufacturer: LEGRAND
Number of sockets: 1
Color: White
Shape: Square
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
5,26 €
gross / pcs.
(including VAT 23%)
Last lowest price: 9,78 € gross
Base price: 10,16 € gross -48%
Delivery in 3h
Accessible 1 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

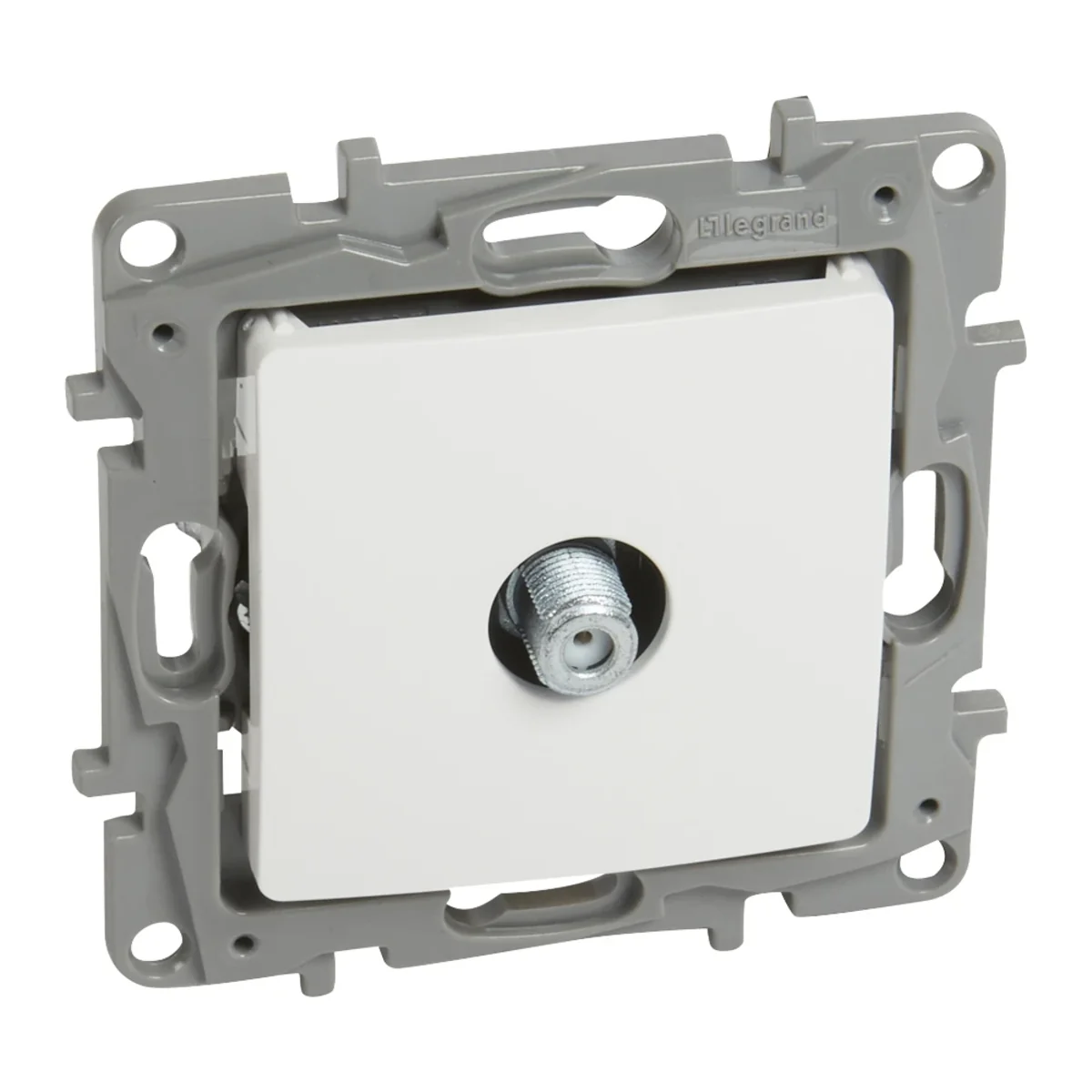

Antenna socket from the Niloe series, from the manufacturer Legrand. The product part number is 764550.



FEATURES

  • F-type TV  .
  • Final.
  • Module without frame.
  • Color white.< /li>
  • Attenuation 1 dB.
  • TV: male connector (Ø 9.5 mm).
  • For DVBT, terrestrial TV installations and satellite.
  • UHD TV compatible.
  • Class A shielding for star installation, LTE ready(4G).
  • Wiring for star installation (1 socket = 1 cable for antenna, splitter or multiswitch).



SERIES DESCRIPTION

Niloe is a traditional series of electrical installation equipment. The flush-mounted antenna socket has all the features of this unique series.

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Overprint
    NO
  • Family
    NILOE
  • Attenuation [dB]
    1
  • Version
    Final
  • Backlight
    NO
  • F-type input
    NO
  • PKWIU
    27.33.13.0
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Frequency Range [MHz]
    TV: 5-68 TV: 120-862
  • Variant
    F-type TV
  • For the frame system
    Yes

Other technical data

  • Model
    End socket
  • Cover
    Central cover plate
  • Tap loss at 2150 MHz
    1.5 dB
  • Suitable for cable modem
    No
  • Colour
    Kremowy
  • Surface protection
    Untreated
  • Material
    Plastic
  • Halogen free
    Yes
  • Mounting method
    Flush-mounted
  • Tap loss at 860 MHz
    1 dB
  • Number of outlets
    1
  • Suitable for remote power supply
    No
  • RAL-number (similar)
    9003
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic

Bulk packaging

A kind of package Pudełko Karton Paleta
Quantity 10 pcs. 120 pcs. 1200 pcs.
Weight (kg) 0,743 9,397 93,970
Volume (m3) 0,000 0,000 0,001
Width (m) 0,093 0,400 1,200
Length (m) 0,115 0,258 0,679
Depth (m) 0,386 0,583 1,000
