TV socket satin color 067380

local index:
MJA012LEGR
Catalog number:
067380
EAN code:
3245060673802
Manufacturer: LEGRAND
Number of sockets: 1
Shape: Square
Type: Antenna
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
22,35 zł
gross / pcs.
(including VAT 23%)
The lowest price from 30 days before the reduction: 72,19 zł gross -49,84 zł
Manufacturer's price: 86,30 zł gross
Accessible 5 pcs.
Pickup in 1h
Delivery in 3h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

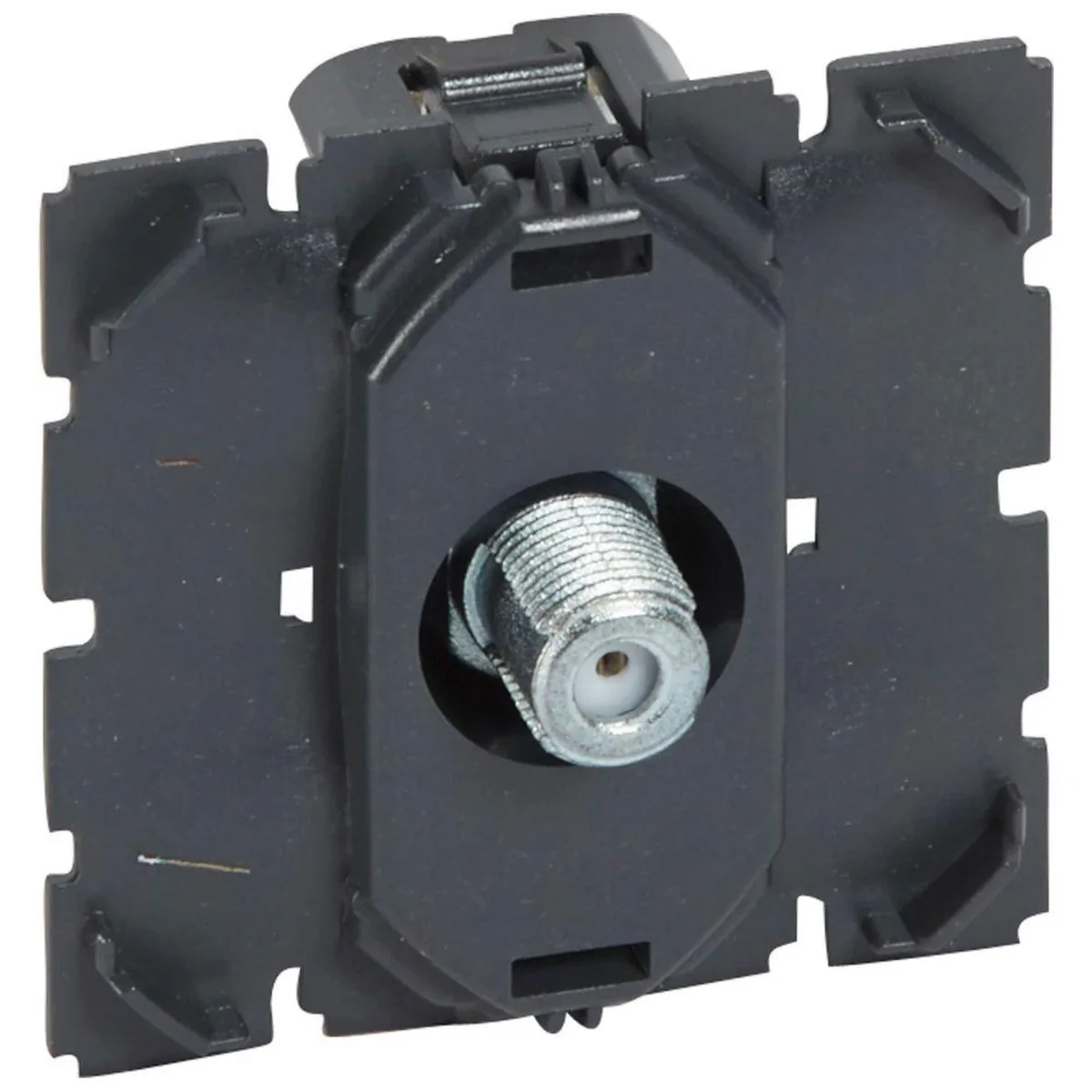

Antenna socket  mechanism from the Celiane series, from the manufacturer Legrand. The product part number is 067380.



FEATURES

  • „F”< /strong>.
  • Final.
  • Mechanism to be equipped with mounting bracket, plate and frame.
  • For star installation.



SERIES DESCRIPTION

Celiane is a series of modern electrical installation equipment, created by a universal combination of shapesó in circles and rectangles. The mechanism of the antenna jack characterizes the features of this unique series.

Technical data

  • Number of sockets
    1
  • Type
    Antenna
  • Level of security
    IP20
  • Type
    Socket mechanism
  • Height [mm]
    45
  • Backlight
    NO
  • F-type input
    NO
  • PKWIU
    27.33.13.0
  • Shape
    Square
  • Family
    CELIANE
  • Width [mm]
    45
  • Version
    Final Final
  • Frequency Range [MHz]
    0-2400
  • Variant
    F-type TV
  • For the frame system
    Yes

Other technical data

  • Model
    End socket
  • DAB+
    No
  • Number of modules (module system)
    2
  • Tap loss at 2150 MHz
    1.5 dB
  • Suitable for cable modem
    No
  • Type of fastening
    Snap mounting (engagement)
  • Surface finishing
    Matt
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Impact strength
    IK04
  • Device height
    45 mm
  • Min. depth of built-in installation box
    40 mm
  • Type of socket outlet
    TV
  • Mounting method
    Module frame
  • Tap loss at 860 MHz
    1 dB
  • Number of outlets
    1
  • Suitable for remote power supply
    Yes
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP20
  • Device width
    45 mm
  • Device depth
    36 mm

Manufacturer details

  • Manufacturer
    Legrand Polska Sp. z o.o.
  • Address
    57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
