TV-RD socket white 664562

local index:
MEA046LEGR
Catalog No:
664562
EAN code:
3245066645629
Manufacturer: LEGRAND
Number of sockets: 2
Color: White
Shape: Square
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
11,07 €
gross / pcs.
(including VAT 23%)
Last lowest price: 22,10 € gross
Base price: 22,99 € gross -52%
Delivery in 3h
Accessible 4 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

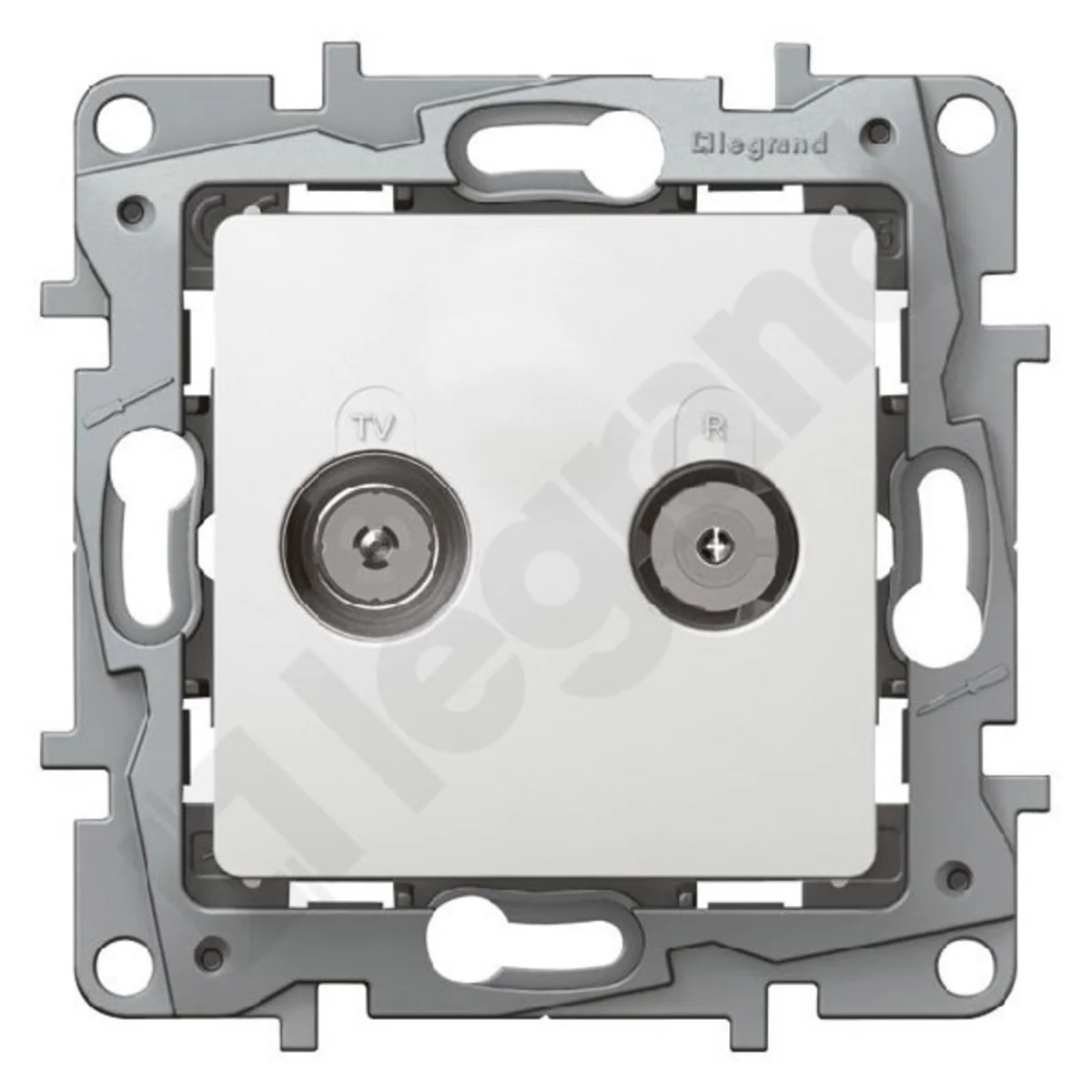

Antenna socket from the Niloe series, from the manufacturer Legrand. The product catalog number is 664562.



FEATURES

  • R-TV .
  • Ending.
  • Module without frame.
  • Color white.
  • < li>Attenuation 10 dB.
  • TV: male connector (Ø 9.5 mm).
  • R: female connector (Ø 9.5 mm) mm).



SERIES DESCRIPTION

Niloe is a traditional series of electrical installation accessories. < strong>The flush-mounted antenna socket has all the features of this unique series.

Technical data

  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws Screws
  • Overprint
    Yes
  • Family
    NILOE
  • Attenuation [dB]
    10
  • Version
    Final
  • Backlight
    NO
  • F-type input
    NO
  • PKWIU
    27.33.13.0
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Frequency Range [MHz]
    R: 87.5-108 TV: 5-68 TV: 120-862
  • Variant
    R TV
  • For the frame system
    Yes

Other technical data

  • Model
    End socket
  • Cover
    Central cover plate
  • Tap loss at 2150 MHz
    10 dB
  • Suitable for cable modem
    No
  • Colour
    Kremowy
  • Surface protection
    Untreated
  • Material
    Plastic
  • Halogen free
    Yes
  • Mounting method
    Flush-mounted
  • Tap loss at 860 MHz
    10 dB
  • Number of outlets
    2
  • Suitable for remote power supply
    No
  • RAL-number (similar)
    9003
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic

Bulk packaging

A kind of package Pudełko Karton Paleta
Quantity 10 pcs. 60 pcs. 600 pcs.
Weight (kg) 1,066 6,757 67,570
Volume (m3) 0,000 0,000 0,000
Width (m) 0,147 0,298 1,200
Length (m) 0,055 0,176 0,339
Depth (m) 0,372 0,398 1,000
