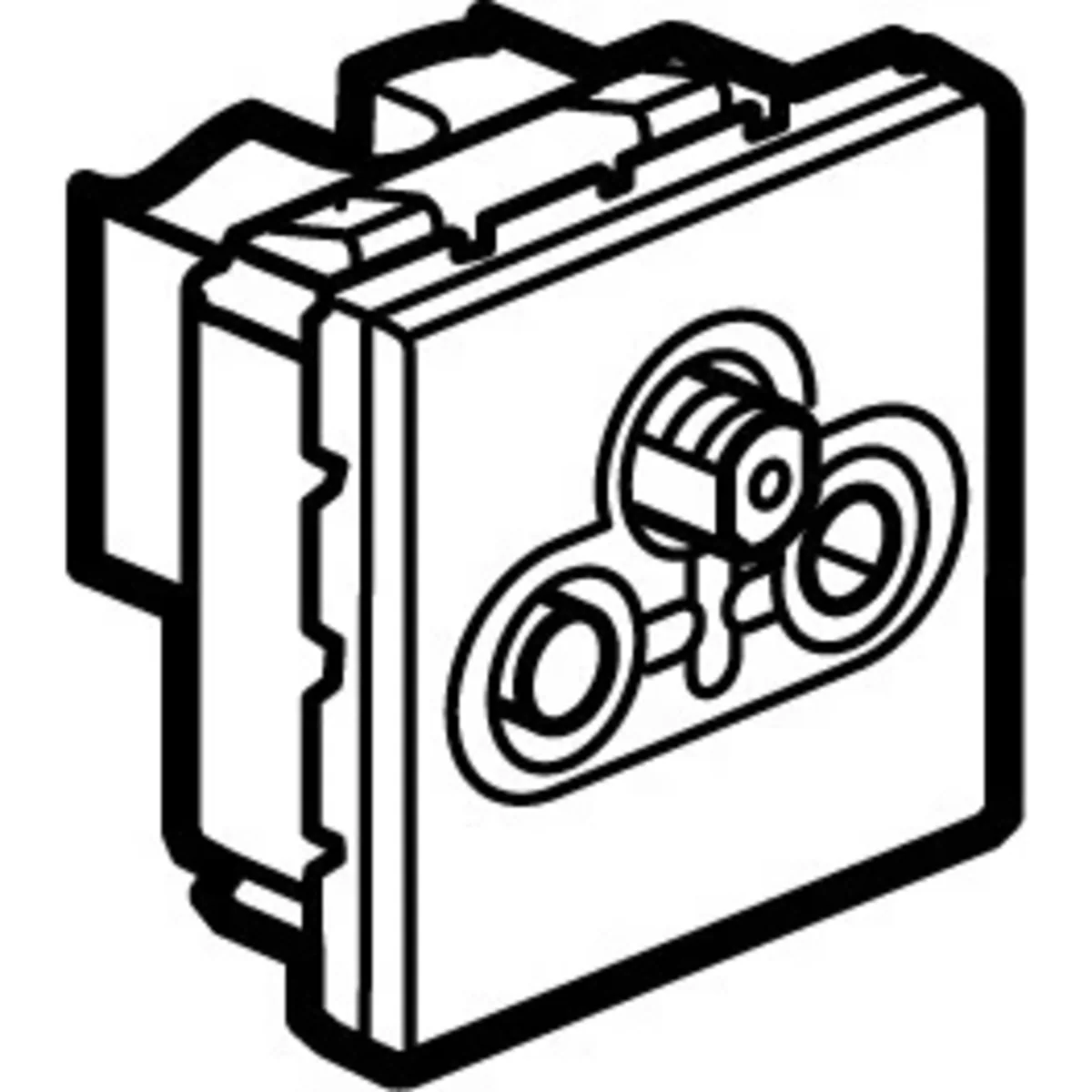

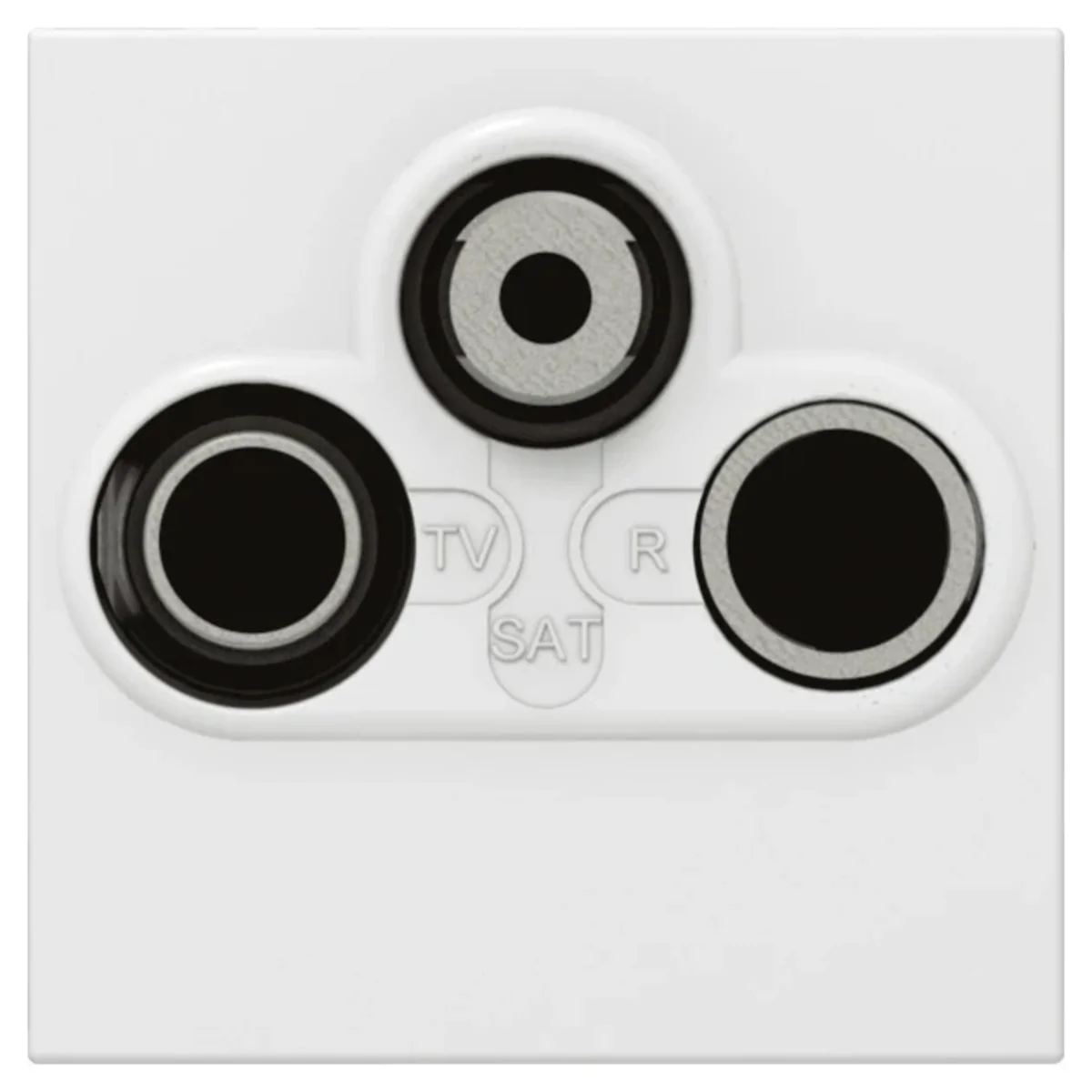

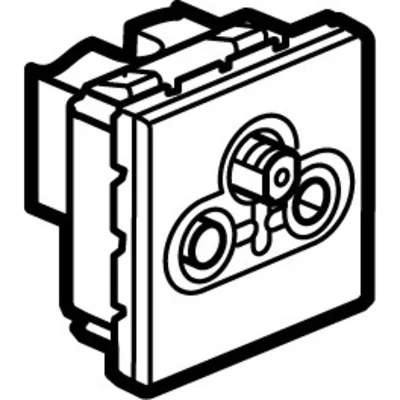

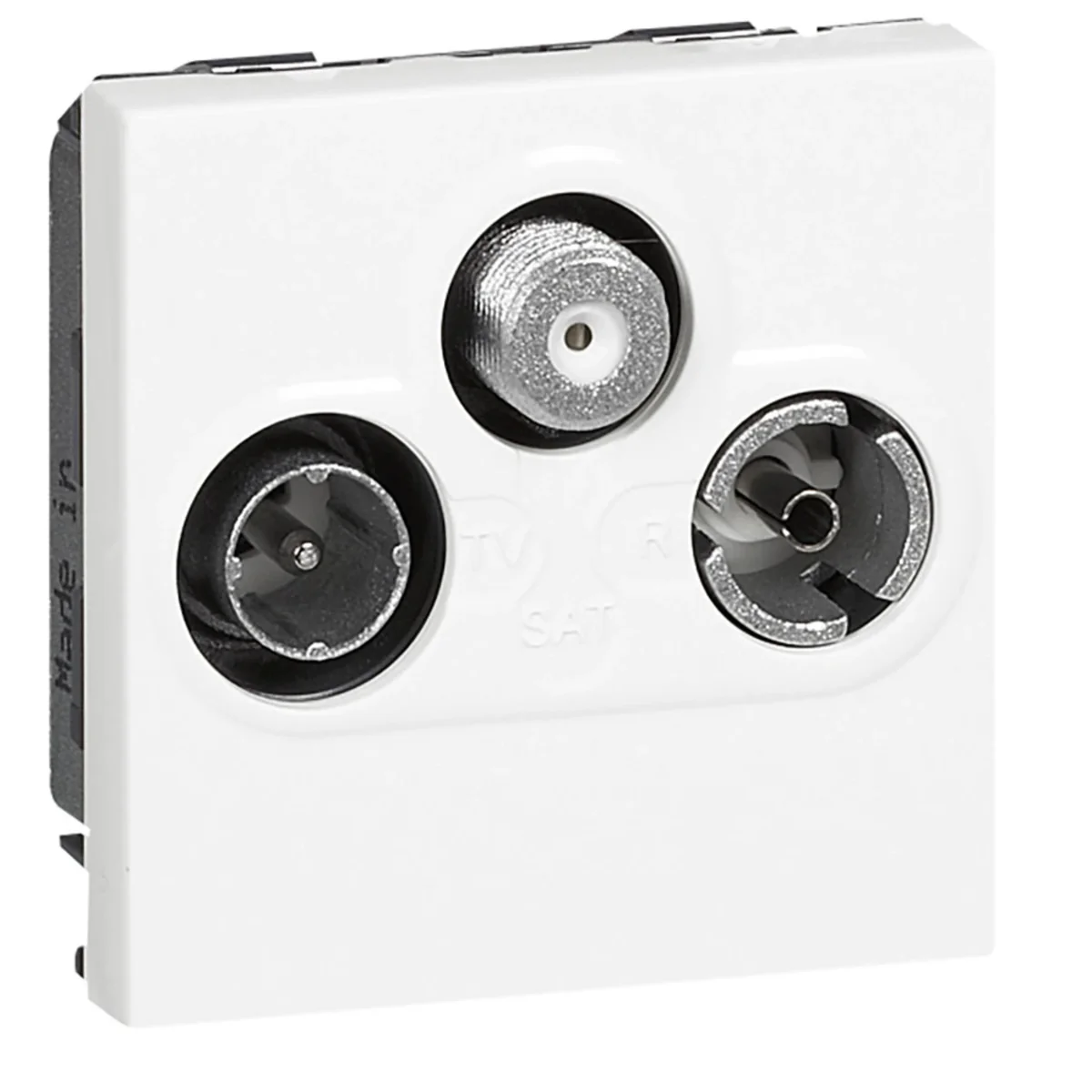

TV-FM-SAT two-module socket, white 078786

Lokaler Index:

MGA014LEGR

Katalognummer:

078786

EAN-Code:

3245060787868

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: LEGRAND

Number of sockets: 3

Number of modules: 2

Color: White

Siehe vollständige Beschreibung

229

zł

gross / stk. (inklusive MwSt 23%)

Dostępne bis zu 2 Wochen

Auf Bestellung

Wählen Sie Ihren Großhändler

Wählen Sie

Menge stk. (mehrere: 1 )

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

Antenna socket for Mosaic, from the manufacturer Legrand. The product catalog number is 078786.< /p>

FEATURES

TV-RD-SAT.
Final .
For star installations.
For use in overhead and satellite installations with individual demodulator.
For analog and digital signal reception.< /li>
With automatic switch-over terminal for coaxial cable connection.
Attenuation 1.5 dB.

SERIES DESCRIPTION

The Mosaic program is an ideal solution for users who want to install electrical installation equipment according to their own preferences - on a desk, on the floor, in the wall or in cable trays. Antenna socket characterize the features of this unique series.

Technische Daten

Number of sockets

3
Color

White
Material

Plastic
Type

Antenna
Width [mm]

45
Type

45x45
Height [mm]

45
Degree of mechanical protection

IK03
Variant

R TV sat
For the frame system

Yes
PKWIU

27.33.13.0

Number of modules

2
Shape

Square
Overprint

Yes
Family

MOSAIC
Attenuation [dB]

1.5
Version

Final
Frequency Range [MHz]

TV: 5 - 68 TV: 120 - 862 R: 87.5-108 SAT: 950-2150
Backlight

NO
F-type input

NO
Exact material

ABS

Weitere technische Daten

Model

End socket
DAB+

Yes
Number of modules (module system)

2
Tap loss at 860 MHz

1.5 dB
Number of outlets

3
Suitable for remote power supply

Yes
SAT frequency band

950 ... 2400 MHz
Colour

White
Surface protection

Untreated
Material

Plastic
Halogen free

Yes
Degree of protection (IP)

IP20
Device width

45 mm
Device depth

33 mm

Type of socket outlet

TV/RD/SAT
Mounting method

Module frame
Assembly arrangement

Modular device for domestic switching devices
Tap loss at 2150 MHz

2 dB
Suitable for cable modem

No
Radio frequency band

87.5 ... 240 MHz
Type of fastening

Snap mounting (engagement)
RAL-number (similar)

9003
Surface finishing

Glossy
Material quality

Thermoplastic
Anti-bacterial treatment

No
Impact strength

IK04
Device height

45 mm
Min. depth of built-in installation box

40 mm

Hersteller-Details

Hersteller

Legrand Polska Sp. z o.o.
Adresse

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-Mail

info@legrand.com.pl

Großpackungen

Eine Art Paket	Pudełko	Karton	Paleta
Menge	10 stk.	100 stk.	1000 stk.
Gewicht (kg)	0,828	8,680	86,800
Volumen (m3)	0,003	0,042	0,602
Breite (m)	0,104	0,398	1,200
Länge (m)	0,149	0,176	0,502
Tiefe (m)	0,181	0,603	1,000
