TV-DATA socket two output ports type "F" (module) metallic satin BMAD1.01/29

Name: TV-DATA socket two output ports type \"F\" (module) metallic satin
Brand: KONTAKT-SIMON
SKU: MEA070KONT
Price: 22.00 PLN

local index:

MEA070KONT

Catalog No:

BMAD1.01/29

EAN code:

5902787832421

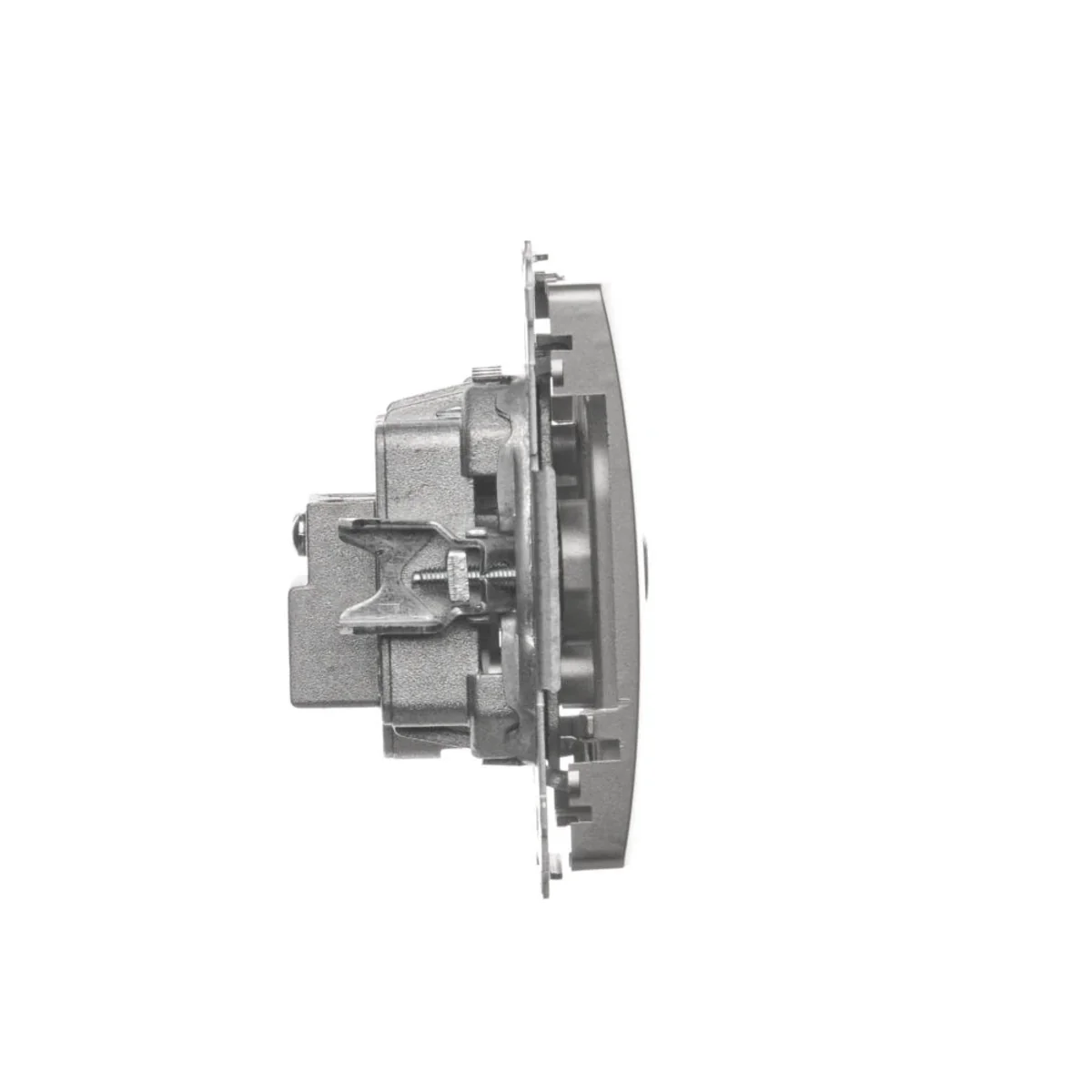

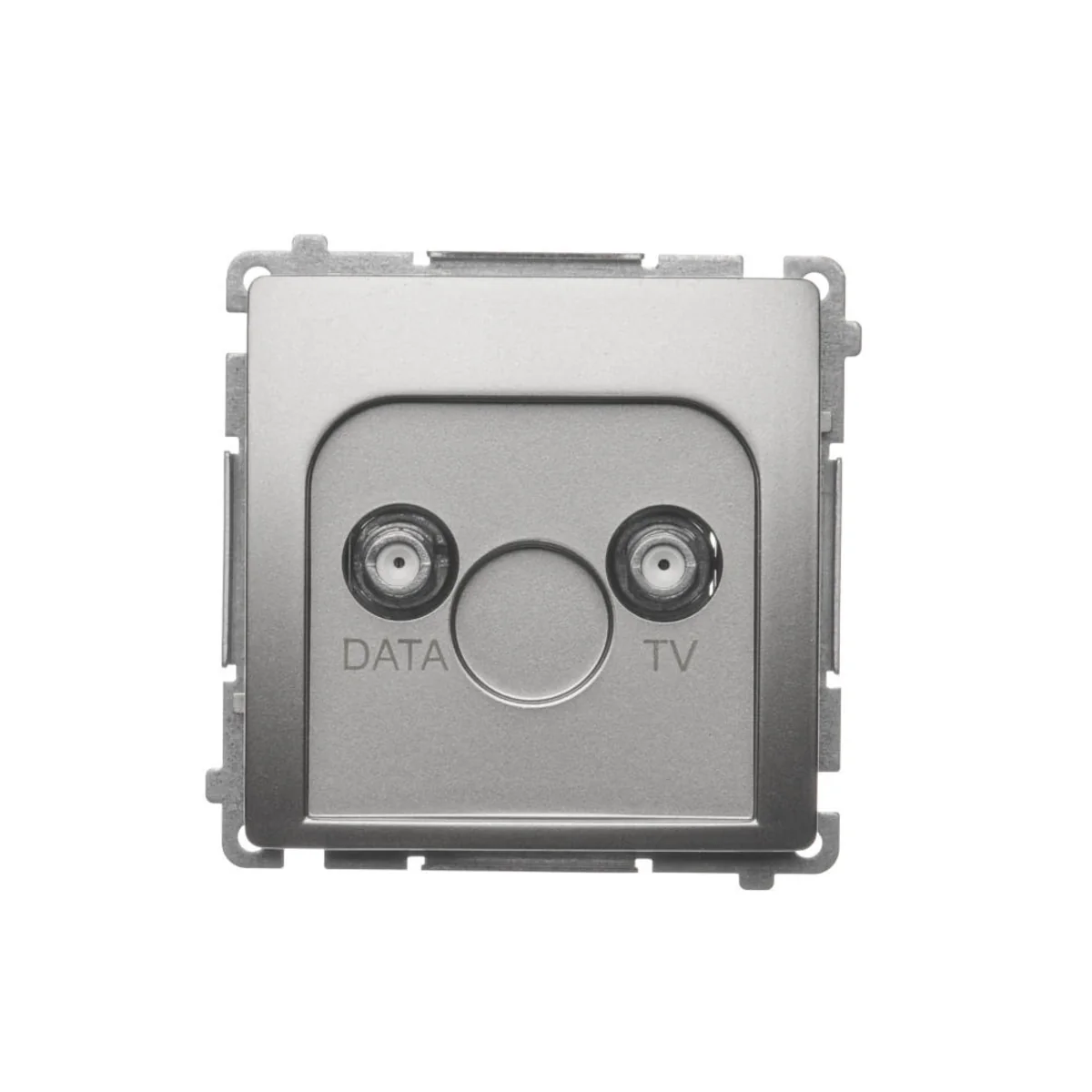

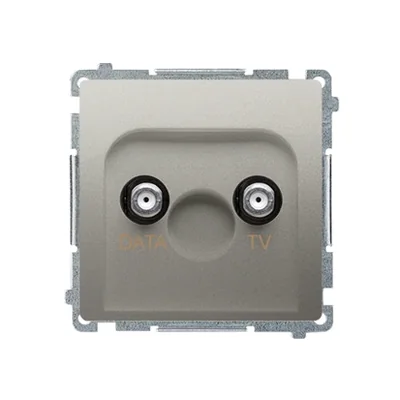

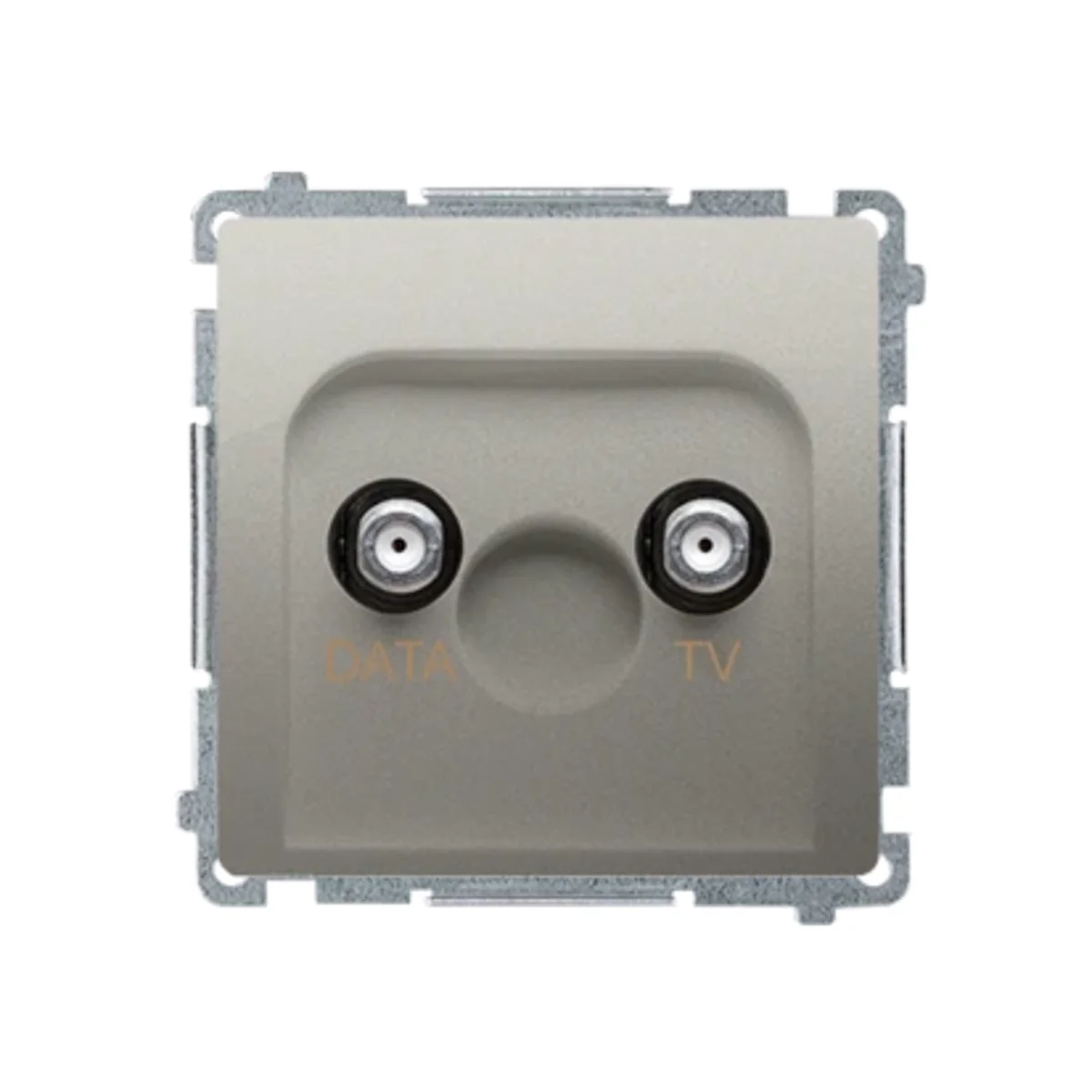

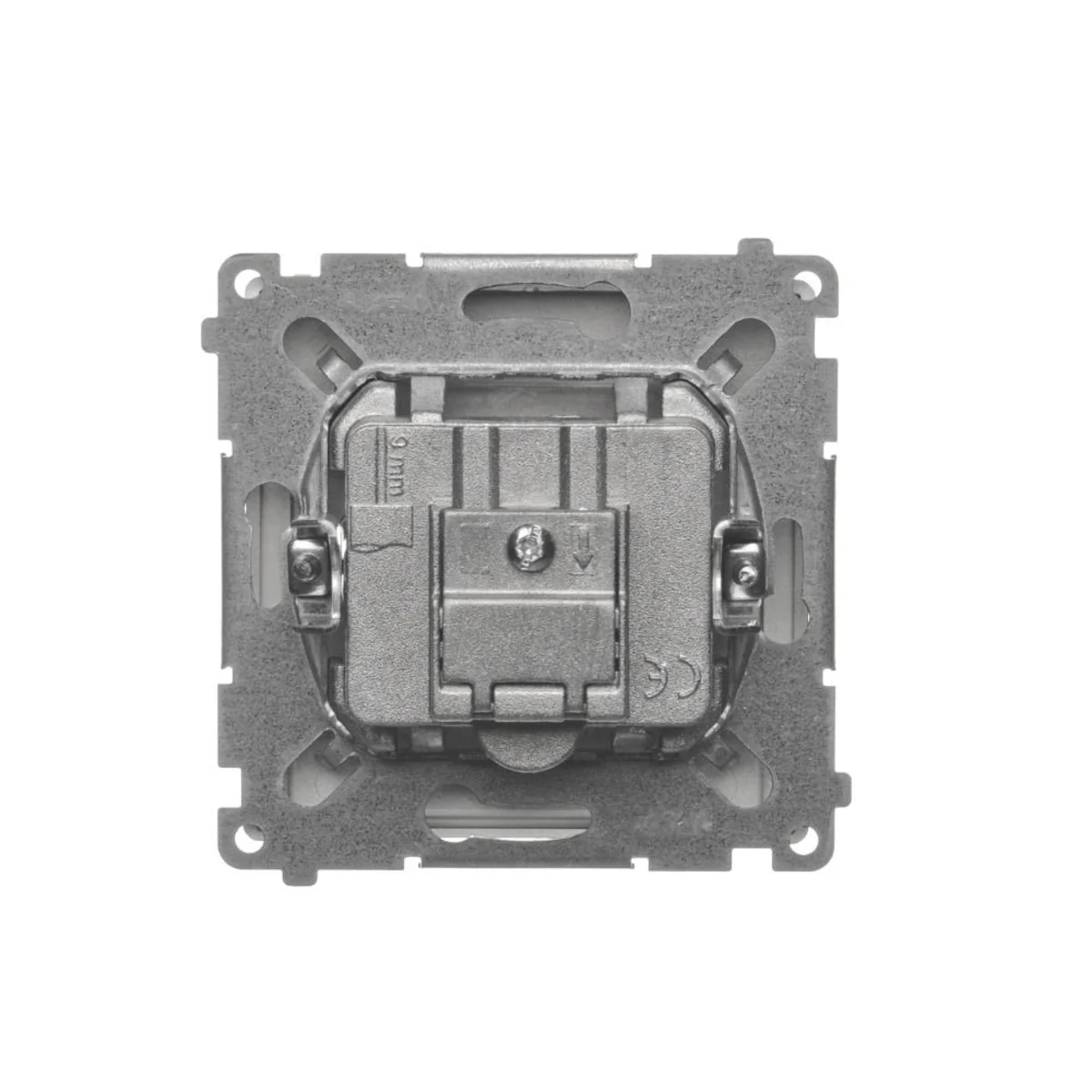

TV-DATA socket two output ports type "F" (module) metallic satin

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of sockets: 2

See full description

Price:

22,00 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to a week (working days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Functionality and classic look are the hallmarks of the SIMON BASIC series, which will work in any space. It includes antenna socket TV-DATA (two “F” output ports).

Technical data

Halogen free

Yes
Number of sockets

2
Shape

Square
Fixing

claws Screws
Overprint

Yes
Family

SIMON BASIC
Width [mm]

75
Type

Flush-mounted
Height [mm]

75
Frequency Range [MHz]

5-1000
Accurate color

Satin metallic
Mounting depth [mm]

29
Variant

TV DATE
For the frame system

Yes
PKWIU

27.33.13.0

Depth [mm]

41
Color

Silver
Material

Plastic
Installation

Flush-mounted
Type

Antenna
Level of security

IP20
Attenuation [dB]

Connections for 860 MHz: 5
Version

Final
Surface protection

varnishing
Surface finish

matte
Backlight

NO
Terminal type

Threaded
F-type input

NO
Exact material

PC

Other technical data

Model

End socket
Number of outlets

2
Frequency

5 ... 1000 MHz

Tap loss at 860 MHz

5 dB
Suitable for remote power supply

Yes

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,118	0,118	1,269
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,046	0,230
Depth (m)	0,041	0,160	0,100
