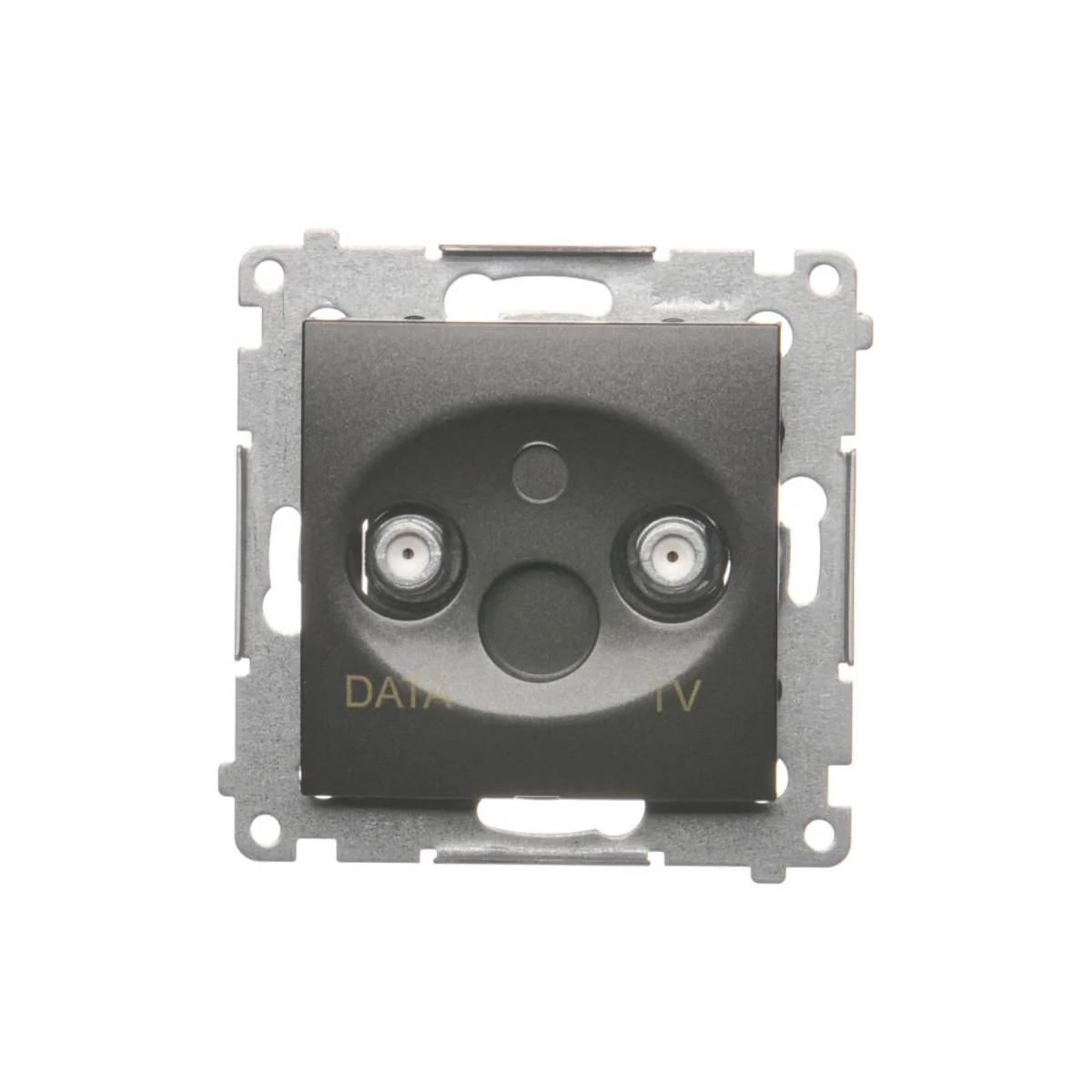

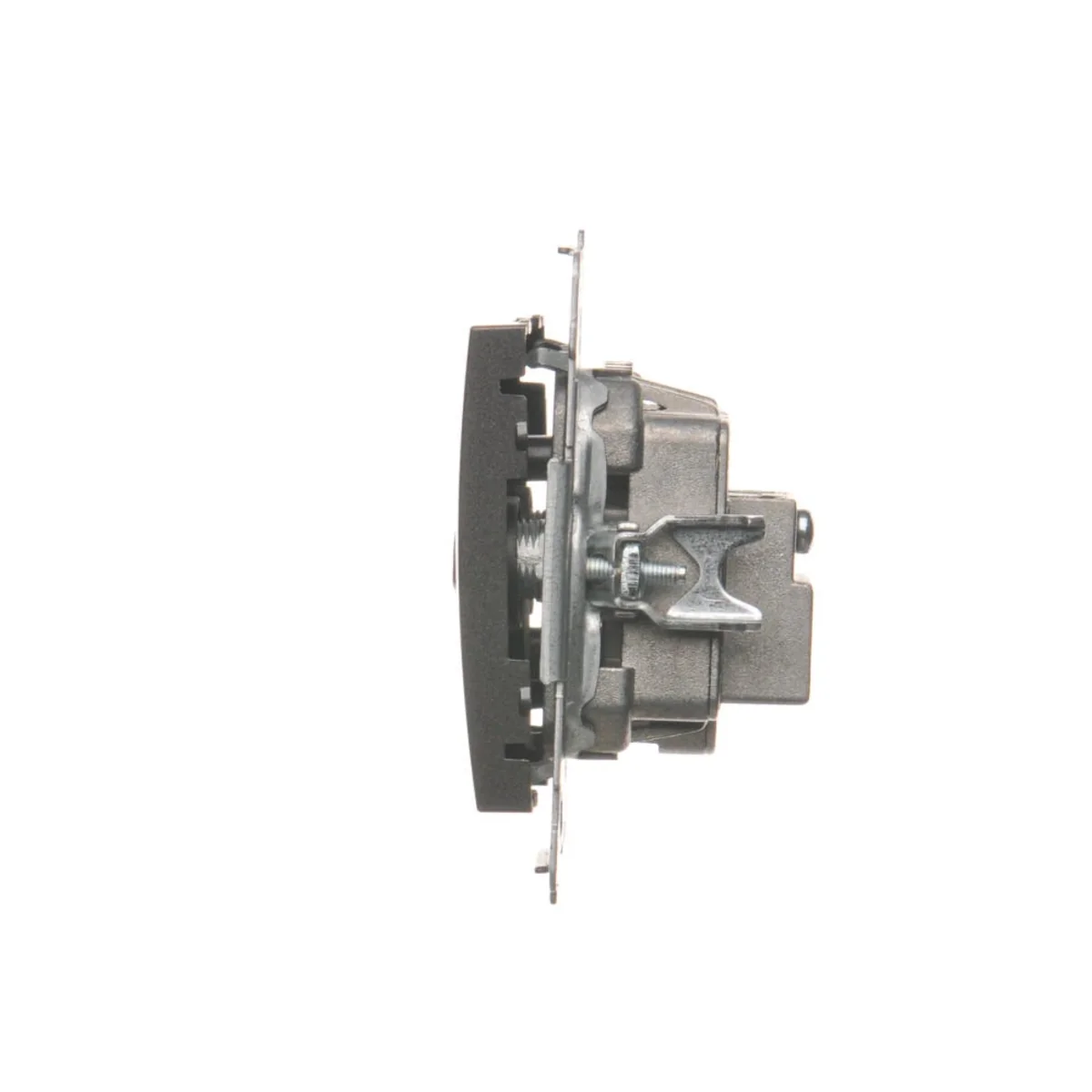

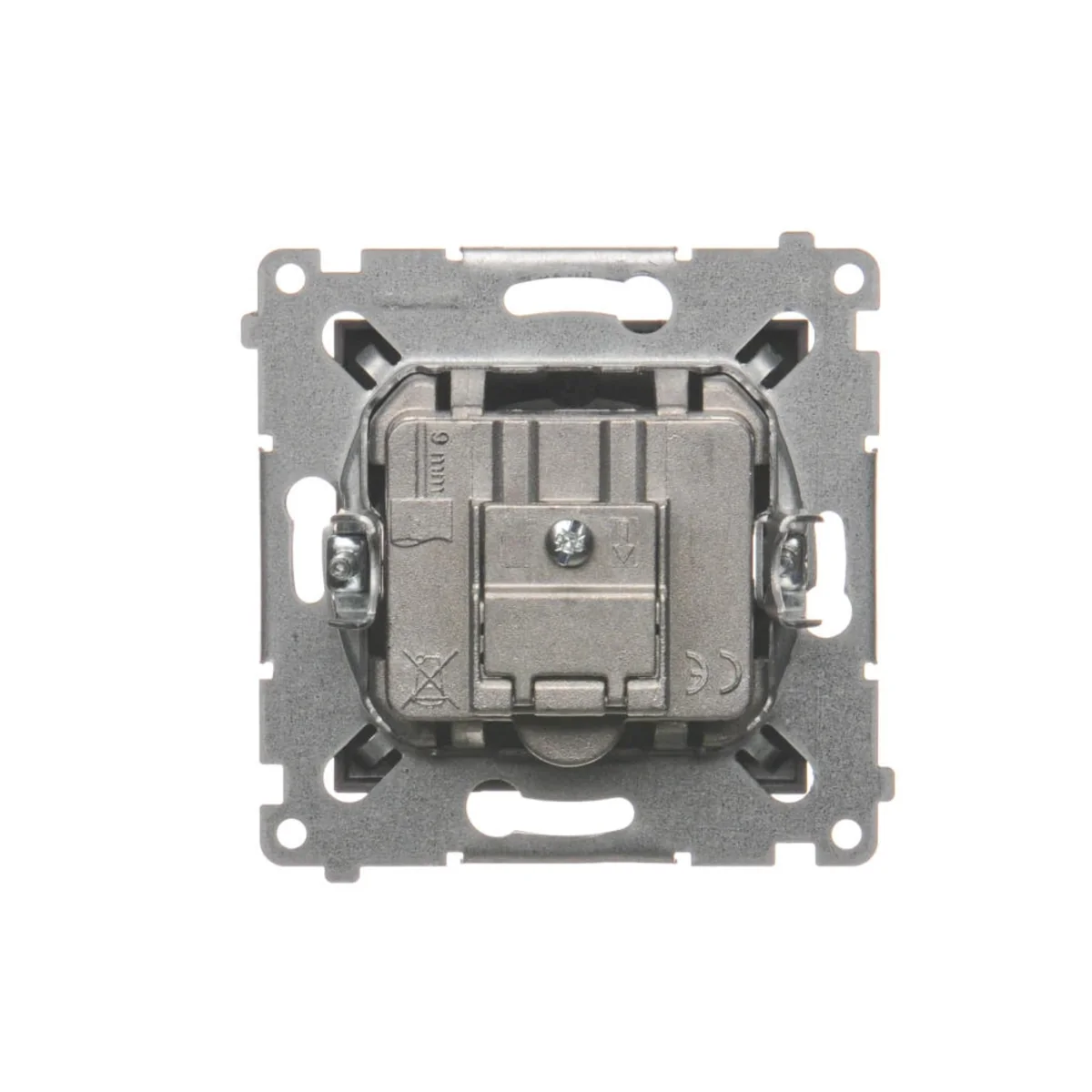

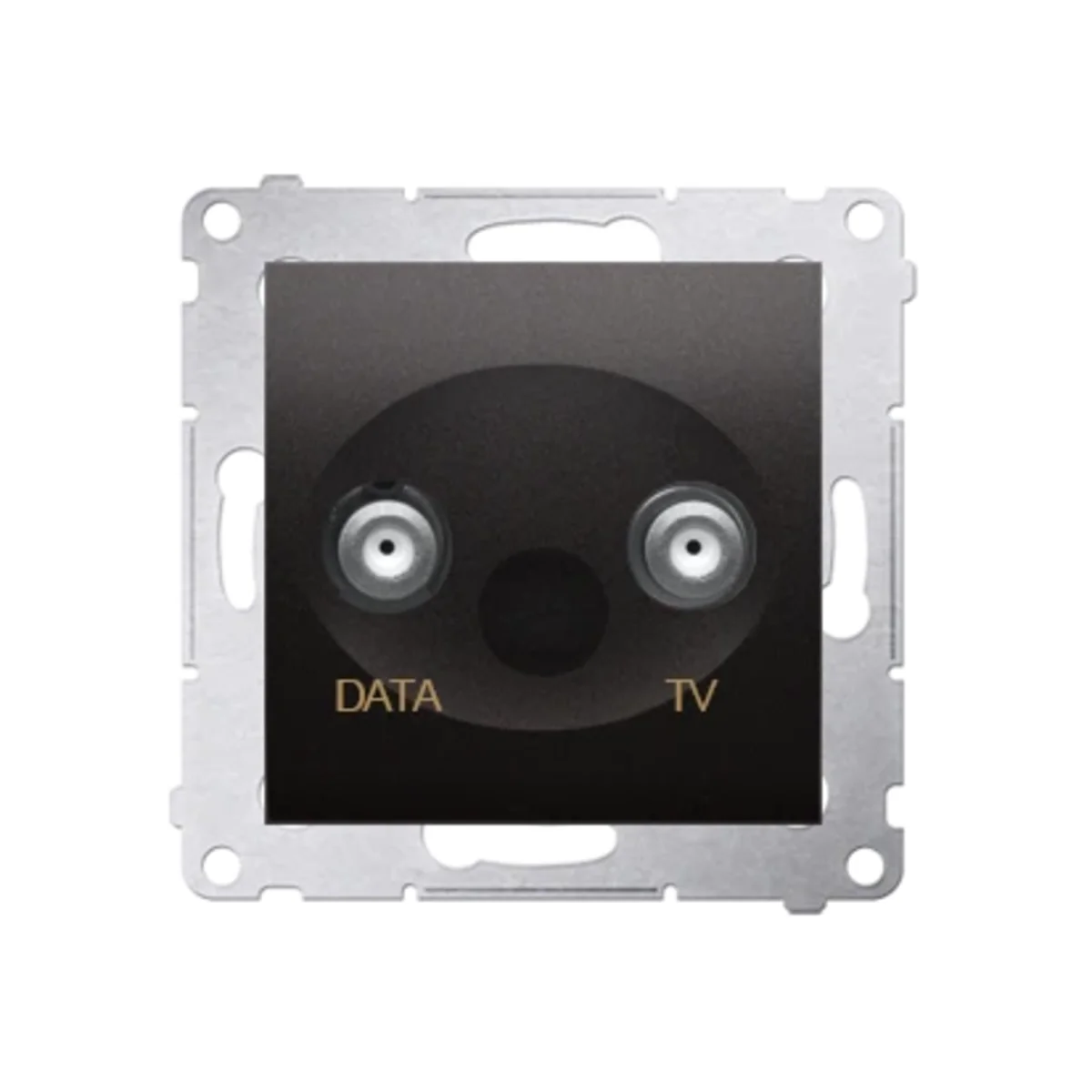

TV-DATA socket two output ports type "F" (module) metallic anthracite DAD1.01/48

local index:
MEA163KONT
Catalog No:
DAD1.01/48
EAN code:
5902787832483
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 41
Number of sockets: 2
Price:
24,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

TV-DATA antenna socket. Fits SIMON 54 series frames. It has two "F" type output ports.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws Screws
  • Overprint
    Yes
  • Family
    Simon 54
  • Width [mm]
    75
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Frequency Range [MHz]
    5-1000
  • Accurate color
    Metallized anthracite
  • Mounting depth [mm]
    29
  • F-type input
    NO
  • Exact material
    PC
  • Depth [mm]
    41
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    Connections for 860 MHz: 5
  • Version
    Final
  • Surface protection
    varnishing
  • Surface finish
    matte
  • Backlight
    NO
  • Variant
    F-type TV DATE
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    End socket
  • Number of outlets
    2
  • Frequency
    5 ... 1000 MHz
  • Tap loss at 860 MHz
    5 dB
  • Suitable for remote power supply
    No

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 10 pcs. 1 pcs.
Weight (kg) 0,114 1,204 0,114
Width (m) 0,110 0,190 0,075
Length (m) 0,045 0,230 0,075
Depth (m) 0,160 0,100 0,041
