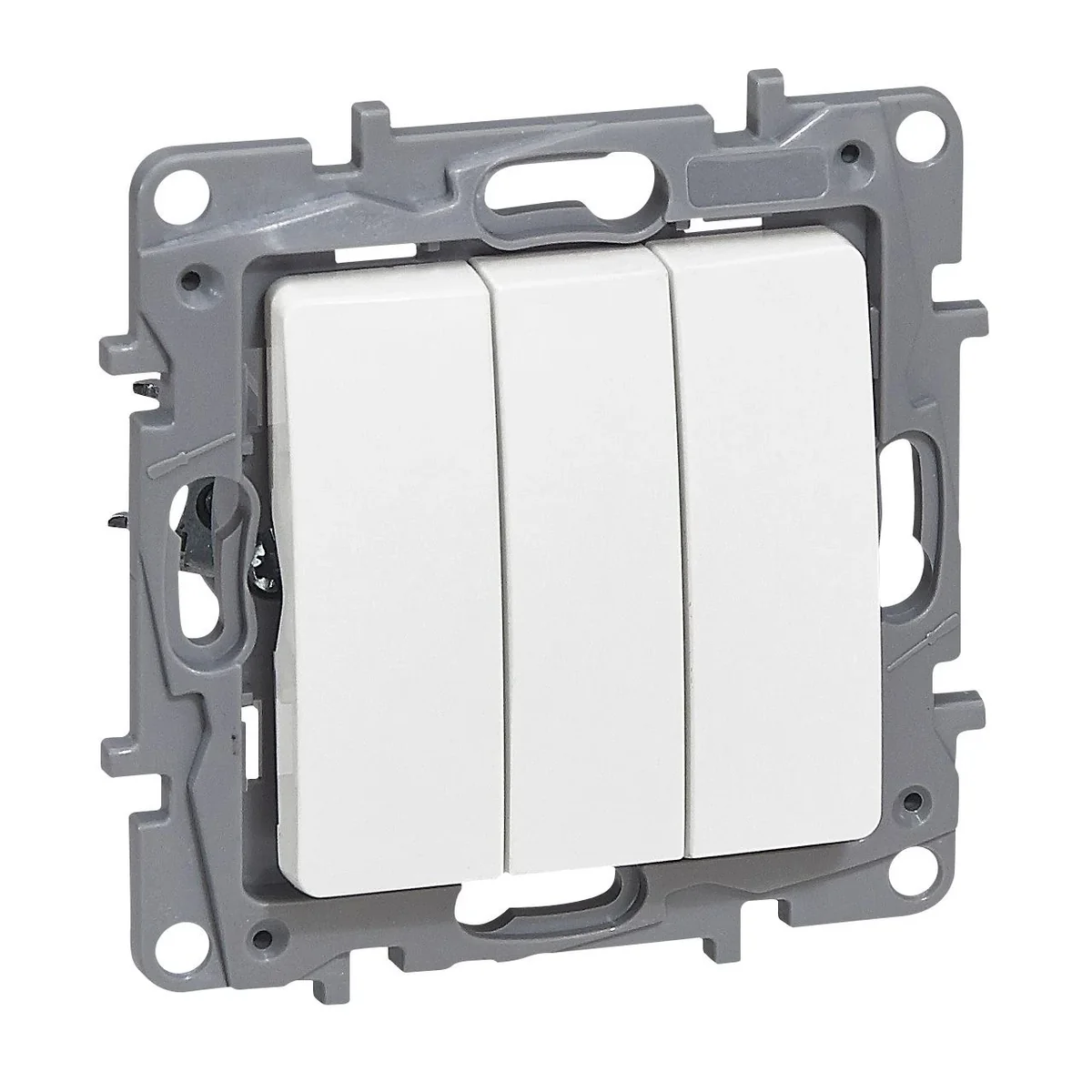

Triple white connector 764503

local index:
MMW001LEGR
Catalog No:
764503
EAN code:
3414970682314
Manufacturer: LEGRAND
Halogen free: Yes
Depth [mm]: 43.5
Number of keys: 3
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
6,45 €
gross / pcs.
(including VAT 23%)
Last lowest price: 10,80 € gross
Base price: 11,24 € gross -43%
Delivery in 3h
Accessible 35 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

Triple connector from the Niloe series, from the manufacturer Legrand. The product catalog number is 764503.



FEATURES

  • Mechanism with a button and a mounting bracket.
  • To be fitted with a frame.



SERIES DESCRIPTION

Niloe is a traditional  a series of electrical installation accessories. The Triple connector characterizes the features of this unique series.

Technical data

  • Halogen free
    Yes
  • Number of keys
    3
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated current [A]
    10
  • Family
    NILOE
  • Width [mm]
    76
  • Height [mm]
    76
  • Backlight
    NO
  • For the frame system
    Yes
  • Exact material
    PC
  • Depth [mm]
    43.5
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Multi-key
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Degree of mechanical protection
    IK04
  • Terminal type
    Threaded
  • Protrusion depth [mm]
    16
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Off switch 1-pole
  • Assembly arrangement
    Basic element
  • Number of rockers
    3
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9003
  • Illumination
    No
  • Type of lighting
    Other
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Other
  • Device width
    75.8 mm
  • Device depth
    45.5 mm
  • Min. depth of built-in installation box
    30 mm
  • Method of operation
    Rocker/button
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    Yes
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Kremowy
  • Label space/information surface
    No
  • Function lighting
    Other
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    75.8 mm
  • Built-in depth
    31 mm

Bulk packaging

A kind of package Pudełko Karton Paleta
Quantity 10 pcs. 100 pcs. 3000 pcs.
Weight (kg) 0,769 8,261 247,830
Volume (m3) 0,000 0,000 0,002
Width (m) 0,093 0,399 1,200
Length (m) 0,115 0,227 1,510
Depth (m) 0,386 0,599 1,000
