Triple multi-key switch with separate input terminals 533023
local index:
MPW002BERK
Catalog No:
533023
EAN code:
4011334430209
Price:
22,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

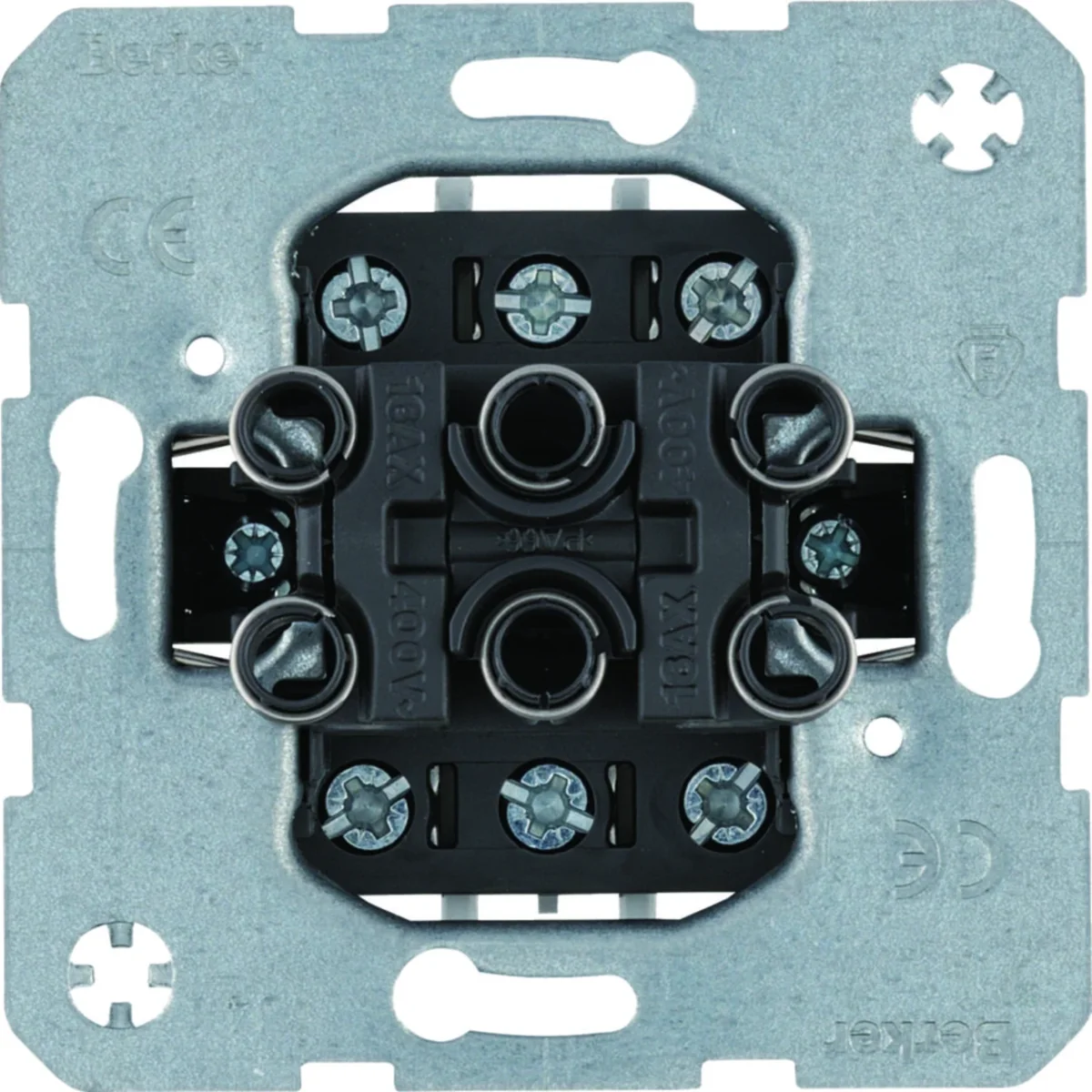

3-gang switch from the one.platform series, from Berker. The product catalog number is 533023.
FEATURES
- 3-fold. < li>3 x 1-pole on/off switch.
- 16 AX (200W self-ballasted lamps).
Technical data
-
Number of keys3
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilyONE.PLATFORM
-
TypeThe linkage mechanism
-
BacklightNO
-
For the frame systemYes
-
ShapeSquare
-
Rated voltage [V]230
-
TypeMulti-key
-
Width [mm]71
-
Height [mm]71
-
Terminal typeThreaded
-
PKWIU27.33.11.0
Other technical data
-
Wiring systemOff switch 3x1-pole
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityOther
-
Surface protectionOther
-
IlluminationNo
-
Type of lightingOther
-
Rated current16 A
-
Connection typeScrewed terminal
-
Device height55.5 mm
-
Min. depth of built-in installation box35 mm
-
Push button switchNo
-
Type of fasteningScrew mounting
-
MaterialOther
-
Halogen freeYes
-
Label space/information surfaceNo
-
Function lightingOther
-
Suitable for degree of protection (IP)IP20
-
Switching current for fluorescent lamps16 AX
-
Device width55.5 mm
-
Device depth41.5 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 100 pcs. | 2000 pcs. |
| Weight (kg) | 0,058 | 0,910 | 9,585 | 216,700 |
| Width (m) | 0,071 | 0,175 | 0,360 | 0,800 |
| Length (m) | 0,042 | 0,080 | 0,265 | 1,050 |
| Depth (m) | 0,071 | 0,240 | 0,455 | 1,200 |
