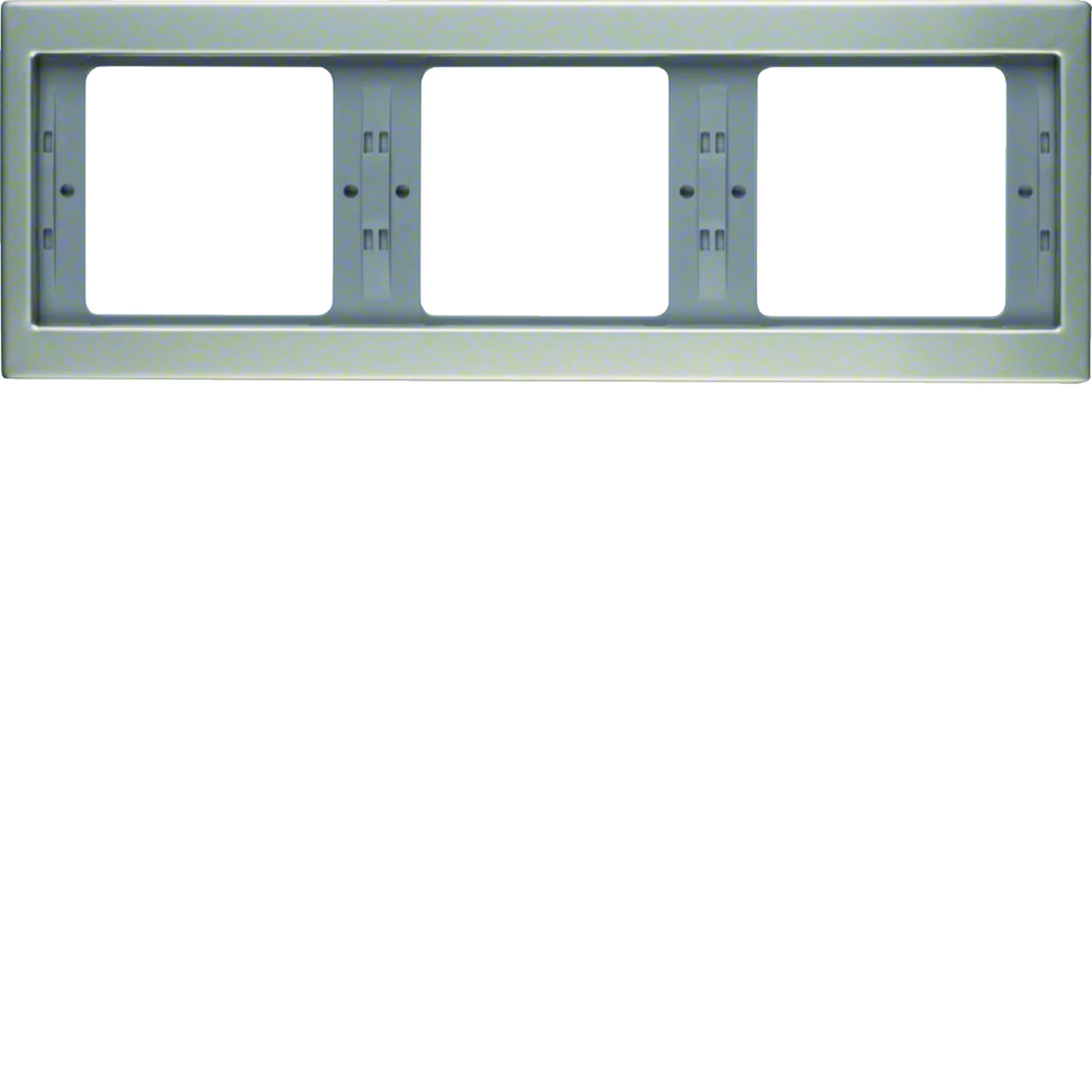

Triple horizontal stainless steel frame 13737004
local index:
MAR407BERK
Catalog No:
13737004
EAN code:
4011334281993
Price:
40,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
3-fold frame from the K.5 series. The product part number is 13737004.
SERIES DESCRIPTION
Berker K.5 is a modern series made of high-quality metal, such as aluminum and stainless steel.
Technical data
-
Depth [mm]9.9
-
ColorSilver
-
MaterialMetal
-
FamilyK.5
-
Width [mm]229
-
Surface finishmatte
-
Mounting directionHorizontal
-
Exact materialStainless steel
-
PKWIU27.12.40.0
-
Number of modules3
-
ShapeRectangular
-
TypeStandard
-
Level of securityIP20
-
Height [mm]80.5
-
Accurate colorstainless steel
-
For modular equipmentNot applicable
-
The shape of the matching accessorySquare, Rectangular
Other technical data
-
Number of units3
-
Number of units horizontal3
-
Number of modules horizontal (module system)0
-
Liczba łączników3
-
Suitable for subfloor installation duct boxNo
-
Suitable for built-in installationYes
-
MaterialMetal
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)9022
-
With hinged lidNo
-
Impact strengthIK05
-
Width229 mm
-
Depth9.9 mm
-
Built-in height56.5 mm
-
Mounting directionHorizontal
-
Number of units vertical1
-
Number of modules vertical (module system)0
-
With mounting gridNo
-
Suitable for wall ductYes
-
Label space/information surfaceNo
-
Material qualityStainless steel
-
Surface protectionOther
-
ColourStainless steel
-
TransparentNo
-
Degree of protection (IP)IP20
-
Type of fasteningClamp mounting
-
Height80.5 mm
-
Built-in width71.5 mm
-
Diameter bore hole (opening)0 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 2 pcs. | 80 pcs. | 2560 pcs. |
| Weight (kg) | 0,075 | 0,174 | 7,402 | 256,864 |
| Width (m) | 0,080 | 0,088 | 0,300 | 0,800 |
| Length (m) | 0,010 | 0,023 | 0,225 | 1,050 |
| Depth (m) | 0,229 | 0,239 | 0,400 | 1,200 |
