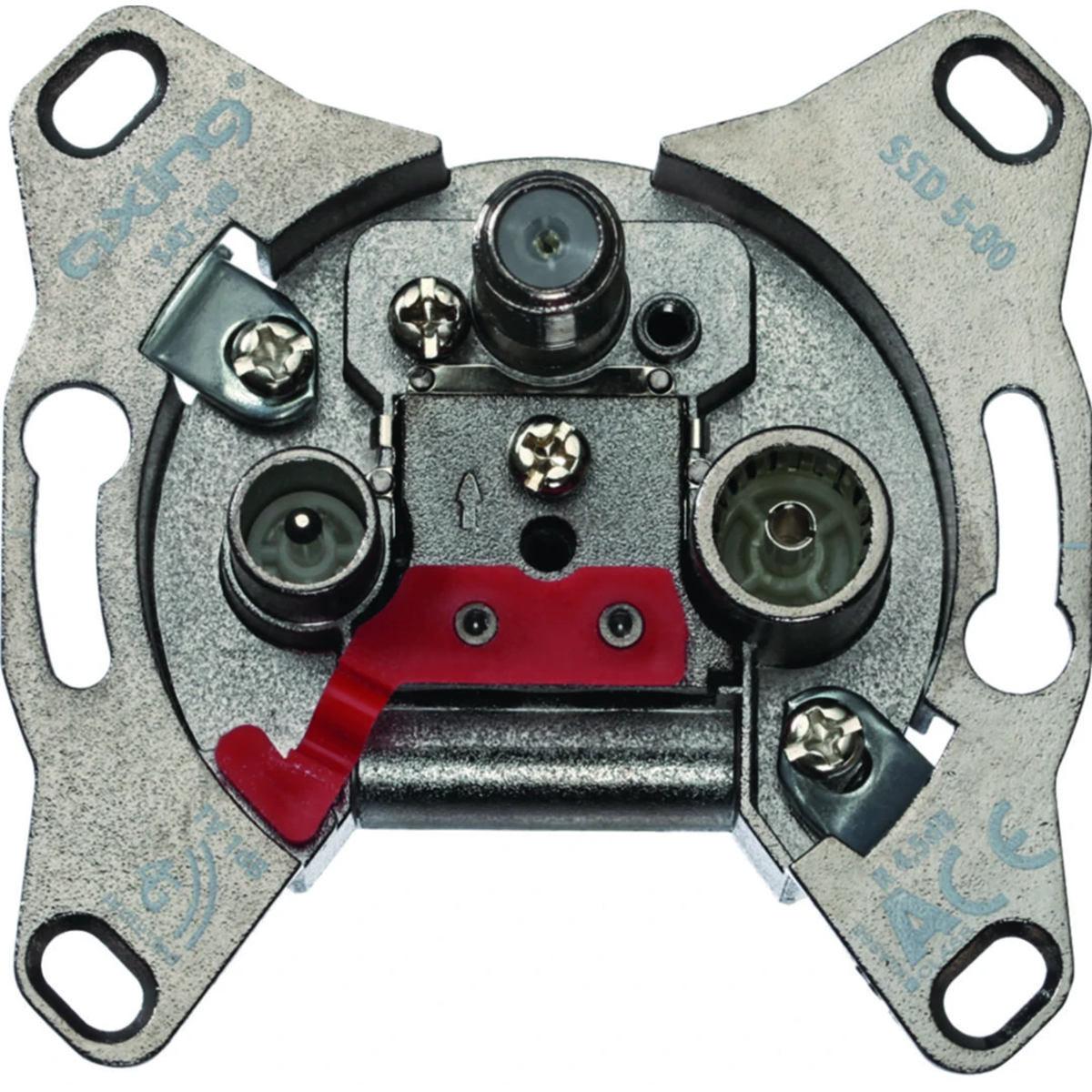

The mechanism of the RTV-SAT single-end socket 0dB 5-2200MHz GMSSD500

local index:
MJA001TEHA
Catalog No:
GMSSD500
EAN code:
4012740981217
Manufacturer: TEHALIT
Halogen free: Yes
Number of sockets: 3
Shape: Square
Price:
29,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Mechanism of the antenna socket from the tehalit.WA series. The product catalog number is GMSSD500.



FEATURES

  • RTV-SAT .
  • Final.
  • 5-2200MHz.
  • Mounting: screw-on.
  • Compatible type sockets: 60mm standard.
  • Loss at 2150 MHz: 1 dB.
  • Loss at 860 MHz: 1.3 dB.
  • Type of connection : with screw.
  • Bandwidth (bandwidth): 4 - 2400 MHz.

Technical data

  • Halogen free
    Yes
  • Shape
    Square
  • Type
    Antenna
  • Attenuation [dB]
    At 860MHz: 1.3 At 2150MHz: 1
  • Version
    Final
  • Backlight
    NO
  • F-type input
    NO
  • Number of sockets
    3
  • Material
    Metal
  • Family
    TEHALIT.WA
  • Type
    Socket mechanism
  • Surface protection
    Natural
  • Variant
    R TV sat
  • PKWIU
    26.30.40.0

Other technical data

  • Model
    End socket
  • Tap loss at 2150 MHz
    1 dB
  • Suitable for cable modem
    Yes
  • Frequency
    4 ... 2400 MHz
  • Halogen free
    Yes
  • Tap loss at 860 MHz
    1.3 dB
  • Number of outlets
    3
  • Suitable for remote power supply
    Yes
  • Surface protection
    Untreated

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 10 pcs. 3200 pcs.
Weight (kg) 0,104 0,116 1,245 421,400
Width (m) 0,068 0,070 0,190 0,800
Length (m) 0,039 0,040 0,090 1,050
Depth (m) 0,068 0,070 0,220 1,200
