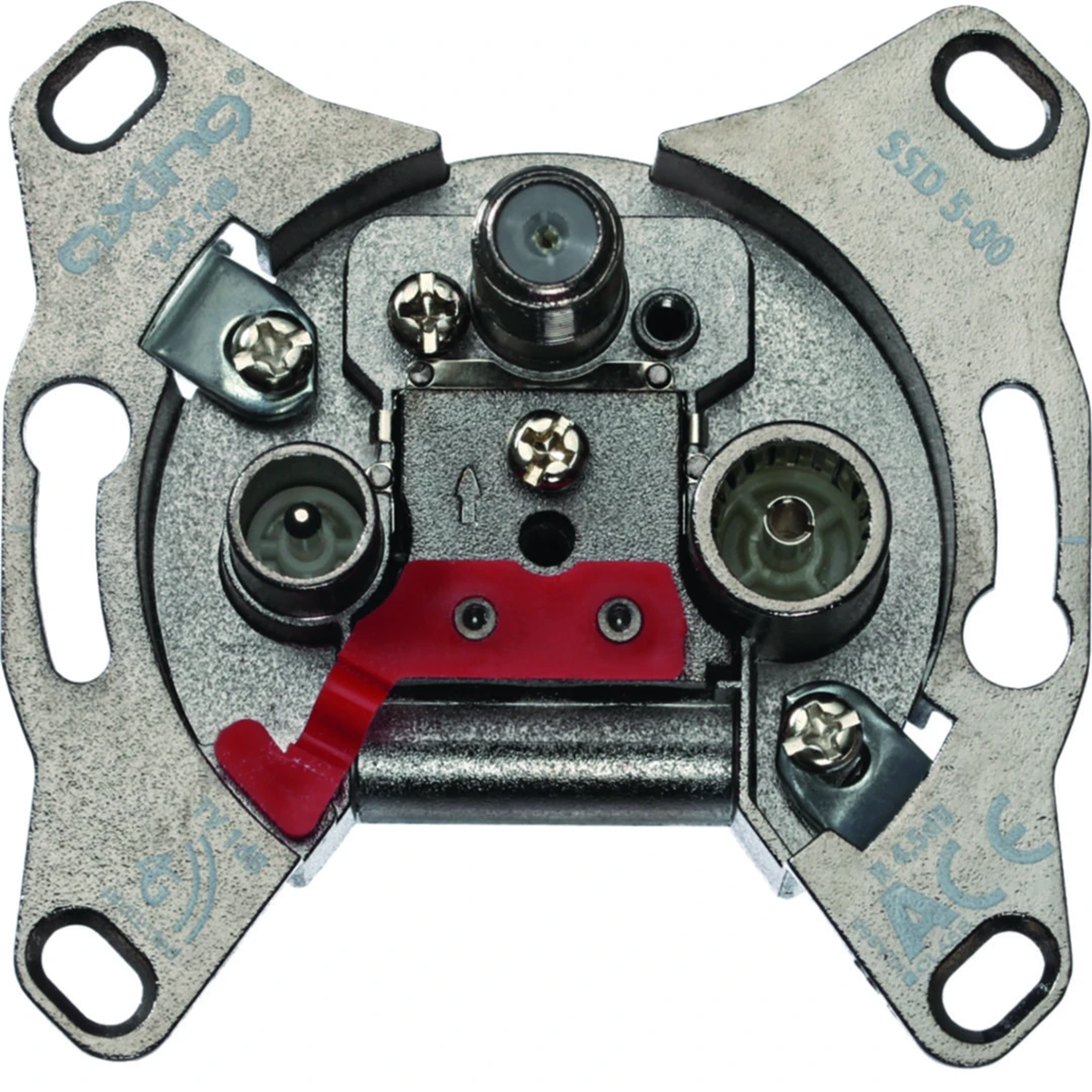

The mechanism of the RTV-SAT pass-through socket 10dB 5-2200MHz GMSSD510
local index:
MJA003TEHA
Catalog No:
GMSSD510
EAN code:
4012740981286
Price:
30,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Mechanism of the antenna socket from the tehalit.WA series. The product catalog number is GMSSD510.
FEATURES
- RTV-SAT .
- Through-hole.
- 5-2200MHz.
- Mounting: screw-on.
- Compatible type sockets: 60mm standard.
- Loss at 2150 MHz: 10 dB.
- Loss at 860 MHz: 10 dB.
- Connection type: ;with screw.
- Bandwidth (bandwidth): 4 - 2400 MHz.
Technical data
-
Halogen freeYes
-
ShapeSquare
-
TypeAntenna
-
Attenuation [dB]At 860MHz: 10 At 2150MHz: 10
-
Versionthrough
-
BacklightNO
-
F-type inputNO
-
Number of sockets3
-
MaterialMetal
-
FamilyTEHALIT.WA
-
TypeSocket mechanism
-
Surface protectionNatural
-
VariantR TV sat
-
PKWIU26.30.40.0
Other technical data
-
ModelLoop-through socket
-
Tap loss at 2150 MHz10 dB
-
Suitable for cable modemYes
-
Frequency4 ... 2400 MHz
-
Halogen freeYes
-
Tap loss at 860 MHz10 dB
-
Number of outlets3
-
Suitable for remote power supplyYes
-
Surface protectionUntreated
Manufacturer details
-
ManufacturerTehalit GmbH
-
Address67716 Heltersberg Seebergstrasse 37 Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta |
| Quantity | 1 pcs. | 10 pcs. | 3200 pcs. |
| Weight (kg) | 0,100 | 1,040 | 332,800 |
| Width (m) | 0,070 | 0,190 | 0,800 |
| Length (m) | 0,040 | 0,090 | 1,050 |
| Depth (m) | 0,070 | 0,220 | 1,200 |
