The mechanism of the final RTV-SAT socket 7dB 5-2200MHz GMSSD507
local index:
MJA002TEHA
Catalog No:
GMSSD507
EAN code:
4012740981224
Price:
30,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

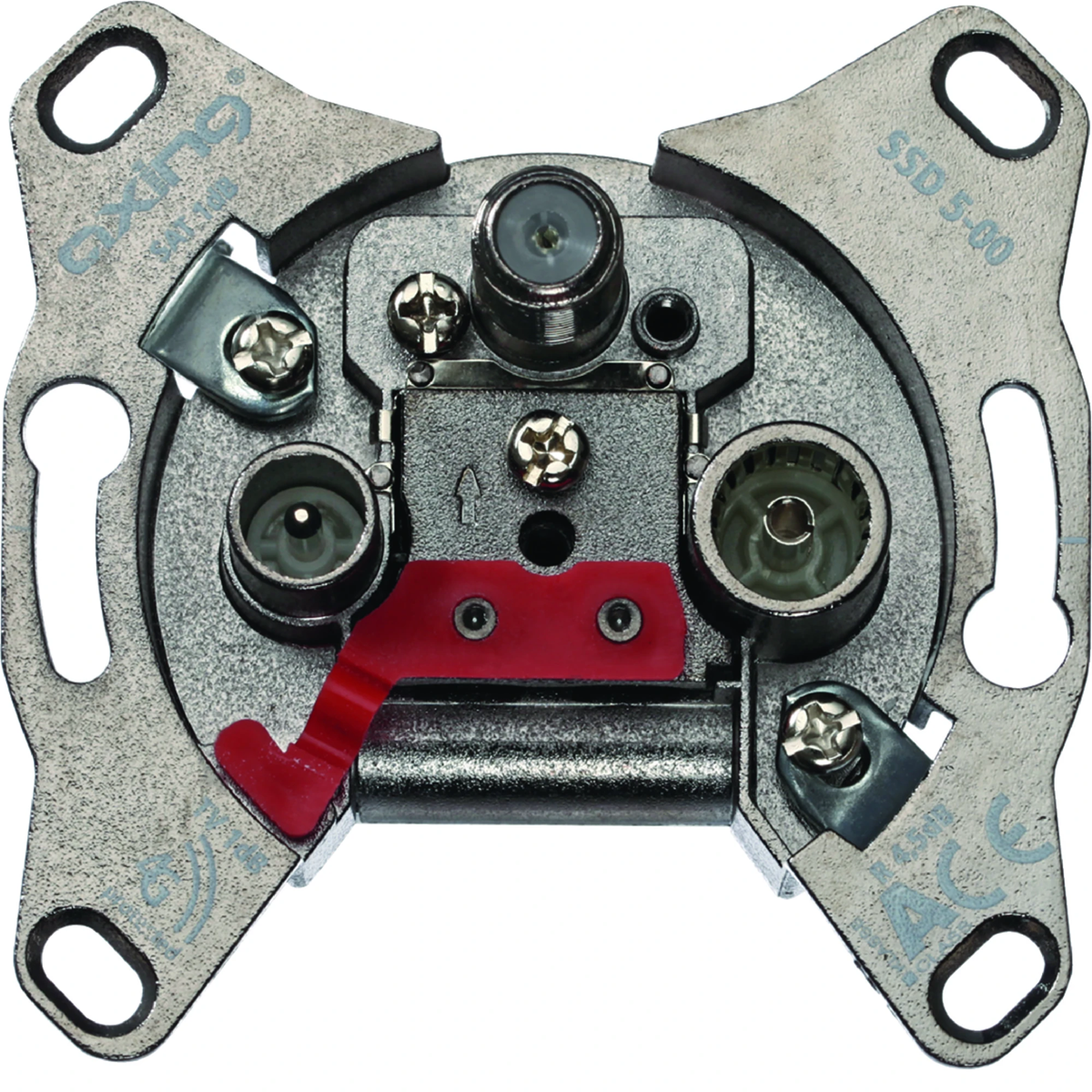

Mechanism of the antenna socket from the tehalit.WA series. The product catalog number is GMSSD507.
FEATURES
- RTV-SAT .
- Final.
- 5-2200MHz.
- Mounting: screw-on.
- Compatible type sockets: 60mm standard.
- Loss at 2150 MHz: 7 dB.
- Loss at 860 MHz: 7 dB.
- Connection type: ;with screw.
- Bandwidth (bandwidth): 4 - 2400 MHz.
Technical data
-
Halogen freeYes
-
ShapeSquare
-
TypeAntenna
-
Attenuation [dB]At 860MHz: 7 At 2150MHz: 7
-
VersionFinal
-
BacklightNO
-
F-type inputNO
-
Number of sockets3
-
MaterialMetal
-
FamilyTEHALIT.WA
-
TypeSocket mechanism
-
Surface protectionNatural
-
VariantR TV sat
-
PKWIU26.30.40.0
Other technical data
-
ModelMultimedia end box
-
Tap loss at 2150 MHz7 dB
-
Suitable for cable modemYes
-
Frequency4 ... 2400 MHz
-
Halogen freeYes
-
Tap loss at 860 MHz7 dB
-
Number of outlets3
-
Suitable for remote power supplyYes
-
Surface protectionUntreated
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. | 3200 pcs. |
| Weight (kg) | 0,104 | 0,112 | 1,230 | 418,600 |
| Width (m) | 0,068 | 0,070 | 0,190 | 0,800 |
| Length (m) | 0,039 | 0,040 | 0,090 | 1,050 |
| Depth (m) | 0,068 | 0,070 | 0,220 | 1,200 |
