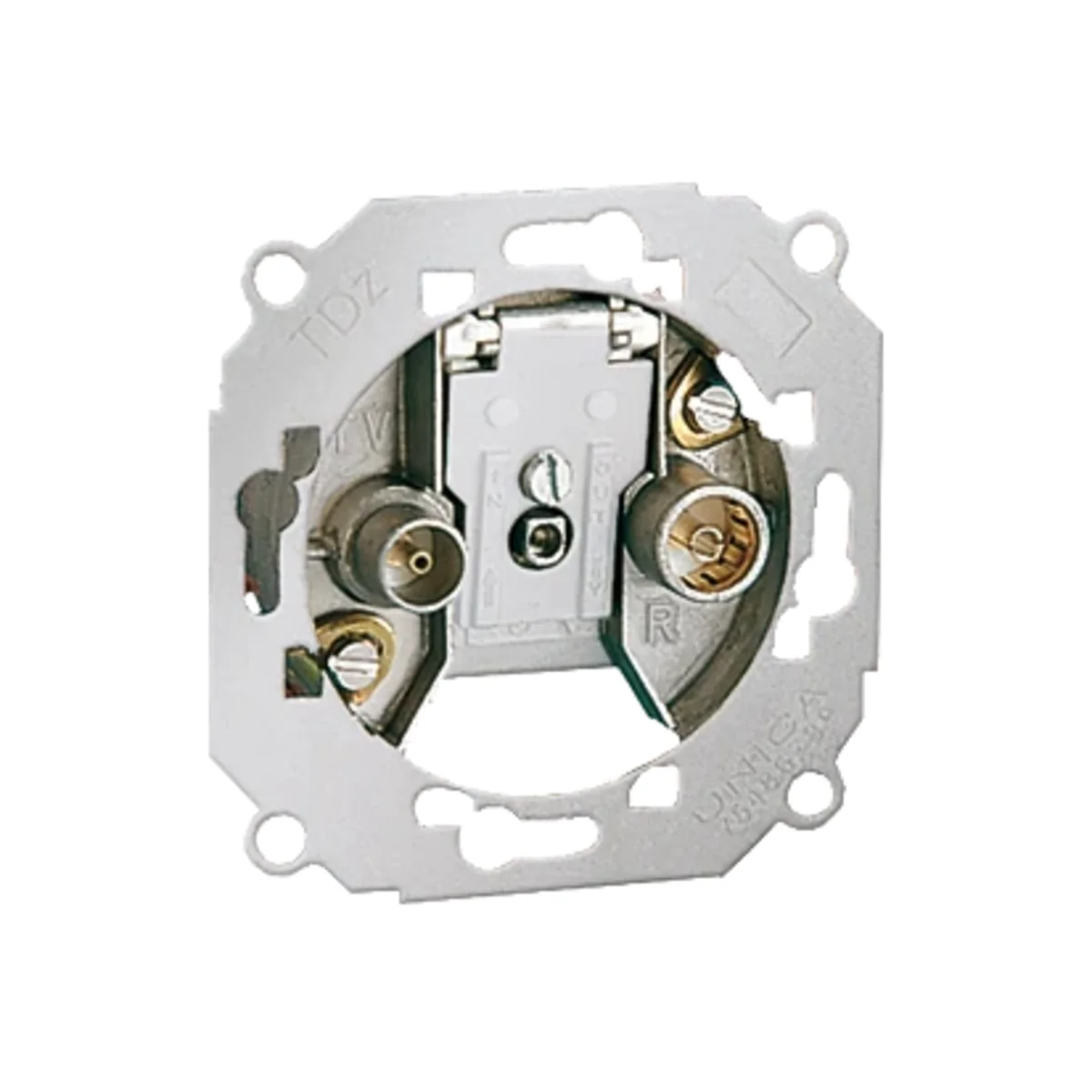

Terminal R-TV socket R-10.4 dB, TV-10.4 dB (mechanism) 75488-39

local index:
MJA008KONT
Catalog No:
75488-39
EAN code:
8421053024980
Manufacturer: KONTAKT-SIMON
Depth [mm]: 36
Number of sockets: 2
Shape: Square
Price:
13,07 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Mechanism of the antenna socket from the Simon 82 series, from the manufacturer Contact Simon. The product part number is 75488-39.



FEATURES

  • R-TV.
  • Ending.
  • Type of connection: crimp (pincer terminal), screw terminals.

Technical data

  • Depth [mm]
    36
  • Shape
    Square
  • Fixing
    claws Screws
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    TV: 10.4 R: 10.4
  • Version
    Final
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • PKWIU
    27.33.13.0
  • Number of sockets
    2
  • Material
    Metal
  • Installation
    Flush-mounted
  • Family
    Simon 82
  • Width [mm]
    75
  • Type
    Socket mechanism
  • Height [mm]
    75
  • Frequency Range [MHz]
    5-862
  • Mounting depth [mm]
    29
  • Variant
    R TV
  • For the frame system
    Yes

Other technical data

  • Model
    Multimedia end box
  • Number of outlets
    2
  • Frequency
    5 ... 862 MHz
  • Tap loss at 860 MHz
    10 dB
  • Suitable for remote power supply
    No
