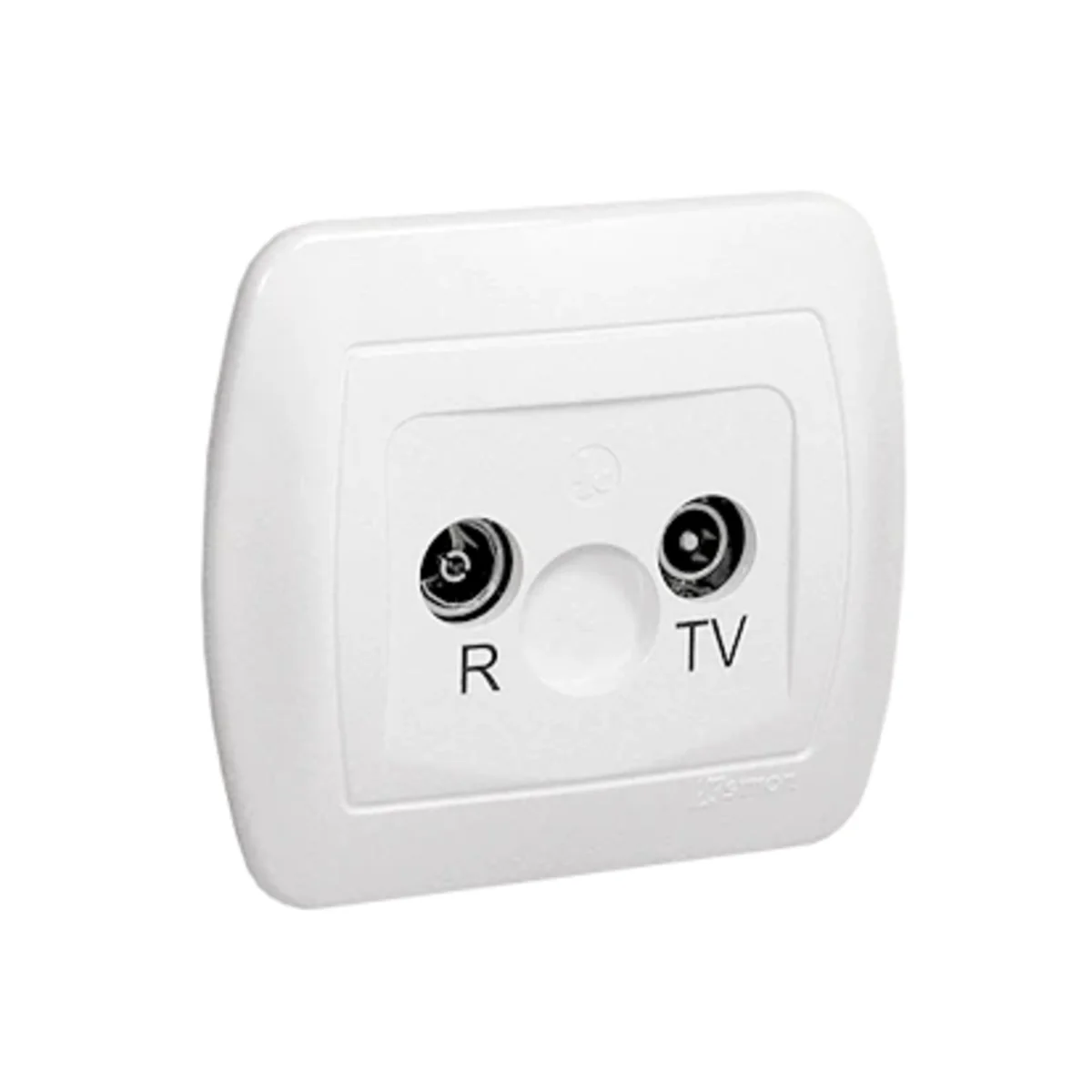

Terminal R-TV antenna socket, separated white AAK/11

local index:
MEA224KONT
Catalog No:
AAK/11
EAN code:
5902787569853
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 41
Number of sockets: 2
Price:
12,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Antenna socket from the Chord series, from the manufacturer Contact Simon. The product catalog number is AAK/11.



FEATURES

  • R-TV.
  • Final.
  • Separated.
  • Frequency range 5- 852 MHz.
  • Connection attenuation for 860 MHz: 1 db.
  • Screw terminals.
  • Color white.
  • R-TV imprint on the sticker.
  • Protection rating IP20.
  • flush mounting.



SERIES DESCRIPTION

Slightly longer base and top line relative to the sides ;w and clearly rounded frame corners distinguish this series from others. Simon CHORD is a monoblock, i.e. non-frame series. Economical, but tasteful colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details. The antenna socket has all the features of this unique series.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    2
  • Shape
    Rectangular
  • Fixing
    claws Screws
  • Overprint
    Yes
  • Family
    SIMON CHORD
  • Width [mm]
    90
  • Type
    Flush-mounted
  • Height [mm]
    80.5
  • Frequency Range [MHz]
    5-852
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Separated
    Yes
  • PKWIU
    27.33.13.0
  • Depth [mm]
    41
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    Connections for 860 MHz: 1
  • Version
    Final
  • Surface protection
    Natural
  • Surface finish
    Shiny
  • Mounting depth [mm]
    29
  • Variant
    R TV
  • For the frame system
    NO
  • Exact material
    PC

Other technical data

  • Model
    End socket
  • Number of outlets
    1
  • Frequency
    5 ... 852 MHz
  • Tap loss at 860 MHz
    1 dB
  • Suitable for remote power supply
    Yes

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,115 0,115 1,234
Width (m) 0,080 0,110 0,190
Length (m) 0,090 0,046 0,230
Depth (m) 0,041 0,160 0,100
