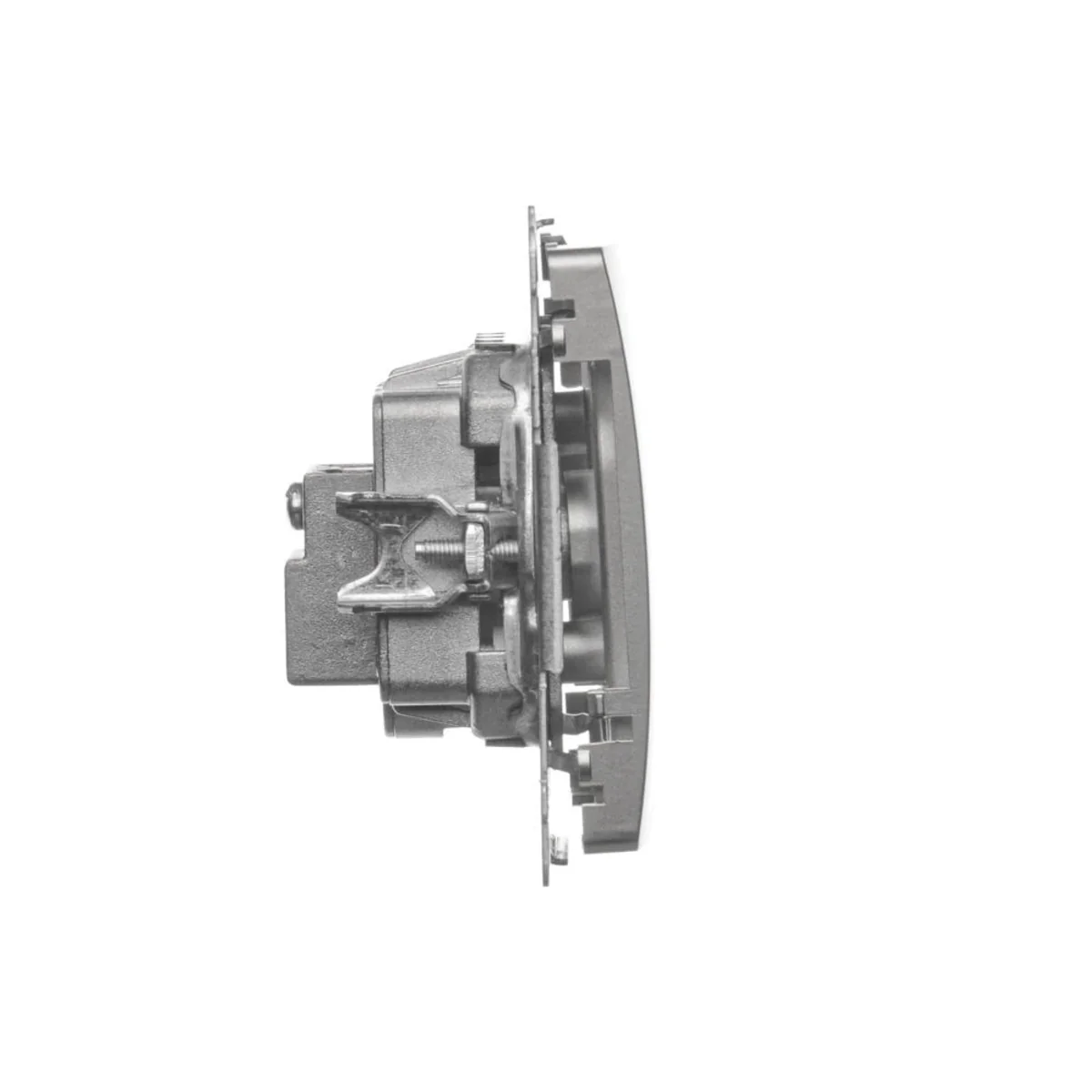

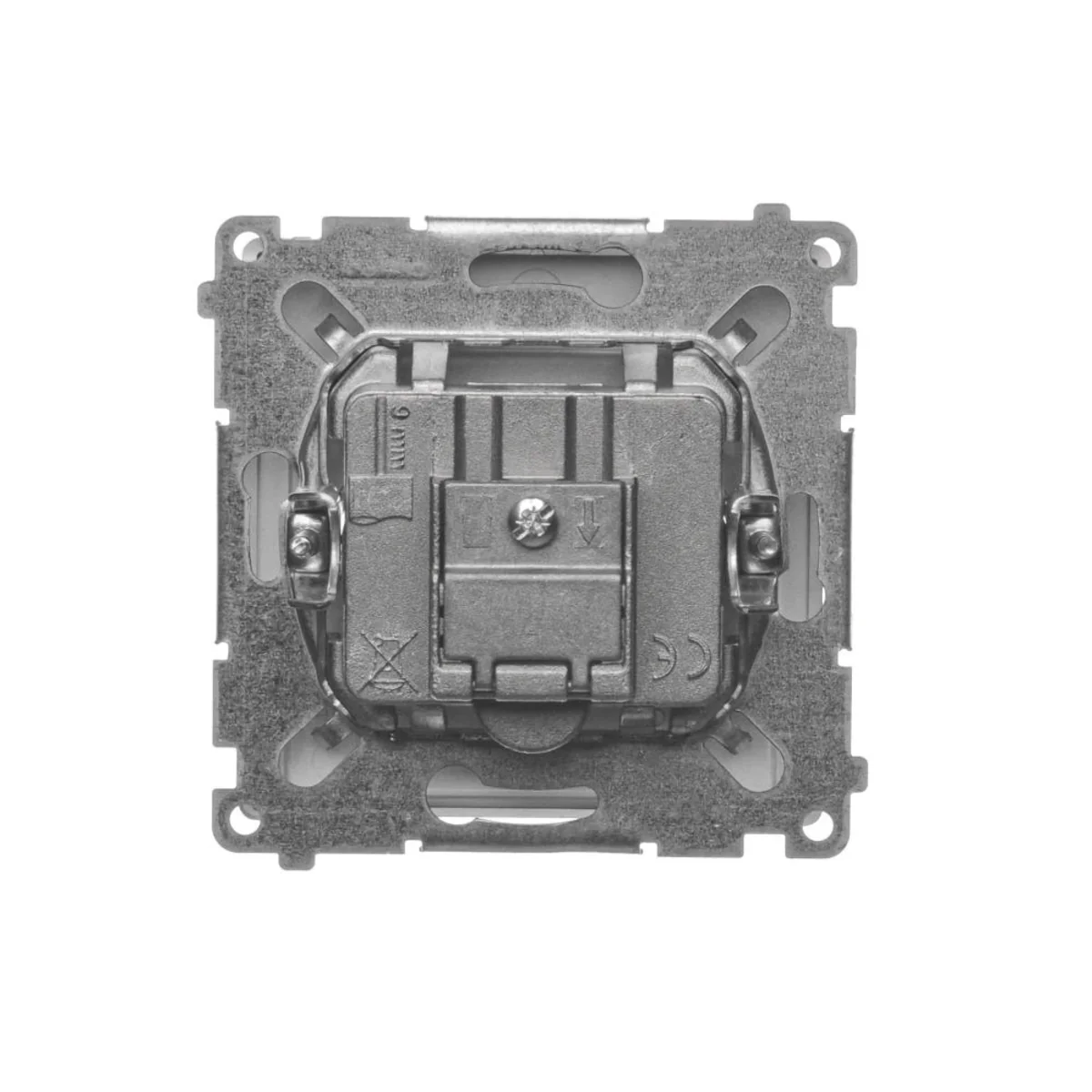

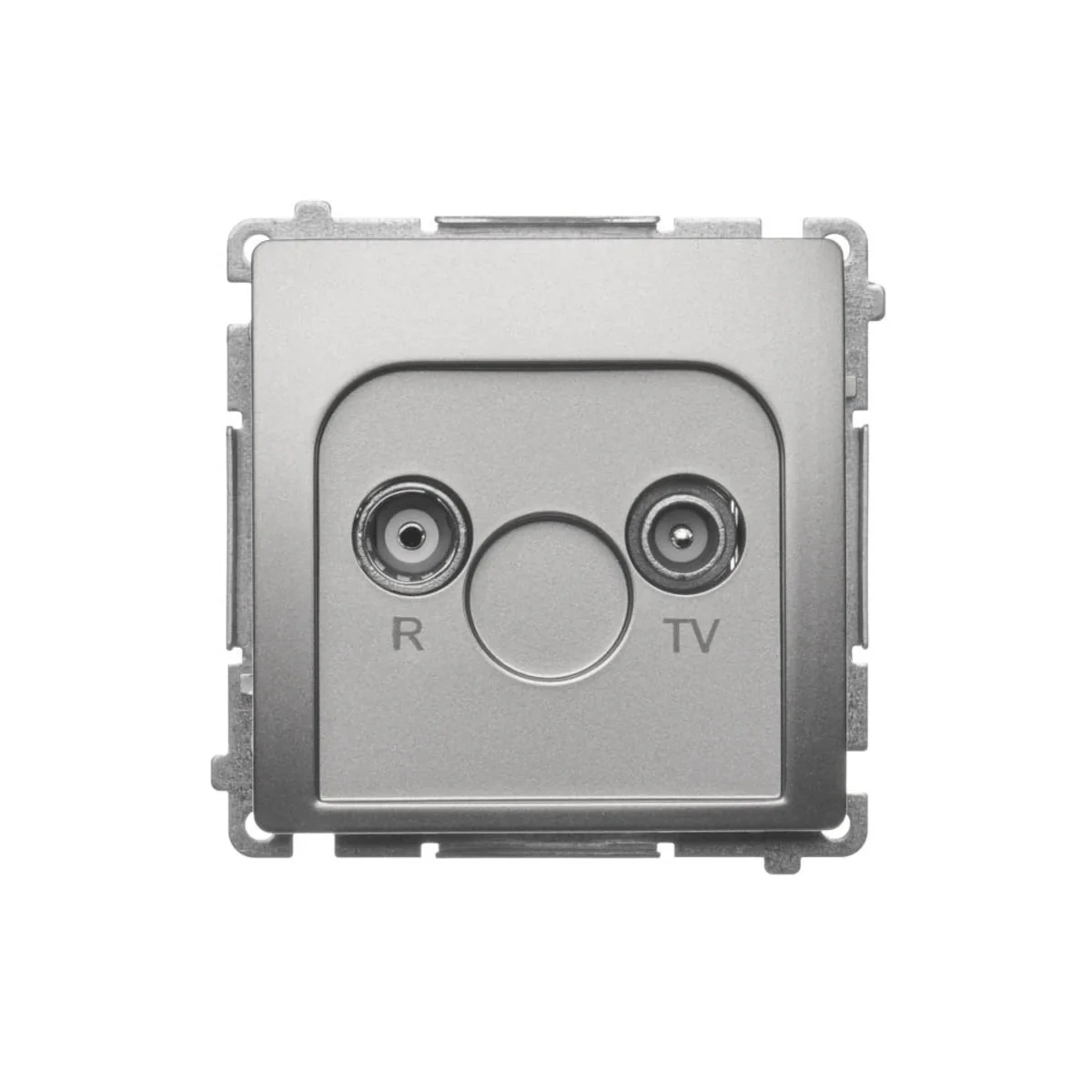

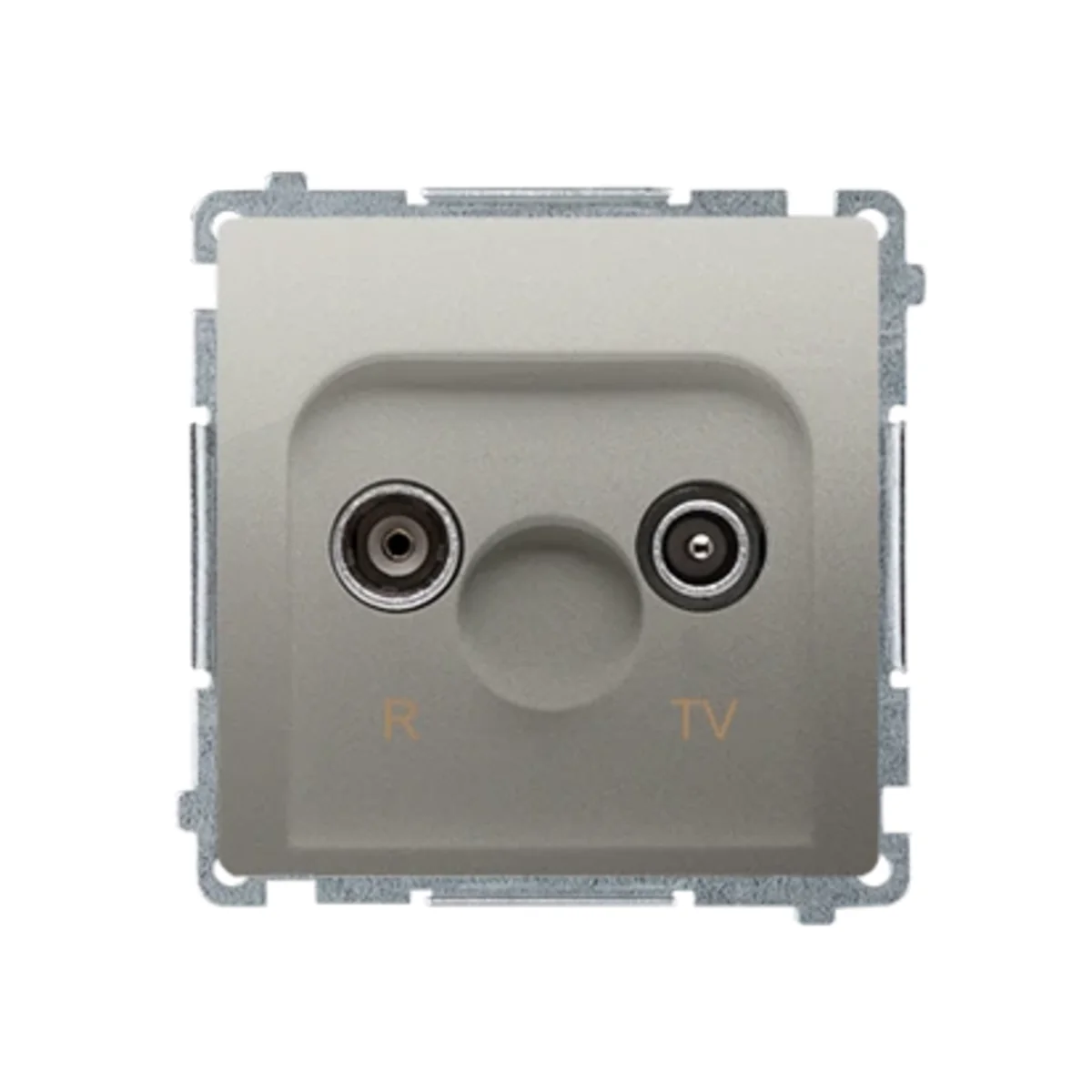

Terminal R-TV antenna socket separated (module) satin (metallic) BMZAR1/1.01/29

local index:
MEA112KONT
Catalog No:
BMZAR1/1.01/29
EAN code:
5902787813574
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 39
Number of sockets: 2
Price:
15,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Functionality and classic look are the hallmarks of the SIMON BASIC series, which will work in any space. It includes antenna socket R-TV separated.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws Screws
  • Overprint
    Yes
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Frequency Range [MHz]
    5-862
  • Accurate color
    Satin metallic
  • Mounting depth [mm]
    thirty
  • Variant
    R TV
  • For the frame system
    Yes
  • Exact material
    PC
  • Depth [mm]
    39
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    Connections for 860 MHz: 1
  • Version
    Final
  • Surface protection
    varnishing
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Separated
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    End socket
  • Number of outlets
    2
  • Frequency
    5 ... 862 MHz
  • Tap loss at 860 MHz
    1 dB
  • Suitable for remote power supply
    Yes

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,115 0,115 1,262
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,044 0,230
Depth (m) 0,039 0,160 0,100
