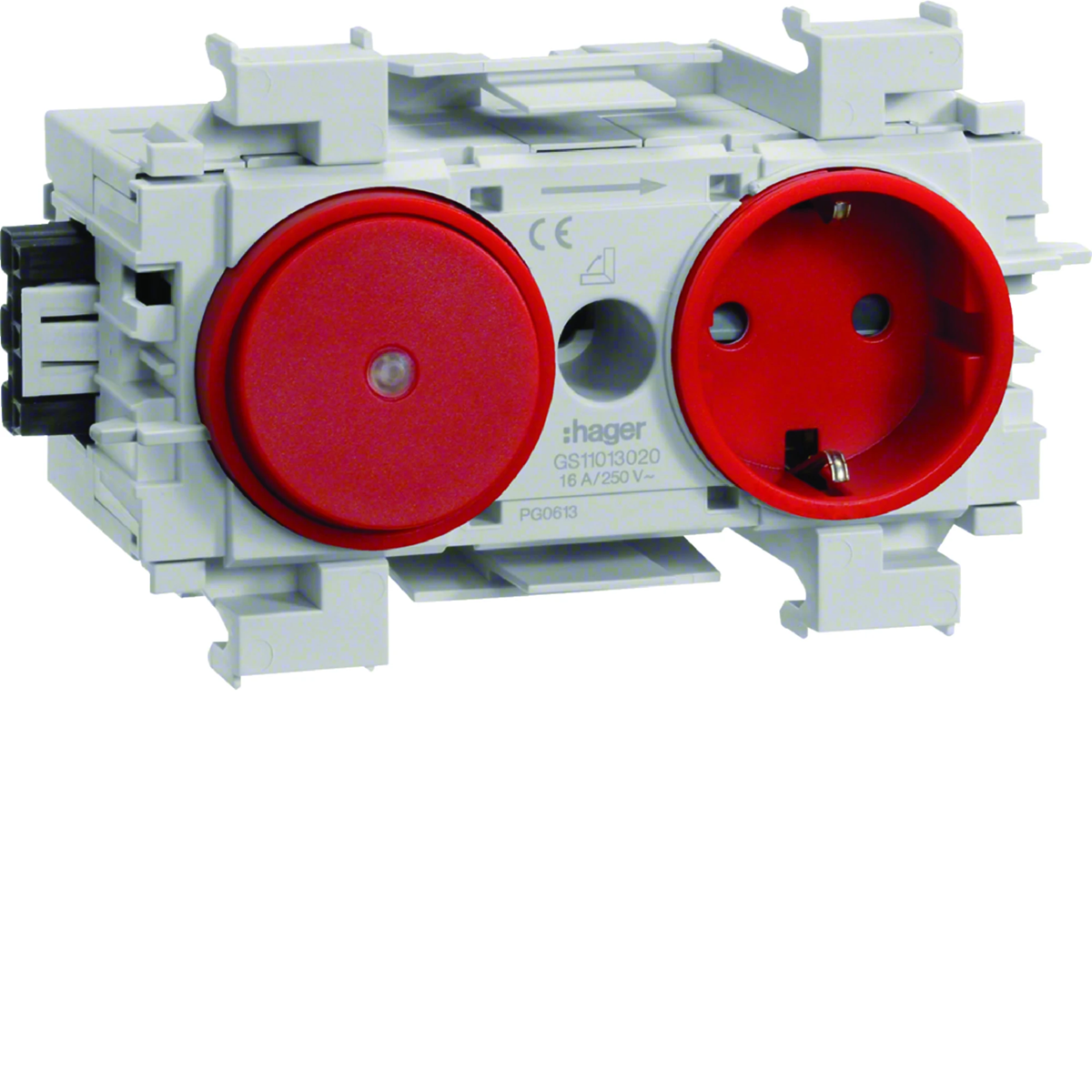

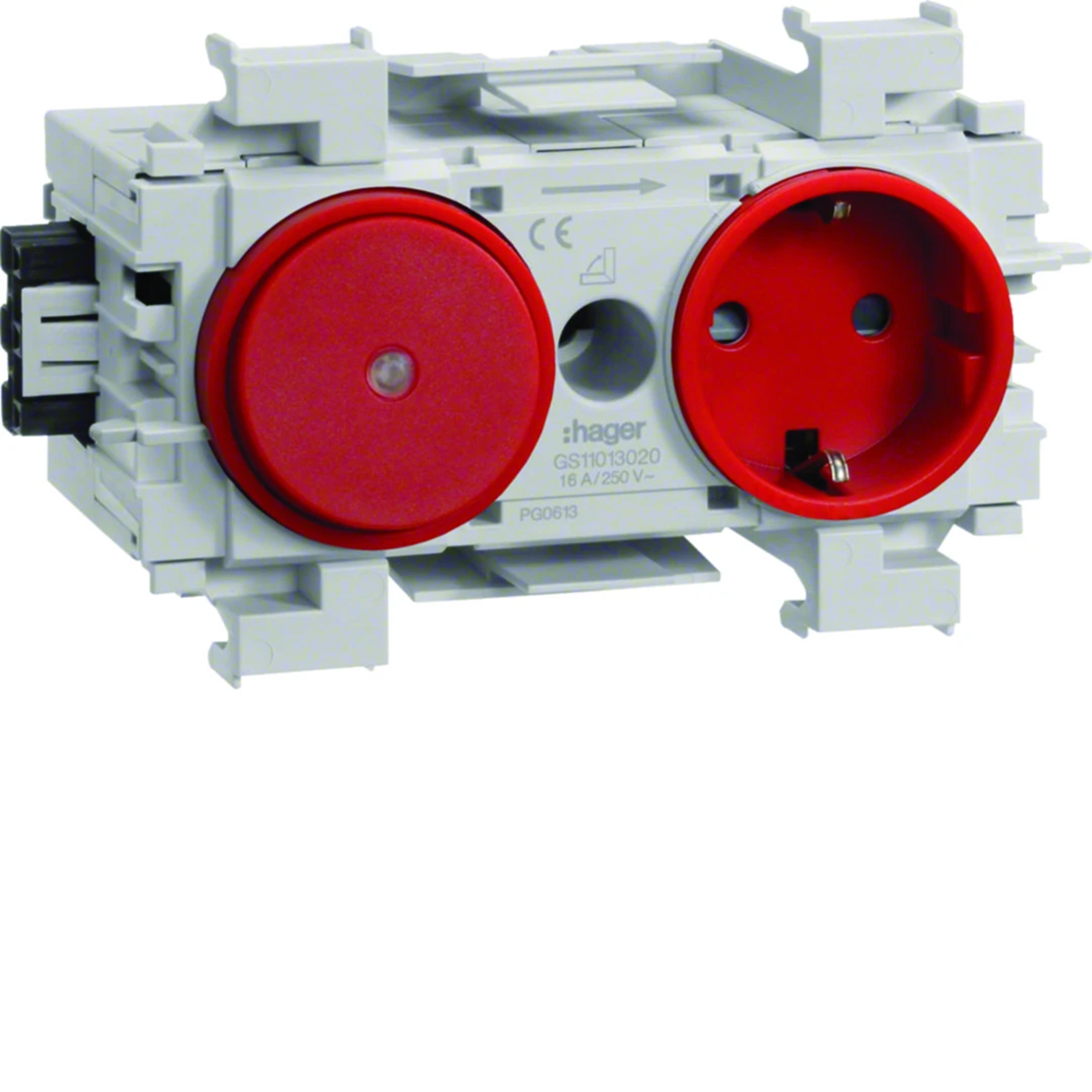

TEHALIT.WA SCHUKO socket with switch WAGO edge mounting red

Click on the photo to enlarge

TEHALIT.WA SCHUKO socket with switch WAGO edge mounting red
TEHALIT

TEHALIT.WA SCHUKO socket with switch WAGO edge mounting red GS11013020

local index:
MGE030TEHA
Catalog No:
GS11013020
EAN code:
4012740850995
Price:
93,43 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Channel electrical socket from the tehalit.WA series, from the manufacturer Hager. The product catalog number is GS11013020< /strong>.



FEATURES

  • Double.
  • With ground SCHUKO.
  • Extended contact protection.
  • With switch.
  • Color red.
  • Rated current 16A.
  • Rated voltage 230V.
  • Degree of protection IP20.
  • Connection system: Wago Winsta.
  • Mounting: wall channel.
    • < li>Number of module locations: 2.
  • Edge mount.
  • Number of available phases: 1.
  • Connection type: Quick Connect.
  • Number of cable inlets: 2.
  • Number of strain reliefs: 2.
  • Number of changeover sockets: 1.
  • Isolated.
Print the product sheet Report an error

Technical data

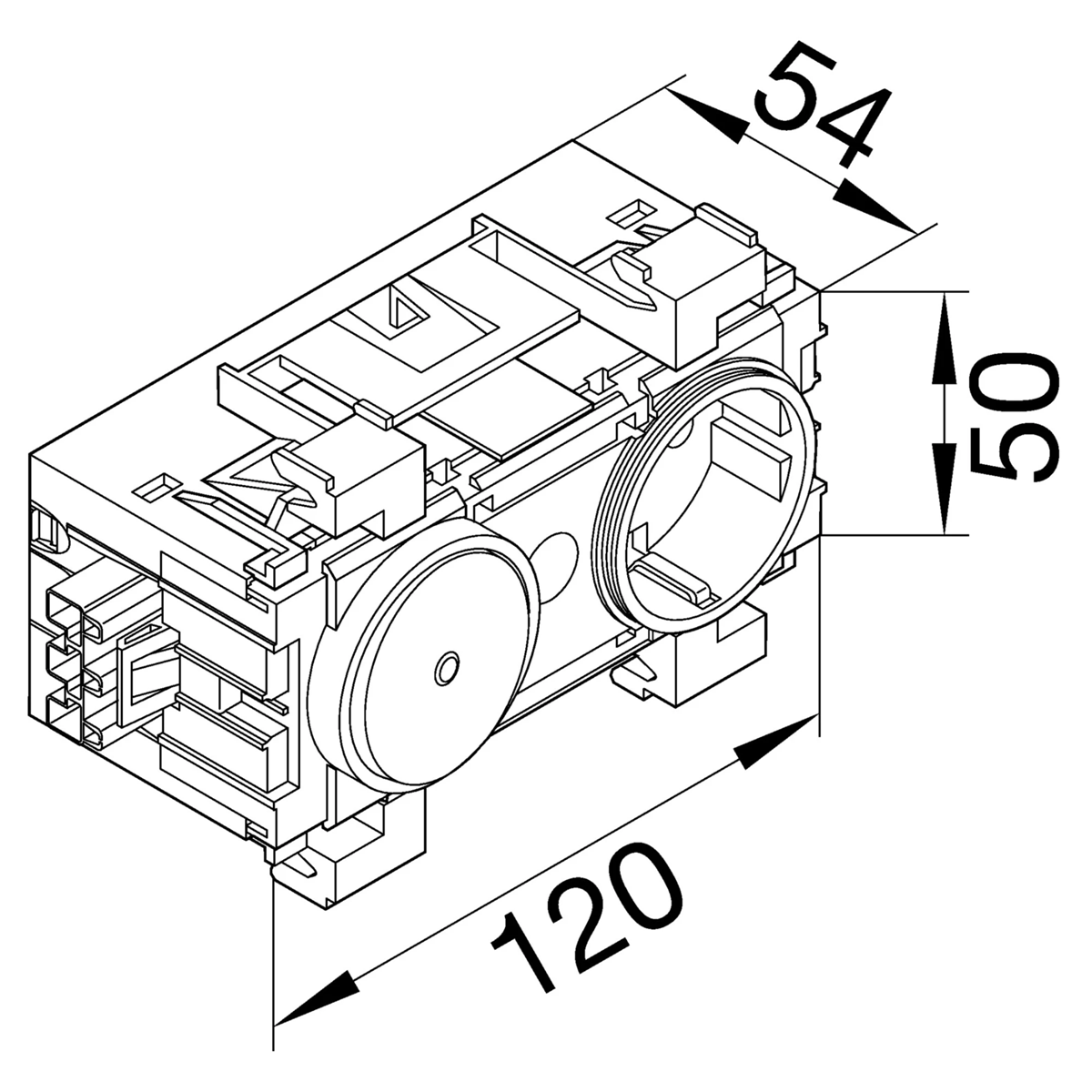

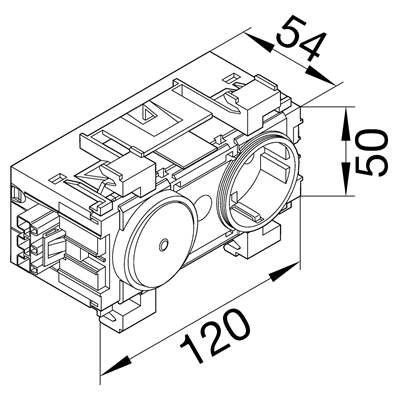

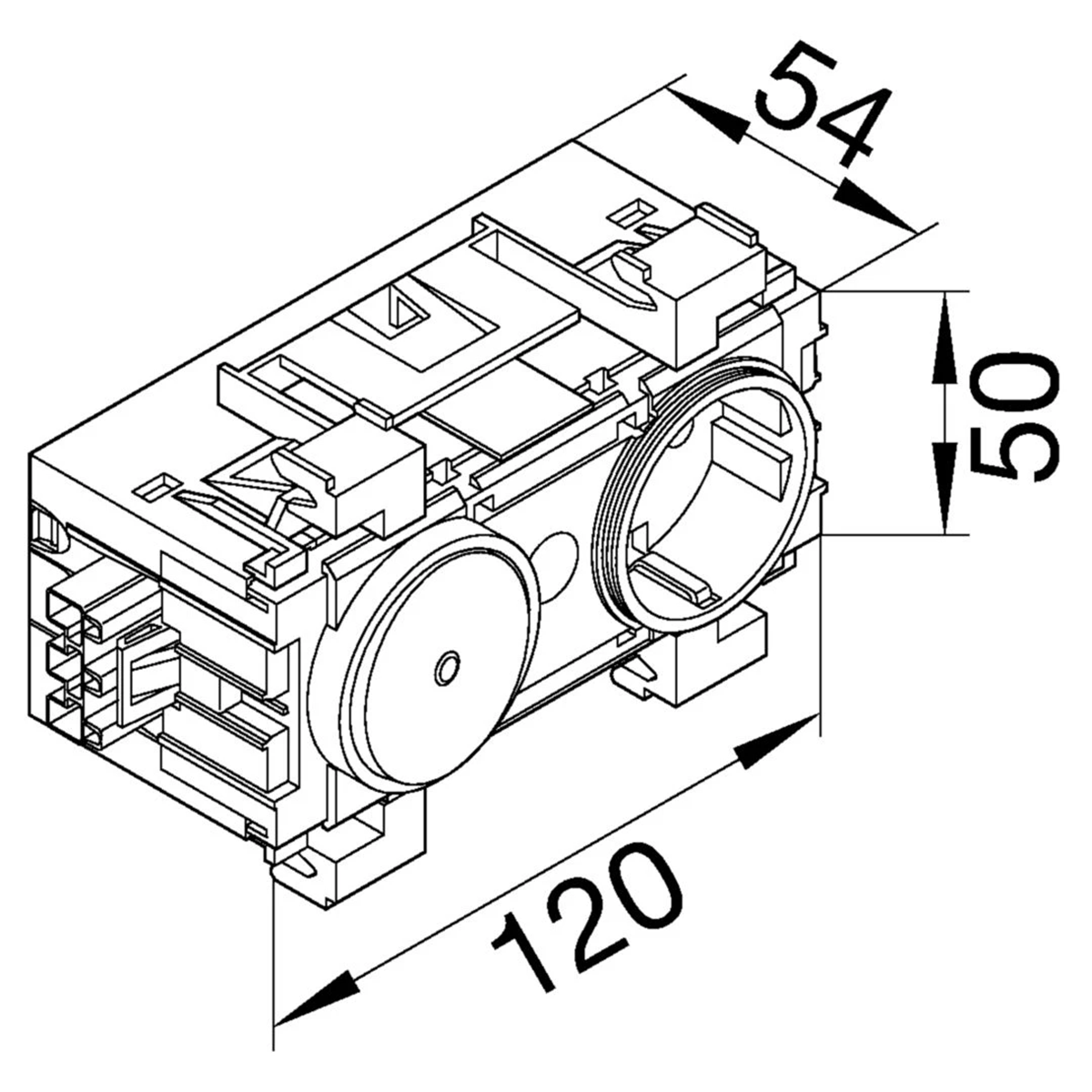

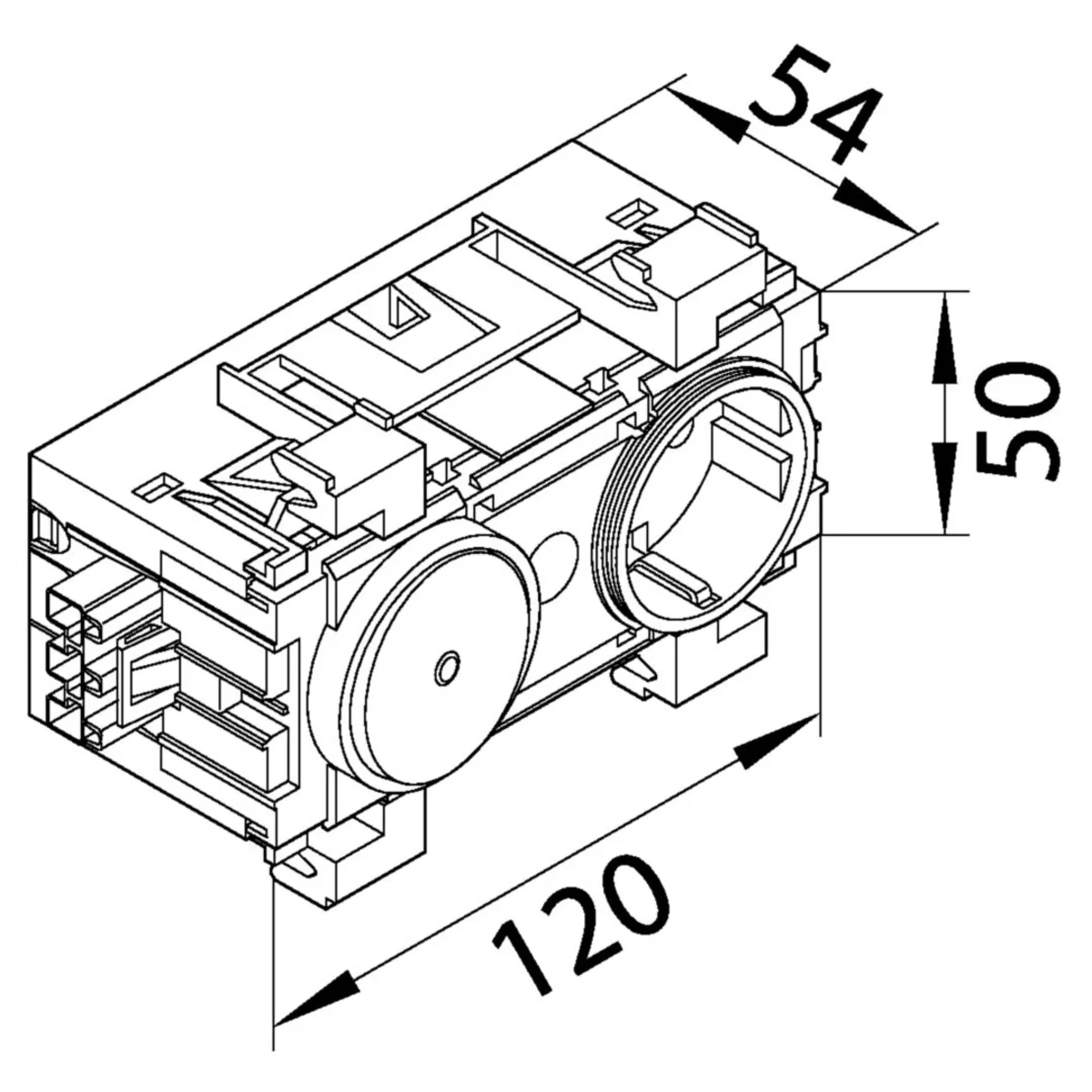

  • Depth [mm]
    54
  • Number of modules
    2
  • Shape
    Rectangular
  • Installation
    edge
  • Rated current [A]
    16
  • Family
    TEHALIT.WA
  • Width [mm]
    120
  • Connection type
    Quick Connect
  • Height [mm]
    50
  • Degree of mechanical protection
    IK07
  • Wire cross-section (cord) [mm²]
    0.5/4
  • Standard
    European
  • On the DATA key
    NO
  • Number of sockets
    2
  • Color
    Red
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Canal
  • Ground
    schuko
  • Surface protection
    Natural
  • Backlight
    NO
  • Conductor cross-section (wire) [mm²]
    1.5 / 2.5
  • Shutters of current paths
    Yes
  • Additional information
    With switch

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    no
  • With built-in USB power supply
    no
  • Number of modules (module system)
    2
  • Number of phases
    1
  • With hinged lid
    no
  • Label space/information surface
    yes
  • RAL-number (similar)
    3020
  • Lockable
    no
  • Insulated mounting
    yes
  • With orientation lighting
    no
  • Fault current protection
    no
  • Special power supply
    Additional safety power supply (red)
  • Type of fastening
    Snap mounting (engagement)
  • Material quality
    Other
  • Surface protection
    Untreated
  • With on/off switch
    yes
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    120 mm
  • Device depth
    54 mm
  • Protective contact
    yes
  • With signal lamp
    no
  • Number of units
    2
  • Number of socket outlets switchable
    1
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    yes
  • Colour
    Red
  • Transparent
    no
  • Eject-mechanism
    no
  • With function lighting
    no
  • Over voltage protection
    no
  • With miniature fuse
    no
  • Mounting method
    Wall duct
  • Material
    Other
  • Halogen free
    yes
  • Anti-bacterial treatment
    no
  • Rotated central insert
    no
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK07
  • Device height
    50 mm
