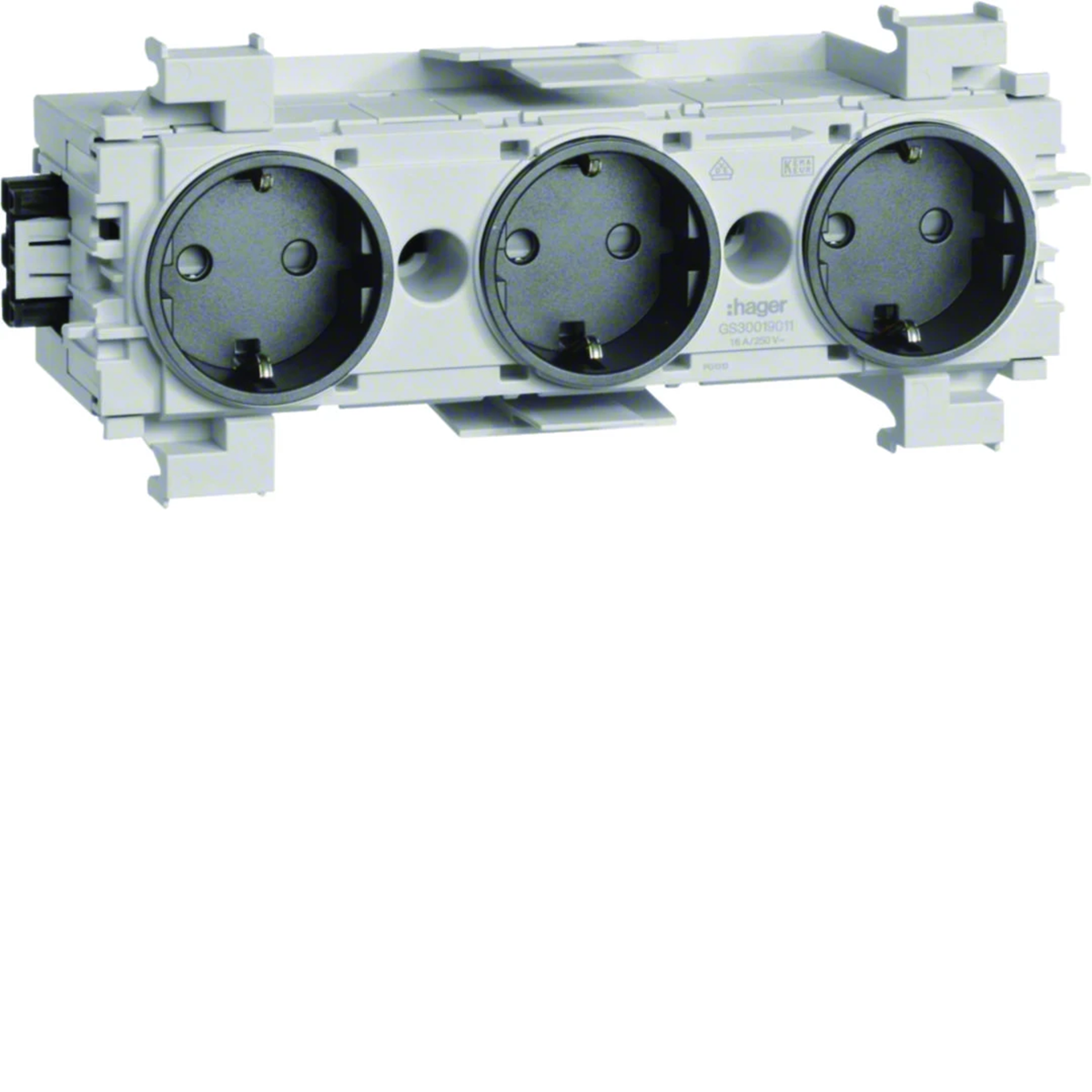

TEHALIT.WA SCHUKO socket 3-way connection WAGO edge mounting anthracite GS30019011

local index:
MGE059TEHA
Catalog No:
GS30019011
EAN code:
4012740851527
Manufacturer: TEHALIT
Halogen free: Yes
Depth [mm]: 54
Number of sockets: 3
Price:
54,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Channel electrical socket from the tehalit.WA series, from the manufacturer Hager. The product catalog number is GS30019011< /strong>.



FEATURES

  • Triple.
  • With SCHUKO Grounding.
  • Extended contact protection.
  • Color anthracite.
  • Rated current < strong>16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • Connection system: Wago Winsta.
  • Edge mount.
  • Number of module locations: 3.
  • Number of available phases: 1.
  • Mounting: wall duct.
  • Type of connection: Quick Connect.
  • Number of cable entries : 2.
  • Number of strain reliefs: 2.
  • Insulated.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    3
  • Color
    Graphite
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Canal
  • Ground
    schuko
  • Surface protection
    Natural
  • Surface finish
    matte
  • Backlight
    NO
  • Conductor cross-section (wire) [mm²]
    1.5 / 2.5
  • Shutters of current paths
    Yes
  • PKWIU
    27.33.13.0
  • Depth [mm]
    54
  • Number of modules
    3
  • Shape
    Rectangular
  • Installation
    edge
  • Rated current [A]
    16
  • Family
    TEHALIT.WA

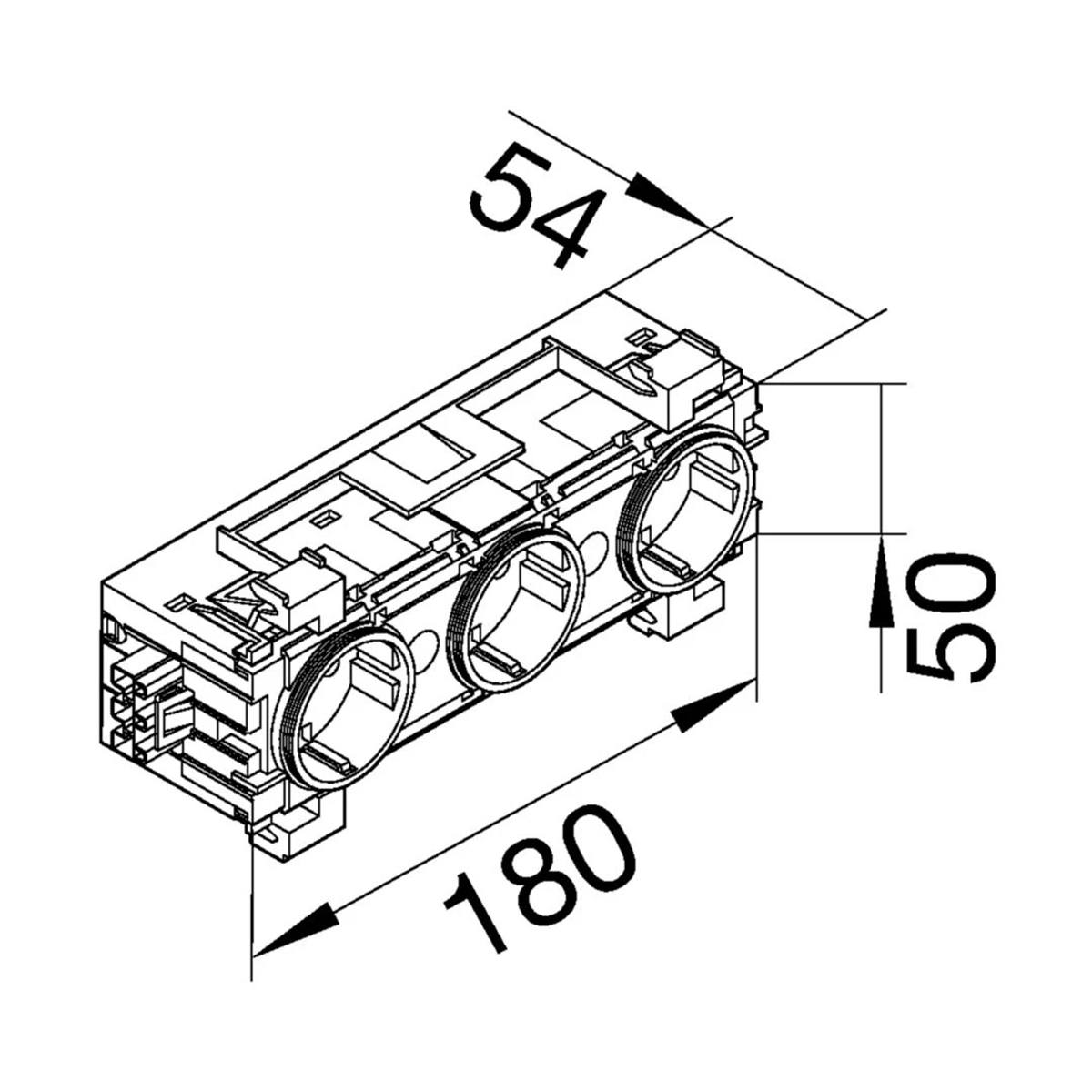

  • Width [mm]
    180
  • Connection type
    Quick Connect
  • Height [mm]
    50
  • Degree of mechanical protection
    IK07
  • Accurate color
    Anthracite
  • Wire cross-section (cord) [mm²]
    0.5/4
  • Standard
    European
  • On the DATA key
    NO

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    No
  • With built-in USB power supply
    No
  • Number of modules (module system)
    3
  • Number of phases
    1
  • With hinged lid
    No
  • Label space/information surface
    Yes
  • RAL-number (similar)
    9011
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Snap mounting (engagement)
  • Material quality
    Other
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK07
  • Device height
    50 mm
  • Protective contact
    Yes
  • With signal lamp
    No
  • Number of units
    3
  • Number of socket outlets switchable
    0
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    Yes
  • Colour
    Black
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Wall duct
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    180 mm
  • Device depth
    54 mm

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 10 pcs. 420 pcs.
Weight (kg) 0,279 2,940 143,480
Width (m) 0,082 0,200 0,800
Length (m) 0,066 0,135 1,028
Depth (m) 0,197 0,400 1,200
