TEHALIT.WA SCHUKO socket 3-way connection WAGO C-profile red GS30003020

Indice locale:
MGE052TEHA
Numero di catalogo:
GS30003020
Codice EAN:
4012740851381
Produttore: TEHALIT
Halogen free: Yes
Depth [mm]: 61
Number of sockets: 3
Prezzo:
300,05 zł
gross / pezzi
(inclusa IVA 23%)
fino a 4 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

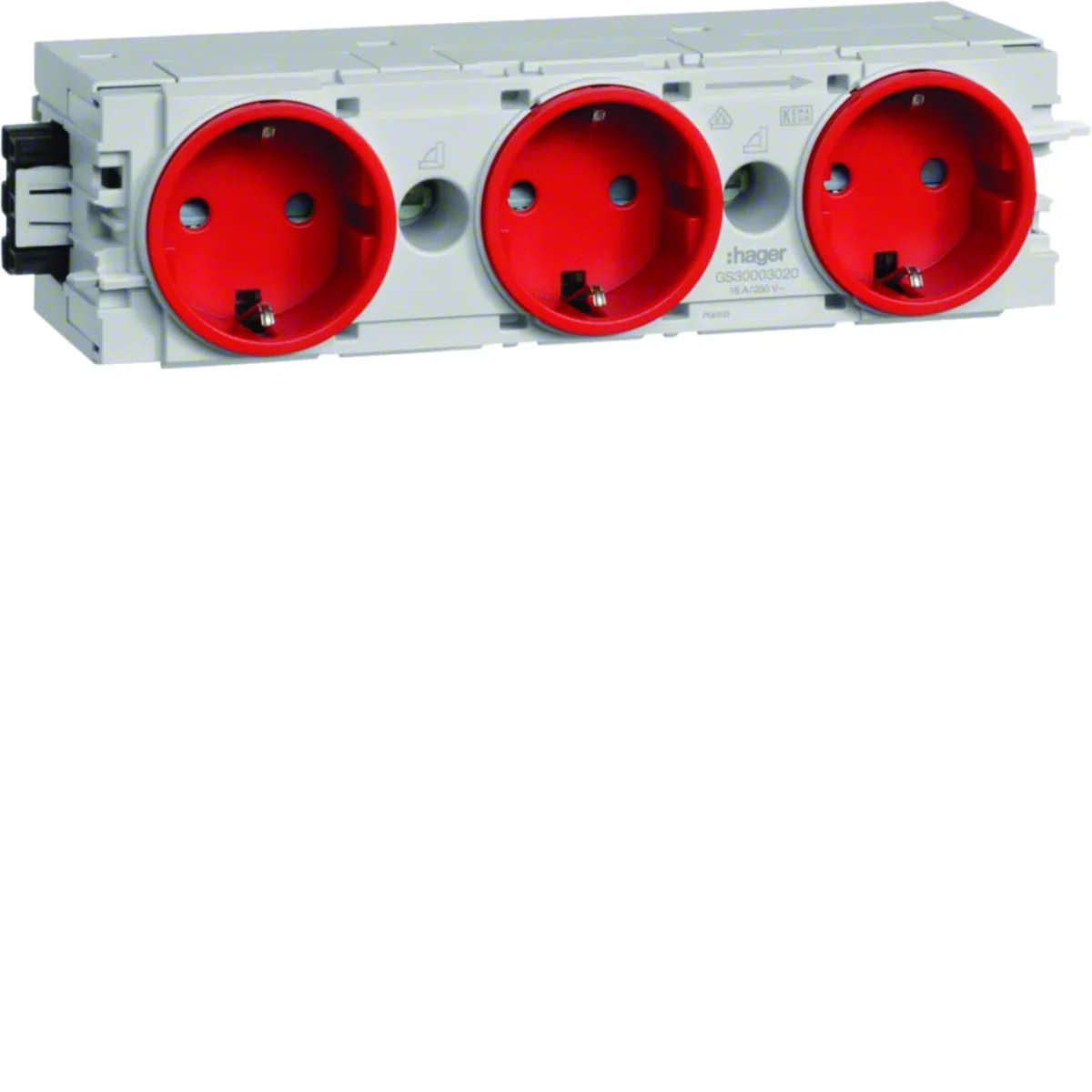

Channel electrical socket from the tehalit.WA series, from the manufacturer Hager. The product catalog number is GS30003020< /strong>.



FEATURES

  • Triple.
  • With SCHUKO Grounding.
  • Extended contact protection.
  • Color red.
  • Rated current < strong>16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • Connection system: Wago Winsta.
  • Mounting: wall channel.
  • Mounting method: C-profile.
  • Number of module locations: 3.
  • Number of available phases: 1.
  • Connection type: Quick Connect.
  • Number of inletsó ;wires: 2.
  • Number of strain reliefs: 2.
  • Insulated.

Dati tecnici

  • Halogen free
    Yes
  • Number of sockets
    3
  • Color
    Red
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Canal
  • Ground
    schuko
  • Surface protection
    Natural
  • Surface finish
    matte
  • Wire cross-section (cord) [mm²]
    0.5/4
  • Standard
    European
  • On the DATA key
    NO
  • Depth [mm]
    61
  • Number of modules
    3
  • Shape
    Rectangular
  • Installation
    C profile
  • Rated current [A]
    16
  • Family
    TEHALIT.WA

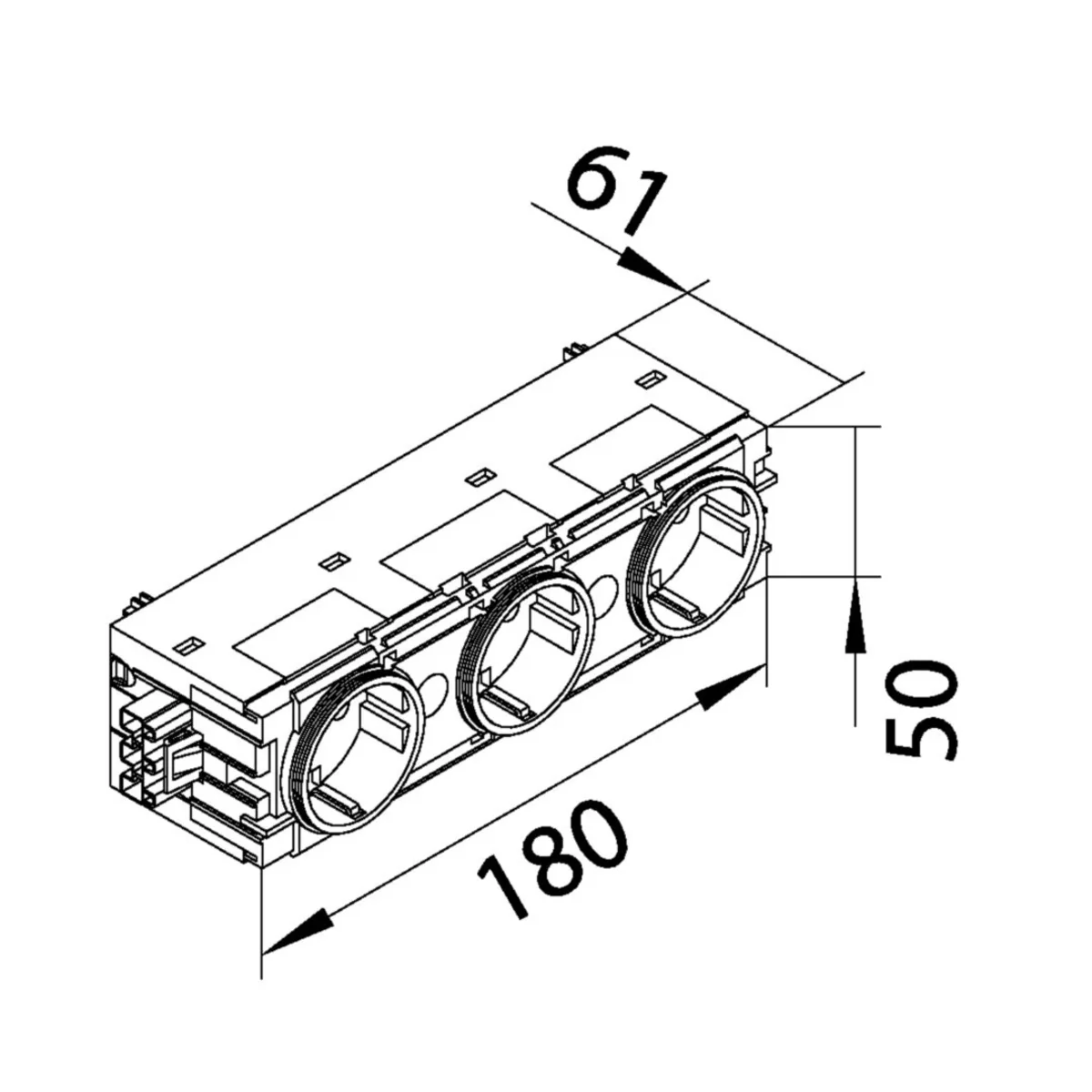

  • Width [mm]
    180
  • Connection type
    Quick Connect
  • Height [mm]
    50
  • Degree of mechanical protection
    IK07
  • Backlight
    NO
  • Conductor cross-section (wire) [mm²]
    1.5 / 2.5
  • Shutters of current paths
    Yes
  • PKWIU
    27.33.13.0

Altri dati tecnici

  • Model
    Socket outlet CEE 7/3 (type F)
  • Protective contact
    Earthing clips
  • Number of active contacts (flat)
    0
  • Mounting direction
    Horizontal and vertical
  • With signal lamp
    No
  • Number of ports USB-C
    0
  • Number of socket outlets
    3
  • Number of modules (module system)
    3
  • Number of phases
    1
  • Connection type
    Other
  • With enhanced contact protection
    Yes
  • Colour
    Red
  • Metallic colour
    No
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    Additional safety power supply (red)
  • Type of fastening
    Mounting with claw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • Number of loop throughs
    1
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK07
  • Device height
    50 mm
  • Min. depth of built-in installation box
    61 mm
  • Compatible with Amazon Alexa
    No
  • IFTTT support available
    No
  • With built-in bluetooth speaker
    No
  • Compliant with UK Building Regulations Part M
    No
  • Concurrently switching neutral conductor
    No
  • Number of active contacts (round)
    2
  • Number of active contacts (square)
    0
  • Assembly arrangement
    Basic element with housing top
  • Number of ports USB-A
    0
  • Max. current rating of USB power supply
    0 A
  • Gniazda z izolacją fazową
    No
  • Number of socket outlets switchable
    0
  • Imprint/indication
    None
  • With hinged lid
    No
  • Label space/information surface
    Yes
  • RAL-number (similar)
    3020
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Wall duct
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With loop through function
    Yes
  • With on/off switch
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    180 mm
  • Device depth
    61 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Google Assistant
    No
  • With Wi-Fi signal repeater
    No
  • For heavy conditions according to VDE
    No

Dettagli del produttore

Imballaggio sfuso

Una specie di pacchetto Karton Paleta
Quantità 10 pezzi 900 pezzi
Peso (kg) 3,105 299,450
Larghezza (m) 0,200 0,800
Lunghezza (m) 0,140 1,020
Profondità (m) 0,250 1,200
