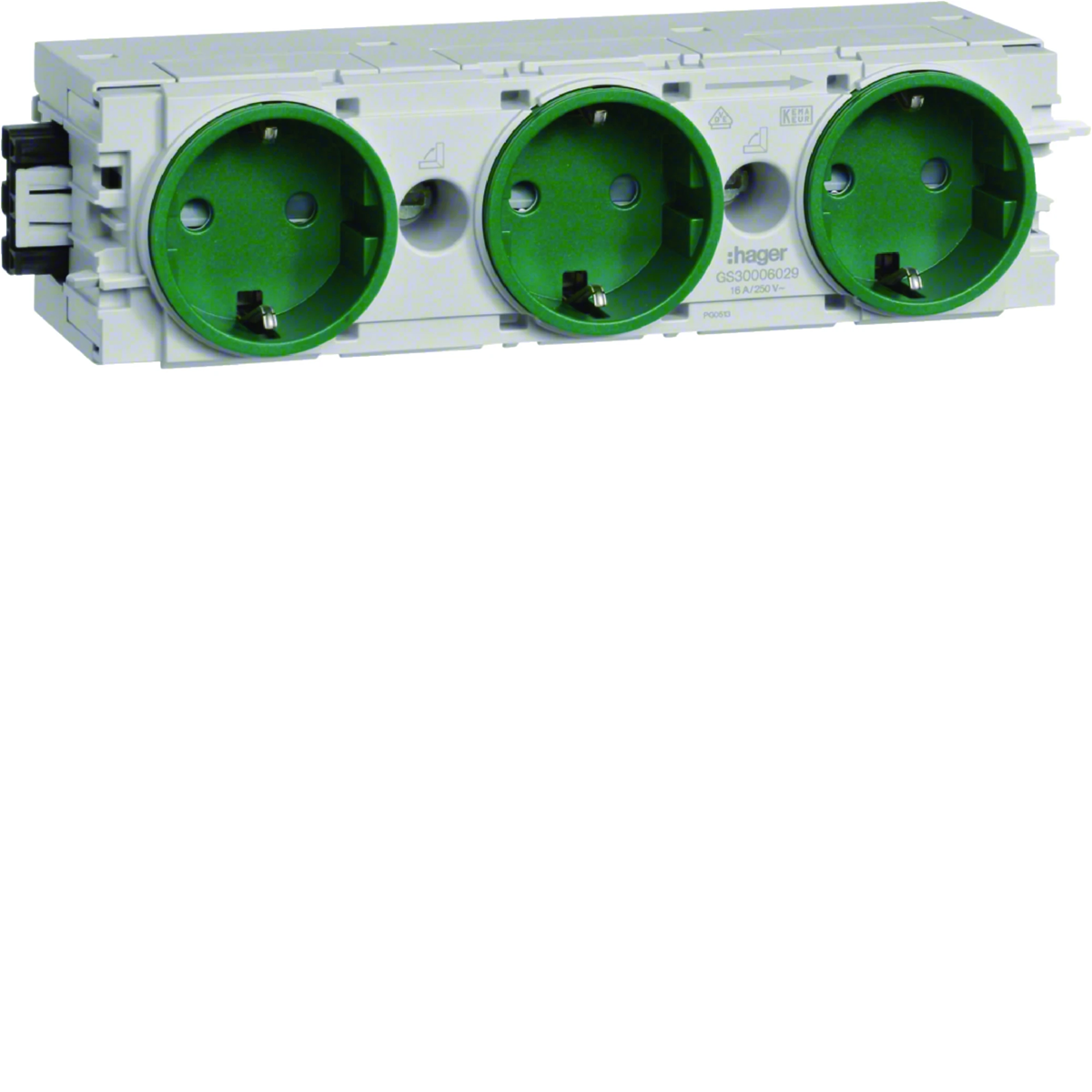

TEHALIT.WA SCHUKO socket 3-way connection WAGO C-profile green GS30006029

Místní index:
MGE053TEHA
Katalogové číslo.:
GS30006029
EAN kód:
4012740851398
Výrobce: TEHALIT
Halogen free: Yes
Depth [mm]: 61
Number of sockets: 3
Cena:
297,25 zł
gross / kusů.
(včetně DPH 23%)
do 4 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

Channel electrical socket from the tehalit.WA series, from the manufacturer Hager. The product catalog number is GS30006029< /strong>.



FEATURES

  • Triple.
  • With SCHUKO Grounding.
  • Extended contact protection.
  • Color green.
  • Rated current < strong>16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • Connection system: Wago Winsta.
  • Mounting: wall channel.
  • Mounting method: C-profile.
  • Number of module locations: 3.
  • Number of available phases: 1.
  • Connection type: Quick Connect.
  • Number of inletsó ;wires: 2.
  • Number of strain reliefs: 2.
  • Insulated.

Technické údaje

  • Halogen free
    Yes
  • Number of sockets
    3
  • Color
    Green
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Canal
  • Ground
    schuko
  • Surface protection
    Natural
  • Surface finish
    matte
  • Wire cross-section (cord) [mm²]
    0.5/4
  • Standard
    European
  • On the DATA key
    NO
  • Depth [mm]
    61
  • Number of modules
    3
  • Shape
    Rectangular
  • Installation
    C profile
  • Rated current [A]
    16
  • Family
    TEHALIT.WA

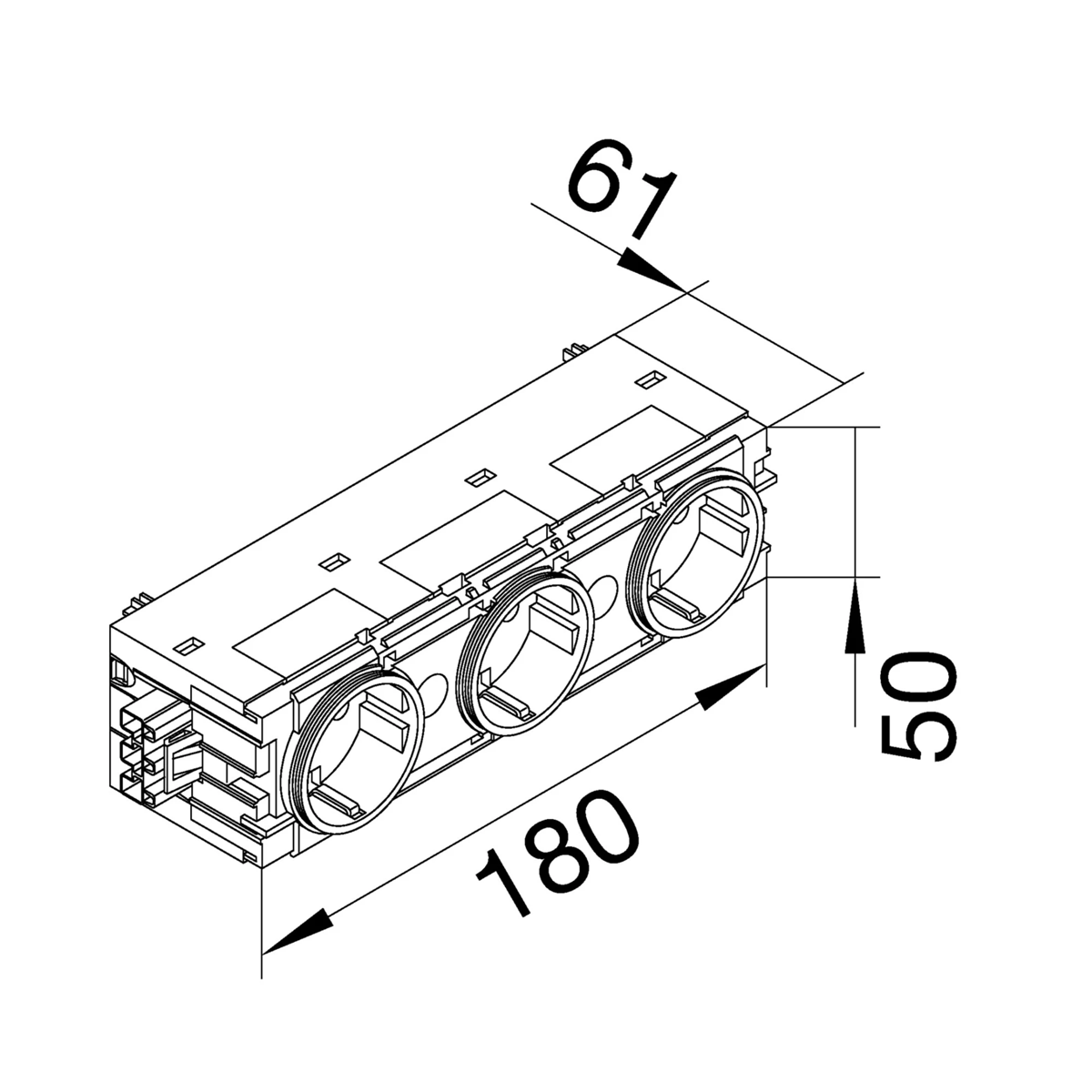

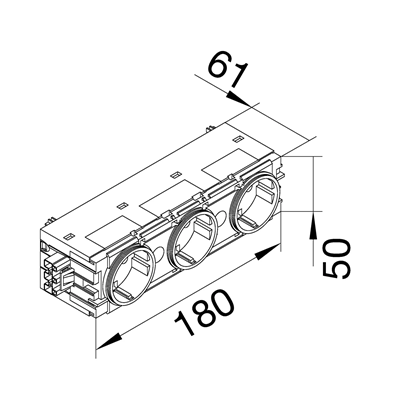

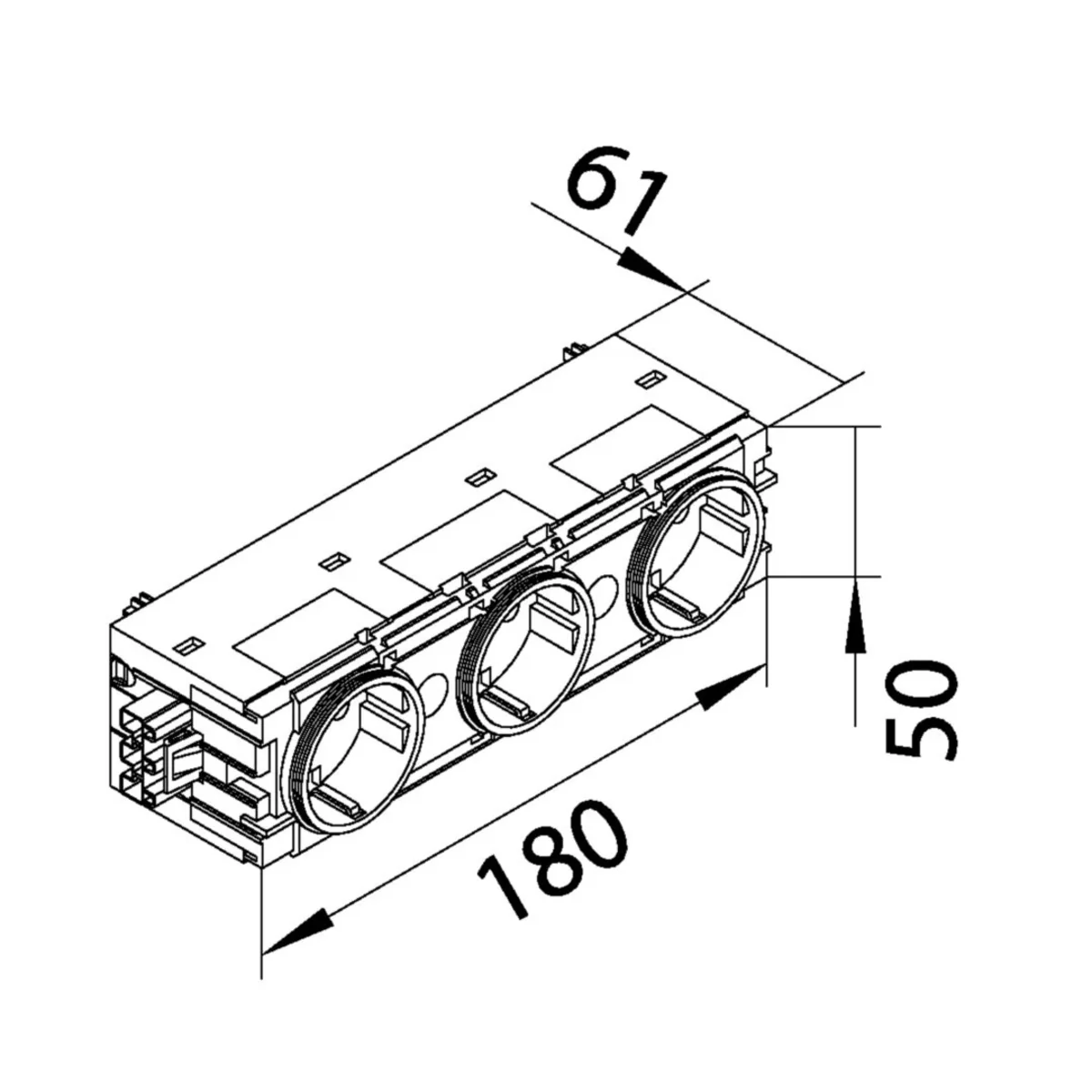

  • Width [mm]
    180
  • Connection type
    Quick Connect
  • Height [mm]
    50
  • Degree of mechanical protection
    IK07
  • Backlight
    NO
  • Conductor cross-section (wire) [mm²]
    1.5 / 2.5
  • Shutters of current paths
    Yes
  • PKWIU
    27.33.13.0

Další technické údaje

  • Model
    Socket outlet CEE 7/3 (type F)
  • Protective contact
    Earthing clips
  • Number of active contacts (flat)
    0
  • Mounting direction
    Horizontal and vertical
  • With signal lamp
    No
  • Number of ports USB-C
    0
  • Number of socket outlets
    3
  • Number of modules (module system)
    3
  • Number of phases
    1
  • Connection type
    Other
  • With enhanced contact protection
    Yes
  • Colour
    Green
  • Metallic colour
    No
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    Safety power supply (green)
  • Type of fastening
    Mounting with claw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • Number of loop throughs
    1
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK07
  • Device height
    50 mm
  • Min. depth of built-in installation box
    61 mm
  • Compatible with Amazon Alexa
    No
  • IFTTT support available
    No
  • With built-in bluetooth speaker
    No
  • Compliant with UK Building Regulations Part M
    No
  • Concurrently switching neutral conductor
    No
  • Number of active contacts (round)
    2
  • Number of active contacts (square)
    0
  • Assembly arrangement
    Basic element with housing top
  • Number of ports USB-A
    0
  • Max. current rating of USB power supply
    0 A
  • Gniazda z izolacją fazową
    No
  • Number of socket outlets switchable
    0
  • Imprint/indication
    None
  • With hinged lid
    No
  • Label space/information surface
    Yes
  • RAL-number (similar)
    6029
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Wall duct
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With loop through function
    Yes
  • With on/off switch
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    180 mm
  • Device depth
    61 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Google Assistant
    No
  • With Wi-Fi signal repeater
    No
  • For heavy conditions according to VDE
    No

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Karton Paleta
Množství 10 kusů. 900 kusů.
Hmotnost (kg) 3,105 299,450
Šířka (m) 0,200 0,800
Délka (m) 0,140 1,020
Hloubka (m) 0,250 1,200
