el12 Electrical equipment Sockets System sockets 45x45, CIMA, SIMON 500, Mosaic
el12 Electrical equipment Sockets Electric sockets
el12 sale El12 and HAGER

TEHALIT.WA SCHUKO socket 2-way 45° WAGO edge mounting green GS20116029

local index:
MGE086TEHA
Catalog No:
GS20116029
EAN code:
4012740851343
TEHALIT.WA SCHUKO socket 2-way 45° WAGO edge mounting green
TEHALIT.WA SCHUKO socket 2-way 45° WAGO edge mounting green
TEHALIT.WA SCHUKO socket 2-way 45° WAGO edge mounting green
TEHALIT.WA SCHUKO socket 2-way 45° WAGO edge mounting green

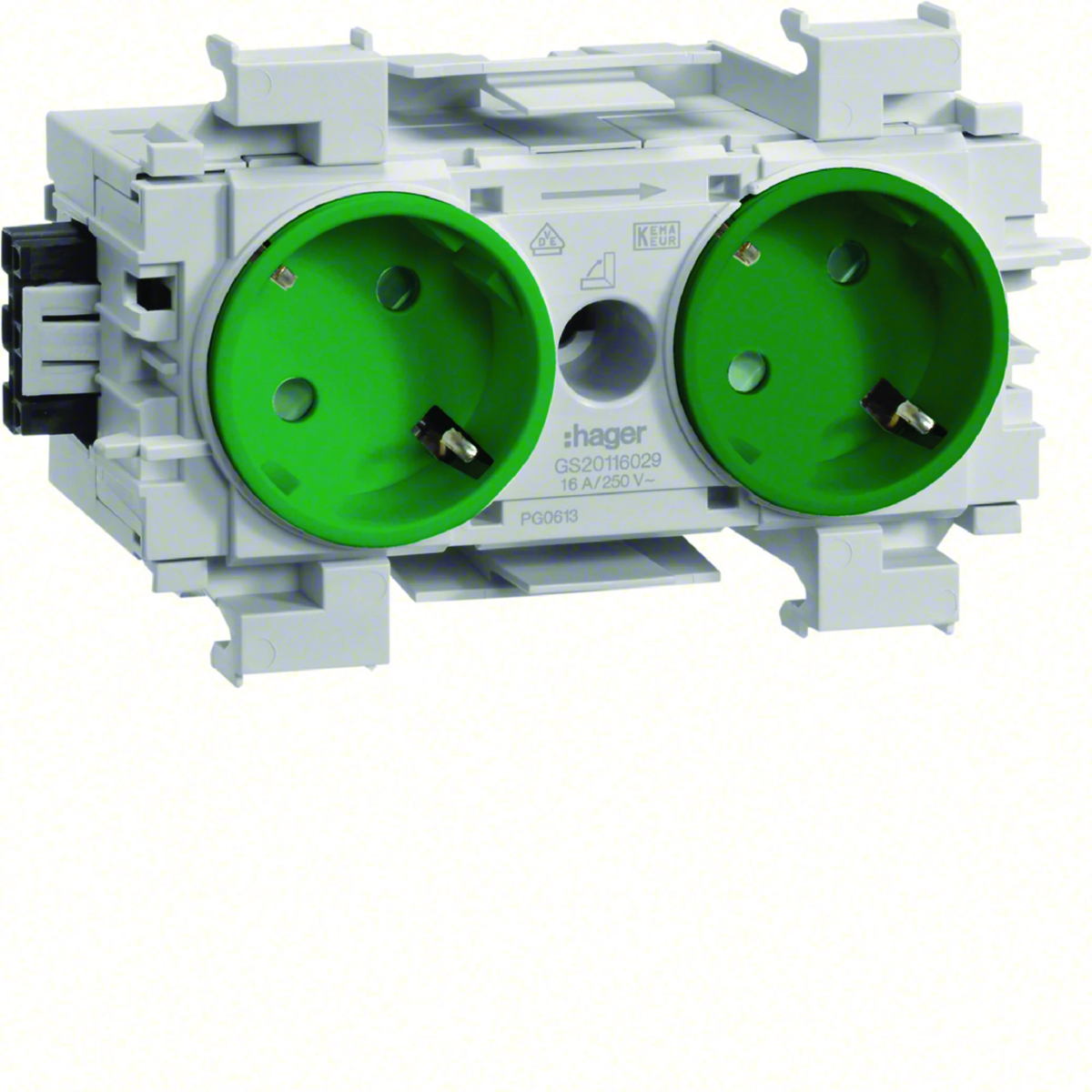

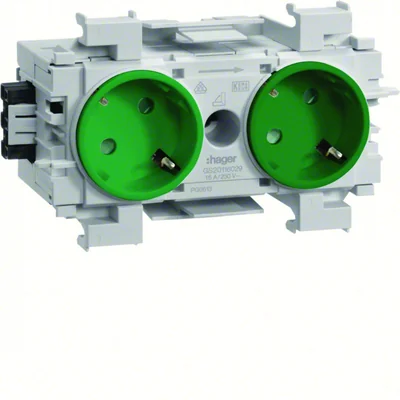

Click on the photo to enlarge

Manufacturer: TEHALIT
Halogen free: Yes
Depth [mm]: 54
Number of sockets: 2
See full description
Price:
38,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Channel electrical socket from the tehalit.WA series, from the manufacturer Hager. The product catalog number is GS20116029< /strong>.



FEATURES

  • Double.
  • With earthing SCHUKO.
  • Extended contact protection.
  • Color green.
  • Rated current < strong>16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • Connection system: Wago Winsta.
  • Edge mount.
  • Turned center insert (45°).
  • Number of module locations: 2.
  • Mounting: wall duct.
  • Number of available phases: 1.
    • < li>Type of connection: Quick Connect.
  • Number of cable entries: 2.
  • Number of strain reliefs: 2.
  • Insulated .

Technical data

  • Halogen free
    Yes
  • Number of sockets
    2
  • Color
    Green
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Canal
  • Ground
    schuko
  • Surface protection
    Natural
  • Backlight
    NO
  • Conductor cross-section (wire) [mm²]
    1.5 / 2.5
  • Shutters of current paths
    Yes
  • PKWIU
    27.33.13.0
  • Depth [mm]
    54
  • Number of modules
    2
  • Shape
    Rectangular
  • Installation
    edge
  • Rated current [A]
    16
  • Family
    TEHALIT.WA

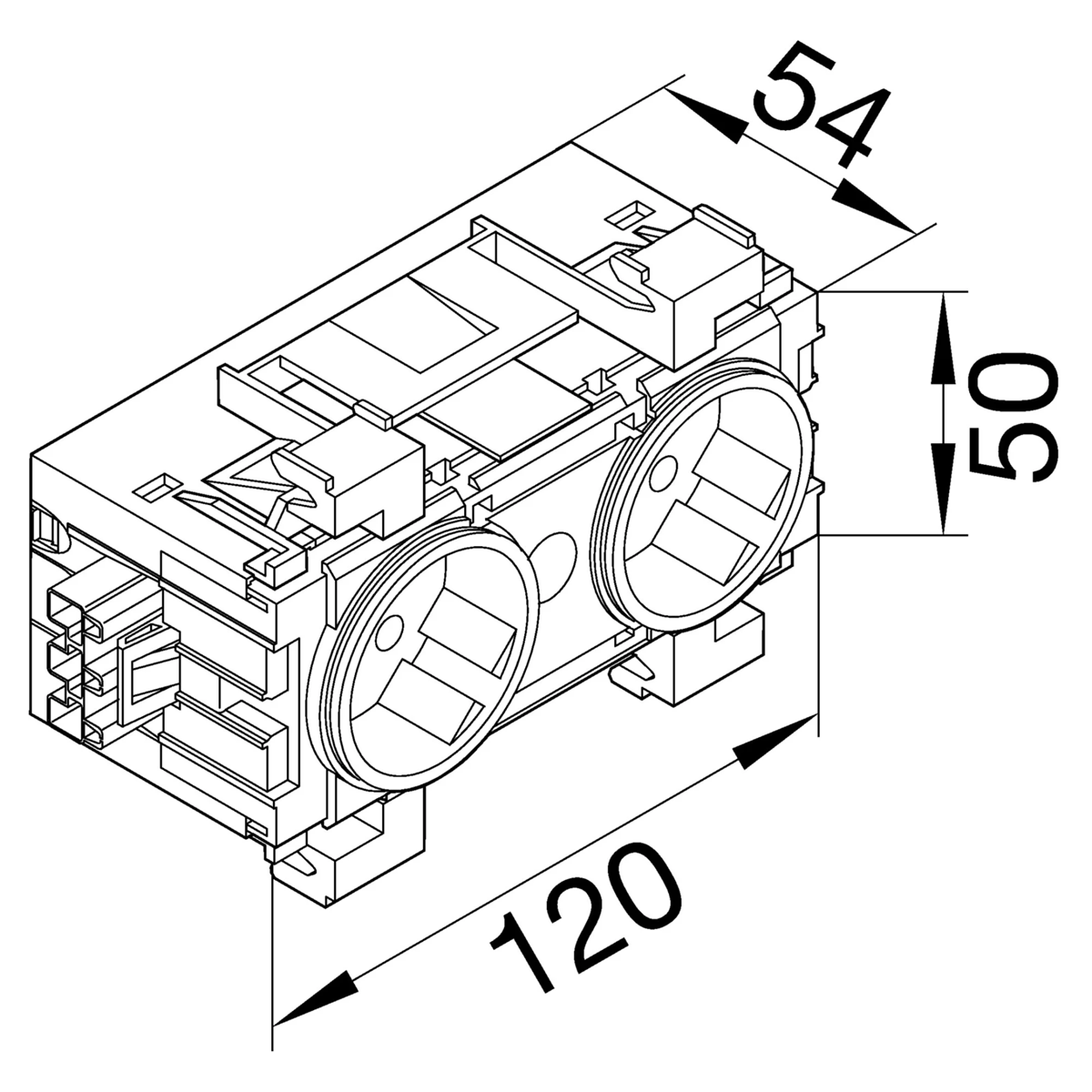

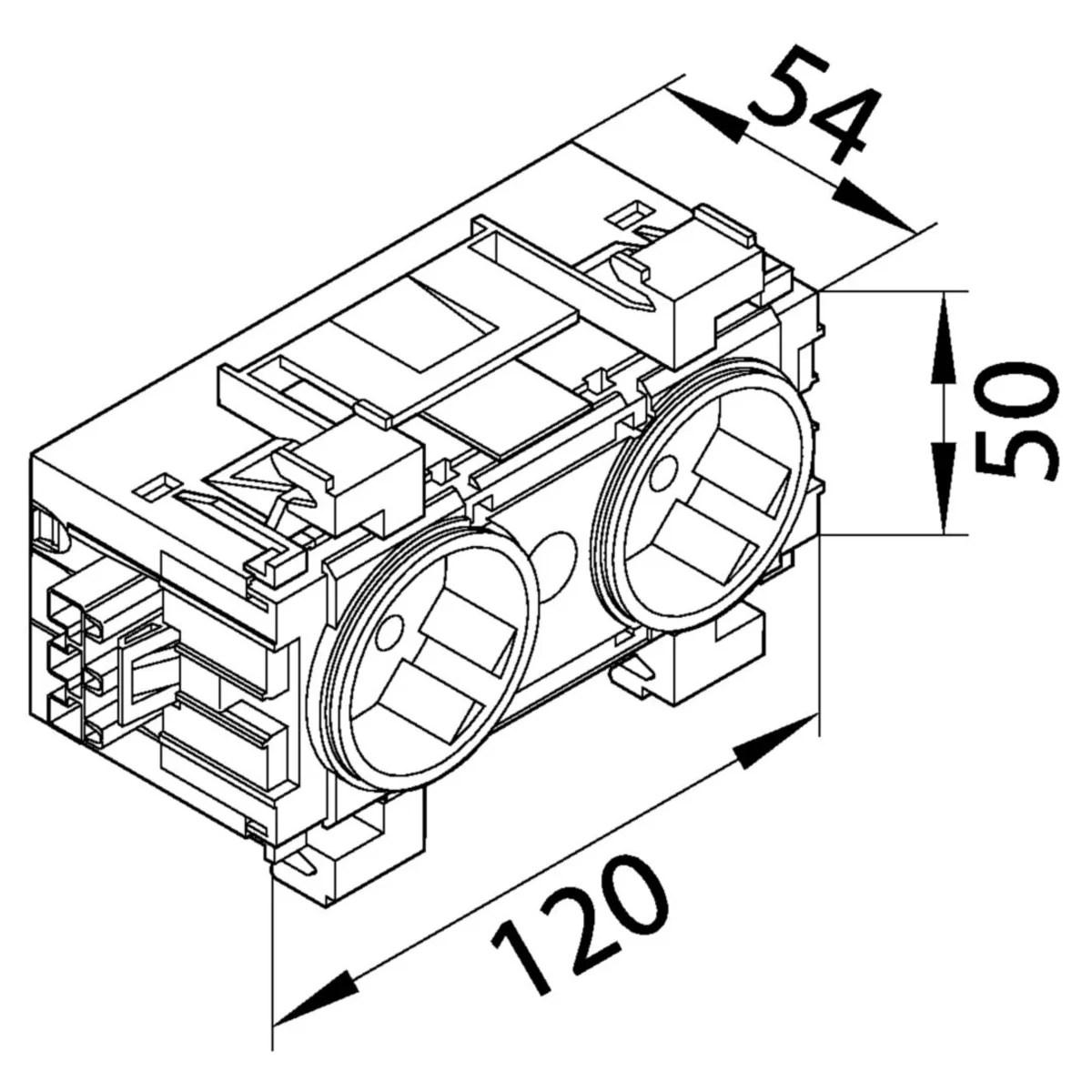

  • Width [mm]
    120
  • Connection type
    Quick Connect
  • Height [mm]
    50
  • Degree of mechanical protection
    IK07
  • Wire cross-section (cord) [mm²]
    0.5/4
  • Standard
    European
  • On the DATA key
    NO

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    No
  • With built-in USB power supply
    No
  • Number of modules (module system)
    2
  • Number of phases
    1
  • With hinged lid
    No
  • Label space/information surface
    Yes
  • RAL-number (similar)
    6029
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    Safety power supply (green)
  • Type of fastening
    Snap mounting (engagement)
  • Material quality
    Other
  • Surface protection
    Untreated
  • With on/off switch
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    120 mm
  • Device depth
    54 mm
  • Protective contact
    Yes
  • With signal lamp
    No
  • Number of units
    2
  • Number of socket outlets switchable
    0
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    Yes
  • Colour
    Green
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Wall duct
  • Material
    Other
  • Halogen free
    Yes
  • Anti-bacterial treatment
    No
  • Rotated central insert
    Yes
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK07
  • Device height
    50 mm

Manufacturer details

  • Manufacturer
    HAGER POLO Sp. z o. o.
  • Address
    43-100 Tychy Fabryczna 10
  • Tax identification number
    6460015532

Bulk packaging

A kind of package Karton Paleta
Quantity 10 pcs. 780 pcs.
Weight (kg) 0,314 44,492
Width (m) 0,400 0,800
Length (m) 0,140 1,020
Depth (m) 0,140 1,200

Files to download

GS20116029.pdf
