el12 Electrical equipment Sockets System sockets 45x45, CIMA, SIMON 500, Mosaic
el12 Electrical equipment Sockets Electric sockets
el12 sale El12 and HAGER

TEHALIT.WA SCHUKO socket 2-fold WAGO C-profile anthracite GS20009011

local index:
MGE037TEHA
Catalog No:
GS20009011
EAN code:
4012740851176

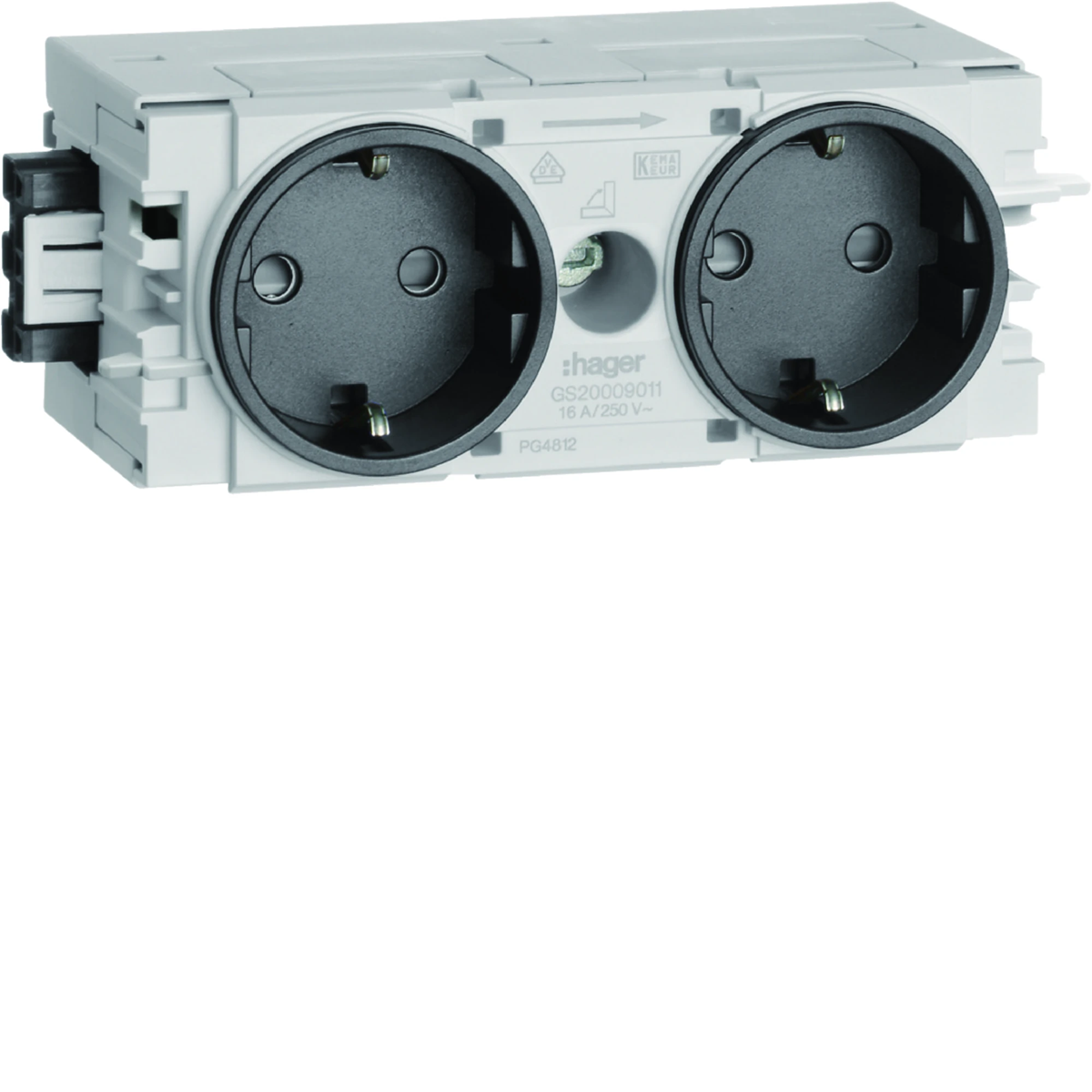

TEHALIT.WA SCHUKO socket 2-fold WAGO C-profile anthracite
TEHALIT.WA SCHUKO socket 2-fold WAGO C-profile anthracite
TEHALIT.WA SCHUKO socket 2-fold WAGO C-profile anthracite
TEHALIT.WA SCHUKO socket 2-fold WAGO C-profile anthracite

Click on the photo to enlarge

Manufacturer: TEHALIT
Halogen free: Yes
Depth [mm]: 61
Number of sockets: 2
See full description
Price:
27,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Channel electrical socket from the tehalit.WA series, from the manufacturer Hager. The product catalog number is GS20009011< /strong>.



FEATURES

  • Double.
  • With ground SCHUKO.
  • Extended contact protection.
  • Color anthracite.
  • Rated current < strong>16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • Connection system: Wago Winsta.
  • Mounting: wall duct.
  • Clamp connection.
  • Mounting method:  profile C.
  • Number of module locations: 2.
  • Number of available phases: 1.
  • Connection type: Quick Connect.
  • Number of conduit entries: 2.
  • Number of strain reliefs: 2.
  • Insulated.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    2
  • Color
    Graphite
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Canal
  • Ground
    schuko
  • Surface protection
    Natural
  • Surface finish
    matte
  • Backlight
    NO
  • Conductor cross-section (wire) [mm²]
    1.5 / 2.5
  • Shutters of current paths
    Yes
  • PKWIU
    27.33.13.0

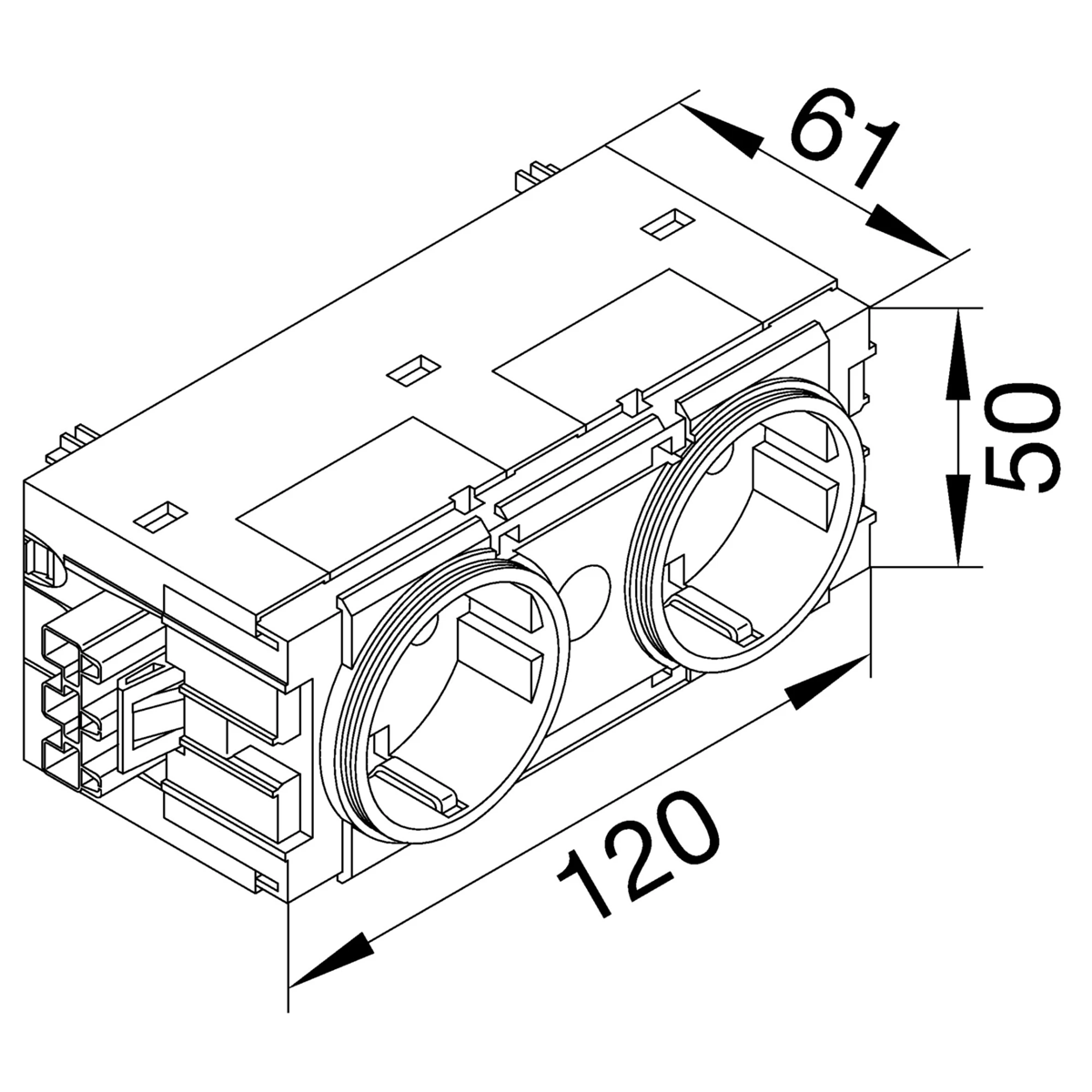

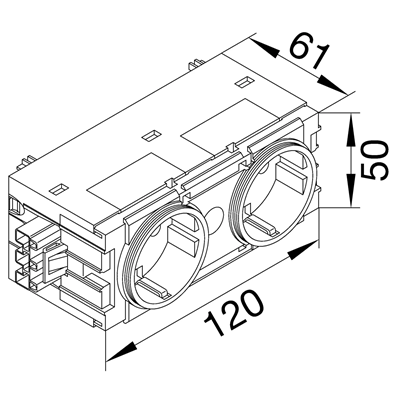

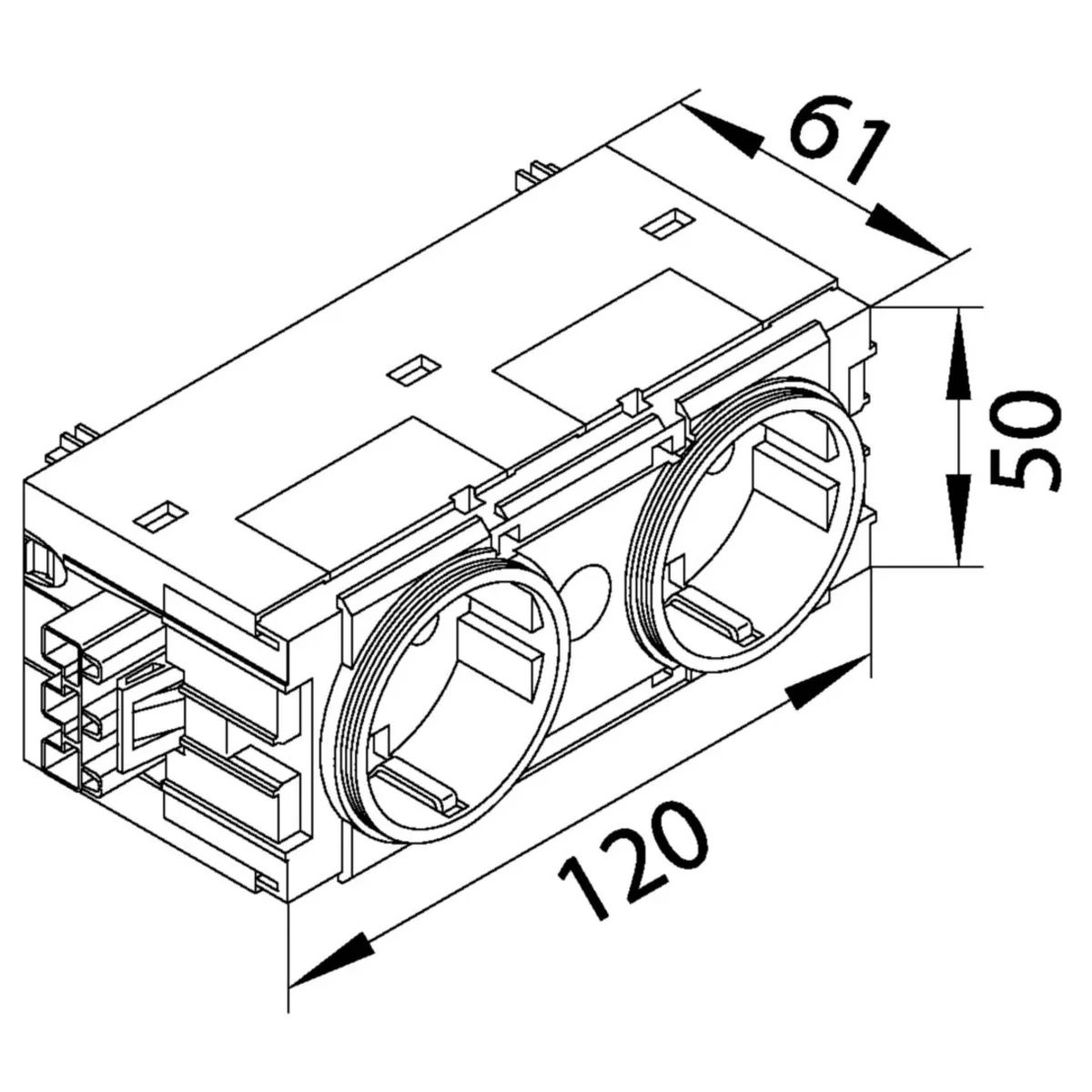

  • Depth [mm]
    61
  • Number of modules
    2
  • Shape
    Rectangular
  • Installation
    C profile
  • Rated current [A]
    16
  • Family
    TEHALIT.WA
  • Width [mm]
    120
  • Connection type
    Quick Connect
  • Height [mm]
    50
  • Degree of mechanical protection
    IK07
  • Accurate color
    Anthracite
  • Wire cross-section (cord) [mm²]
    0.5/4
  • Standard
    European
  • On the DATA key
    NO

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    No
  • With built-in USB power supply
    No
  • Number of modules (module system)
    2
  • Number of phases
    1
  • With hinged lid
    No
  • Label space/information surface
    Yes
  • RAL-number (similar)
    9011
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Other
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    Yes
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    120 mm
  • Device depth
    61 mm
  • Protective contact
    Yes
  • With signal lamp
    No
  • Number of units
    2
  • Number of socket outlets switchable
    0
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    Yes
  • Colour
    Black
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Wall duct
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK07
  • Device height
    50 mm

Manufacturer details

  • Manufacturer
    HAGER POLO Sp. z o. o.
  • Address
    43-100 Tychy Fabryczna 10
  • Tax identification number
    6460015532

Bulk packaging

A kind of package Karton Paleta
Quantity 10 pcs. 1440 pcs.
Weight (kg) 2,170 337,480
Width (m) 0,145 0,800
Length (m) 0,145 1,050
Depth (m) 0,255 1,200

Files to download

GS20009011.pdf
