TEHALIT.WA SCHUKO socket 2-fold 45° WAGO C-profile red GS20103020
local index:
MGE046TEHA
Catalog No:
GS20103020
EAN code:
4012740851268
Price:
39,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

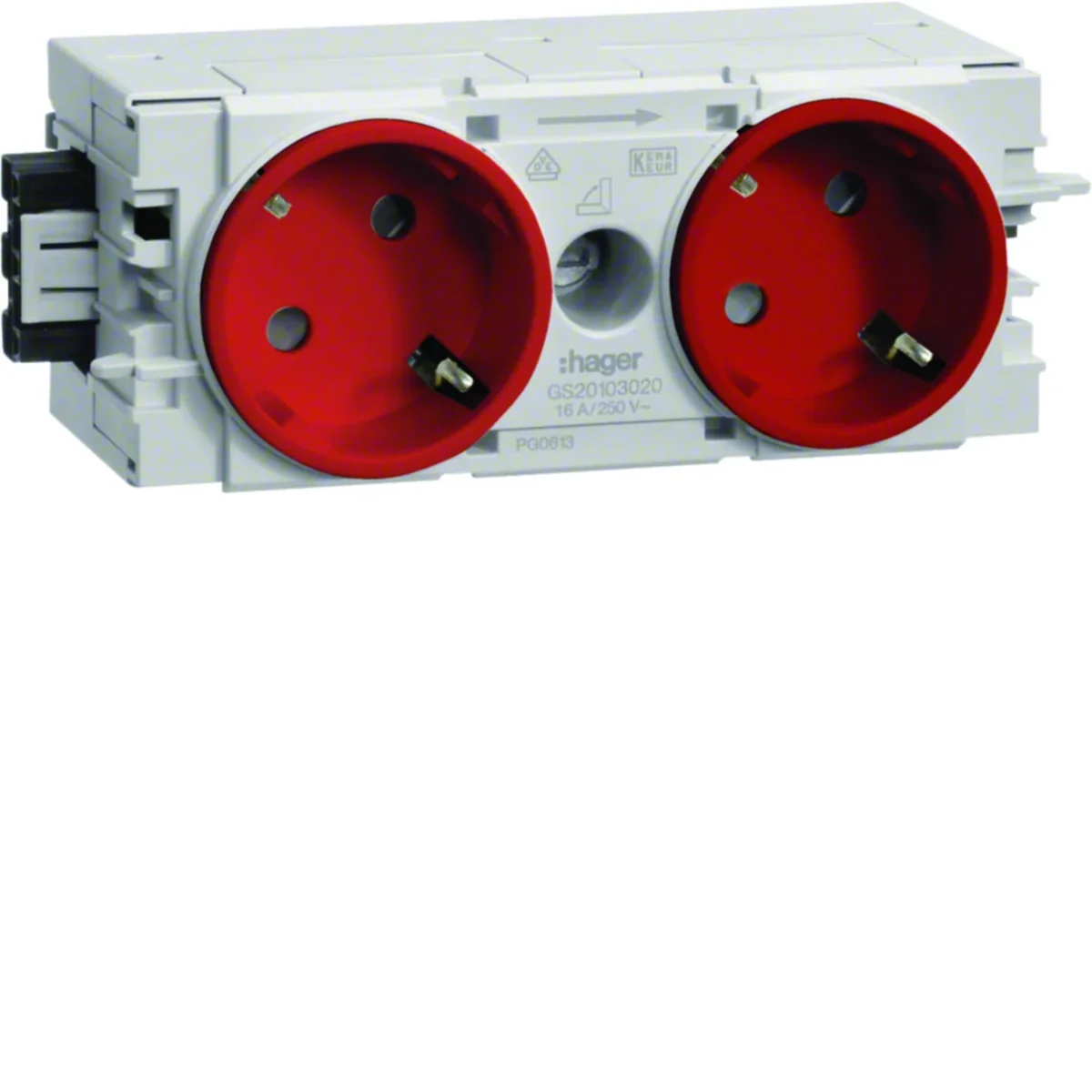

Channel electrical socket from the tehalit.WA series, from the manufacturer Hager. The product catalog number is GS20103020< /strong>.
FEATURES
- Double.
- With ground SCHUKO.
- Extended contact protection.
- Color red.
- Rated current < strong>16A.
- Rated voltage 230V.
- Ingress protection IP20.
- Connection system: Wago Winsta.
- Mounting: wall channel.
- Mounting method: C-profile.
- Central insert twisted (45°).
- Number of module locations: 2.
- Number of phases available: 1.
- Type of connection: Quick Connect.
- Number of cable entries: 2.
- Number of strain reliefs: 2.
- Isolated.
Technical data
-
Halogen freeYes
-
Number of sockets2
-
ColorRed
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeCanal
-
Groundschuko
-
Surface protectionNatural
-
BacklightNO
-
Conductor cross-section (wire) [mm²]1.5 / 2.5
-
Shutters of current pathsYes
-
PKWIU27.33.13.0
-

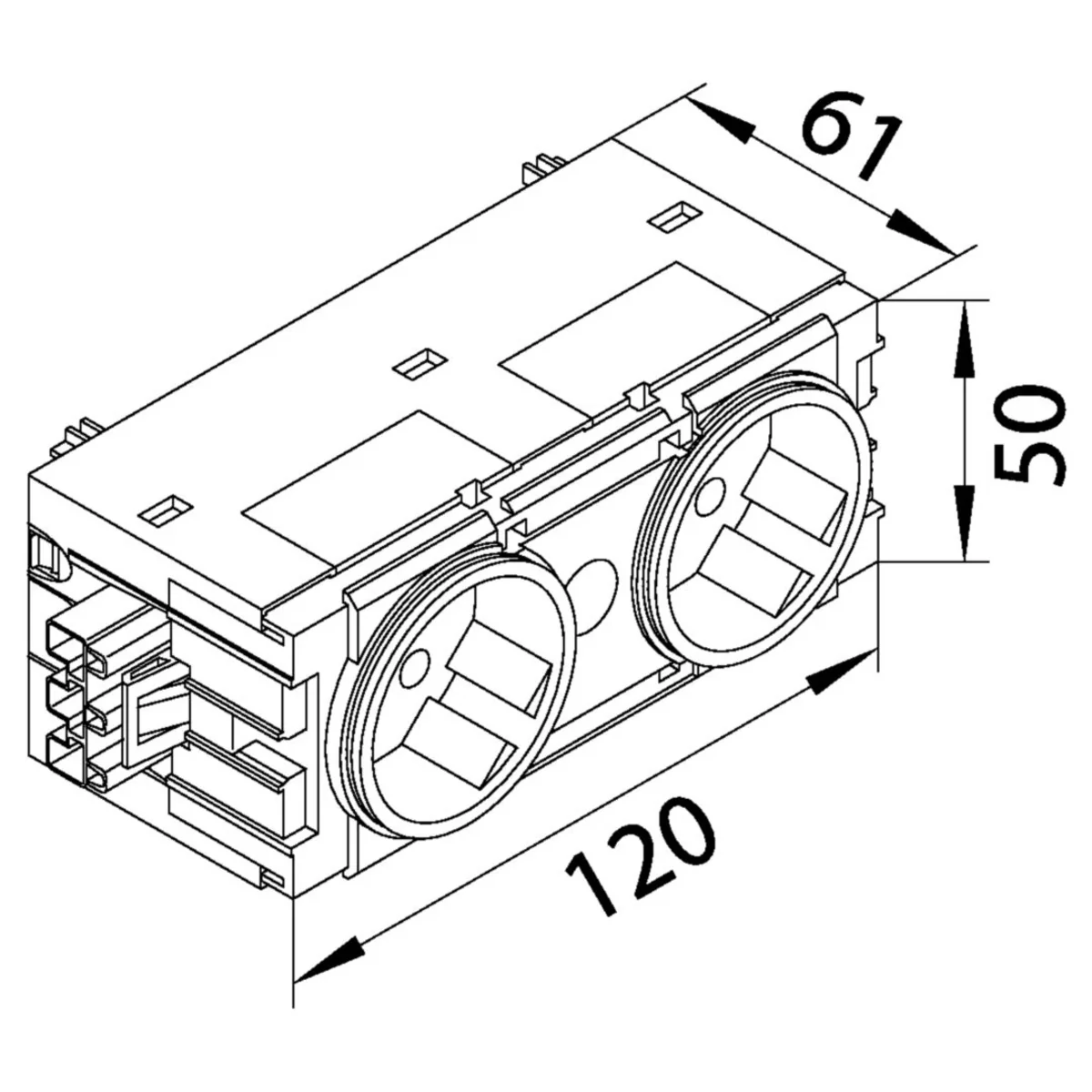

Depth [mm]61
-
Number of modules2
-
ShapeRectangular
-
InstallationC profile
-
Rated current [A]16
-
FamilyTEHALIT.WA
-
Width [mm]120
-
Connection typeQuick Connect
-
Height [mm]50
-
Degree of mechanical protectionIK07
-
Wire cross-section (cord) [mm²]0.5/4
-
StandardEuropean
-
On the DATA keyNO
Other technical data
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Okrągły styk ochronnyNo
-
With built-in USB power supplyNo
-
Number of modules (module system)2
-
Number of phases1
-
With hinged lidNo
-
Label space/information surfaceYes
-
RAL-number (similar)3020
-
LockableNo
-
Insulated mountingYes
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyAdditional safety power supply (red)
-
Type of fasteningMounting with claw and screw
-
Material qualityOther
-
Surface protectionUntreated
-
With on/off switchNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Suitable for degree of protection (IP)IP20
-
Device width120 mm
-
Device depth61 mm
-
Protective contactYes
-
With signal lampNo
-
Number of units2
-
Number of socket outlets switchable0
-
Connection typePush-in clamp
-
With enhanced contact protectionYes
-
ColourRed
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodWall duct
-
MaterialOther
-
Halogen freeYes
-
Anti-bacterial treatmentNo
-
Rotated central insertYes
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK07
-
Device height50 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 1440 pcs. |
| Weight (kg) | 0,157 | 2,170 | 335,480 |
| Width (m) | 0,050 | 0,145 | 0,800 |
| Length (m) | 0,067 | 0,145 | 1,026 |
| Depth (m) | 0,137 | 0,255 | 1,200 |
