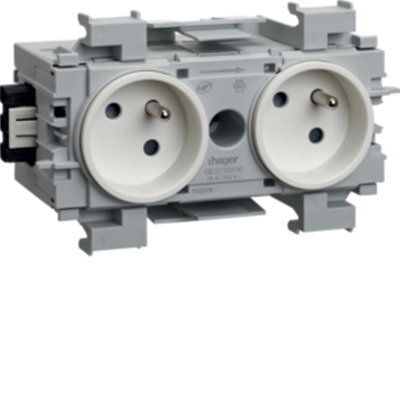

TEHALIT.WA Duct socket 2-fold 2P+Z WAGO edge mounting white GE20119010

local index:
MGE134TEHA
Catalog No:
GE20119010
EAN code:
4012740850933
Manufacturer: TEHALIT
Halogen free: Yes
Rated frequency [Hz]: 60
Depth [mm]: 54
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
12,08 €
gross / pcs.
(including VAT 23%)
Last lowest price: 39,03 € gross
Base price: 39,03 € gross -69%
Delivery in 3h
Accessible 1 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Print

Product description

Channel electrical socket from the tehalit.WA series, from the manufacturer Hager. The product catalog number is GE20119010< /strong>.



FEATURES

  • Double.
  • 2P+Z.
  • Grounded; ground pin.
  • Extended contact protection.
  • Connection system: Wago Winsta.
  • Mounting: wall duct.
  • Clamp connection.
  • Turned central insert.
  • Number of module locations: 2.
  • Mounting method: edge mounting.
  • Number of available phases: 1.
  • Insulated.

Technical data

  • Halogen free
    Yes
  • Depth [mm]
    54
  • Number of modules
    2
  • Shape
    Rectangular
  • Installation
    edge
  • Rated current [A]
    16
  • Family
    TEHALIT.WA
  • Width [mm]
    120
  • Ground
    Hurt
  • Surface protection
    Natural
  • Surface finish
    matte
  • Beacon
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Rated frequency [Hz]
    60
  • Number of sockets
    2
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Canal
  • Height [mm]
    50
  • Degree of mechanical protection
    IK07
  • Backlight
    NO
  • Conductor cross-section (wire) [mm²]
    1.5 / 2.5
  • Shutters of current paths
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • With signal lamp
    No
  • Number of units
    2
  • Number of socket outlets switchable
    0
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9010
  • Lockable
    No
  • Insulated mounting
    Yes
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Wall duct
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    Yes
  • Nominal voltage
    230 V
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    120 mm
  • Device depth
    54 mm
  • Okrągły styk ochronny
    No
  • With built-in USB power supply
    No
  • Number of modules (module system)
    2
  • Number of phases
    1
  • With enhanced contact protection
    Yes
  • Colour
    White
  • Transparent
    No
  • Eject-mechanism
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Snap mounting (engagement)
  • Material quality
    Other
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    Yes
  • Nominal current
    16 A
  • Frequency
    50 ... 50 Hz
  • Impact strength
    IK07
  • Device height
    50 mm
