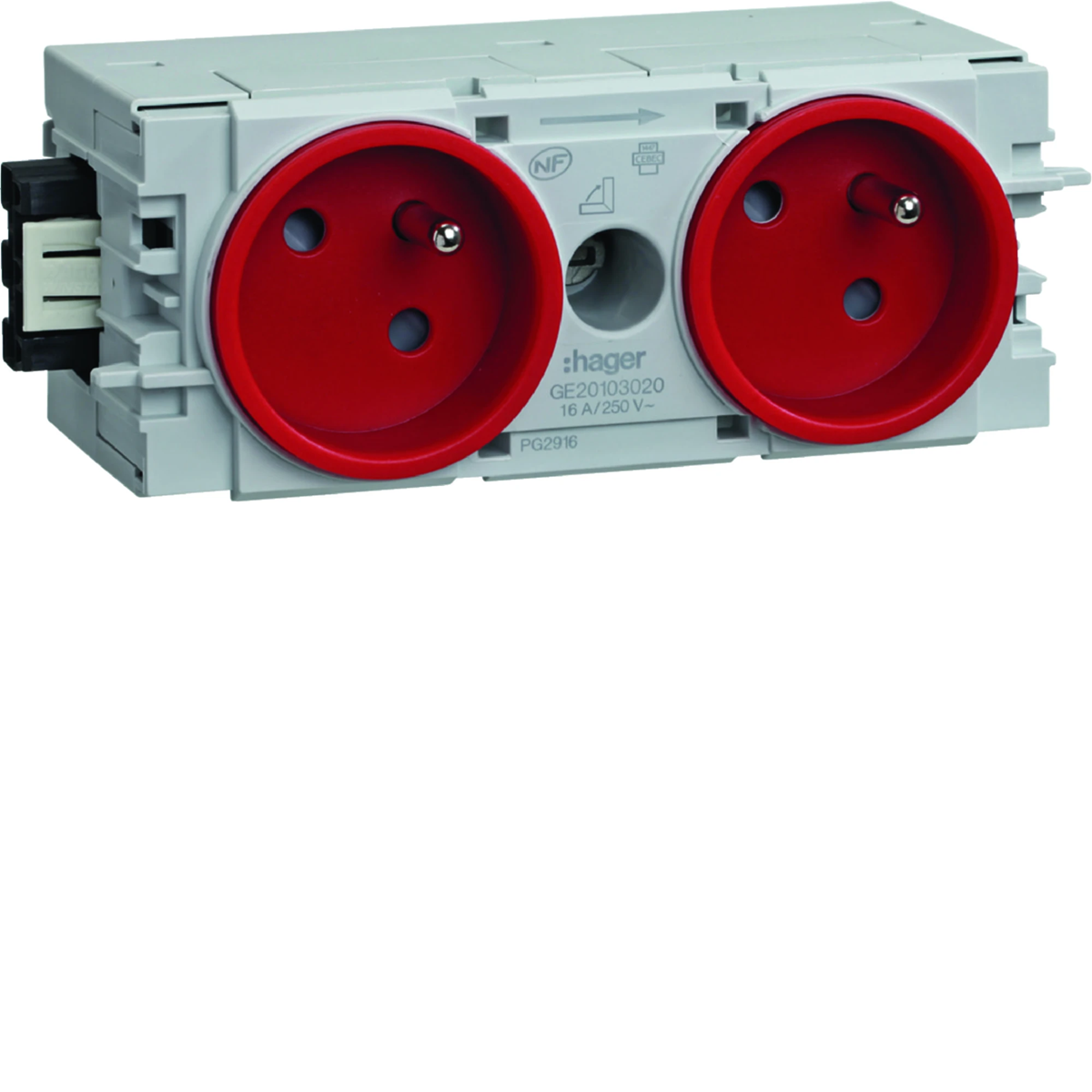

TEHALIT.WA Duct socket 2-fold 2P+Z WAGO C-profile red GE20103020

local index:
MGE005TEHA
Catalog No:
GE20103020
EAN code:
4012740850896
Manufacturer: TEHALIT

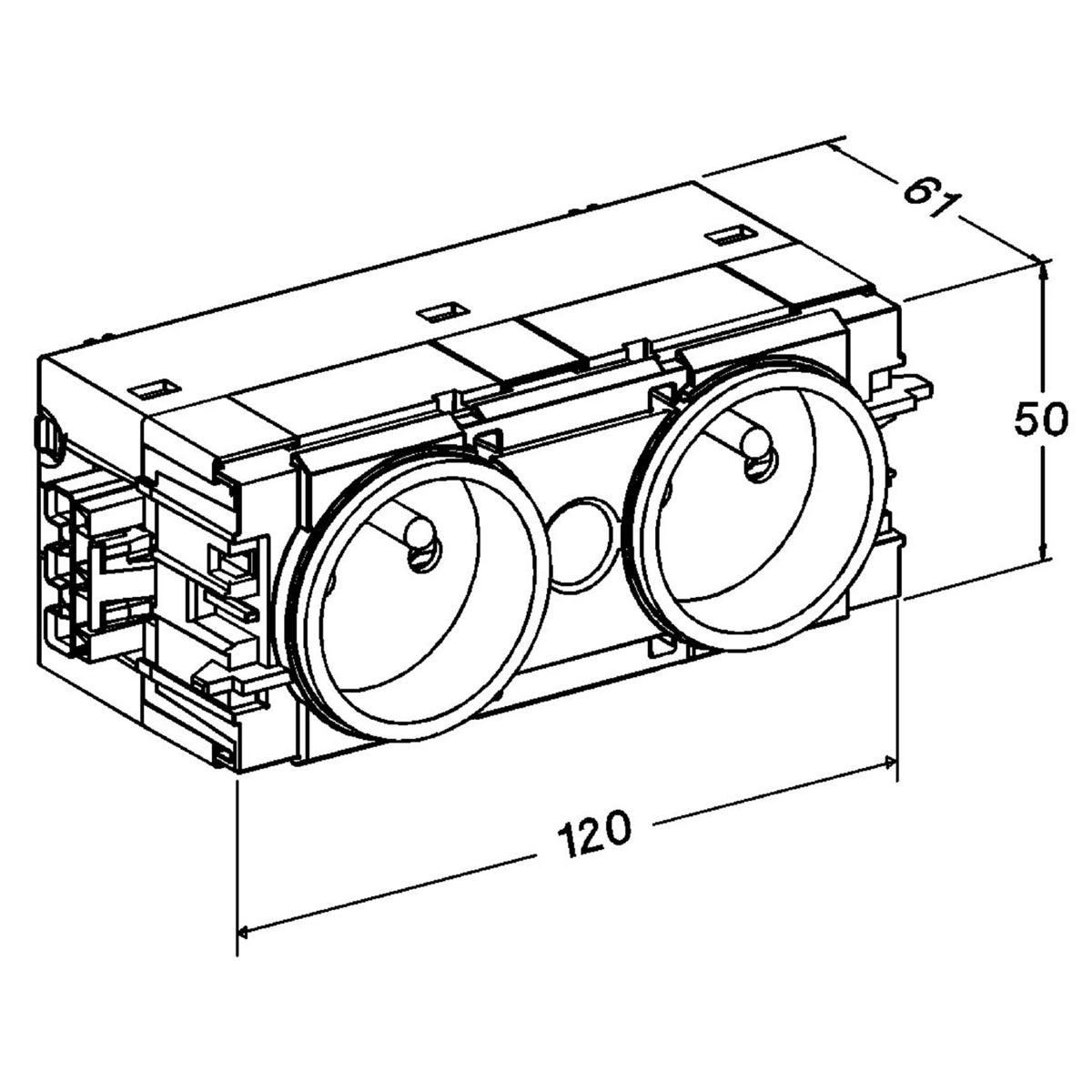

Depth [mm]: 61
Number of sockets: 2
Number of modules: 2
Price:
32,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Channel electrical socket from the tehalit.WA series, from the manufacturer Hager. The product catalog number is GE20103020< /strong>.



FEATURES

  • Double.
  • 2P+Z.
  • Grounded; ground pin.
  • Extended contact protection.
  • Color red.
  • Rated current < strong>16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • Connection system: Wago Winsta.
  • Mounting: wall duct.
  • Clamp connection.
  • Central insert turned.< /li>
  • Number of module locations: 2.
  • Mounting method: C-profile.
  • Number of available phases: 1.

Technical data

  • Depth [mm]
    61
  • Number of modules
    2
  • Shape
    Rectangular
  • Installation
    C profile
  • Rated current [A]
    16
  • Family
    TEHALIT.WA
  • Width [mm]
    120
  • Ground
    Hurt
  • Surface protection
    Natural
  • Surface finish
    matte
  • Conductor cross-section (wire) [mm²]
    1.5 / 2.5
  • Shutters of current paths
    Yes
  • PKWIU
    27.33.13.0
  • Number of sockets
    2
  • Color
    Red
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Canal
  • Height [mm]
    50
  • Degree of mechanical protection
    IK07
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • With signal lamp
    No
  • Number of units
    2
  • Number of socket outlets switchable
    0
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    3020
  • Lockable
    No
  • Insulated mounting
    Yes
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Wall duct
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    Yes
  • Nominal voltage
    230 V
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    120 mm
  • Device depth
    61 mm
  • Okrągły styk ochronny
    No
  • With built-in USB power supply
    No
  • Number of modules (module system)
    2
  • Number of phases
    1
  • With enhanced contact protection
    Yes
  • Colour
    Red
  • Transparent
    No
  • Eject-mechanism
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Other
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    Yes
  • Nominal current
    16 A
  • Frequency
    50 ... 50 Hz
  • Impact strength
    IK07
  • Device height
    50 mm

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 10 pcs. 1440 pcs.
Weight (kg) 0,200 2,230 344,120
Width (m) 0,050 0,145 0,800
Length (m) 0,067 0,145 1,050
Depth (m) 0,137 0,260 1,200
